12V LED Flood Lights Waterproof Buying Guide for Importers

If you’re purchasing weatherproof LED flood lights for maritime, offshore, or heavy industrial applications, this guide provides you with the scientific background and procurement clarity you need. Whether you are a shipyard buying manager in Norway, a dock facility engineer in Singapore, or an industrial equipment supplier in the UAE, selecting the correct 12V LED flood lights waterproof product may directly affect project schedules, maintenance costs, and operational safety. This manual will lead you through the specs, how to choose, how to evaluate suppliers and the elements of installation so you can make a confident, well-backed choice before making your first bulk purchase.

Understanding 12V Waterproof LED Flood Lights

Low voltage waterproof flood lights are not merely “smaller versions” of regular fixtures. They have a particular technical function — they provide a high luminous output from small sealed housings in moist, conductive conditions, and remove the danger of high-voltage shock.

How 12V LED Flood Lights Work

A 12V LED flood light runs on Safety Extra Low Voltage (SELV) and is powered by a dedicated DC source , solar battery bank or vehicle electrical system . The integrated controller controls and converts current to the LED chips to provide a constant light output despite variations in input voltage, a typical problem on boats where the battery voltage may vary between 12.6V and 14.4V when charging.

IP Ratings Explained: IP65 vs. IP67

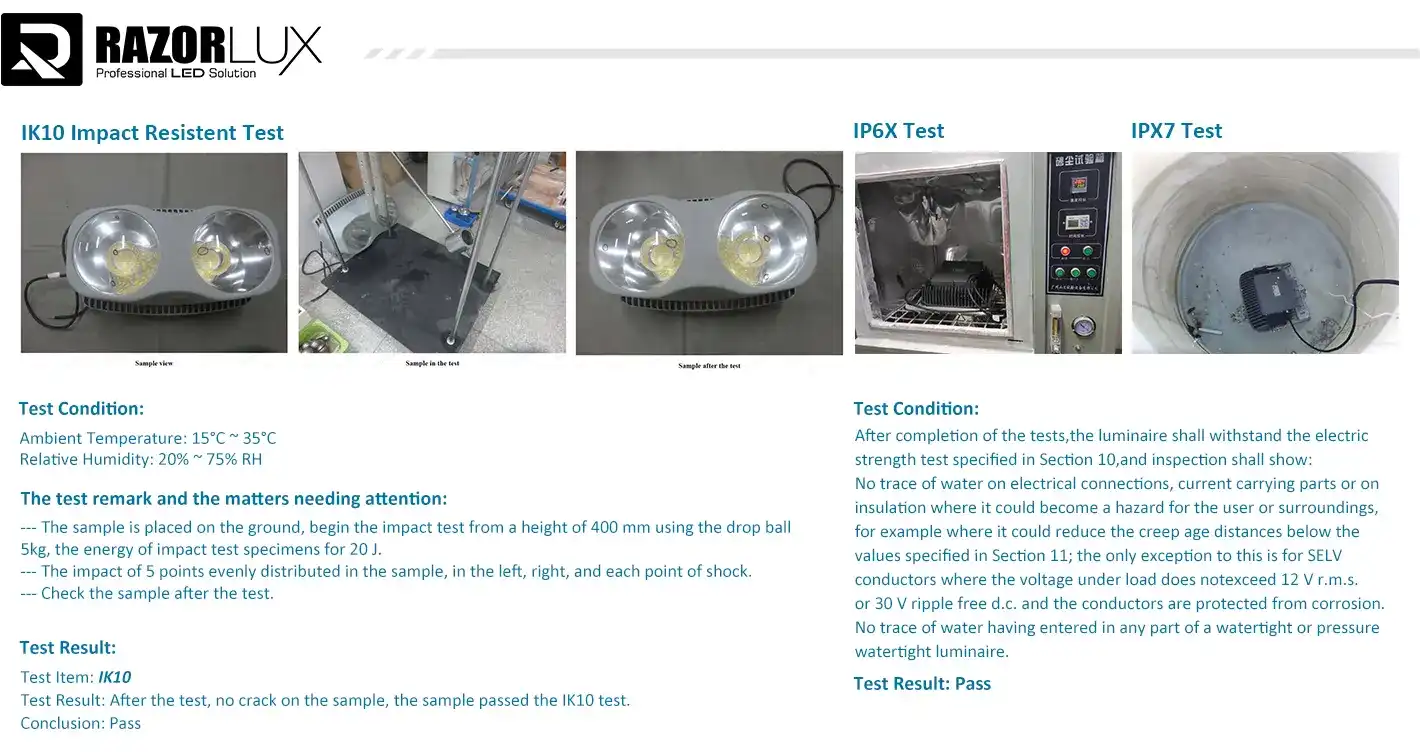

The IP (Ingress Protection) rating shows you just how effectively the fixture keeps water and dust out. IP65 can resist low-pressure water jets, thus may be used in the rain or while hosed down. IP67 permits temporary immersion up to one meter for 30 minutes – the appropriate option for ship decks, bilge regions, and port locations where pooling water is prevalent. IP67 is the minimum acceptable rating for most marine and industrial customers.

Waterproof vs. Non-Waterproof Models: What's the Real Difference?

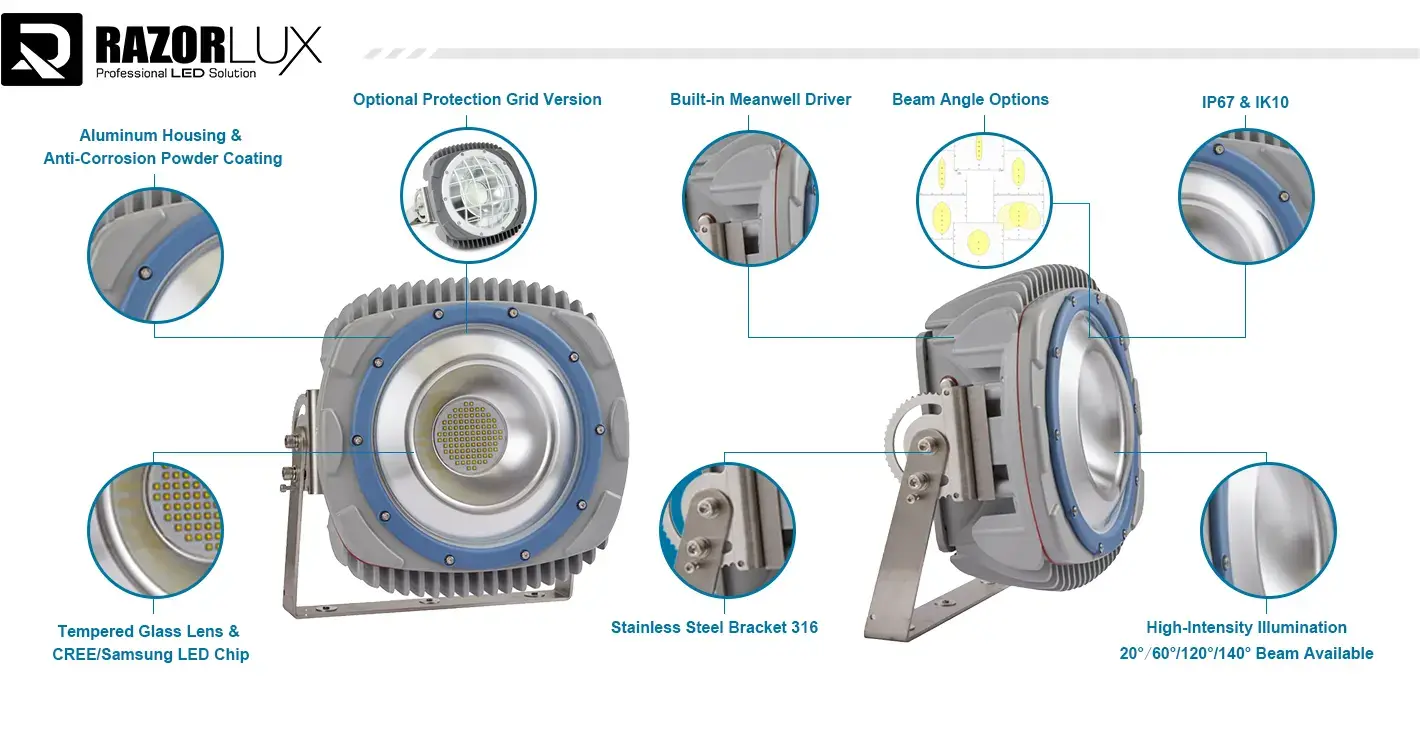

LED flood lights that are not designed to be waterproof have an open rear housing and utilize passive ventilation to remove heat. They are good inside, but rapidly deteriorate in humid, salt-spray, or outdoor conditions. Waterproof variants are hermetically sealed in die-cast aluminum housings with silicone gaskets and potted driver chambers. This sealed structure provides thermal resistance, therefore premium 12v led flood lights waterproof fixtures use well-designed heat sinks for thermal management rather than airflow.

Key Considerations When Choosing 12V Waterproof LED Flood Lights

Procurement decisions in marine and industrial sectors go beyond price per unit. Technical reviewers in your engineering department will check specifications carefully — and they should. Here are the core parameters that determine whether a fixture actually performs in the field.

These parameters aren't abstract — they directly map to operational cost, safety compliance, and maintenance scheduling across a 5–10 year asset lifecycle.

Lumens, Wattage, and Beam Angle Selection

A 90W fixture with 130 lm/W effectiveness would provide around 11,700 lumens — which equates to replacing a 150W-250W HID bulb. The choice of beam angle relies on your application geometry. Use narrow beams (15° to 30°) to focus light over long distances and secure dock perimeters. Medium beams (60°–120°). A medium beam provides vast area coverage on ship decks or warehouse floors. The wide asymmetric beam (140°x60°) is a good choice for wall-mounted floodlighting of huge vertical surfaces such as the structures of a shipyard.

Color Temperature and CRI for Work Environments

Marine vessels and offshore platforms use 5000K to 6500K color temperature for the decks to enhance visibility during night-time operations and to minimize eye strain during long periods of labor. Crew members can distinguish color-coded safety equipment, pipe labels, and danger markings correctly with a color rendering index of more than Ra 75. If you need to carry out comprehensive inspection or maintenance work, the Ra 80 or Ra 90 models are worth the little extra in price.

Voltage Compatibility: 12V vs. 24V vs. Wide-Range Input

Pure 12V DC fixtures are ideal for solar powered distant locations and maritime boats having a 12V battery system. But many industrial and offshore procurement managers are increasingly leaning toward wide-range input devices that can handle both AC and DC over a large voltage spectrum. Take the Razorlux RGL-90A, for example. It can work with AC 80-315V and DC 80-400V, which means you can plug it into just about any power infrastructure without the need for extra converters – a huge plus when you’re moving between sites at a shipyard or port facility with mixed power systems.

Market Overview & Top Brands for 12V Waterproof LED Flood Lights

The global LED flood light market was valued at approximately USD 3.1 billion in 2023, with marine and industrial segments growing at a compound annual rate of around 7.2% through 2028, driven by energy regulations and HID replacement programs across Europe, Australia, and the Middle East (Grand View Research, 2023).

What Certifications Should You Require?

Certifications are non-negotiable for importers sourcing into regulated markets. Below is a quick reference for the most relevant standards:

Razorlux holds RMRS, CE, RoHS, SAA, C-Tick, UL, DLC, CB, and ISO 9001 certifications, covering the key markets of North America, Europe, Australia, Russia, and Southeast Asia.

Evaluating Supplier Component Quality

The housing design is far less important than the interior components in terms of the actual world durability of a 12V LED flood light waterproof. The brand of power supply is very important – Mean Well drivers are known in the industry for their consistent output, broad input tolerance, and extended service life. The source of the 12v led flood lights waterproof chip also impacts lumen maintenance over time. Suppliers who include Samsung or equivalent Tier-1 chips in their product documentation provide procurement teams with a verifiable quality anchor. If you need technical documentation, please ask for driver brand, chip brand, and lumen degradation data (L70 or L80 values at 50,000 hours).

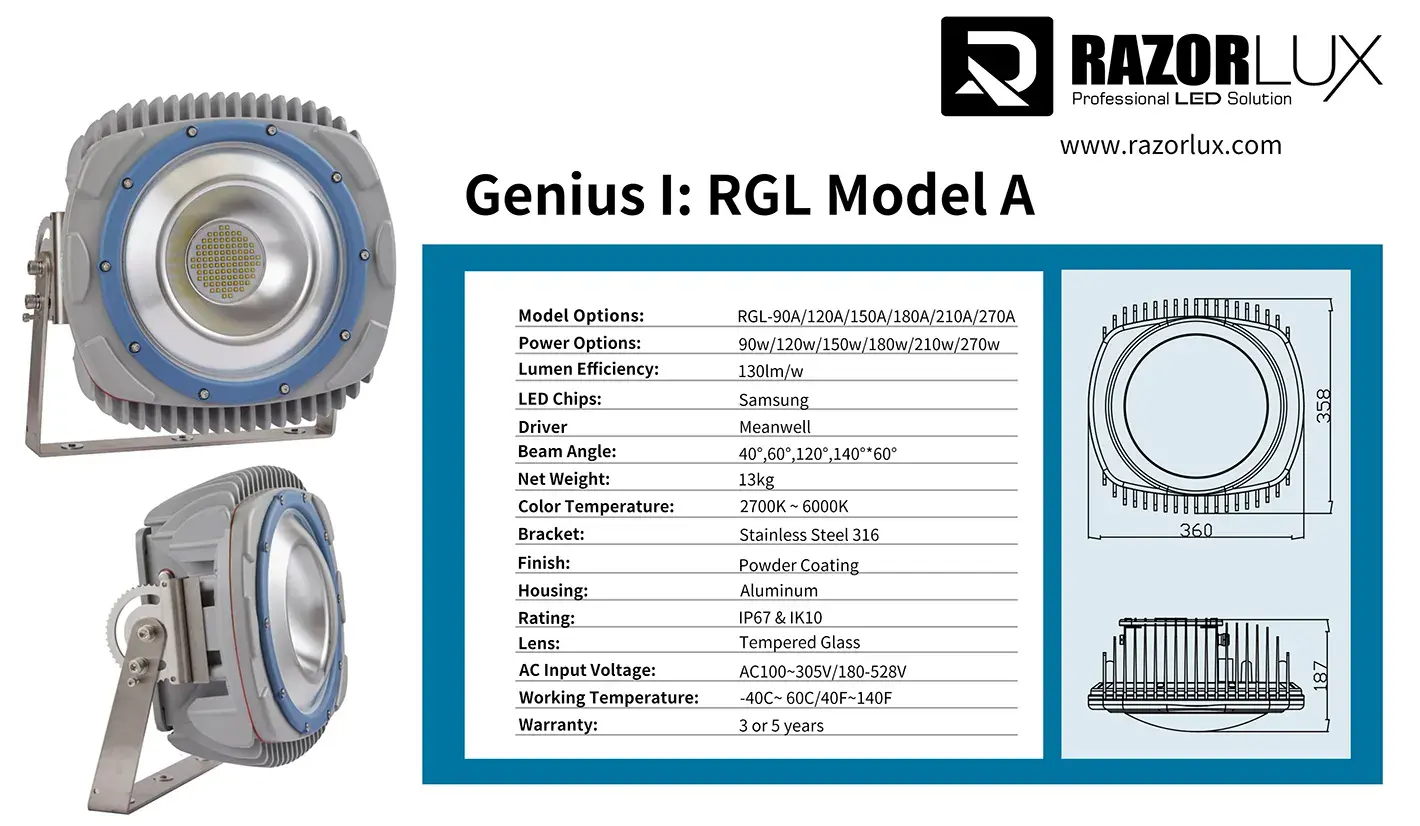

Razorlux RGL-90A: A Specification Benchmark

Since 1998, Razorlux has been producing maritime and industrial LED lighting and has more than 200 patents in LED Packaging, power management, and structural design. The RGL-90A type offers 10,800 lumens at steady flux (measured at 5700K after 1 hour of operation) with a total power consumption of 90W, replacing 150W-250W HID bulbs. The enclosure is die-cast aluminum, powder-coated, with a stainless steel mounting bracket for corrosion protection in salt spray situations. The Mean Well driver powers the port and dock facilities, with power factor ≥0.98 and THD ≤ 10%, satisfying the grid quality criteria.

Procurement & Installation Guide for Importers

Once your technical team has reviewed specifications and shortlisted products, the procurement process moves to supplier evaluation, sampling, and commercial negotiation.

Trusted Sourcing Channels and Supplier Evaluation

The most dependable means of procuring marine-rated LED fixtures in bulk remains direct involvement with the manufacturer. Importers will first engage with pre-vetted suppliers on sites such as Alibaba or Made-in-China but should always acquire factory audit reports, copies of certifications, and reference project information before progressing to sample purchases. Spot purchase from many merchants is sometimes less predictable in cost, production scheduling, and reaction to technical issues than frame arrangements with a single competent manufacturer.

Sample Testing Before Bulk Orders

Established manufacturers’ typical sample orders arrive in 3-5 business days. Custom configurations — precise beam angles, color temperatures, or OEM housing designs — normally need 7–10 days.  Before accepting bulk orders, have your technical team do thermal cycling, vibration resistance and waterproof immersion validation on samples. Ask the manufacturer to provide test results along with real samples so your engineers may cross-check stated vs. measured performance data.

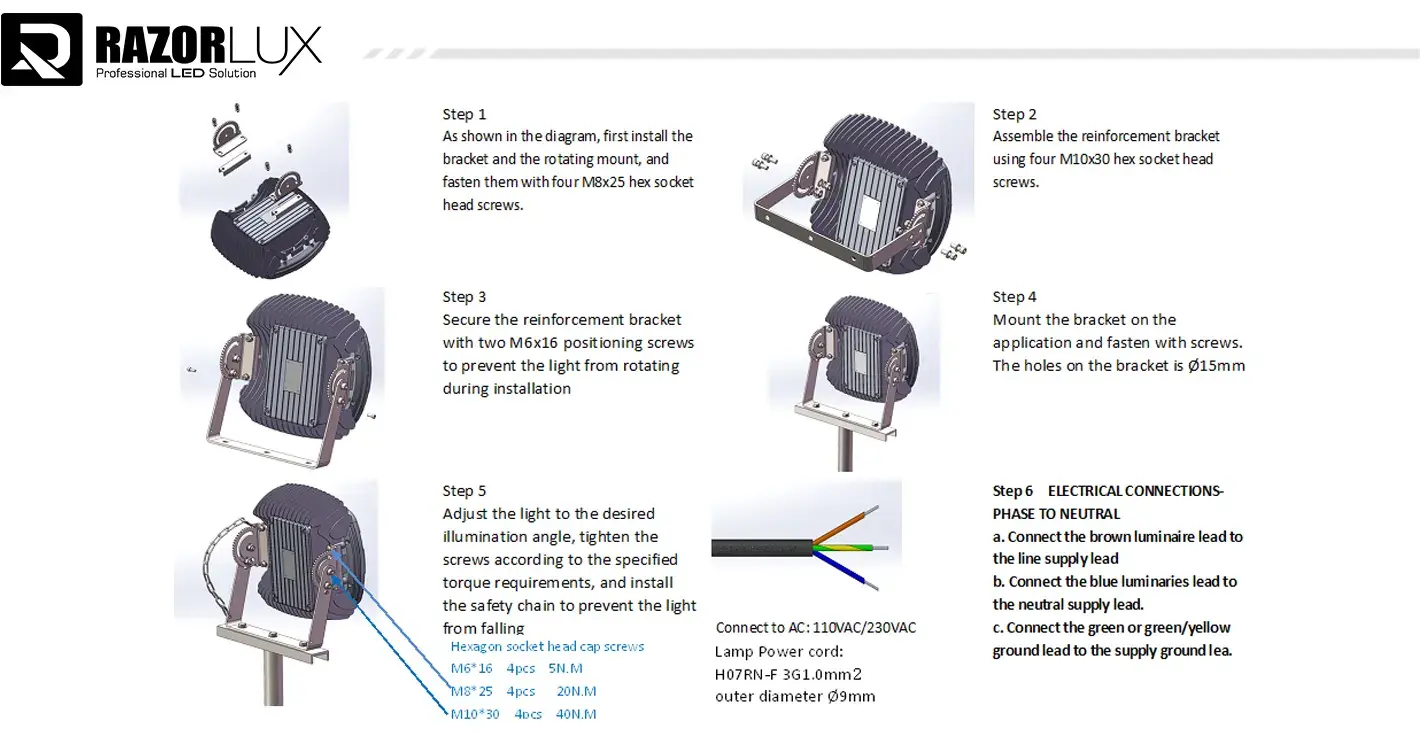

Installation Best Practices and Safety Protocols

Even low-voltage Waterproof LED Flood Lights need good wiring discipline. Voltage drop on lengthy cable lengths is a typical problem in 12V DC setups. Use appropriately sized copper conductors: 10-12 AWG for routes more than 10 m. Locate power supply as near to the fixture as possible. Make that any mounting hardware uses stainless steel fasteners suitable for the installation environment. On maritime boats, all cable entrance locations should be fitted with a marine-grade cable gland to achieve IP67 sealing. For offshore platform installations, the fixture operating temperature range must include the local seasonal extremes.

Conclusion

Choosing the 12v led flood lights waterproof for marine or industrial procurement is more than just a quick glance at a technical sheet. Importers should test samples before placing large orders, validate the quality of internal components (using documentation) and certifications (making sure they meet the standards of the target market), and analyze IP and IK ratings based on the actual deployment environment. The Razorlux RGL-90A offers a technically solid reference point — 90W rated power, 130 lm/W effectiveness, IP67/IK10 ratings, wide-range AC/DC input, and a complete suite of international certifications.  The appropriate selections at the sourcing level save a lot of expense and downtime during the operating life of the fixture.

FAQ

1. Can a 12V waterproof LED flood light connect directly to a vehicle or vessel battery?

Yes, provided the fixture's driver specifies a wide input voltage range — typically 10V to 30V DC. Vehicle and vessel batteries fluctuate between approximately 12.6V at rest and 14.4V during active charging. A driver rated strictly for 12V without tolerance may overheat or fail under charging voltage. Always confirm the input voltage range in the product datasheet before connecting to any battery system.

2. What is the actual energy saving compared to replacing HID lamps?

A 90W LED flood light with 130 lm/W efficacy produces approximately the same usable light as a 200W–250W HID lamp, representing a 60%–70% reduction in power consumption. Over 50,000 operating hours at an average industrial electricity rate of $0.10/kWh, that translates to roughly $800–$1,000 in energy savings per fixture — before accounting for reduced lamp replacement and maintenance labor costs.

3. How do I verify that IP67 certification is genuine?

Request the original IEC 60529 test report from an accredited third-party laboratory, not just a self-declared specification sheet. Legitimate reports identify the testing body, date, test conditions, and specific fixture model. Cross-check the fixture model number on the test report against the product you intend to order.

4. Is the RGL-90A suitable for use in below-freezing environments?

Yes. The RGL-90A is rated for operating temperatures from -40°C to +60°C, covering Arctic marine deployments, cold-climate shipyards in Scandinavia, and refrigerated industrial storage facilities without performance degradation.

Request a Quote from Razorlux — Your Trusted LED Flood Light Supplier

Razorlux has delivered marine and industrial lighting solutions to shipyards, port operators, and offshore platform managers across more than 40 countries since 1998. Our 12V LED flood lights waterproof product range carries RMRS, UL, CE, SAA, and DLC certifications, backed by a 5-year warranty on LED modules and drivers. Sample orders ship within 3–5 business days, and our technical team responds to specification inquiries within 24 hours. contact us at sam@razorlux.com to request product datasheets, certification documents, or a customized bulk quote for your next project.

References

1. Grand View Research. (2023). LED Floodlight Market Size, Share & Trends Analysis Report. Grand View Research.

2. IEC 60529. (2013). Degrees of Protection Provided by Enclosures (IP Code). International Electrotechnical Commission.

3. U.S. Department of Energy. (2022). LED Lighting Facts: Commercial and Industrial Applications. Office of Energy Efficiency & Renewable Energy.

4. DNV GL. (2021). Rules for Classification: Ships — Electrical Installations. DNV Group.

5. DesignLights Consortium. (2023). Technical Requirements for Qualified Products List: Outdoor Luminaires. DesignLights Consortium.

6. International Maritime Organization. (2020). IMO Resolution MSC.497(105): Performance Standards for Shipborne Safety Lighting. IMO Publishing.
