Why Choose a Waterproof LED Flood Light 400W for Outdoor Sites?

If you’re responsible for lighting procurement for a shipyard, offshore platform, or large industrial complex, one issue keeps coming up time and time again: which floodlight can genuinely endure the environment without driving up maintenance costs? A Waterproof LED Flood Light 400W solves that issue head-on. This fixture category replaces 400–600W HID lights while reducing energy usage by over 60% with 130lm/W efficiency, IP67 ingress protection, and IK10 impact resistance. For engineering teams operating in salt spray, severe cold, or constant vibration, these statistics are not marketing speak – they are the basis of a smart purchase choice.

Understanding Waterproof LED Flood Lights 400W

Knowing what differentiates a real heavy-duty 400W LED flood light from a regular commercial fixture might be helpful when comparing goods. The architecture is more demanding, and the specs are higher to match.

What the IP67 Rating Actually Means

IP67 implies the fixture is completely dust-tight and can be submerged in water up to 1 meter for 30 minutes. That kind of sealing is not optional in a maritime or dock environment – it’s a standard. Fixtures rated just IP65 withstand water jets but not immersion. This is a serious problem in tidal zones, wash-down regions, and ship decks exposed to wave splash.

Core LED Technology and Efficacy

The Razorlux model RGL2-400P provides 48000 lumens (steady flux at 5700K after 1 hour of operation) with luminous efficacy of 130lm/W. This contrasts well with older 1000W metal halide lamps, which normally provide approximately 90lm/W and take 3-5 minutes to warm up. LED technology generates light instantaneously, which is crucial in safety-critical areas where quick visibility is necessary.

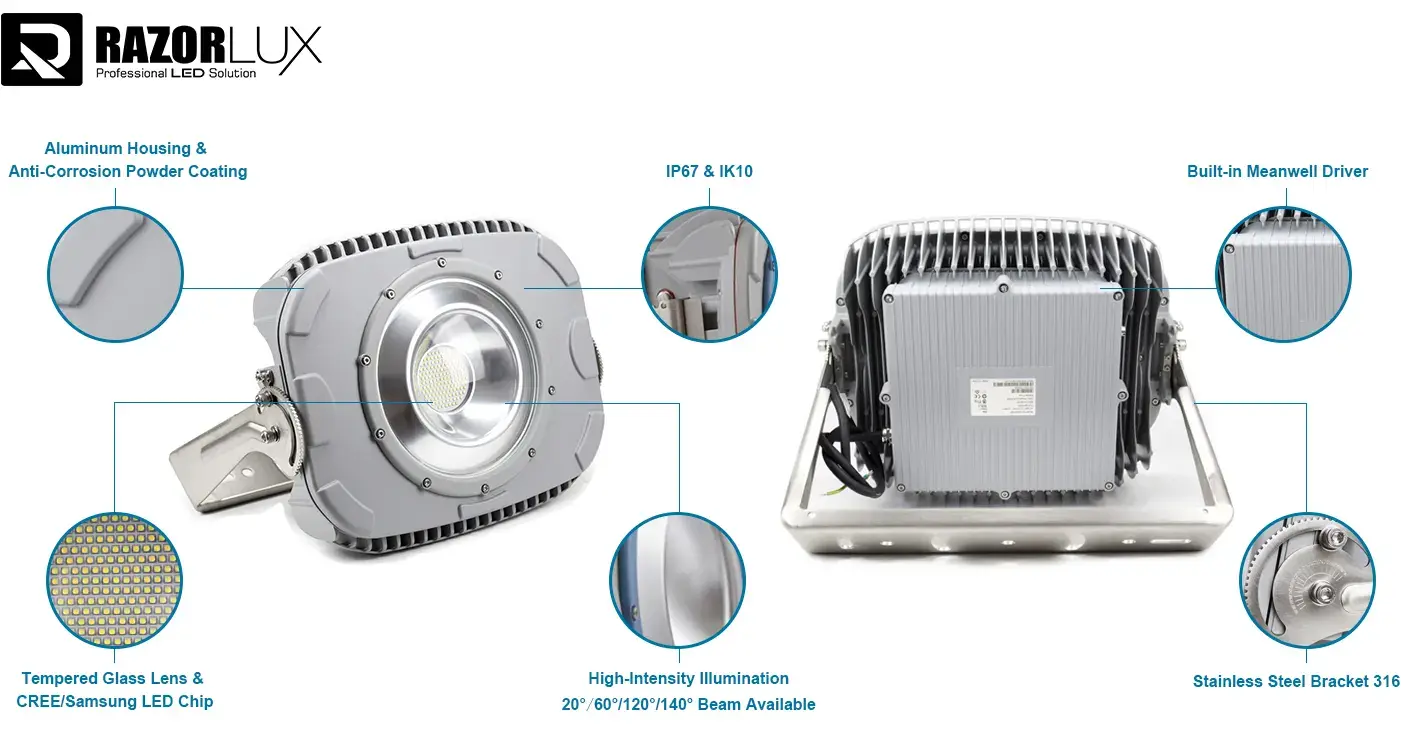

Thermal Management and Housing Design

The main reason for LED failure is heat. The RGL2-400P has a die-cast aluminum housing with powder coating and a built-in heat dissipation structure to ensure that junction temperatures remain within the safe range during a working range of -40°C to +60°C (-40°F to +140°F). The breathable ePTFE membrane minimizes interior condensation, which is a typical failure spot for fixtures that cycle between chilly nights and humid days at port facilities.

Core Advantages of Choosing a Waterproof LED Flood Light 400W for Outdoor Sites

When selecting a Waterproof LED Flood Light 400W for an outdoor industrial location, it’s not just a matter of power. This fixture has to work reliably for years of continuous use in environments that would cause inferior equipment to fail. These are the main benefits that procurement managers and site engineers find most useful:

• Marine-grade corrosion resistance: The stainless steel bracket and powder-coated aluminum housing are resistant to salt spray corrosion, a common occurrence on offshore rigs, coastal ports, and vessel decks. Standard fixtures with zinc or painted steel brackets will fail in one or two seasons in high-salt situations.

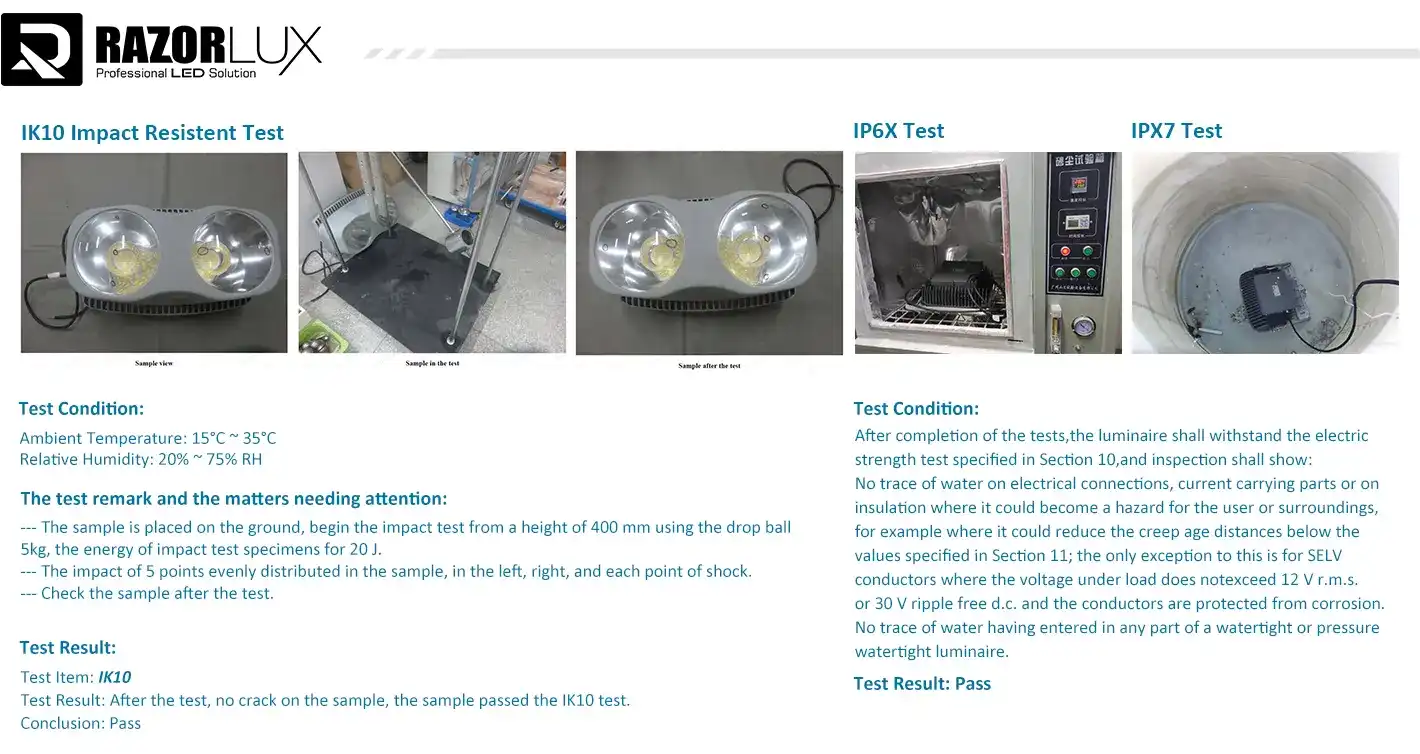

• IK10 impact protection: These fixtures are rated to resist 20 joules of impact, able to handle the mechanical stresses of shipyard activities – powerful crane movements, equipment collisions, and vibration from diesel engines. The impact rating according to IEC 62262 is IK10 (maximum impact).
• Energy cost reduction: The 400W LED flood light can provide the same or higher lux output than a 1000W high-pressure sodium lamp @ 130lm/W. That’s 7.2kWh saved per fixture each day (based on a 12-hour operation day). A facility with 50 fixtures saves over 131,400kWh per year, which translates into considerable savings in operating costs.
• Multiple possibilities of beam angle: The fixture is available in 15°, 20°, 30°, 40°, 60°, 120°, and 140°×60°, to suit a range of site geometries. A 15° narrow beam is ideal for high-mast pole installation at 25-30 meters; a 120° or 140°x60° asymmetric distribution for vast horizontal regions such as dock aprons and storage yards.

These benefits immediately translate into a cheaper total cost of ownership. For instance, facilities switching from metal halide to this kind of LED light often repay their investment in 18-36 months on energy savings alone, not including the decreased bulb replacement labor.

How to Select the Right Waterproof LED Flood Light 400W — A Decision Support Guide

Selecting the right fixture requires matching technical specifications to site conditions. This section gives procurement managers a practical framework.

Evaluate the Protection Rating for Your Environment

IP67 is appropriate for environments with direct water exposure, including ship decks, wet docks, and offshore platforms. For enclosed industrial areas with dust but limited moisture, IP65 may suffice, but for any coastal or marine application, IP67 is the correct baseline. The Razorlux RGL2-400P meets IP67 and IK10, covering both moisture and impact requirements.

Match Lumen Output and Beam Angle to Site Geometry

A 400W fixture producing 48,000 lumens covers significantly more area than a 200W unit. For high-mast installations above 20 meters, a narrow beam angle (15°–30°) concentrates the flux where it is needed. For ground-level or mid-height mounting on crane gantries, wider distributions (60°–120°) reduce hot spots and improve uniformity. The table below summarizes beam angle applications:

Verify Certifications and Component Sourcing

Your technical team will ask for documentation. The RGL2-400P carries RMRS, CE, RoHS, SAA, C-Tick, UL, DLC, CB, and ISO 9001 certifications. The power supply is a Mean Well driver — a brand with well-documented reliability data and global after-sales support. Mean Well drivers carry a 5-year warranty and are available for replacement through an established international distribution network, which simplifies long-term maintenance planning.

Installation and Maintenance Best Practices for Waterproof LED Flood Light 400W

Correct installation determines whether the fixture performs to specification. Improper mounting or wiring can void certifications and shorten service life.

Site Assessment Before Installation

Conduct a photometric calculation before finalizing mounting positions. Razorlux provides lighting layout design and brightness calculation as part of its technical service, using industry-standard simulation software. This step prevents over- or under-lighting, which affects both safety compliance and energy efficiency.

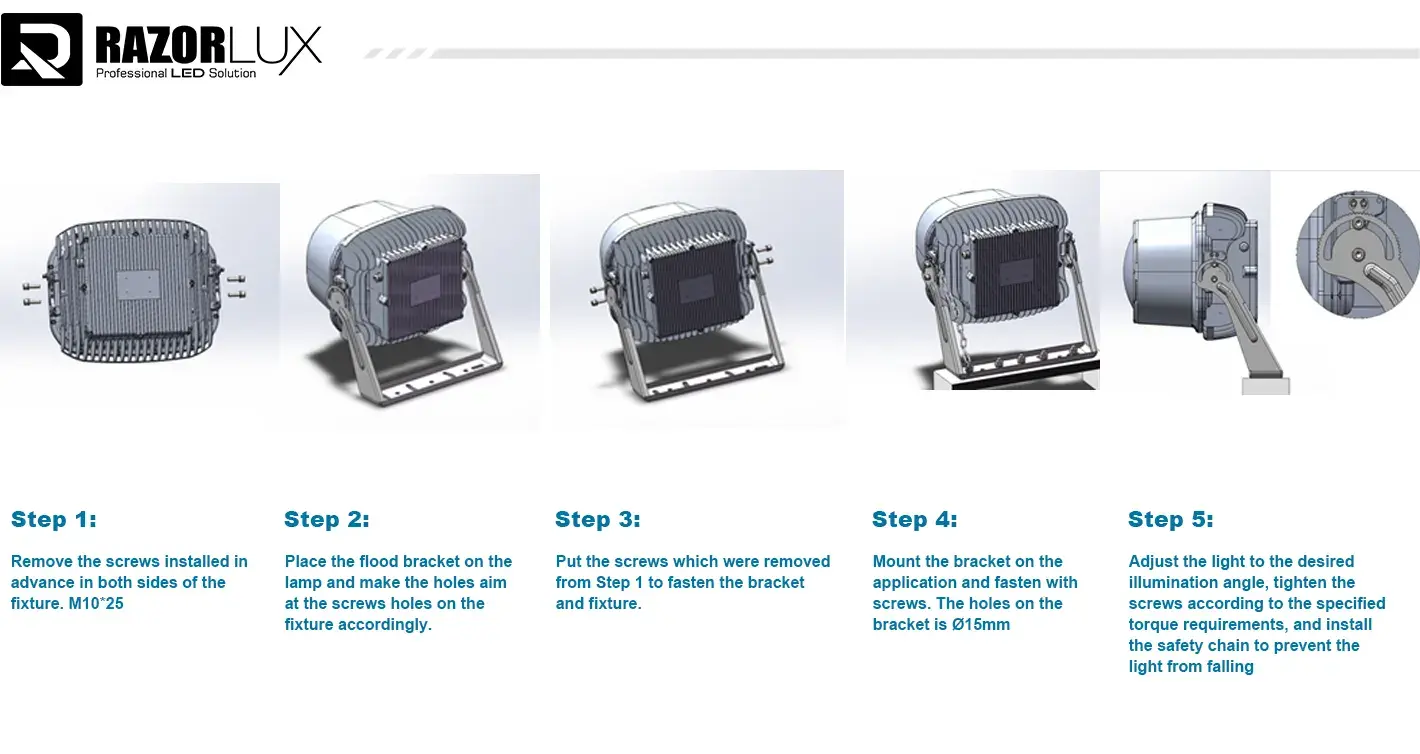

Electrical and Mechanical Mounting Requirements

The RGL2-400P accepts AC input from 110V to 480V without an additional adapter, and DC input from 100V to 800V, covering most industrial power systems worldwide. The stainless steel bracket handles the 19kg net weight securely. Mounting hardware should be marine-grade stainless steel in coastal environments to prevent galvanic corrosion between dissimilar metals.

Routine Maintenance Schedule

IP67-rated fixtures require less maintenance than IP65 units, since the sealed housing prevents contaminants from getting in. A feasible timeline for industrial locations would be:

• Monthly: Visual check for physical damage, bracket integrity, and any lens discolouration.
• Quarterly: Clean the lens surface on the outside with a gentle cloth and mild detergent. Check the torque of the mounting fastener.
• Annually: Check electrical connections at the junction box. Ensure the ePTFE valve is clear. Plot lumen output against original commissioning data to identify early-stage lumen deterioration

For example, a 12 hours per day installation will attain L70 (70% of original lumen output) in around 11 years with a rated operational life of 50,000+ hours. This is far longer than the replacement period for metal halide lamps, which normally need relamping every 6,000 to 12,000 hours.

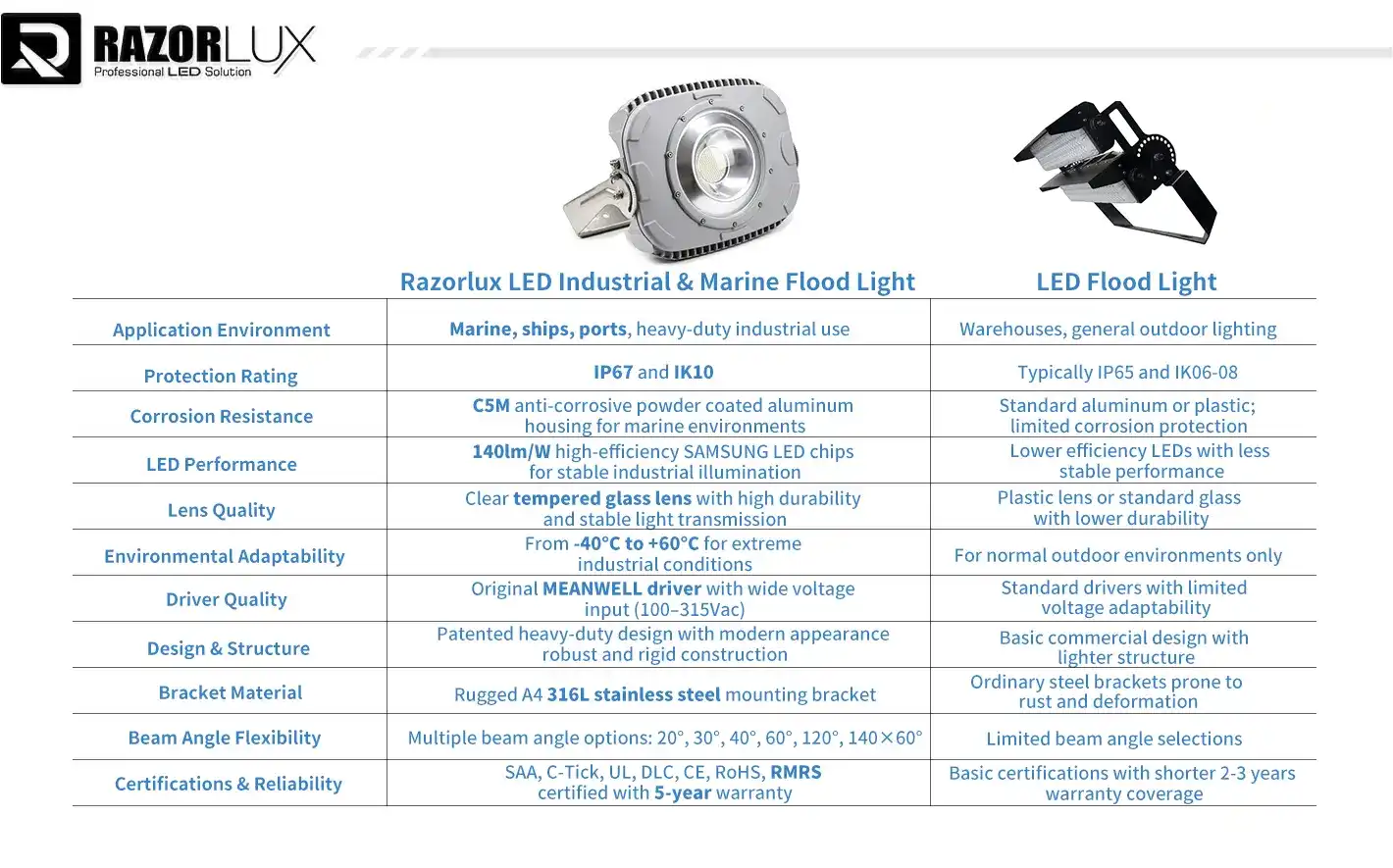

Comparing Top Waterproof LED Flood Light 400W Models and Technologies

Not all 400W LED flood lights are equal. The differences in component quality, thermal design, and certification scope directly affect long-term performance.

400W vs. 300W: When Wattage Matters

A Waterproof LED Flood Light 400W is appropriate for areas up to approximately 1,500–2,000 square meters at standard mounting heights. Once site area or mounting height increases beyond that range, the 400W class delivers better uniformity without requiring additional fixture positions. Fewer fixtures mean lower installation cost, fewer cable runs, and a simpler maintenance program.

IP67 vs. IP65: A Practical Comparison

The table below shows how IP67 and IP65 differ in real-world performance for marine and industrial applications:

For any procurement project with a coastal, marine, or offshore environment, IP67 is the right option. The expense of a premature failure in a salt-laden environment much outweighs the small price difference between IP65 and IP67 fixtures.

Smart Features and Customization Options

RGL2-400P, in addition to standard specs, offers color temperature selection from 2700K to 6500K, and CRI may be chosen in Ra≥75, Ra≥80, or Ra≥90 according to application needs. An Ra≥80 is advised for inspection areas and technical work areas where color discrimination is a factor in the quality of the job. Razorlux also provides OEM and customized services, such as voltage configuration, beam angle selection, and color temperature specification at the order stage.

Conclusion

Outdoor industrial locations – such as maritime, offshore, and heavy manufacturing – have lighting requirements that commercial lights just cannot provide. A well-specified Waterproof LED Flood Light 400W with IP67 protection, IK10 impact resistance, a Mean Well driver, and the proper beam angle gives continuous performance throughout a service life in excess of 50,000 hours. The economics are evident. Less energy use, fewer replacements, and less manpower for upkeep. When assessing suppliers, procurement managers understand that the long-term value of a product is not based on the initial unit pricing, but rather on the combination of globally recognized certifications, traceable sourcing of components, and technical assistance provided by the manufacturer.

FAQ

1. What certifications should a 400W waterproof LED flood light carry for marine use?

For marine and offshore applications, the most relevant certifications are RMRS, DNV/GL, ABS, and CE. The Razorlux RGL2-400P carries RMRS, CE, UL, DLC, SAA, RoHS, CB, and ISO 9001. Always request the actual test reports, not just the certificate images, so your technical team can verify scope and test conditions.

2. Can the RGL2-400P operate on DC power systems found on ships?

Yes. The fixture accepts DC input from 100V to 400V and from 500V to 800V, covering most shipboard DC distribution systems without additional converters.

3. What is the difference between IK10 and IK08 ratings?

IK10 indicates resistance to a 20-joule impact, while IK08 covers 5 joules. In shipyard and industrial environments where equipment movement creates physical risk to fixtures, IK10 is the appropriate specification.

4. How do I request a sample or technical documentation?

Contact Razorlux directly at sam@razorlux.com or visit razorlux.com. The team can provide product datasheets, photometric files (IES/LDT), certification copies, and sample units for testing before project commitment.

5. What is the power factor of the RGL2-400P driver?

The Mean Well driver in this fixture achieves a power factor of ≥0.98 and THD below 10%, which meets the power quality requirements of most industrial electrical systems and avoids reactive power penalties.

Get a Quote for Razorlux Waterproof LED Flood Light 400W Today

Razorlux has supplied high-performance outdoor LED flood lights to shipyards, offshore platforms, and port facilities across North America, Europe, Southeast Asia, and the Middle East for over two decades. Our Waterproof LED Flood Light 400W manufacturing capabilities — backed by ISO 9001 quality control, Mean Well power supplies, and a full certification package — give your technical and procurement teams the documentation they need to approve the product with confidence. Reach out to discuss your project specifications, request a sample, or get a formal quotation. Email us at sam@razorlux.com to start the conversation.

References

1. International Electrotechnical Commission. IEC 60529: Degrees of Protection Provided by Enclosures (IP Code). IEC, 2013.

2. International Electrotechnical Commission. IEC 62262: Degrees of Protection Provided by Enclosures for Electrical Equipment Against External Mechanical Impacts (IK Code). IEC, 2002.

3. U.S. Department of Energy. Solid-State Lighting Technology Fact Sheet: LED Luminaire Lifetime. DOE Office of Energy Efficiency and Renewable Energy, 2014.

4. Illuminating Engineering Society. IES LM-80: Approved Method for Measuring Lumen Maintenance of LED Light Sources. IES, 2015.

5. Mean Well Enterprises Co., Ltd. Power Supply Product Reliability and Application Guide. Mean Well, 2020.

6. U.S. Department of Energy. 2022 SSL R&D Opportunities: Energy Efficiency of LED Lighting in Industrial Applications. DOE Office of Energy Efficiency and Renewable Energy, 2022.
