waterproof led boat deck lights

Patented Multi-function design, suitable for all working environments.
Rated Power: 120W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 15KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001

Send Inquiry Download

Product Description

Professional 120W Waterproof LED Boat Deck Lights | IP67 Marine Grade

If you're tired of lighting failures that halt operations and risk crew safety, you need deck lights that survive real maritime conditions.

The Xi'an Razorlux waterproof LED Boat Deck Lights difference:

· 316 stainless steel (not cheap aluminum that corrodes in 18 months)

· Full IP67 waterproofing (tested to 1m submersion, not just "splash-proof")

· 5-year warranty (vs. industry standard 1-2 years)

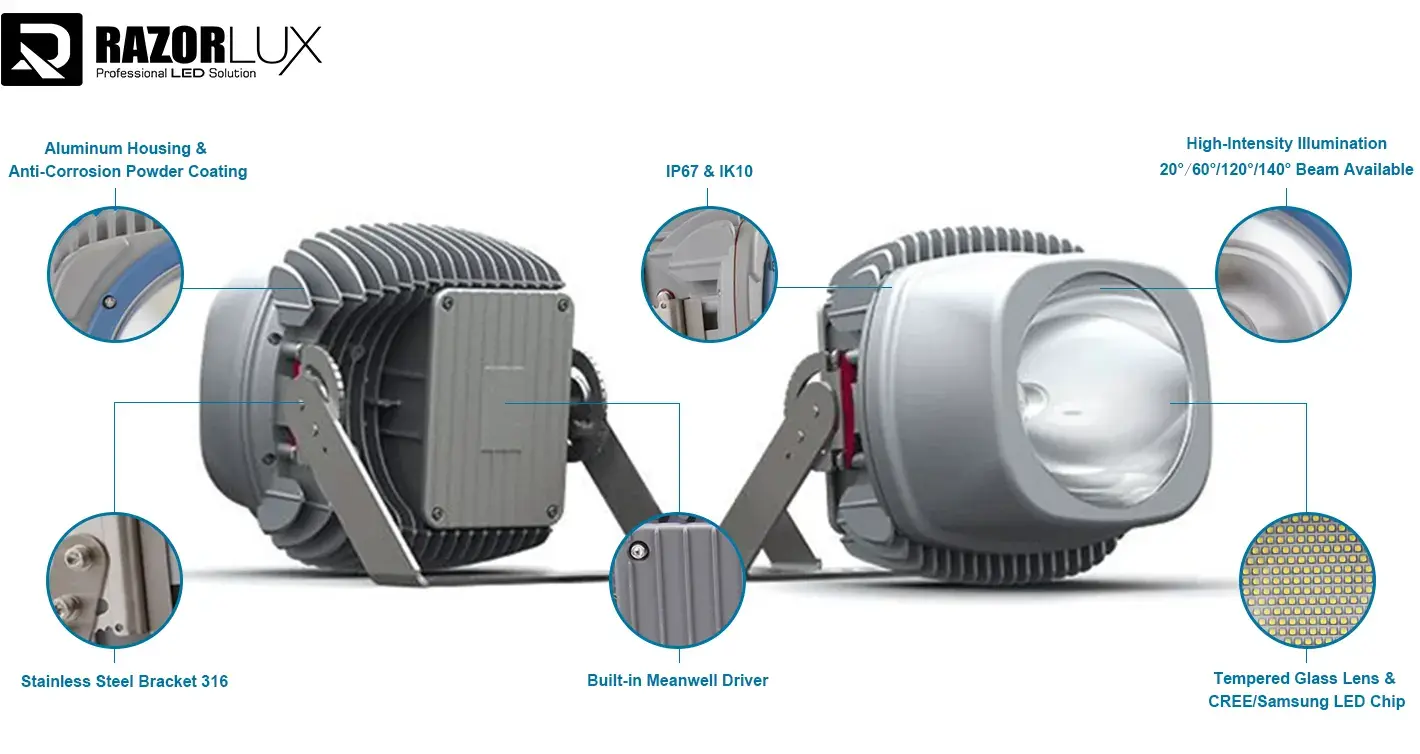

Premium Waterproof LED Boat Deck Lights technical demonstration

Waterproof LED Boat Deck Lights Introduction

Model		RGL-120P
Beam Angle		20°
Stable Flux (5700K after 1 hour)		13200lm
Dimension (mm)		360358306
	LEDs	108W
Power	Driver	12W
Consumption	Total	120W
Replace HID Lamp		250~300W
Net Weight		10kg
Color Temperature		2000-6000K
Color Rendering		≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life		≥50000Hrs
Housing Material		Aluminum & Powder coating
Power Supply		Meanwell
IP Class		IP 67
IK Class		IK 10
Insulation Class		Class I
Working Temperature		-40C ~ 60C / -40F ~ 140F
Working Humidity		10% ~ 95%
AC Input		80-315Vac input voltage without additional adapter
DC Input		80 ~ 400Vdc
THD		<10%
Power Factor		≥0.98
Warranty	LED Module	5 year
	Driver	5 year
	Housing	10 year

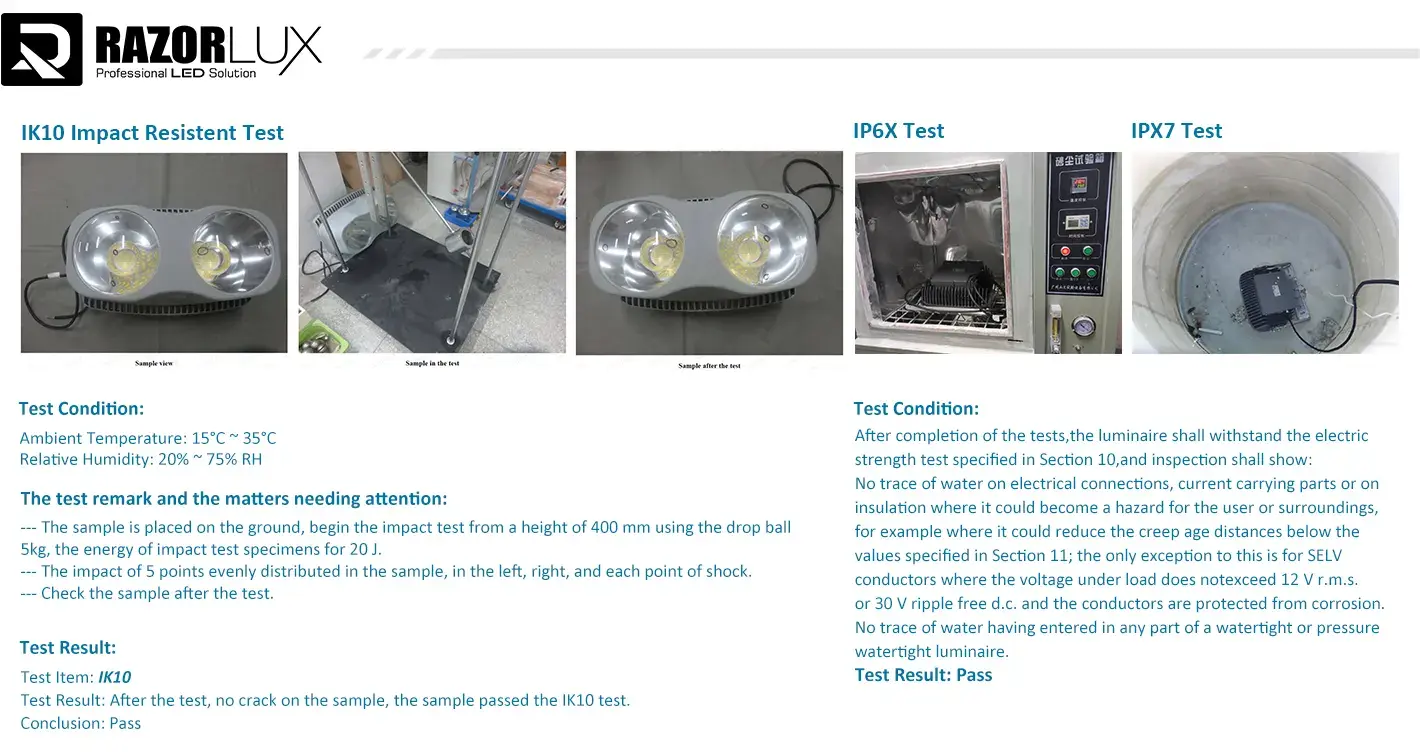

led marine lights IK10 and IP67 testing process

Why Marine Operators Choose Razorlux

1. Survives Saltwater (Unlike Most "Marine" Lights)

Most boat lights use grade 304 stainless steel. We use 316.

What's the difference?Grade 316 contains molybdenum—an element that prevents pitting corrosion in chloride environments. Translation: your lights won't rust through after two seasons.

We also seal all electronics in epoxy potting. Zero moisture penetration = zero circuit board failures.

Real-world proof:Our waterproof led boat deck lights are installed on fishing trawlers operating 280+ days/year in the North Atlantic. After 4 years, zero corrosion-related failures.

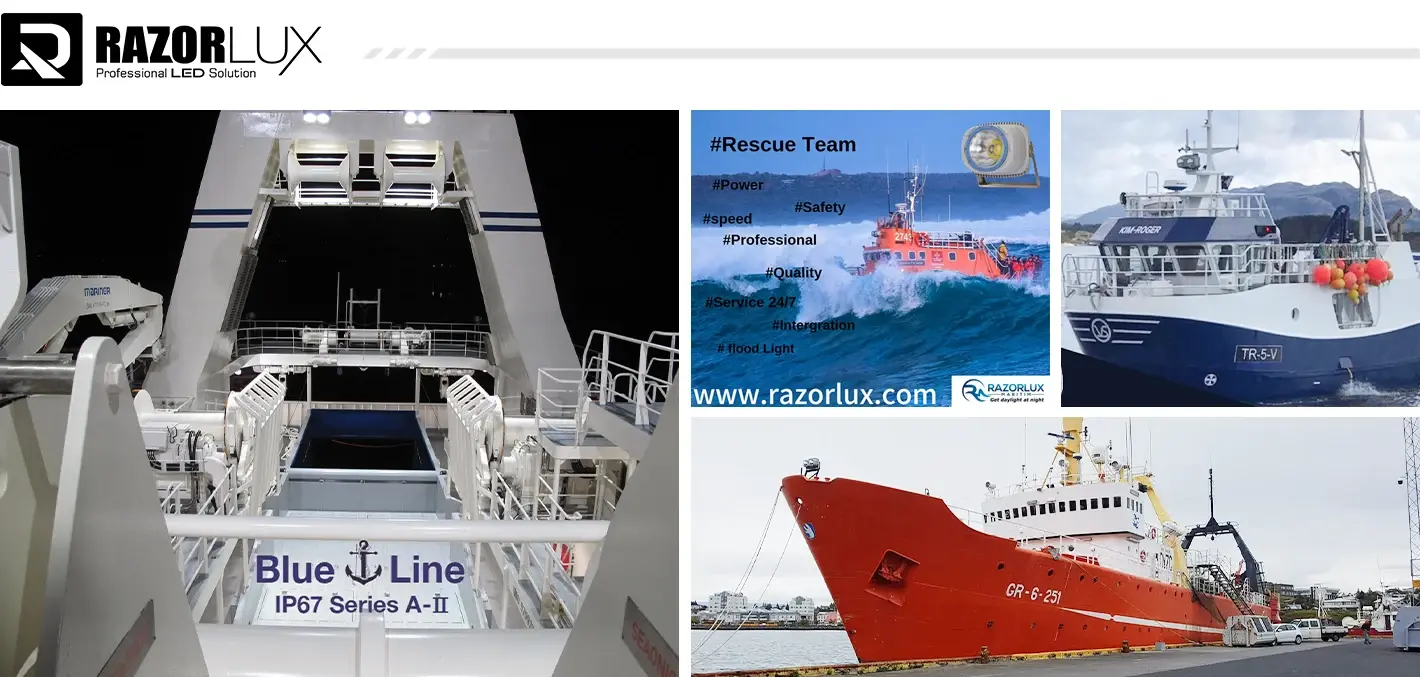

led marine flood light application show

2. Handles Voltage Spikes (Your Generator Won't Kill These)

Marine electrical systems aren't stable. Generator startups, battery switching, and load changes create voltage swings that fry standard lights.

Our solution:AC 90-305V / DC 127-431V input range with built-in surge protection.

Whether you run:

· 12V/24V DC battery systems

· 110V/220V AC shore power

· Diesel generator with voltage fluctuation

3. Customizable Light Distribution (Not One-Size-Fits-None)

Different deck zones need different lighting:

Application	Recommended Beam Angle
General work areas	60°-120° (wide flood)
Loading zones	40°-60° (medium spread)
Long-distance visibility	15°-30° (narrow spot)
Navigation compliance	Custom configuration

Not sure what you need?Our team provides free lighting layout design based on your vessel dimensions.

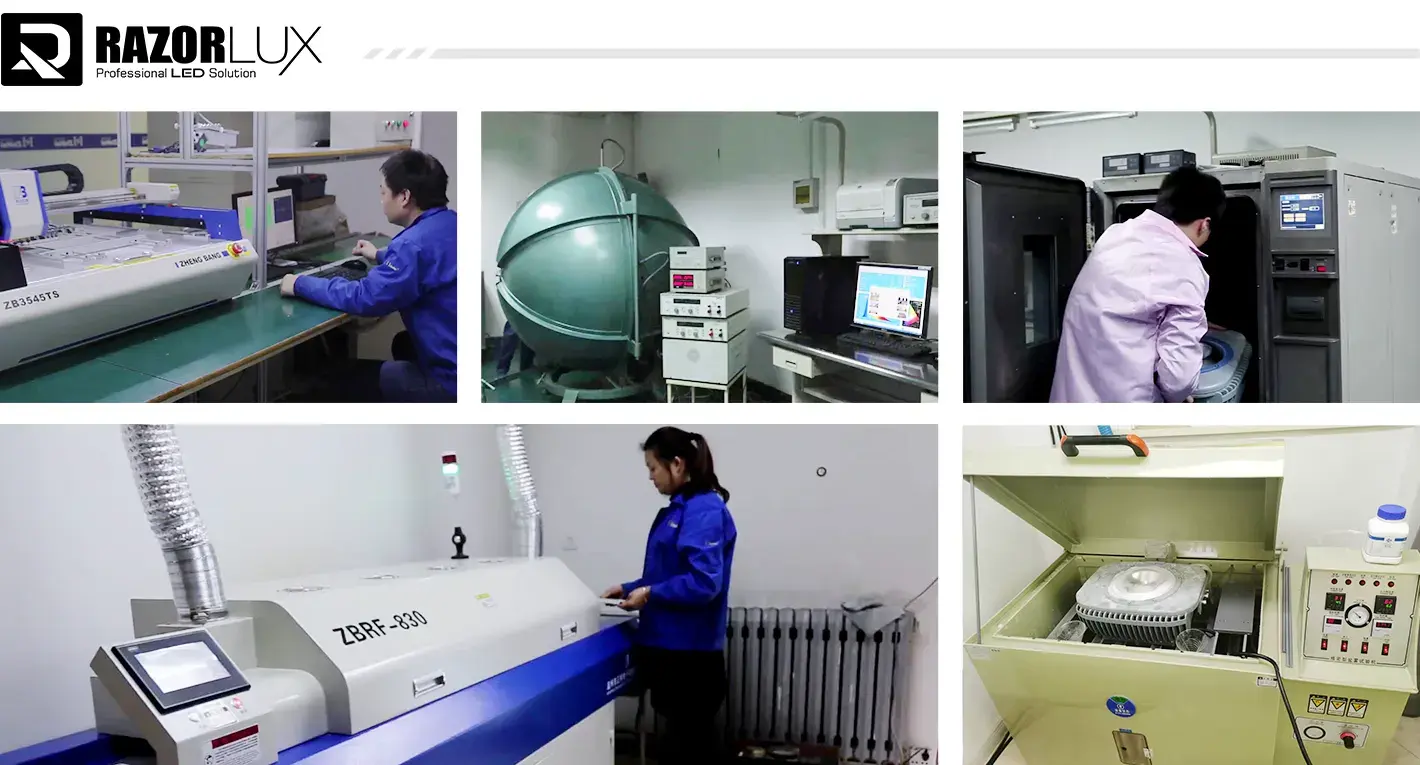

led marine deck light quality testing process

Where Our Lights Work Best

Commercial Fishing Vessels

The challenge:Night sorting operations under constant spray, impact from gear, and -10°C to +40°C temperature swings.

Why we work:Shock-resistant to 10G impact. Operates -40°C to +55°C. Crew on Pacific cod trawlers report 40% faster sorting with our 6000K daylight configuration.

Cargo & Container Ships

The challenge:Illuminating 50m+ deck areas while withstanding high-pressure washing and storm exposure.

Why we work:120° beam angles cover large areas with fewer fixtures. IP67 rating survives daily deck washing. Port operators report 25% fewer loading delays due to lighting issues.

Offshore Platforms & Supply Boats

The challenge:Meeting RMRS/ABS safety standards in explosive environments with constant vibration.

Why we work:RMRS-certified for marine installations. Explosion-proof rating available. Vibration-tested to ISO 9001 standards. Used on 40+ supply vessels servicing North Sea platforms.

Marina & Harbor Infrastructure

The challenge:Public safety lighting that handles tidal changes, fuel spills, and 24/7 exposure.

Why we work:Corrosion-resistant in chemically aggressive environments. Low maintenance (one marina reports zero replacements in 6 years across 200 fixtures).

led marine flood light packing details

Common Questions (Answered Honestly)

Q: Are these really worth 3x the price of standard boat lights?

A: If you replace cheap lights every 18-24 months, you'll spend more long-term. Our 5-year warranty and 50,000-hour lifespan mean lower total cost of ownership. Plus, zero failures during operations = no lost revenue.

Q: Will these work with my 24V DC system?

A: Yes. The DC 127-431V range covers 12V, 24V, 48V, and higher DC systems. For lower voltages, we offer a 12-24V DC model (contact us for specs).

Q: Can I dim these for night navigation?

A: Custom dimming options available (0-10V, DALI protocols). This preserves night vision while maintaining safety compliance. Requires specification during order—mention this when contacting us.

Q: Do you ship internationally?

A: Yes. We ship to 40+ countries with marine logistics experience (proper Packaging for container transport). Lead time: 15-25 days depending on customization.
