1000 Watt LED Outdoor Flood Lights

Xi'an Razorlux 1000 watt LED Outdoor Flood Lights 130000 lumens 130LM/W efficency for severe outdoor environment Designed with AC90-305V broad voltage input, IP67 waterproof certification, and -40°C to +55°C working temperature range, these fixtures provide ports, airports, stadiums, and mining sites with a lifetime of 50,000+ hours. Certified to UL, DLC, CE standards. 5-year warranty.

1000 Watt LED Outdoor Flood Lights Specifications

​​​​​​​

Core Technology

1. Adaptive Power Management

Wide 90-305V input range eliminates voltage regulators in unstable industrial grids. Our modular driver system, developed from 20+ years of power electronics research, maintains consistent output during voltage fluctuations—critical for 24/7 port and mining operations.

2. Thermal Control System

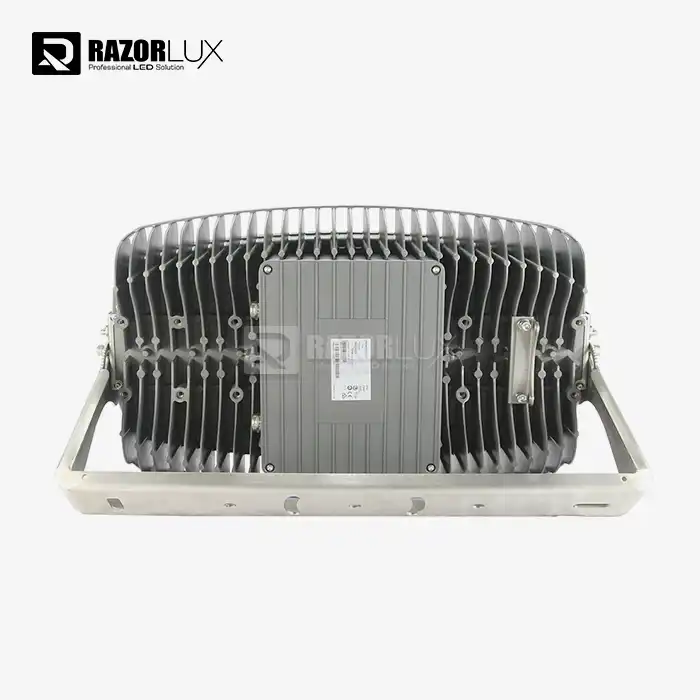

Precision-engineered fin heat sinks keep LED junction temperatures within optimal ranges during continuous operation. Independent thermal imaging tests confirm temperature stability after 72-hour burn-in cycles, directly extending the 50,000+ hour L70 lifespan and reducing replacement costs.

3. Marine-Grade Corrosion Resistance

C5M-certified stainless steel brackets and marine powder coating withstand salt spray per ASTM B117 testing. IP67-rated enclosures pass submersion tests, making these fixtures ideal for coastal ports and offshore installations.

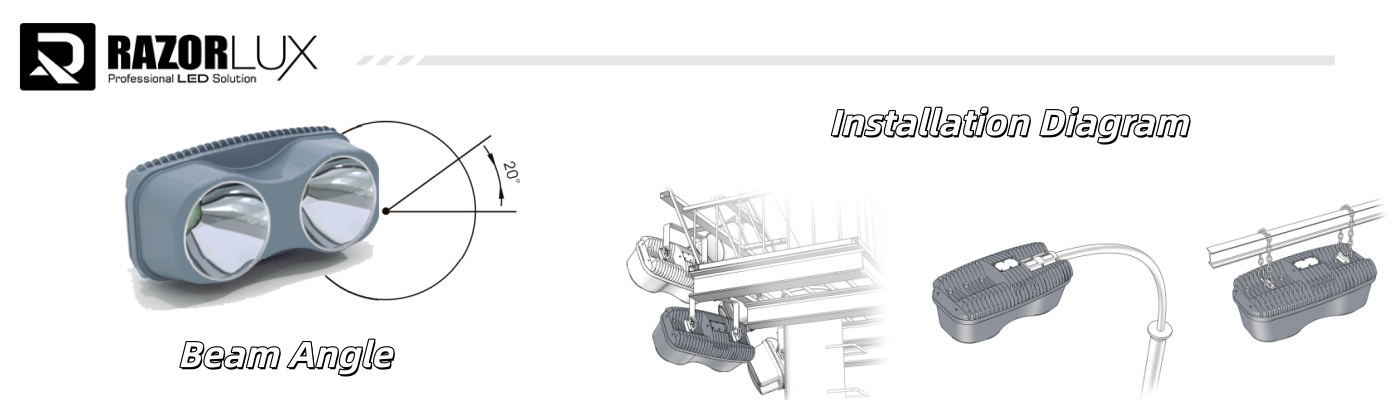

4. Precision Optical Design

Seven beam angle options (15°-140°x60°) enable customized light distribution:

· Narrow beams (15°-20°): High-mast port lighting (30m+ poles)

· Medium beams (30°-60°): Container terminals and industrial yards

· Wide beams (120°/140°x60°): Stadium and hangar applications

Secondary lenses minimize glare while maintaining CRI >75 for accurate color rendering in safety-critical tasks.

Quality Assurance

Every 1000 watt led outdoor flood light undergoes:

· Photometric Testing: Integrating sphere validation with IES file generation per IESNA LM-79

· Environmental Stress: Salt spray, vibration (3G minimum), and IP67 water jet testing

· Electrical Safety: Hi-pot testing and 20kV surge immunity verification

· Thermal Validation: Infrared thermography during extended burn-in cycles

Independent third-party labs verify compliance with UL1598, DLC Premium, and CE Low Voltage Directive standards.
​​​​​​​

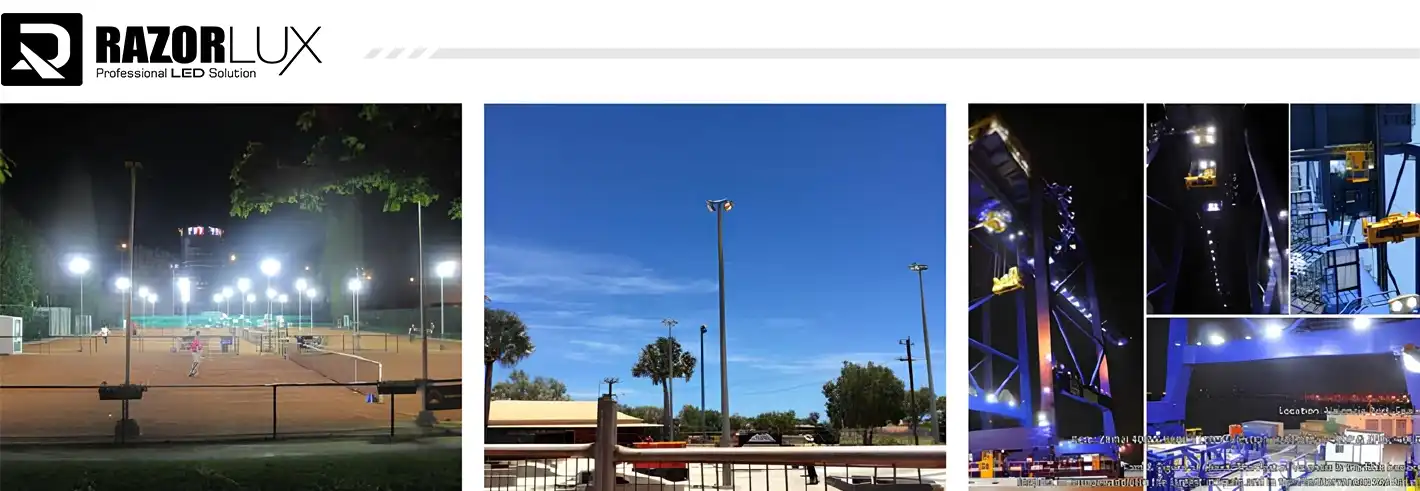

Application Solutions

Ports & Logistics Centers

Challenge: 24/7 visibility across vast areas with corrosive salt air

Solution: 30m high-mast installations using 30°-40° beam angles provide uniform illumination. C5M brackets and IP67 enclosures withstand marine environments while wide voltage input handles industrial grid fluctuations.

Result: Shadow-free lighting enhances crane operator safety and container handling efficiency.

Airport Aprons

Challenge: Flicker-free illumination for aircraft inspection and HD ground cameras

Solution: Adjustable 4000K-5700K color temperature with >75 CRI ensures accurate identification of safety markings. Low EPA design resists wind loads on exposed tarmacs.

Performance: Maintains output from -40°C to +55°C through rain, fog, and temperature extremes.

Sports Stadiums

Challenge: 4K broadcast quality and international federation illuminance standards

Solution: Zero-flicker technology with customizable beam placement meets horizontal/vertical lux requirements for professional play and slow-motion replay.

Mining & Heavy Construction

Challenge: Vibration, dust, and electrical transients from heavy machinery

Solution: IK10 impact-resistant housing and 10-20kV surge protection survive welding equipment startups. 50,000+ hour lifespan reduces maintenance in remote locations.

Engineering Support

Our technical team provides:

· Lighting layout design and lux calculation

· IES file-based simulation for site-specific planning

· Custom beam angle and color temperature configurations

· Installation guides and CAD drawings

· Pre-shipment prototyping and testing

FAQ

Q: How do I verify the 130,000 lumen output?

A: Every production batch includes integrating sphere test reports and IES files. We provide IESNA LM-79 compliant photometric data with serial number traceability. Request test reports at the time of quotation.

Q: Will these lights work with our unstable 180V-280V power supply?

A: Yes. The 90-305V input range handles voltage fluctuations without additional regulators. Our driver maintains constant current output, preventing flicker or dimming during grid instabilities.

Q: What beam angle works for 25-meter high-mast poles at our port?

A: For 25m mounting height, we recommend 30° or 40° beams for optimal ground coverage. Share your pole spacing and required lux levels—our engineers will provide free lighting calculations and layout drawings.

Q: How long does the C5M corrosion treatment last in coastal areas?

A: C5M rating per ISO 12944 ensures 15-20 year corrosion protection in high-salinity environments. We've installed over 5,000 units in Southeast Asian ports since 2012 with zero corrosion-related failures.

Q: Do these qualify for US utility rebates?

A: Yes. DLC Premium listing makes these fixtures eligible for most North American utility incentive programs. We provide rebate application support including photometric reports and spec sheets.

Q: How does thermal management extend lifespan to 50,000 hours?

A: Lower LED junction temperatures directly slow lumen degradation. Our heat sinks maintain temps 15-20°C below industry average, validated through LM-80 testing and TM-21 extrapolation. This translates to 50,000+ hours to L70 (70% lumen maintenance) versus 30,000-35,000 for standard designs.
