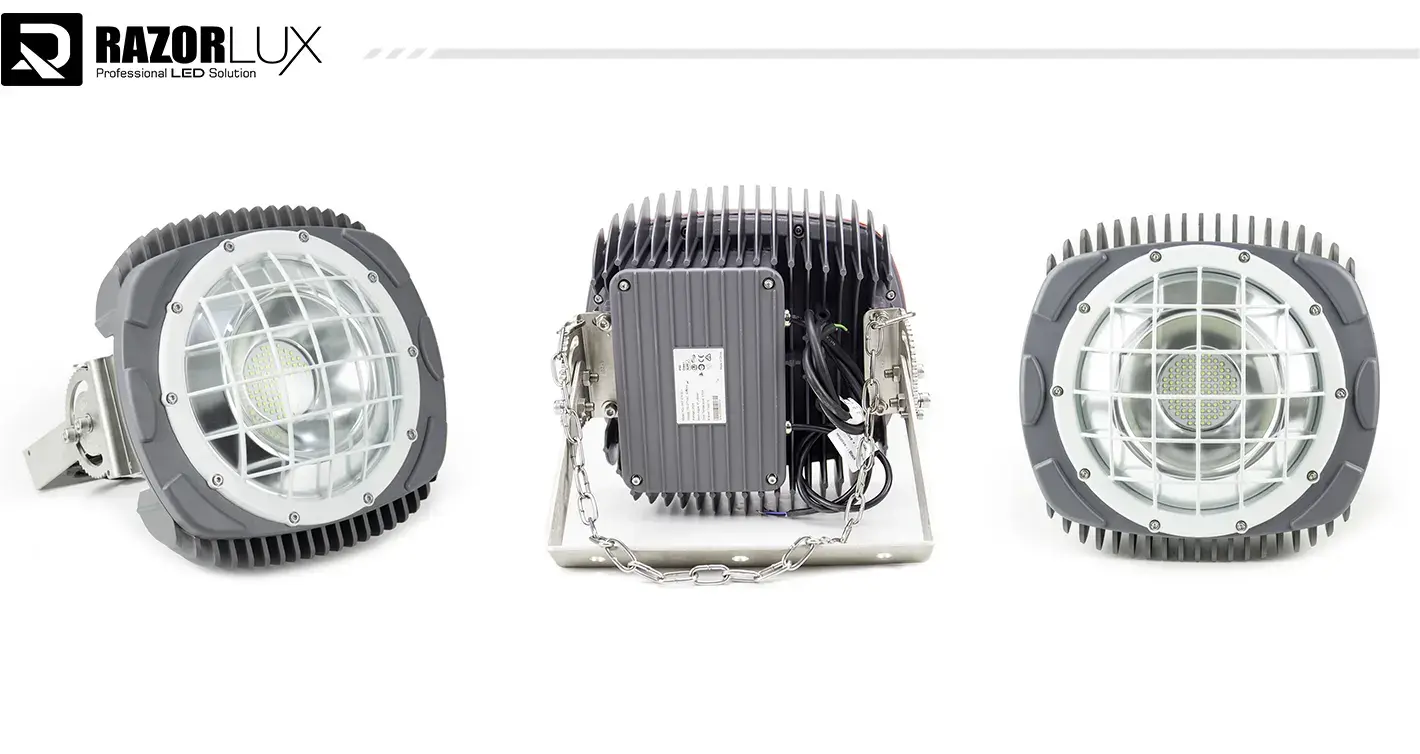

Luminaire Led Flood Light

Luminaire Led Flood Light | Wide Voltage 90-305V | IP67 RatedEnterprise-Grade Luminaire for Harsh Environments

This 300W Luminaire Led Flood Light is reliable across a wide voltage range of AC90–305V and was made to work in harsh industrial conditions. With an efficiency of 130LM/W and an IP67 rating for waterproofing, it can be used in factories, mines, and offshore platforms that need to be tough 24 hours a day, seven days a week.

Luminaire Led Flood Light Specifications

Why This Fixture Solves Industrial Lighting Challenges

Survives Unstable Power Grids

The AC90-305V input range can handle voltage changes that happen a lot in industrial places and out in the middle of nowhere. Lightning hits and generator switching transients are stopped by built-in surge protection (up to 20kV). This keeps production from stopping suddenly.

Built for Corrosive Environments

The C5M anti-corrosive grade makes sure that the stainless steel housing won't break down in places like chemical plants, seaside ports, and salt spray. When you use pressure cleaning or submersion, IP67 protection stops water from getting in. To make sure the structure will last for a long time, salt spray testing lasts for more than 1000 hours.

Precision Thermal Engineering

91 structure design patents have been used to create heat escape paths that keep LED joint temperatures within safe limits. This makes the L70 last longer than 50,000 hours, which is more than 5 years of 24/7 use before the light output drops to 70%.

Thermal validation: Each unit is loaded to make sure it stays stable in temperature over the full range of rated power.

Customizable Light Distribution

Luminaire Led Flood Lights are seven different beam angles (15° to 140°x60°) that can be used to fit different mounting heights and areas to be covered:

• 15° to 30° narrow: high-mast systems 30m or more
• Lights for general areas 15 to 25 meters (40° to 60°)
• Asymmetric (140°x60°): Loading zones that need to be spread out horizontally

We offer free Dialux photometric analysis to make a model of the layout of your site.

Proven Applications

Heavy Manufacturing & Machinery Yards

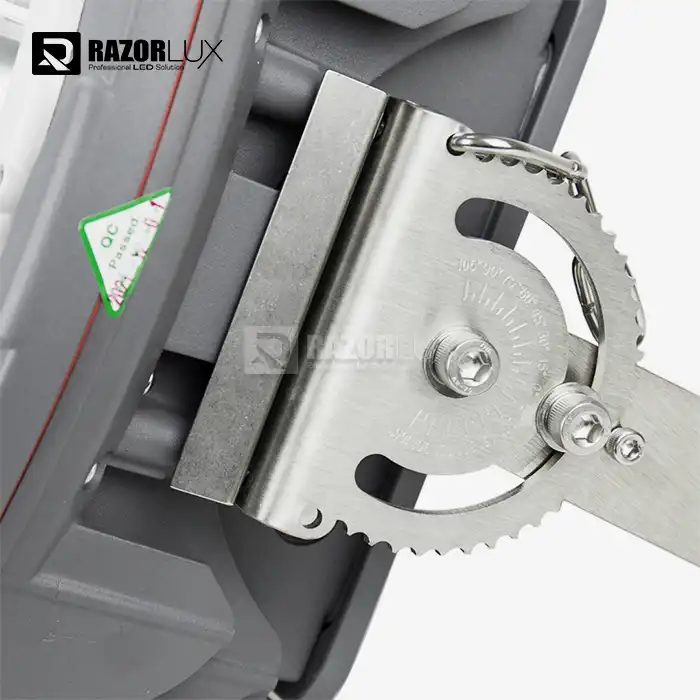

Vibration-resistant mounting withstands constant equipment operation. The 130LM/W efficiency cuts energy costs up to 70% versus metal halide systems. Instant-on capability eliminates warm-up delays during shift changes.

Case requirement: Production lines needing consistent illumination without maintenance interruptions.

Container Terminals & Logistics Hubs

High-mast configurations (20-40m poles) face salt spray and lightning exposure. The 140°x60° asymmetric beam reduces required pole count, lowering infrastructure costs while maintaining uniform ground coverage.

Case requirement: 24/7 outdoor operations in coastal environments.

Mining Operations (Surface & Underground)

IP67 rating prevents dust ingress that degrades standard fixtures. High CRI (Ra>75) ensures accurate color perception for safety inspections. Wide DC voltage tolerance (127-431V) works with off-grid generators without additional regulation equipment.

Case requirement: Extreme temperature swings and particulate-heavy atmospheres.

Offshore Platforms & Petrochemical Sites

Marine-grade construction and sealed optical chambers maintain functionality despite corrosive chemical vapors. Multiple beam options customize light distribution for walkways, helipad perimeters, or drilling decks.

Case requirement: Compliance with maritime corrosion standards.

Manufacturing Standards Behind the Specs

Component-Level Quality Control

We operate the nationally-certified "Xi'an LED Lighting Engineering Laboratory" with full spectrum testing capabilities:

· Integrating sphere validation for lumen output consistency

· Goniophotometer verification of beam precision (±2° tolerance)

· Thermal imaging to detect junction temperature anomalies

Every production batch undergoes 500-1000 hour accelerated aging tests before shipment approval.

Electrical Safety Validation

Driver circuits face repetitive 10kV and 20kV surge pulse testing to verify transient voltage suppression. Wide voltage range operation is validated through continuous duty cycles across AC90-305V under varying load conditions.

Real-World Durability Simulation

· Vacuum leak testing: More rigorous than spray tests—ensures hermetic sealing under pressure differentials

· Salt spray chambers: 1000+ hour exposure simulating years of coastal conditions

· Vibration testing: Validates structural integrity under transportation and installation stress

Technical Questions Answered

Can this operate on unstable power in developing regions?

Yes. The AC90-305V range accommodates fluctuations that damage standard fixtures. Surge protection handles transients up to 20kV from lightning and generator switching.

Which beam angle for 30-meter high-mast applications?

The 60° or 140°x60° asymmetric options typically provide optimal ground coverage at that height. Request a free photometric calculation for your specific site.

Is this suitable for explosive atmospheres (ATEX/IECEx zones)?

The standard IP67 configuration handles dust and water ingress. For hazardous location certifications, contact our engineering team about explosion-proof housing modifications.

Integration with smart lighting controls?

Available with 0-10V dimming and DALI protocol for building management systems. Enables scheduling, occupancy sensing, and energy monitoring.

Get Technical Consultation

For photometric analysis, voltage compatibility verification, or sample evaluation:

Contact our Luminaire Led Flood Light​​​​​​​'s team:sam@razorlux.com
