court floodlighting
Rated Power: 500W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 22KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001
- Product Description
Professional Court Floodlighting Solutions by Razorlux
When you're looking for solid court floodlighting, you require arrangements that provide reliable execution over all playing conditions. Our progressed Driven lighting frameworks are designed to give predominant brightening for tennis courts, ball courts, volleyball courts, and multi-sport offices. With over 25 a long time of lighting ability, Razorlux gets it that quality lighting goes past straightforward brightness—it requires exact light conveyance, negligible glare, and remarkable uniformity.
Product Specifications
Model | RGL2-500P | |
Beam Angle | 15° 20° 30° | |
Stable Flux (5700K after 1 hour) | 60000lm | |
| LEDs | 450W |
Power | Driver | 50W |
Consumption | Total | 500W |
Replace HID Lamp | 1000~1200W | |
Net Weight | 22kg with stainless steel floodlight bracket | |
Color Temperature | 2700-6500K | |
Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
Working Life | ≥50000Hrs | |
Housing Material | Aluminum & Powder coating | |
Power Supply | Meanwell | |
IP Class | IP 67 | |
IK Class | IK 10 | |
Insulation Class | Class I | |
Working Temperature | -40C ~ 60C / -40F ~ 140F | |
Working Humidity | 10% ~ 95% | |
AC Input | 110-480Vac input voltage without additional adapter | |
DC Input | 100 ~ 400Vdc, 500Vdc ~ 800Vdc | |
THD | <10% | |
Power Factor | ≥0.98 | |
Warranty | LED Module | 5 year |
|
|
|
| Driver | 5 year |
| Housing | 10 year |
Why Choose Our Court Floodlighting?
You merit lighting arrangements that perform when it things most. Our licensed multi-function plan adjusts to all working situations, guaranteeing your sports offices keep up ideal perceivability notwithstanding of climate conditions.
Superior Technology Integration
Our installations combine three decades of control supply mastery with progressed Driven warm administration. This special integration conveys steady execution and amplified operational life.
Precision Optical Design
Multiple pillar point alternatives permit you to customize light dispersion for idealize court scope. Whether you require concentrated light or wide-area scope, our optical frameworks kill dim spots and decrease glare.
Built for Durability
Constructed with marine-grade materials and IP67 assurance, these installations withstand unforgiving open air conditions whereas keeping up reliable execution year after year.
Energy Efficiency Excellence
At 130LM/W effectiveness, you'll essentially diminish vitality costs whereas accomplishing predominant brightening compared to conventional metal halide systems.

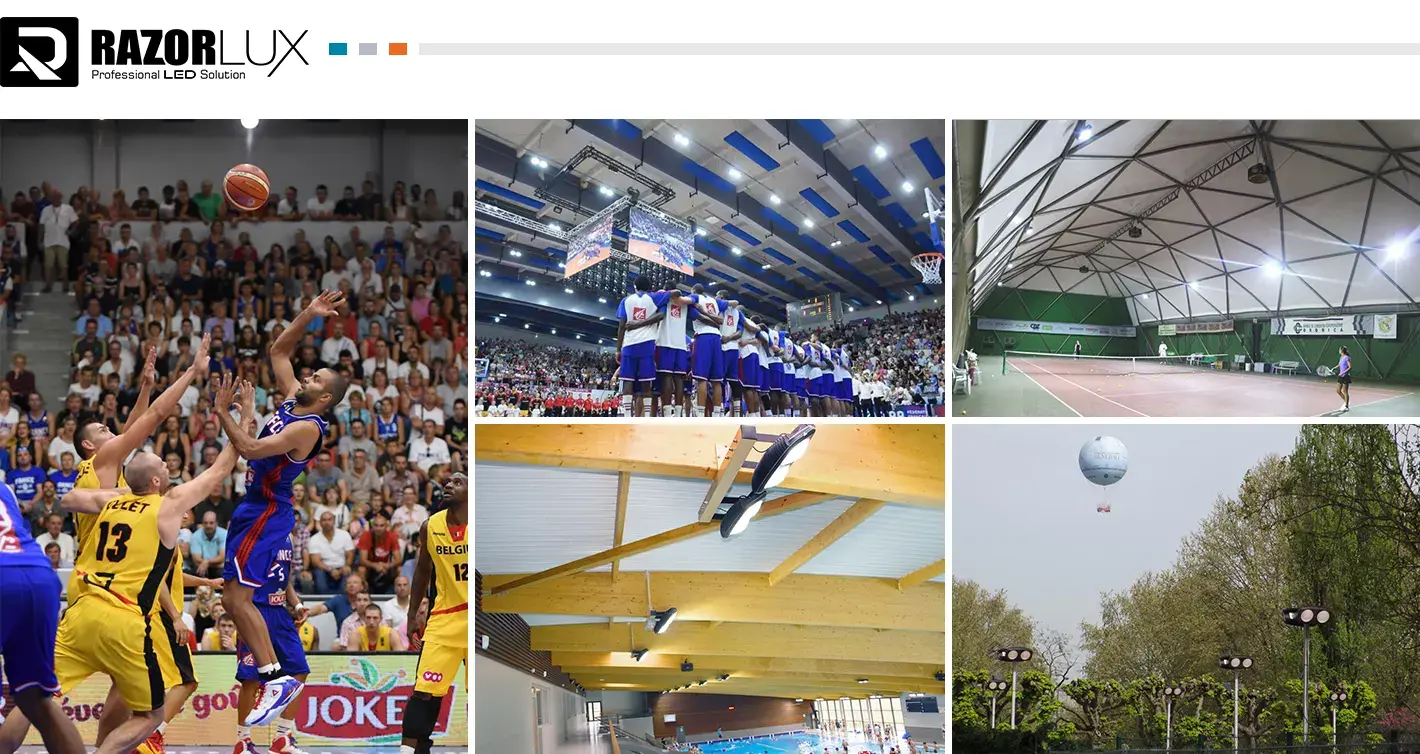

Applications
Our court floodlighting frameworks exceed expectations over assorted donning environments:
- Tennis Courts: Gives uniform light assembly ITF guidelines for recreational and competitive play
- Basketball Courts: Conveys exact light dissemination for both indoor and open air facilities
- Volleyball Courts: Guarantees ideal perceivability for players and onlookers amid evening matches
- Multi-Sport Complexes: Flexible mounting choices oblige different court configurations
- School Athletic Offices: Cost-effective arrangements for instructive educate requiring solid lighting
- Community Entertainment Centers: Energy-efficient operation diminishes metropolitan working expenses
- Professional Sports Scenes: Meets broadcast-quality lighting benchmarks for broadcast events
- Training Offices: Reliable brightening bolsters year-round athletic improvement programs
- Private Sports Clubs: Premium quality lighting upgrades part involvement and office value
- Municipal Parks: Weather-resistant development guarantees long-term execution in open spaces
Quality Control
Every installation experiences thorough testing conventions some time recently shipment. Our ISO-9001 certified quality administration framework, kept up for over 22 successive a long time, guarantees reliable fabricating standards.
We utilize DFMEA disappointment mode examination all through generation, distinguishing potential issues some time recently they affect execution. Each unit gets comprehensive photometric testing, electrical security confirmation, and natural push testing.
Shipment Samples
We give customized tests for extend assessment. Test orders regularly transport inside 3-5 trade days, permitting you to confirm execution characteristics some time recently committing to bigger quantities.
Packaging and Transportation
Each installation ships in defensive froth bundling inside strengthened cartons. We offer adaptable shipping alternatives counting discuss cargo for critical conveyances, rail transport for cost-effective mainland shipping, and sea cargo for huge volume orders.
All shipments incorporate point by point establishment documentation and specialized details to bolster your extend timeline.
| Transportation Time | Shipping Option Details | Recommend Weight |
| 3-7 days | International Express(DHL, FedEx, UPS, TNT, etc.) | 0.5KG-300KG(optimal for cost efficiency under our contarated express rates) |
| 5-10 days | By Air (Airport-to-port or Airport-to-door) | 300KG+(Significantly more economical than express shipping for heavy cargo) |
| 18-22 days | By Rail(China-Europe Railway Express) | 2CBM/500KG+(More economical than air freight for large shipment with flexible timelines) |
| 15-50 days | By Sea(FLC/LCL) | 2CBM/500KG+(Much more economical than rail,suit for non-urgent cargo, also the most cost-effective shipping method) |
After Sales Service
Our commitment expands well past conveyance. We give comprehensive specialized bolster, guarantee benefit, and substitution portion accessibility all through your fixture's operational life.
Our specialized group offers farther meeting for establishment questions and execution optimization. With worldwide benefit capabilities, we guarantee responsive bolster in any case of your area.
FAQ
Q: What lighting levels do your court fixtures provide?
A: Our 500W fixtures deliver illumination suitable for both recreational (200-300 lux) and competitive play (500+ lux), depending on mounting configuration and quantity.
Q: How do these fixtures compare to metal halide systems?
A: LED technology provides instant-on operation, superior energy efficiency, longer lifespan (50,000+ hours), and better light quality with reduced maintenance requirements.
Q: What pole height is recommended for optimal performance?
A: For recreational courts, 20-26 feet pole height works well. Professional installations typically require 30+ feet for optimal light distribution and glare control.
Q: Can these fixtures be dimmed for different usage scenarios?
A: Yes, we offer 0-10V and DALI dimming options to adjust lighting levels based on activity requirements and energy management needs.
Q: How do you ensure uniform light distribution across the court?
A: Our multiple beam angle options and photometric design tools help create customized lighting layouts that eliminate dark spots and ensure consistent illumination.
Q: What warranty coverage is included?
A: All fixtures include comprehensive 5-year warranty coverage for both LED components and fixture housing, backed by our global service network.
