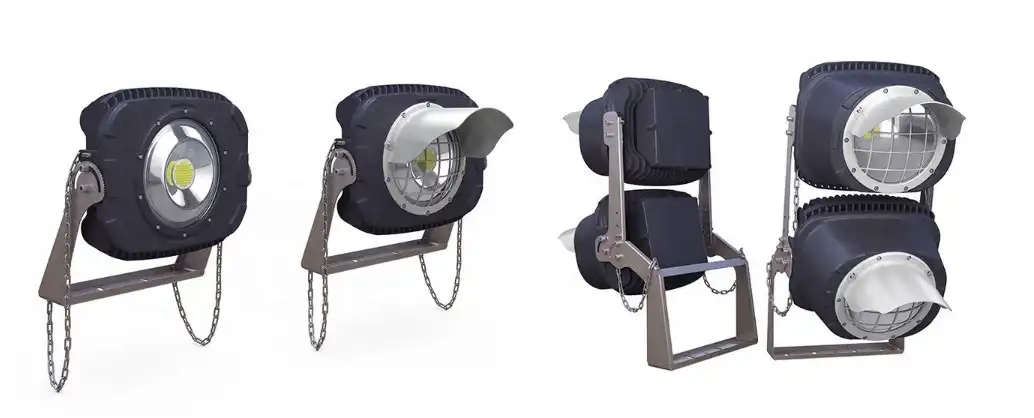

High Safety 1400w Led Sports Ground Floodlights IP67 High Lumen Led Flood Light

Product Details:
Place of Origin:Shaanxi, China
Brand Name: Razorlux
Certification:ce, EMC, LVD, RoHS, Saa
Model Number:RGL2-1400A
Packaging Details:
1.EPS Foam+carton(ONE UNIT PER CARTON)
2.Carton Size(mm):550*450*415mm
3.One 20'' Container can accept 250 Units
Supply Ability: 5000 Piece/Pieces per Month

Send Inquiry Download

Product Description

High Safety 1400w Led Sports Ground Floodlights IP67 High Lumen Led Flood Light Description

The High Safety 1400w Led Sports Ground Floodlights IP67 High Lumen Led Flood Light of the baseball field is different from the lighting requirements of other fields. The area of the baseball field is about 1.6 times that of a football field. The shape of the baseball field is fan-shaped. The average illuminance in the external field is about 50%, so the uniformity of the external field illuminance is a difficult point, that is, the illuminance at the interface between the internal field and the external field must be considered.

Lighting should be provided to the athletes and spectators who play the baseball game in a place where the glare phenomenon can be minimized.

The layout of the baseball field lighting is divided into infield and outfield, and the uniformity and illuminance are designed to be in proper condition.

Color Temperature(CCT):	2700-6500K	Lamp Luminous Efficiency(lm/w):	130, 130
Lighting Solutions Service:	Lighting And Circuitry Design, DIALux Evo Layout, Agi32 Layout	Working Time (hours):	50000
Product Weight（kg）:	30	Input Voltage(V):	80~315Vac, (347Vac Available On Request)
Beam Angle(°):	40° 60° 120° 140°, 40° 60° 120° 140°	Working Lifetime(Hour):	50000
Lamp Body Material:	Aluminum & Powder Coating	Application:	Sports Stadiums
Lamp Luminous Flux(lm):	182000lm, 182000lm	Working Temperature(℃):	-40C~60C/40F~140F, -40C~60C/40F~140F
Warranty(Year):	5-Year	Product Name:	1400w Professional Led Flood Light Outdoor
Color Temperature:	2700-6500K	Housiong Material:	Aluminum & Powder Coating
IP Class:	IP 67	Color Rendering:	≥Ra75
Highlight:	182000lm led sports ground floodlights, 1400w led sports ground floodlights, IP67 high lumen outdoor led flood light

High Safety 1400w Led Sports Ground Floodlights IP67 High Lumen Led Flood Light

Product Specifications

Model		RGL2-1400A
Beam Angle		40° 60° 120° 140°
Stable Flux (5700K after 1 hour)		182000lm
Dimension (mm)		474388982
Power Consumption	LEDs	1260W
	Driver	140W
	Total	1400W
Replace HID Lamp		3000~3500W
Net Weight		30kg (66lbs)
Color Temperature		2700-6500K
Color Rendering		≥Ra75
Working Life		≥50000Hrs
Housing Material		Aluminum & Powder coating
Power Supply		Meanwell
IP Class		IP 67
Working Temperature		-40C ~ 60C / -40F ~ 140F
AC Input		80~315Vac, (347Vac available on request)
Power Factor		≥0.98
Warranty		5 Years

Beam Angle & Installation Diagram

Advantages

Top grade CREE/Samsung led chip
Meanwell Driver
Marine grade powder coating housing finish, and 316 stainless steel bracket
15, 20, 30, 40, 60, 120, and 140 x 60 multil beam angle option
Clear tempered glass lens, and reflector make the classical shape lighting
IP67 and IK10 grade
Protection grid, visor available for optional
Anti-glare frosted lens available

Qualification Certification:

Our High Safety 1400w Led Sports Ground Floodlights IP67 High Lumen Led Flood Light meet or exceed industry standards, with certifications including:

CE (European Conformity)
RoHS (Restriction of Hazardous Substances)
DNV/GL (Maritime and Offshore)
ABS (American Bureau of Shipping)
IP67 (Ingress Protection)
IK10 (Impact Protection)

Packaging and Transportation:

Our products are securely packaged to withstand the rigors of international shipping. We offer various logistics options, including air, sea, and rail freight, to ensure timely delivery to your location.

After-Sales Service:

Razorlux provides comprehensive after-sales support, including:

3-5 year warranty (product dependent)
Technical assistance and troubleshooting
Replacement parts availability
Installation guidance

FAQ:

Q: Are you a factory or trading company?

A: We are a factory located in Xi'an China, established in 2006.

Q: What is your product range?

A: Our wide product range includes floodlight, street light, pendant light, and power from 60W to 1200W.

Q: How many days of production will the order take?

A: Normally 7-15 days, depending on the order quanity.

Q: How do you ship goods abroad?

A: For sample, trial order, or small quantities we will suggest shipping by air, for large quantity and bulk order we recommend shipping by sea.

Q: Does your product support smart control like sensor, dimming, DALI, etc.

A: They support all of these features, please tell our sales during your negotiation when you need such features.

Q: How do you deal with failed lights?

A: During the warranty period, we will send customer free part or lamp after checking the evidence. After warranty, we only charge the component fees, no extra charge for our customer.

Contact Us:

For inquiries about our High Safety 1400w Led Sports Ground Floodlights IP67 High Lumen Led Flood Light or any other lighting solutions, please email us at sam@razorlux.com.
