Outdoor Batting Cage Lights

Outdoor Batting Cage Lights – Professional LED Lighting Solutions

High-performance 180W Outdoor Batting Cage Lights system for baseball and softball training facilities. Razorlux batting cage lights provide 130LM/W efficiency, flicker-free lighting and IP67 waterproof protection. It features adjustable beam angles from 15 degrees to 140 degrees, universal voltage AC90-305V and comes with a 5 year warranty.

Outdoor Batting Cage Lights Specifications

​​​​​​​

Product Features

We recommend upgrading the lighting system to Outdoor Batting Cage Lights.

Flicker-Free Ball Tracking Technology

High frequency LED drivers eliminate stroboscopic effects that interfere with tracking fast moving balls. Good for pitches over 100 mph and gives you visibility from release to point of contact.

Recommended Lighting Levels:

· Recreational training: 30-50 foot-candles (300-500 Lux)

• Competitive facilities: 50-75+ ft-c (500-750+ lux)

Customizable Light Distribution

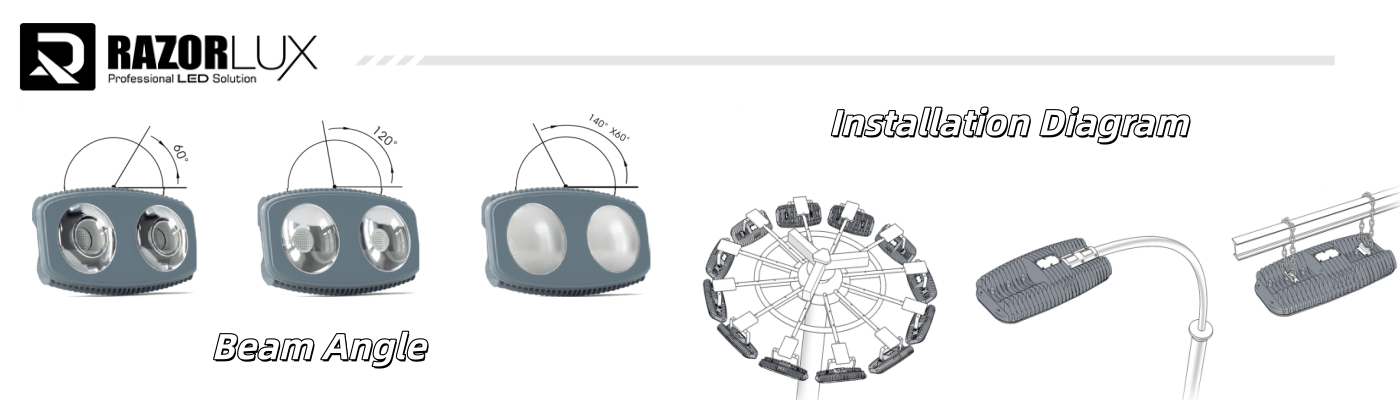

Seven beam angle possibilities for various cage sizes and installation heights:

· Narrow beams (15°-40°): Commercial facilities with high mounting (12-16 ft.)

· Wide beams (60°-120°): Residential installations, lower mounting (10-12 feet)

· Asymmetric (140°x60°): prevents batter glare and provides maximum coverage

Overlap covering zones to prevent shadows from net and structural frames.

Weatherproof Construction

· Housing: Aluminium alloy IP67 certified, corrosion resistant (marine grade C5M)

· Lens: Impact-resistant polycarbonate lens

· Mount: Stainless Steel Bracket System

• Operating temperature: -40°F to +122°F

Designed for direct exposure to weather, humidity and incidental ball contact.

Universal Power Compatibility

Works wide input voltage range (AC 90-305V, DC 127-431V):

· Regular city power distribution grids

· Backup generator systems

· Variable voltage conditions

· Electrical international standards

It needs no extra transformers or voltage regulators.

Glare-Reduction Optics

Prismatic diffusion technology distributes light evenly while minimizing disability glare. Color rendering index (CRI >75) enhances visibility of ball rotation and seam details.

Recommended color temperature:

· 5000K-5700K (Cool White) for optimal ball contrast

· 3000K-4000K (Warm White) for residential neighbor-friendly installations

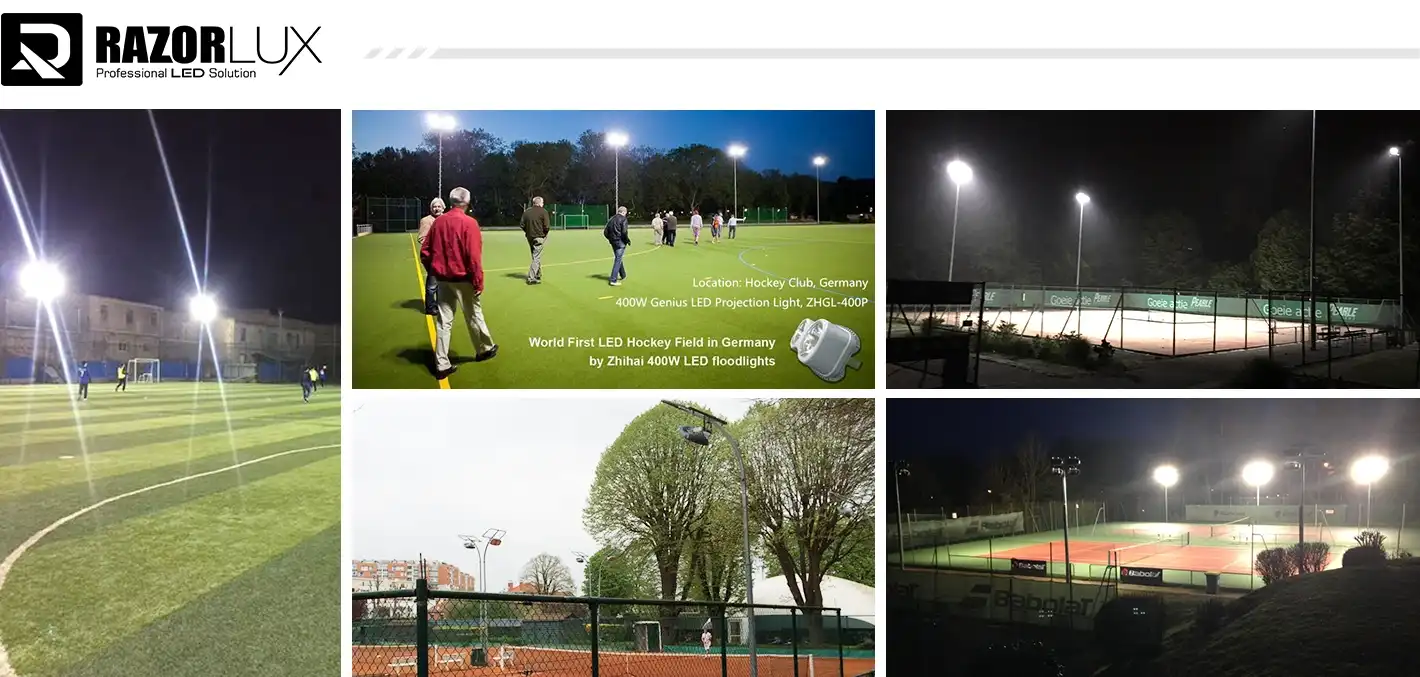

Installation Applications

Commercial Training Facilities

Stadium-quality conditions for multi-cage complexes and professional academies. Standard installations are:

· Mounting height: 12 to 16 feet.

· Overlapping coverage with beam angles of 40°-60°

· Foot candles: 50-75 foot candles to target

· Options include 0-10V or DALI dimming for brightness control

Uniform illumination across the 70-foot depth of the cage facilitates high speed video analysis and pitch recognition training.

​​​​​​​

Municipal Parks & Recreation Centers

Public facilities benefit from:

· Asymmetric beam distributions to contain light within cage boundaries

· Dark Sky compliant configurations to meet local ordinances

· IP67 vandal-resistant construction

· 5-year warranty to reduce maintenance budgets

Provides safe 30-50 foot-candle illumination for youth leagues and community programs while preventing light trespass into residential areas.

Residential Backyard Cages

Home training installations prioritize:

· Lower mounting heights (10-12 feet) with wide 120° beams

· Minimal fixture count for cost efficiency

· Warm color temperatures (3000K-4000K) to reduce light pollution

· Simple mounting to existing cage frames

Achieves functional 30-40 foot-candles for batting practice without disturbing neighbors.

Frequently Asked Questions

What illumination level do I need for my batting cage?

Backyard recreational cages typically require 30-50 foot-candles (300-500 Lux). Competitive training facilities should target 50-75+ foot-candles (500-750+ Lux) to match collegiate standards. contact us for free photometric analysis based on your specific cage dimensions.

Are these lights impact-resistant?

The polycarbonate lens construction withstands significant impact force. For high-traffic commercial installations, optional wire guards provide additional protection. The IP67 rating also protects internal components if lens damage occurs.

Which color temperature is best for ball visibility?

5000K-5700K (Cool White) provides optimal contrast for tracking white balls and red stitching. This daylight-equivalent spectrum improves depth perception and spin recognition compared to lower color rendering lights.

How do I prevent glare for batters?

Position fixtures 30-45 degrees offset from the batter's center line of sight. Use asymmetric 140°x60° beam distributions for overhead mounting to direct light downward while shielding the source from eye level.

Will these lights work in extreme temperatures?

Yes. Operating temperature range: -40°C to +50°C (-40°F to +122°F). LED drivers maintain consistent output in all weather conditions. IP67 sealing prevents moisture condensation in cold climates and dust ingress in hot, dry environments.

Can I dim these lights?

Standard models offer fixed output. Optional 0-10V and DALI dimming versions are available for brightness adjustment, energy savings, and building management system integration.

What is the expected lifespan?

LED modules are rated for 50,000+ hours of operation. With typical usage of 4-6 hours daily, expect 20+ years of service life before significant lumen depreciation.

Do these lights qualify for energy rebates?

DLC Premium certification makes these fixtures eligible for many utility company rebate programs. Check with your local utility provider for specific incentive availability.

Contact Us

For Outdoor Batting Cage Lights inquiries, custom photometric analysis, or project consultation:

Email: sam@razorlux.com

Request a quote or technical specification sheet tailored to your batting cage dimensions and performance requirements.
