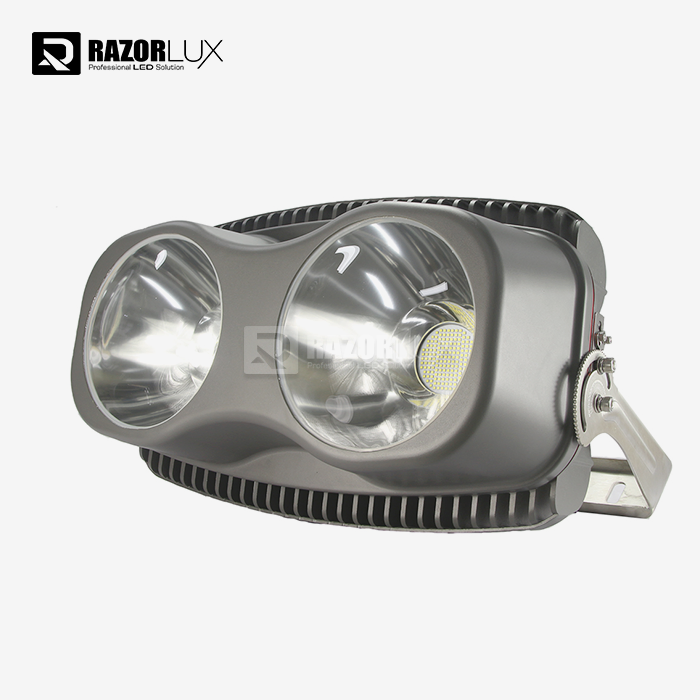

outdoor basketball court led lighting

Patented Multi-function design, suitable for all working environments.
Rated Power: 800W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W

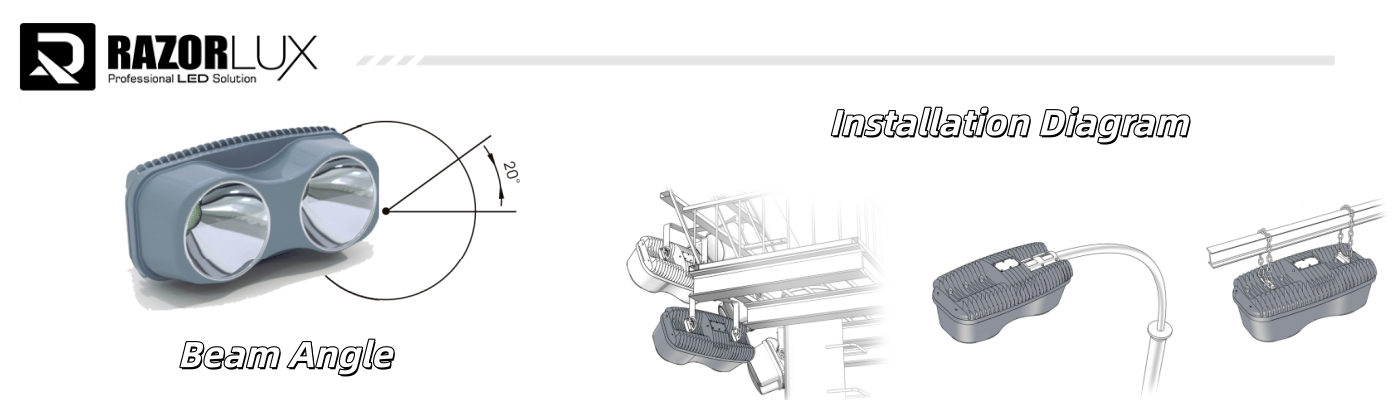

Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67

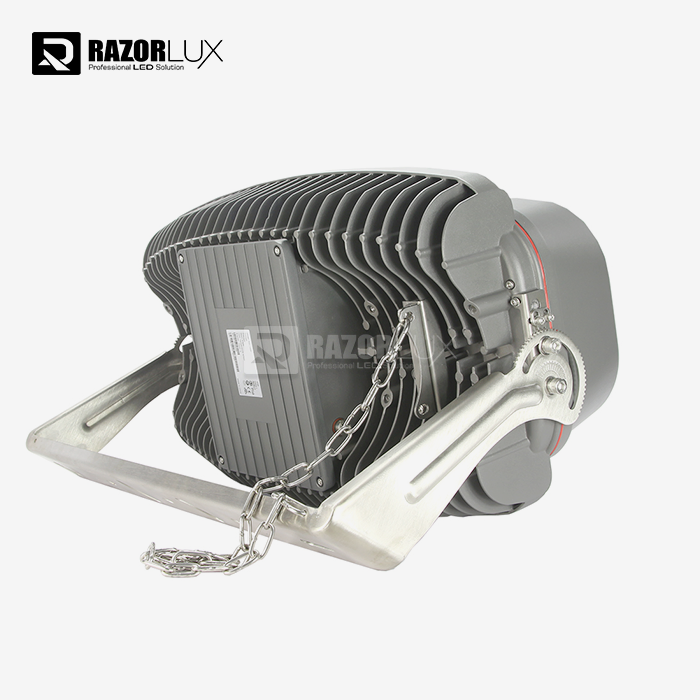

Bracket: Stainless Steel
Net Weight: 15KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001

Send Inquiry Download

Product Description

Outdoor Basketball Court Led Lighting | Professional-Grade Outdoor Solution

Built for Extreme Conditions

Our outdoor basketball court led lighting system delivers 104,000 lumens of consistent, glare-free light—even in -40°C winters or scorching +60°C summers. IP67 waterproof rating means your investment stays protected through hurricanes, downpours, and everything in between.

5-Year Warranty, Zero Hassle

Unlike competitors offering 2-3 year coverage, we back every fixture with a comprehensive 5-year warranty. Our fixtures are still running strong in courts installed back in 2015.

product-1-1

Outdoor Basketball Court Led Lighting Specification

Model		RGL-800P-L20
Beam Angle		20°
Stable Flux (5700K after 1 hour)		88000lm
Dimension (mm)		671405322
Power Consumption	LEDs	720W
	Driver	80W
	Total	800W
Replace HID Lamp		1500~2500W
Net Weight		32kg
Color Temperature		2700-6500K
Color Rendering		≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life		≥50000Hrs

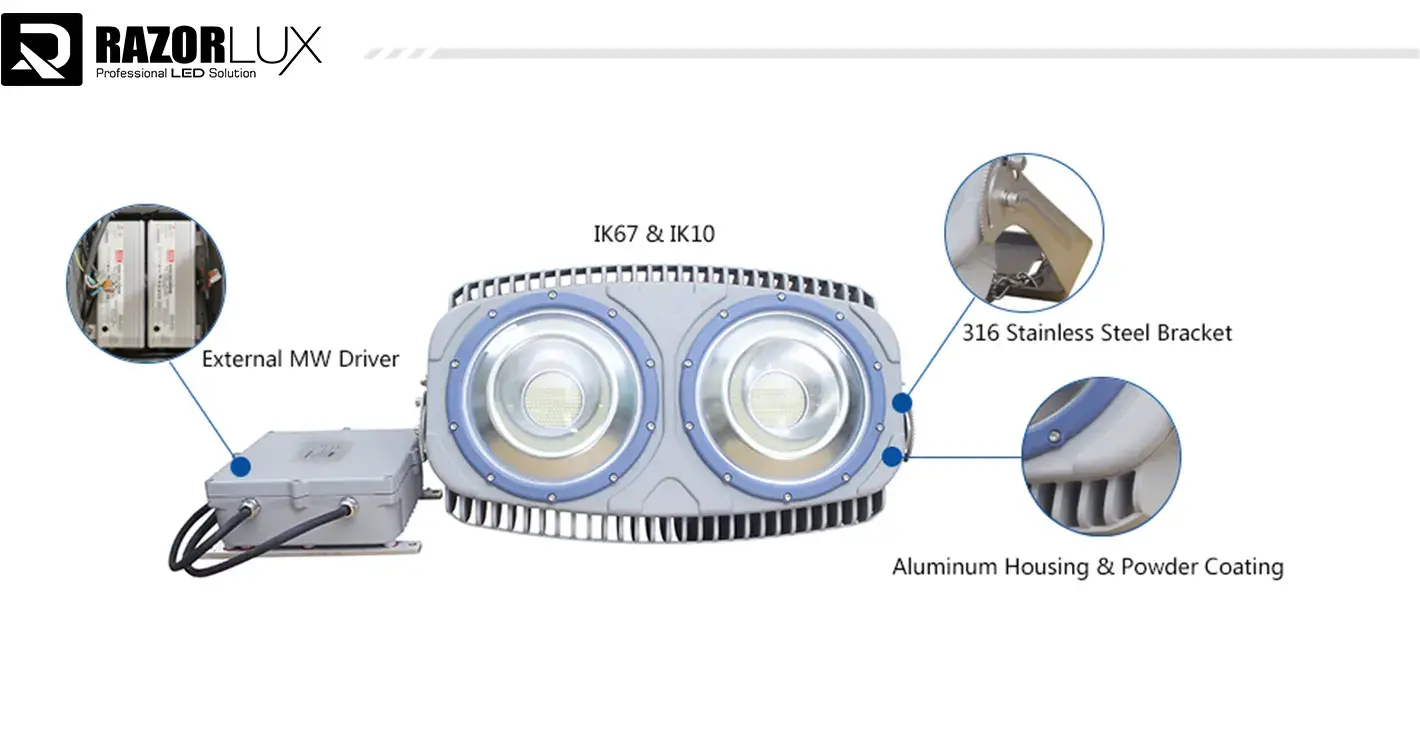

Housing Material		Aluminum & Powder coating
Power Supply		Meanwell
IP Class		IP 65,IP 67
IK Class		IK 10
Insulation Class		Class I
Working Temperature		-40C ~ 60C / -40F ~ 140F
Working Humidity		10% ~ 95%
AC Input		80~305Vac
DC Input		100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD		<10%
Power Factor		≥0.98
Warranty	LED Module	5 years
	Driver	5 years
	Housing	10 years

product-1-1

Perfect For Your Court

We recommend upgrading your lighting system to outdoor basketball court led lighting.

Recreational Courts

· 4 x 200W Setup→ 200 lux (ideal for evening pickup games)

· Wide-beam coverage eliminates dark corners

· Warm 3000K option for comfortable neighborhood play

Competition Venues

· 4 x 800W Setup→ 500+ lux (broadcast quality)

· <1% flicker for high-speed cameras

· Meets NCAA and FIBA lighting standards

product-1-1

School & College Facilities

· Smart dimming: 100% for games, 30% for security

· Integrates with existing 0-10V control systems

product-1-1

Common Questions Answered

"How numerous lights do I need?"

Most standard courts (84' x 50') require 4-6 installations. We'll make a free lighting plan with correct lux levels for your court measurements and shaft placement.

"Will these daze players looking up?"

No. Our deep-set optics and anti-glare shields coordinate light descending. Players see the court clearly without cruel glare—even when looking at the basket.

"What if a installation fails?"

Our 5-year guarantee covers everything: parts, labor, and shipping. Normal reaction time: 48 hours. But with a 0.3% disappointment rate, you'll likely never require it.

"Can I dim them for hone vs. games?"

Yes. Include discretionary 0-10V darkening to alter from 10-100%. Incredible for multi-use courts that twofold as stopping parcel lighting.

"Do you dispatch to [my location]?"

We dispatch around the world from stockrooms in California, Texas, and Shanghai. US orders regularly arrive in 5-7 commerce days.
