Waterproof Led Floodlight

Waterproof LED Floodlight - Industrial Marine Lighting Built for Extreme Environments

When your operations can't afford lighting failures, you need more than standard fixtures. Our 400W Waterproof LED Floodlight combines 25+ years of engineering expertise with military-grade construction, delivering reliable illumination in the harshest conditions—from saltwater docks to sub-zero industrial sites.

Waterproof Led Floodlight Specifications

​​​​​​​

Product Overview

Power That Performs Under Pressure

This floodlight isn't just waterproof—it's engineered for environments where most fixtures fail. Here's what sets it apart:

· 400W High Output with 130LM/W efficiency (52,000 lumens)

· True IP67 Protection - survives temporary submersion, not just rain

· Universal Voltage: Works with AC90-305V or DC127-431V (no transformers needed)

· 7 Beam Angle Options: Precision lighting from narrow 15° spots to wide 140° floods

· -40°C to +50°C Operation: From Arctic cold to desert heat

· 5-Year Warranty backed by ISO9001 certification since 2001

Why This Floodlight Outlasts the Competition

Built to Survive Salt, Storm, and Impact

The Corrosion Problem: Standard Waterproof Led Floodlight rust within months in coastal or chemical environments.

Our Solution:

· C5M anti-corrosion coating (the highest marine-grade protection)

· 316 stainless steel mounting hardware

· 1000-hour salt spray tested (ASTM B117)

· IK08 impact-resistant tempered glass lens

Real-world result: Zero corrosion failures in dock installations after 3+ years.

No More Moisture Damage

The Condensation Problem: Temperature changes create internal pressure that sucks moisture into sealed fixtures.

Our Solution:

· Active pressure compensation with breathable membrane valves

· Premium silicone gaskets rated for 10+ years

· Every unit tested with IPX7 submersion (1 meter, 30 minutes)

This isn't just waterproof on paper—it's proven in conditions that destroy conventional lights.

Works With Any Power System

The Voltage Problem: Unstable generators, offshore power, or DC systems require expensive transformers.

Our Solution:

· Built-in driver handles AC90-305V and DC127-431V

· Integrated surge protection (4-10kV)

· No external components needed

· Flicker-free across the entire voltage range

Whether you're connecting to a ship's DC system or an industrial grid with fluctuations, installation is simple and reliable.

​​​​​​​Where Our Customers Use This Floodlight

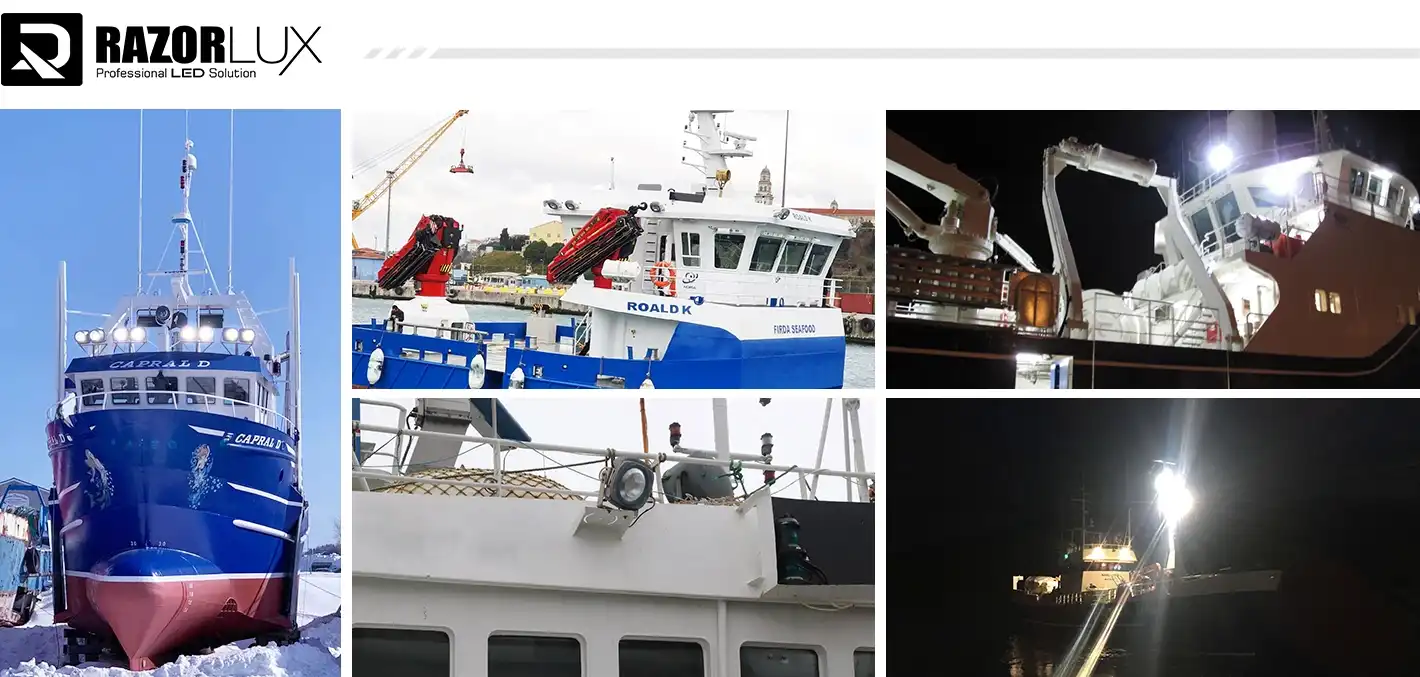

Marine & Port Facilities

Cargo terminals, shipyards, and offshore platforms demand lighting that survives:

· Constant salt spray exposure

· High-pressure washdowns

· Vessel power system integration (DC compatibility)

· RMRS marine certification required

Typical installation: 12-unit arrays on container crane gantries

Industrial & Manufacturing

Chemical plants, steel mills, and processing facilities need:

· Explosion-resistant environments (suitable for Zone 2 with proper installation)

· 24/7 operation reliability

· Minimal maintenance access

· Wide voltage tolerance for heavy machinery startups

Typical installation: High-bay mounting at 8-15 meters

Outdoor Sports & Events

Stadiums, recreational fields, and event venues require:

· Broadcast-quality color rendering (Ra>75)

· Multiple beam angles for targeted coverage

· All-weather performance

· Temperature extremes (-40°C to +50°C)

Typical installation: Perimeter pole mounting with 30° beam angles

Infrastructure Projects

Tunnels, bridges, parking structures, and public spaces benefit from:

· 50,000+ hour lifespan (reduces maintenance costs)

· Uniform illumination (meets EN 12464-2 standards)

· Vandal-resistant construction

· Complimentary lighting layout design available

Common Questions

Q: What's the real difference between IP65 and IP67?

IP65 = Protected against water jets (rain, spray)

IP67 = Can be submerged up to 1 meter for 30 minutes

Choose IP67 if your site has:

· Wash-down requirements

· Flooding risk

· Direct water exposure beyond rain

Q: Will this work with our unstable generator power?

Yes. The wide input range (AC90-305V) handles significant voltage fluctuations. The integrated surge protection (4-10kV) shields against spikes. Many customers use these with portable generators at remote sites without issues.

Q: How long do the waterproof seals actually last?

Our VMQ silicone gaskets are rated for 10+ years of UV and ozone exposure. In typical installations, they outlast the fixture's useful life. We recommend inspection during scheduled maintenance (every 2-3 years) rather than preventive replacement.

Q: Can I use this near saltwater?

Absolutely—it's designed for it. The C5M coating and 316 stainless steel hardware pass 1000-hour salt spray testing. We have units operating within 50 meters of ocean spray with zero corrosion after 3+ years.

Q: Does the sealed design cause overheating?

No. The die-cast aluminum housing is precision-engineered as a heat sink. Even at full 400W output in 50°C ambient temperatures, LED junction temps stay below 85°C. This maintains the 50,000+ hour lifespan.

About Razorlux

Since 1998, we've specialized in lighting solutions for extreme environments. Our credentials include:

· 200+ Patents in LED technology and thermal management

· 25+ Years of lighting engineering experience

· ISO9001 Certified since 2001 (22 consecutive years)

· Authorized Testing Lab - National Development and Reform Commission (China)

· Dual Headquarters - USA and China with manufacturing in Xi'an and Zhuhai

Our engineering team provides complimentary lighting design services, including lux calculations and layout optimization for your specific project requirements.

Get Expert Lighting Design Support

Our technical team can help you:

· Calculate required fixtures for your space

· Select optimal beam angles and mounting heights

· Ensure compliance with local lighting standards

· Provide project-specific recommendations
