outdoor led tennis court lighting

Patented Multi-function design, suitable for all working environments.
Rated Power: 400W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 32KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001

Send Inquiry Download

Product Description

High-Performance Outdoor LED Tennis Court Lighting Solutions

Change your tennis office with our premium outdoor led tennis court lighting frameworks. Outlined particularly for sports applications, our 400W Driven floodlights convey remarkable light with professional-grade execution. Whether you're overhauling existing courts or building unused offices, our lighting arrangements give uniform brightness, diminished glare, and energy-efficient operation. With protected multi-function plan and 5-year guarantee scope, you get solid lighting that upgrades player execution and onlooker experience.

product-1-1

Product Specifications

Model		RGL2-400A
Beam Angle		40° 60° 120° 140°
Stable Flux (5700K after 1 hour)		52000lm
	LEDs	360W
Power	Driver	40W
Consumption	Total	400W
Replace HID Lamp		800~1000W
Net Weight		32kg with stainless steel floodlight bracket
Color Temperature		2700-6500K
Color Rendering		≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life		≥50000Hrs
Housing Material		Aluminum & Powder coating
Power Supply		Meanwell
IP Class		IP 67
IK Class		IK 10
Insulation Class		Class I
Working Temperature		-40C ~ 60C / -40F ~ 140F
Working Humidity		10% ~ 95%
AC Input		110-480Vac input voltage without additional adapter
DC Input		100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD		<10%
Power Factor		≥0.98
Warranty	LED Module	5 years
	Driver	5 years
	Housing	10 years

Why Choose Our Outdoor LED Tennis Court Lighting?

Our tennis court lighting stands out in the competitive showcase. You advantage from licensed innovation that guarantees steady execution over different climate conditions. The wide voltage run suits distinctive control frameworks all inclusive. Different pillar point choices let you customize light dissemination for your particular court layout.

The IP67 rating ensures security against tidy and water entrance. Your speculation remains ensured amid overwhelming rain or dusty conditions. The stainless steel mounting bracket stands up to erosion and gives steady establishment for years.

Energy proficiency comes to 130 lumens per watt, essentially decreasing your power costs. The 50,000-hour life expectancy implies negligible upkeep necessities. You spare both operational costs and substitution hassles.

product-1-1

Applications

Our open air driven tennis court lighting serves assorted sports and recreational facilities:

• Proficient Tennis Courts: Tournament-grade lighting meets universal tennis alliance guidelines for competitive play

product-1-1

• Club and Community Centers: Cost-effective arrangements for recreational tennis offices and multi-sport complexes

• School Athletic Offices: Tough lighting frameworks for instructive teach requiring dependable nighttime sports illumination

• Resort and Lodging Courts: Premium lighting upgrades visitor involvement at neighborliness settings with tennis amenities

• Civil Diversion Ranges: Open tennis courts advantage from energy-efficient lighting that decreases citizen burden

• Preparing Institutes: Specialized lighting underpins seriously preparing programs requiring steady light levels

• Multi-Sport Complexes: Flexible pillar points oblige different court sports past tennis counting ball and volleyball

product-1-1

• Private Private Courts: Mortgage holders appreciate professional-grade lighting for individual tennis courts and excitement areas

Quality Control

Quality shapes the establishment of each item we fabricate. Our ISO9001-certified quality administration framework has worked ceaselessly for over 22 a long time. Each lighting installation experiences thorough testing conventions some time recently clearing out our facility.

We actualize DFMEA disappointment mode examination all through the generation handle. This automotive-industry standard guarantees potential issues are recognized and disposed of amid fabricating. Each component meets strict quality benchmarks.

Our quality control group incorporates certified engineers and specialists. They perform photometric testing, warm examination, and solidness appraisals on each clump. You get items that reliably meet distributed specifications.

product-1-1

Shipment Samples

We give comprehensive testing administrations to guarantee item compatibility with your extend necessities. Test units experience the same quality testing as full generation bunches. This permits you to assess genuine execution some time recently committing to bigger orders.

Sample shipments ordinarily arrive inside 7-10 trade days by means of express messenger. Each test incorporates nitty gritty details, establishment rules, and photometric information. You can conduct on-site testing to confirm compatibility with your particular application needs.

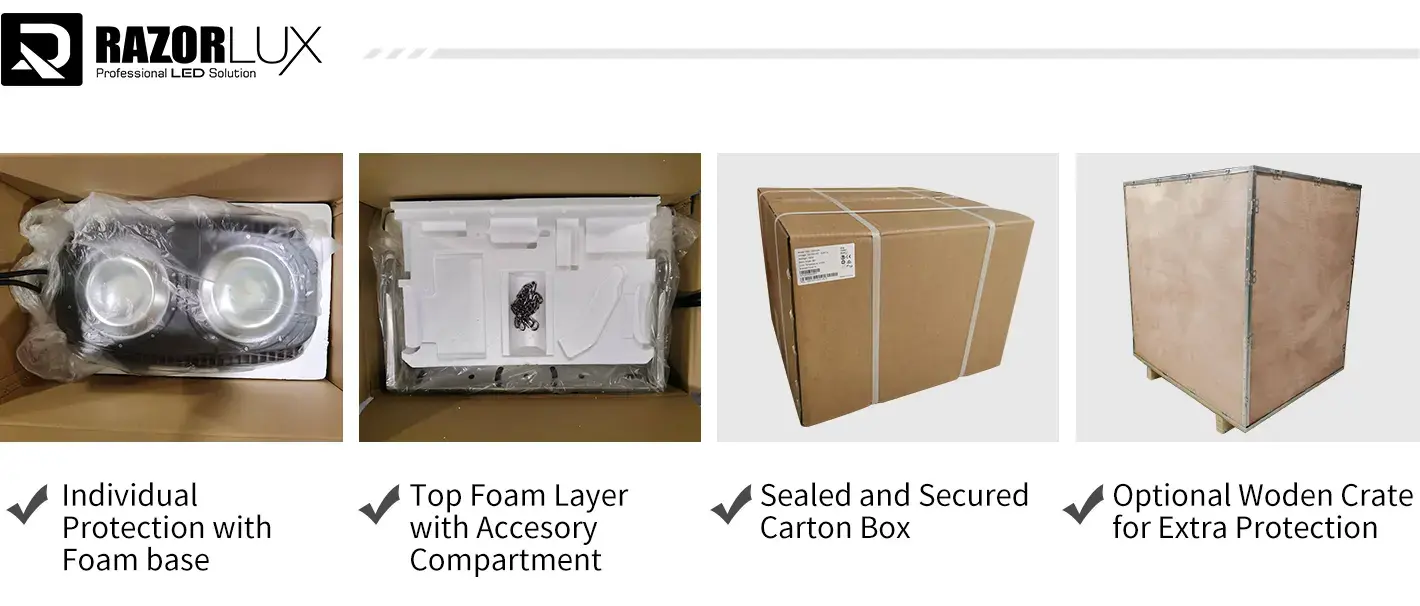

Packaging and Transportation

Professional bundling ensures your lighting venture amid travel. Each installation gets person froth security inside durable cardboard cartons. Different units are secured on wooden beds for bigger shipments.

We offer adaptable shipping alternatives counting discuss cargo, sea transport, and rail administrations. Express conveyance serves pressing necessities whereas economy shipping gives cost-effective arrangements for standard timelines. All shipments incorporate comprehensive following and protections coverage.

product-1-1

Transportation Time	Shipping Option Details	Recommend Weight
3-7 days	International Express(DHL, FedEx, UPS, TNT, etc.)	0.5KG-300KG(optimal for cost efficiency under our contarated express rates)
5-10 days	By Air (Airport-to-port or Airport-to-door)	300KG+(Significantly more economical than express shipping for heavy cargo)
18-22 days	By Rail(China-Europe Railway Express)	2CBM/500KG+(More economical than air freight for large shipment with flexible timelines)
15-50 days	By Sea(FLC/LCL)	2CBM/500KG+(Much more economical than rail,suit for non-urgent cargo, also the most cost-effective shipping method)

Transaction Feedback

Customer fulfillment drives our trade logic. We keep up straightforward communication all through each exchange. Standard upgrades keep you educated approximately generation advance, quality testing comes about, and shipping schedules.

Our client benefit group reacts to request inside 24 hours. Specialized questions get point by point answers from qualified engineers. We esteem your input and persistently move forward our items and administrations based on client input.

After Sales Service

Comprehensive back proceeds long after your buy. Our specialized group gives establishment direction, investigating help, and upkeep suggestions. Inaccessible bolster makes a difference resolve issues rapidly without expensive location visits.

Warranty benefit covers fabricating absconds and execution issues for five full a long time. We keep up stock of substitution components to minimize downtime. Nearby benefit accomplices in major markets give quicker reaction times for pressing situations.

Qualification Certification

Our outdoor led tennis court lighting meets worldwide security and execution guidelines. UL posting guarantees compliance with North American electrical codes. CE stamping affirms European congruity necessities. SAA certification covers Australian and Modern Zealand markets.

Marine certification from RMRS approves solidness beneath unforgiving natural conditions. DLC capability affirms vitality productivity guidelines for utility discount programs. These certifications illustrate our commitment to quality and security.

product-1-1

FAQ

Q: What is the recommended mounting height for tennis courts?

A: Mount fixtures between 20-30 feet high for optimal light distribution. Higher mounting reduces glare while ensuring adequate illumination levels across the playing surface.

Q: How many fixtures do I need for a standard tennis court?

A: A regulation tennis court typically requires 4-6 fixtures depending on mounting height and beam angle selection. Our lighting design team can provide specific recommendations based on your court dimensions.

Q: Can these lights be dimmed?

A: Yes, our fixtures support 0-10V and DALI dimming protocols. This allows you to adjust brightness levels for different activities or energy conservation requirements.

Q: What color temperature is best for tennis courts?

A: We recommend 5000K-6500K for optimal color rendering and player visibility. This range provides crisp white light that enhances ball tracking and reduces eye strain.

Q: How long is the warranty period?

A: All tennis court lighting fixtures include a comprehensive 5-year warranty covering manufacturing defects and performance issues. This ensures long-term peace of mind for your investment.

Contact Us

Ready to upgrade your tennis facility with professional outdoor led tennis court lighting? Our lighting experts are standing by to help design the perfect solution for your specific requirements.

Email: sam@razorlux.com

Get your personalized quote today and discover why tennis facilities worldwide trust Razorlux for their lighting needs.
