Outdoor Sport Court Lights

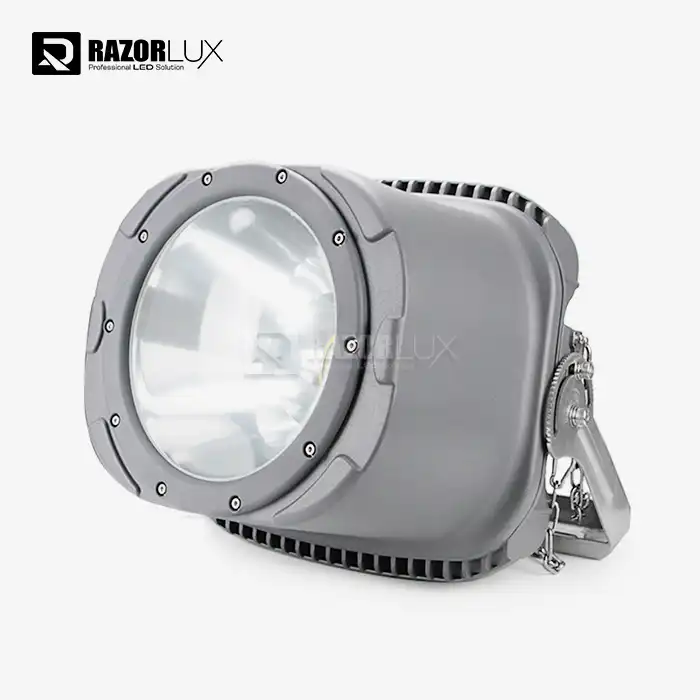

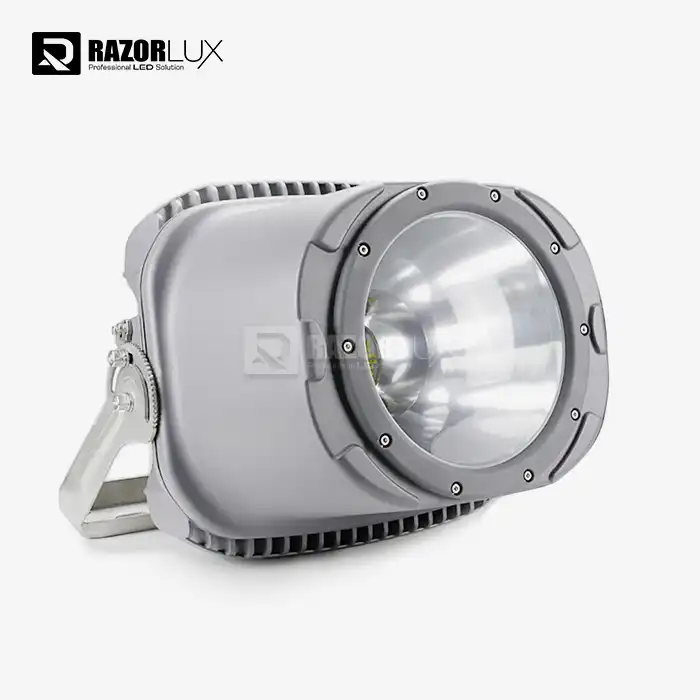

800W Outdoor Sport Court Lights | Professional LED Lighting Solution

Our 800W Outdoor Sport Court Lights have a beam angle that can be changed from 15° to 140°x60° and an economy of 130LM/W. With an IP67 rating for protection and a lifespan of 50,000 hours or more, these devices are made for tennis courts, basketball courts, and multi-sport venues. They meet the standards of professional tournaments. Since 1998, Xi'an Razorlux has been designing lighting solutions for public buildings and sports complexes in harsh climates ranging from the coast to the desert.

Outdoor Sport Court Lights Specifications

Performance Features

Precision Light Control

You can change the area to fit different types of courts and mounting heights by changing the beam angle. Asymmetric optics keep light from spilling over into the neighbouring court, which solves common neighbour issues and meets dark sky standards.

·Angles of beams that are best for each application:

·Tennis courts: 20° or 30° (pole height 25–35 feet)

·Basketball courts: 40° or 60° (pole height 30 to 40 feet)

·60° or 140°x60° multi-use areas (pole height 35 to 50 feet)

Durability in Harsh Environments

Coastal & Marine Installations:

IP67 sealing keeps saltwater spray and humidity from getting into internal parts. The marine-grade coating and C5M-rated stainless steel bracket don't rust in coastal areas.

Extreme Temperature Performance:

From -40°C to +50°C, the output stays the same thanks to advanced thermal management. Installations in the Arctic and desert climates don't lose performance.

Impact Resistance:

IK08 rating can handle damage from vandalism and stray balls, which can happen in public places.

Instant Operation

When you turn on an LED light, it gets bright right away. There is no warm-up period, so the court is available at all times during peak hours. In contrast to HID lights, which need more time to warm up, performance stays the same in cold weather.

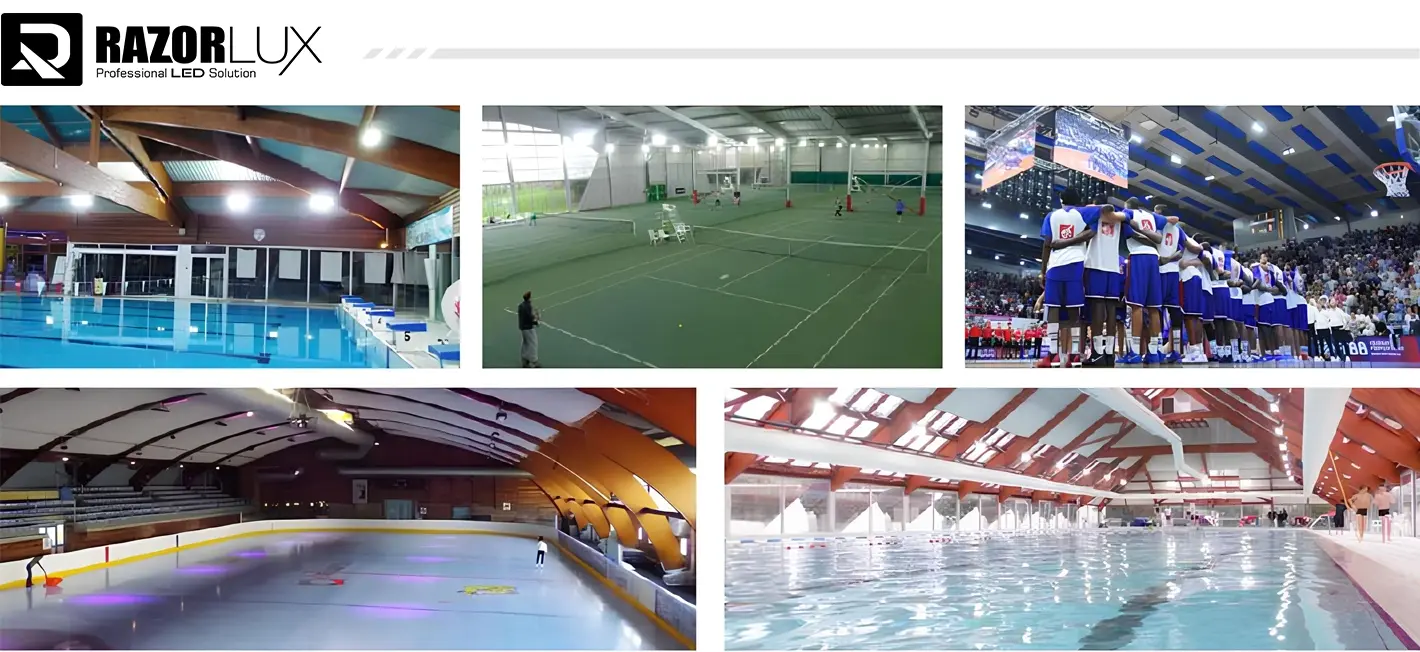

Application Scenarios

Professional Sports Facilities

High-quality lighting for tournaments that doesn't flicker (TLCI >90) and is good for HD broadcasting. Uniform lighting meets the standards for competition venues set by the International Sports Federation.

The high colour rendering index (Ra>75) makes sure that the colour of the ball, the court lines, and the outfits of the players can be seen correctly, which is important for sports that move quickly and need accurate tracking.

Municipal Parks & Recreation Centers

Facilities that are trying to stay within their budgets gain from lower energy costs and less upkeep. The more than 50,000-hour lifespan means that it will last for 15 to 20 years if it is used for 8 hours a day.

Compatible with DALI and 0-10V dimming protocols for integration with smart building systems. Automated scheduling and dimming reduce energy consumption during off-peak hours.

Multi-Sport Complexes

Adjustable mounting options and beam angles accommodate various sports on the same facility:

· Tennis and pickleball: Narrow beams for vertical surfaces

· Basketball and volleyball: Medium beams for overhead tracking

· Soccer and field sports: Wide asymmetric beams for large areas

Separate control zones allow different lighting levels for practice versus competition.

Harsh Climate Installations

Desert Regions: Operates reliably at +50°C ambient temperature with no thermal shutdown.

Coastal Areas: C5M marine-grade materials withstand saltwater exposure without degradation.

Cold Climates: Maintains full output at -40°C without warm-up delays.

Why Choose Xi'an Razorlux

Manufacturing Experience Since 1998

Xi'an Razorlux specializes in LED lighting solutions for industrial and sports applications. Our Outdoor Sport Court Lights' team includes specialists in optical design, thermal management, and power electronics.

We operate national-level research laboratories authorized by China's Development and Reform Commission, holding over 200 patents in LED technology, power control systems, and thermal management.

Quality Control Process

ISO9001:2015 certified manufacturing follows automotive-industry DFMEA (Design Failure Mode Effects Analysis) protocols. Each fixture undergoes:

1. Incoming component inspection

2. Automated optical testing

3. Thermal cycling tests (-40°C to +50°C)

4. Waterproof integrity testing (IP67)

5. Surge protection validation (10kV)

6. Final photometric verification

Proven Track Record

Our lighting systems operate in facilities for major clients including China Mobile infrastructure projects and Guodian Group industrial complexes. We serve commercial, municipal, and industrial customers across Asia, North America, and Australia.

Installation Support

Free Lighting Design Service

Our engineering team provides complimentary lighting layout design including:

· Lux level calculations for your specific court dimensions

· Photometric simulations showing uniformity ratios

· Mounting height and spacing recommendations

· Compliance verification with governing body standards (USTA, FIBA, etc.)

Technical Documentation

Complete installation package includes:

· Mounting templates and hardware specifications

· Electrical wiring diagrams

· Step-by-step installation guide

· Aiming and adjustment procedures

· Maintenance schedule recommendations

Replacement Parts Availability

Modular design allows component replacement without removing entire fixtures. We maintain inventory of:

· LED driver modules

· Optical lenses and reflectors

· Mounting hardware

· Surge protection devices

​​​​​​​

Common Questions

What lighting levels do different sports require?

Professional standards vary by sport. Tennis typically requires 75-100 foot-candles for recreational play, 100-125 for competitive play. Basketball needs 50-75 foot-candles for recreation, 75-100 for competition. Our design team calculates requirements based on your specific needs and governing body standards.

How do these lights prevent glare for players?

Precision optics and proper aiming eliminate direct viewing of the light source from player eye level. Asymmetric beam patterns direct light downward onto the court surface. Our design service includes glare analysis to ensure comfortable playing conditions.

What happens during power outages or surges?

Integrated 10kV surge protection devices safeguard the internal driver from voltage spikes caused by lightning or grid fluctuations. In the event of power loss, lights restart instantly when power returns—no warm-up period required.

Can I control brightness for different activities?

Yes. Optional 0-10V or DALI dimming allows adjustment from 10-100% output. Reduce intensity for practice sessions to save energy, then increase to full brightness for competitions. Dimming does not affect color temperature or quality.

What maintenance is required?

Minimal maintenance is needed. We recommend annual inspection of mounting hardware and lens cleaning. The sealed optical chamber prevents dust accumulation on LEDs. No lamp replacements or ballast servicing required during the 50,000+ hour lifespan.

How long does installation take?

Installation time depends on site conditions and number of fixtures. A typical 4-court tennis facility with 16-20 fixtures can be completed in 2-3 days by qualified electricians using our provided documentation.

Do you provide photometric reports?

Yes. Each lighting design includes computer-generated photometric analysis showing predicted lux levels, uniformity ratios, and compliance with relevant standards. Post-installation field measurements available upon request.

Get Started

Transform your sports facility with professional-grade lighting that reduces energy costs and improves player experience.
