hockey field lights
Rated Power: 400W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67

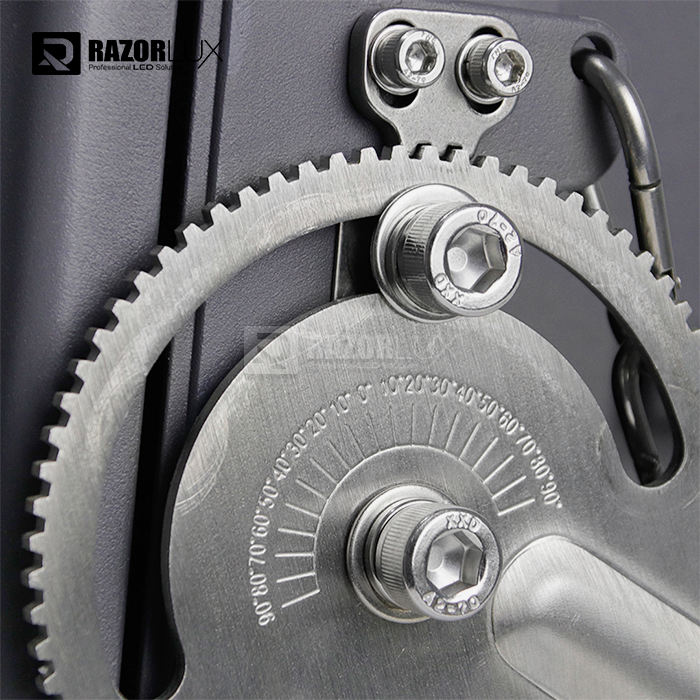

Bracket: Stainless Steel
Net Weight: 22KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001
- Product Description
Professional Hockey Field Lights - Premium LED Lighting Solutions
Change your hockey office with our professional-grade hockey field lights planned for prevalent execution and unwavering quality. At Xi'an Razorlux Optoelectronic Innovation Co., Ltd., we get it that appropriate lighting is vital for player security, diversion quality, and onlooker involvement. Our progressed Driven lighting frameworks convey uncommon brightness, uniform light dispersion, and vitality productivity that meets worldwide sports lighting measures. With over 25 a long time of skill in Driven innovation and more than 200 licenses, we give lighting arrangements that improve gameplay perceivability whereas decreasing operational costs for your facility.
Product Specifications
Model | RGL2-400P | |
Beam Angle | 15° 20° 30° | |
Stable Flux (5700K after 1 hour) | 48000lm | |
Dimension (mm) | 466*388*487 | |
| LEDs | 360W |
Power | Driver | 40W |
Consumption | Total | 400W |
Replace HID Lamp | 800~1000W | |
Net Weight | 19kg with stainless steel floodlight bracket | |
Color Temperature | 2700-6500K | |
Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
Working Life | ≥50000Hrs | |
Housing Material | Aluminum & Powder coating | |
Power Supply | Meanwell | |
IP Class | IP 67 | |
IK Class | IK 10 | |
Insulation Class | Class I | |
Working Temperature | -40C ~ 60C / -40F ~ 140F | |
Working Humidity | 10% ~ 95% | |
AC Input | 110-480Vac input voltage without additional adapter | |
DC Input | 100 ~ 400Vdc, 500Vdc ~ 800Vdc | |
THD | <10% | |
Power Factor | ≥0.98 | |
Warranty | LED Module | 5 year |
| Driver | 5 year |
| Housing | 10 year |
Why Choose Our Hockey Field Lights?
Advanced Thermal Management Technology
Our licensed warm control framework guarantees reliable execution indeed in extraordinary climate conditions. The cleverly warm dissemination plan expands installation life expectancy and keeps up ideal light output.
Superior Light Quality
Achieve professional-grade light with negligible glare and flicker-free operation. Our Driven innovation gives fabulous color rendering that improves puck perceivability and player recognition.
Energy Efficiency
Reduce vitality utilization by up to 70% compared to conventional metal halide installations. The high-efficiency plan conveys most extreme lumens per watt whereas minimizing operational costs.
Robust Construction
Built with marine-grade materials and IP67 waterproof rating, these installations withstand cruel open air conditions counting snow, ice, and temperature fluctuations.
Flexible Installation Options
Multiple pillar points and mounting arrangements oblige different field formats and lighting prerequisites for both indoor and open air hockey facilities.
Applications
Our lighting arrangements serve assorted hockey office needs:
- Professional Ice Hockey Fields: Broadcast-quality lighting for broadcast recreations and proficient tournaments
- Community Hockey Arenas: Cost-effective light for neighborhood associations and recreational play
- Training Offices: Flexible lighting levels for hone sessions and expertise development
- Outdoor Hockey Courts: Weather-resistant installations for road hockey and open air rinks
- Multi-Purpose Sports Complexes: Flexible lighting frameworks for offices facilitating different sports
- School and College Arenas: Instructive office lighting assembly security and execution standards
- Hockey Preparing Centers: Specialized lighting for coaching institutes and improvement programs
- Recreational Ice Arenas: Family-friendly lighting for open skating and novice leagues
- Tournament Settings: High-performance lighting for competitive occasions and championships
- Roller Hockey Courts: Adjusted arrangements for inline and roller hockey facilities
These applications illustrate our commitment to giving comprehensive lighting arrangements over all levels of hockey competition and recreation.

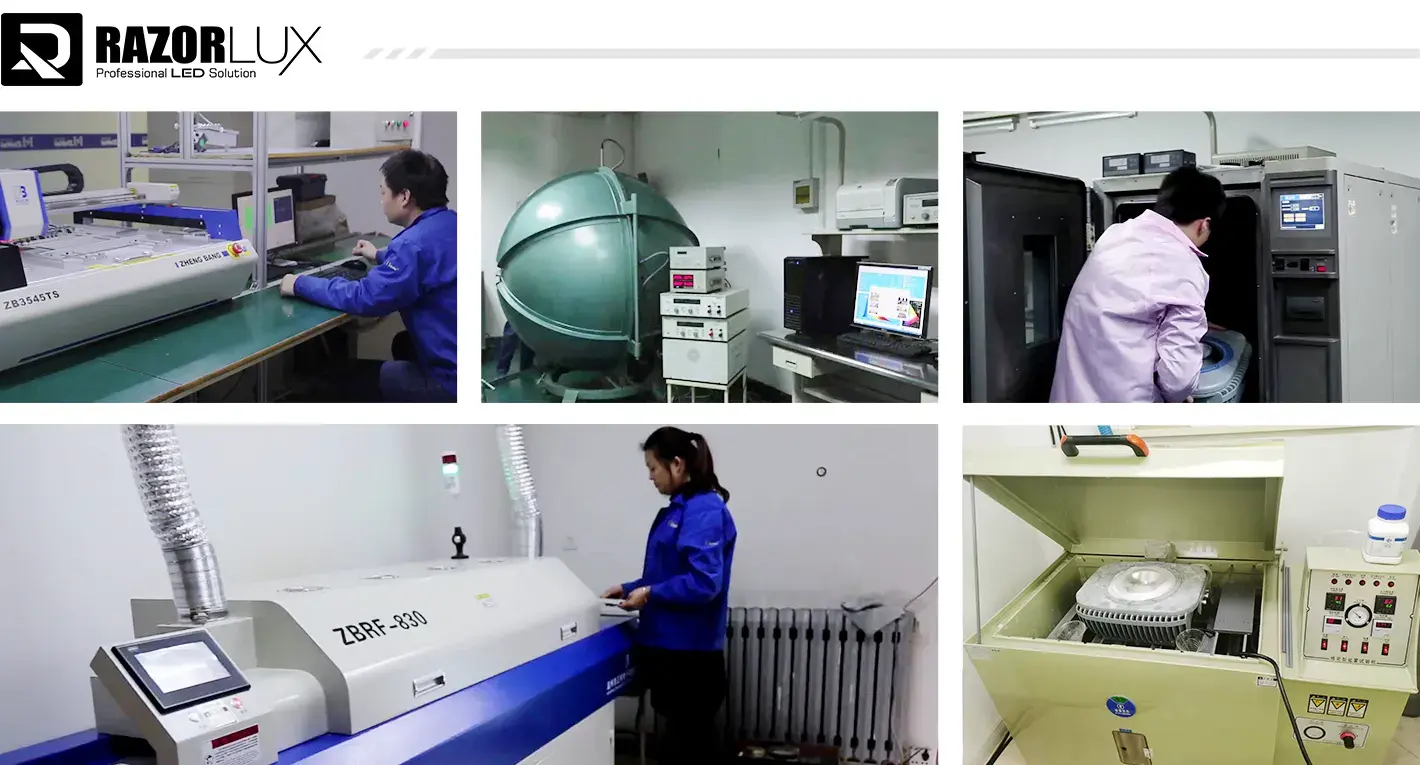

Quality Control
We keep up thorough quality guidelines through our ISO9001-certified fabricating handle. Each installation experiences comprehensive testing counting warm cycling, vibration resistance, and photometric confirmation. Our quality control group, comprising engineers with progressed degrees, guarantees each item meets universal measures some time recently shipment.
Shipment Samples
We give customized tests for venture assessment. Test orders ordinarily transport inside 5-7 commerce days through express messenger. This permits you to evaluate light quality, pillar conveyance, and installation development some time recently committing to bigger orders.
Packaging and Transportation
Hockey field lights are bundled in defensive froth embeds inside tough cardboard cartons. Each installation incorporates mounting equipment, establishment guides, and guarantee documentation. We offer adaptable shipping alternatives counting discuss cargo for critical ventures and ocean cargo for cost-effective bulk orders.
| Transportation Time | Shipping Option Details | Recommend Weight |
| 3-7 days | International Express(DHL, FedEx, UPS, TNT, etc.) | 0.5KG-300KG(optimal for cost efficiency under our contarated express rates) |
| 5-10 days | By Air (Airport-to-port or Airport-to-door) | 300KG+(Significantly more economical than express shipping for heavy cargo) |
| 18-22 days | By Rail(China-Europe Railway Express) | 2CBM/500KG+(More economical than air freight for large shipment with flexible timelines) |
| 15-50 days | By Sea(FLC/LCL) | 2CBM/500KG+(Much more economical than rail,suit for non-urgent cargo, also the most cost-effective shipping method) |
Transaction Feedback
Our streamlined requesting handle guarantees clear communication all through your extend. We give arrange affirmations, generation upgrades, and following data to keep you educated. Client fulfillment studies offer assistance us persistently make strides our benefit quality.
After Sales Service
We stand behind our items with comprehensive guarantee scope and responsive specialized back. Our benefit group gives establishment direction, investigating help, and substitution parts when required. Customary support proposals offer assistance maximize installation execution and lifespan.
Qualification Certification
Our hockey field lights hold different universal certifications guaranteeing compliance with territorial security and execution measures. These certifications reflect our commitment to quality and empower worldwide venture arrangement with certainty.
FAQ
Q: What is the recommended mounting height for hockey rink lighting?
A: Typical mounting height ranges from 20-35 feet depending on rink size and competition level. We provide photometric calculations to determine optimal placement for your specific facility.
Q: How do these LED fixtures compare to traditional metal halide lights?
A: Our LED systems offer instant-on capability, superior energy efficiency, longer lifespan (50,000+ hours), and better light quality with reduced maintenance requirements.
Q: Can the color temperature be adjusted for different events?
A: Yes, we offer fixtures with adjustable color temperature options and dimming capabilities to accommodate various activities from practice sessions to broadcast events.
Q: What warranty coverage is provided?
A: We provide a comprehensive 5-year warranty covering manufacturing defects and performance degradation, ensuring long-term reliability for your investment.
Q: Are these lights suitable for outdoor hockey facilities?
A: Absolutely. The IP67 rating and robust construction make our lights ideal for outdoor applications, withstanding extreme weather conditions while maintaining consistent performance.
Contact Us
Ready to upgrade your hockey facility lighting? Our hockey field lights specialists are here to help you design the perfect solution for your needs.
