indoor stadium lights

Patented Multi-function design, suitable for all working environments.
Rated Power: 150W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 15KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001

Send Inquiry Download

Product Description

Professional Indoor Stadium Lights - High Performance LED Lighting Solutions

indoor-stadium-lighting

Product Introduction

Change your sports scene with our cutting-edge indoor stadium lights that provide extraordinary brightness and unwavering quality. These professional-grade Driven luminaires are designed particularly for large-scale indoor sports offices, giving uniform brightening that meets worldwide donning benchmarks. Our lights include progressed warm administration and exactness optics to guarantee ideal execution in requesting situations. Whether you're lighting a ball court, volleyball field, or multi-purpose exercise room, these installations offer predominant light quality with negligible glare and most extreme vitality efficiency.

product-1-1

Specification

Model		RGL-150A
Beam Angle		60° 120° 140°*60°
Stable Flux (5700K after 1 hour)		18000 lm
Dimension (mm)		360358187
	LEDs	135W
Power	Driver	15W
Consumption	Total	150W
Replace HID Lamp		300~400W
Net Weight		10kg(22lbs)
Color Temperature		2000-6000K
Color Rendering		≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life		≥50000Hrs
Housing Material		Aluminum & Powder coating
Power Supply		Meanwell
IP Class		IP 67
IK Class		IK 10
Insulation Class		Class I
Working Temperature		-40C ~ 60C / -40F ~ 140F
Working Humidity		10% ~ 95%
AC Input		80-315Vac input voltage without additional adapter
DC Input		80 ~ 400Vdc
THD		<10%
Power Factor		≥0.98
Warranty	LED Module	5 year
	Driver	5 year
	Housing	10 year

Why Choose Our Indoor Stadium Lights?

Our stadium lighting installations stand out through inventive licensed multi-function plan and prevalent designing. With over 200 licenses covering Driven chip bundling, control supply control, and light lodging plan, we convey unmatched quality and performance.

product-1-1

The progressed warm administration framework guarantees reliable light yield indeed amid expanded operation periods. Different bar point choices give adaptability for different ceiling statures and court measurements. Our installations dispose of flashing and hot spots, making perfect conditions for both players and spectators.

Energy productivity comes to 130LM/W, altogether decreasing operational costs compared to conventional metal halide frameworks. The wide input voltage extend obliges diverse control supply conditions worldwide.

product-1-1

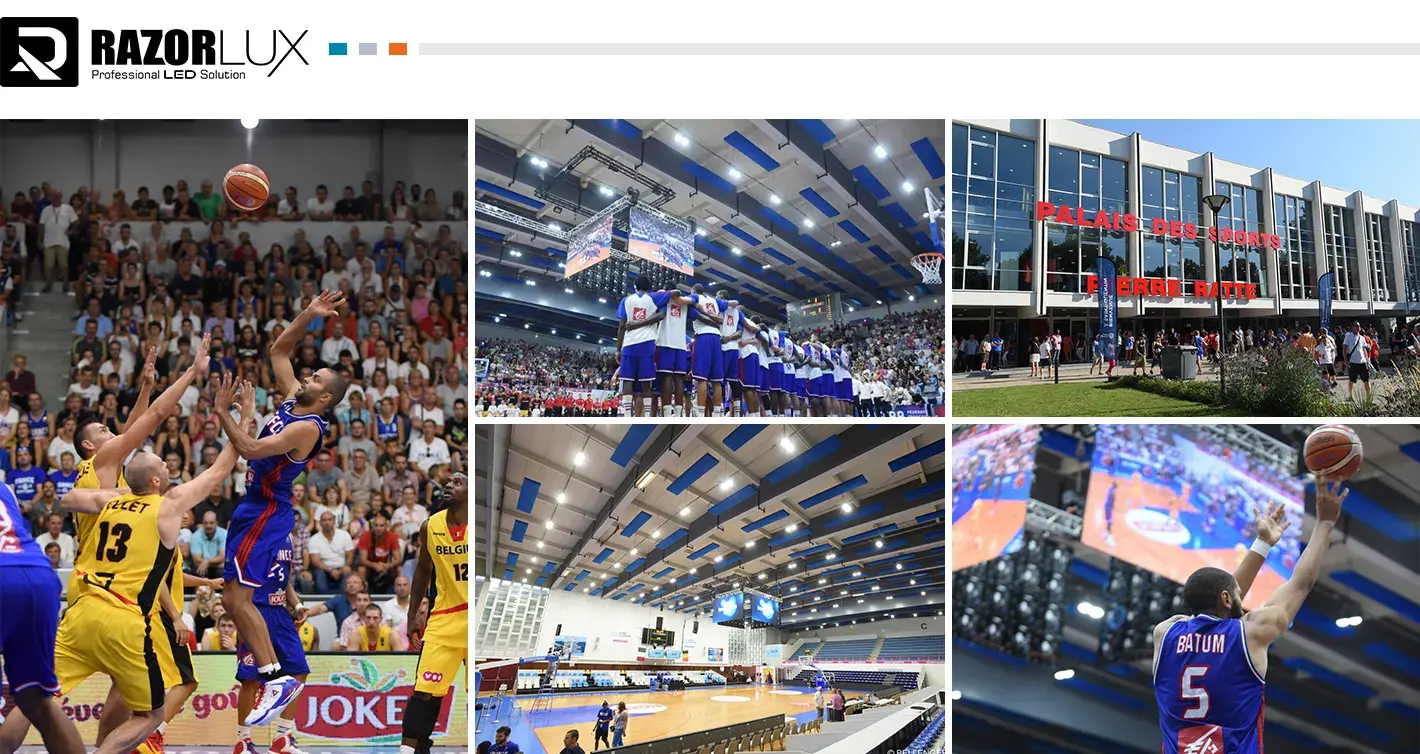

Applications

Our proficient sports lighting arrangements serve differing indoor venues:

Basketball Courts: Giving uniform light for proficient and recreational ball offices with exact light distribution
Volleyball Fields: Conveying ideal perceivability for fast-paced volleyball matches with negligible shadows and glare
Indoor Tennis Courts: Guaranteeing clear perceivability for tennis players and onlookers with reliable light levels over the playing surface
Badminton Corridors: Making perfect lighting conditions for badminton competitions with great color rendering
Multi-Purpose Exercise rooms: Flexible lighting for different sports exercises counting handball, futsal, and indoor soccer
Swimming Pool Ranges: IP67-rated security appropriate for sticky indoor sea-going centers and natatoriums
Convention Centers: Large-scale occasion lighting for presentations, conferences, and exchange appears requiring high-quality illumination
Industrial Distribution centers: High-bay lighting arrangements for capacity offices and fabricating plants requiring dependable operation
Training Offices: Professional-grade lighting for competitor preparing centers and wellness complexes
Educational Educate: School recreation centers and college sports offices requiring tough, productive lighting systems

product-1-1

Quality Control

Our fabricating prepare takes after ISO9001 guidelines kept up for 22 sequential a long time. Each installation experiences thorough testing counting warm cycling, vibration resistance, and photometric investigation. We execute DFMEA disappointment mode examination frameworks received from car industry standards.

Quality affirmation incorporates 100% pre-shipment testing for light yield, color consistency, and electrical security. Our Xi'an Driven Lighting Designing Research facility conducts broad unwavering quality testing to guarantee long-term performance.

Shipment Samples

We give customized tests for venture assessment and testing. Test orders regularly dispatch inside 3-5 commerce days by means of express messenger. This permits you to confirm light quality, mounting compatibility, and execution characteristics some time recently setting volume orders.

packing-details

Transportation Time	Shipping Option Details	Recommend Weight
3-7 days	International Express(DHL, FedEx, UPS, TNT, etc.)	0.5KG-300KG(optimal for cost efficiency under our contarated express rates)
5-10 days	By Air (Airport-to-port or Airport-to-door)	300KG+(Significantly more economical than express shipping for heavy cargo)
18-22 days	By Rail(China-Europe Railway Express)	2CBM/500KG+(More economical than air freight for large shipment with flexible timelines)
15-50 days	By Sea(FLC/LCL)	2CBM/500KG+(Much more economical than rail,suit for non-urgent cargo, also the most cost-effective shipping method)

Packaging and Transportation

Each installation is exclusively pressed in defensive froth bundling with dampness obstruction security. Bulk orders transport in fortified cardboard cartons outlined for universal transportation. We offer adaptable shipping alternatives counting discuss cargo, ocean cargo, and rail transport to optimize conveyance time and cost.

Quality Certifications

Our indoor stadium lights hold comprehensive worldwide certifications counting UL for North American markets, CE stamping for European compliance, SAA for Australian benchmarks, and RMRS for marine applications. All installations comply with RoHS natural mandates and keep up IP67 security evaluations.

product-1-1

FAQ

Q: What's the recommended mounting height for optimal light distribution?

A: For most indoor courts, mount fixtures 6-12 meters high. Higher ceilings may require narrow beam angles (15°-30°) while lower installations work well with wider beams (60°-120°).

Q: Can these lights be dimmed for different activities?

A: Yes, we offer 0-10V and DALI dimming options for flexible light level control during training, competitions, or multi-purpose events.

Q: How do these compare to traditional metal halide fixtures?

A: Our LED fixtures consume 60% less energy, provide instant on/off capability, require no warm-up time, and eliminate frequent lamp replacements.

Q: What's included in the 5-year warranty coverage?

A: The warranty covers LED driver failures, premature LED degradation, and housing defects. We provide replacement units for qualifying warranty claims.

Q: Are these suitable for broadcast television requirements?

A: Absolutely. High CRI (Ra>75) and flicker-free operation meet broadcast standards for televised sporting events and live streaming applications.

After Sales Service

We provide comprehensive post-installation support including technical consultation, maintenance guidance, and warranty service. Our team offers lighting layout design assistance and brightness calculations for optimal project results.

Contact Us

For technical specifications, custom quotes, or project consultation, reach out to our lighting specialists:

Email: sam@razorlux.com

Trust Razorlux for your indoor stadium lights needs and experience the difference that professional-grade LED technology makes in your sports facility.
