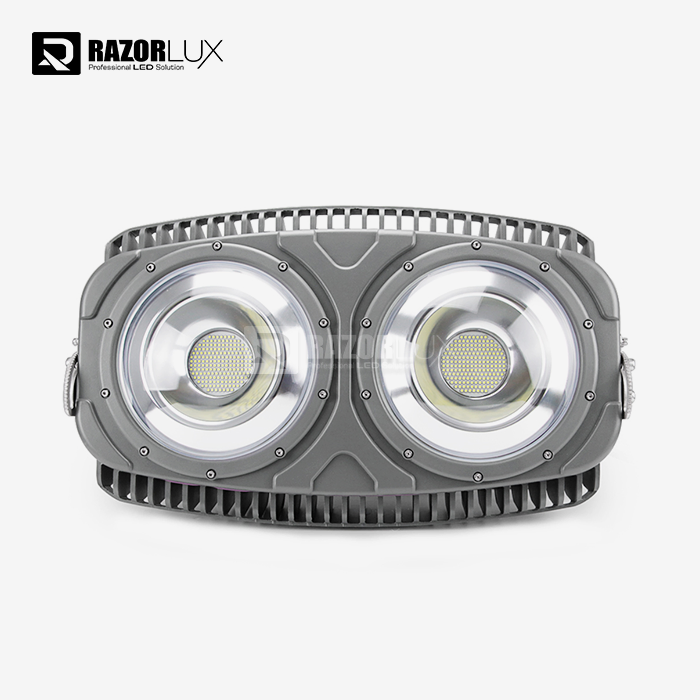

led athletic field lighting
Rated Power: 800W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 29KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001
- Product Description

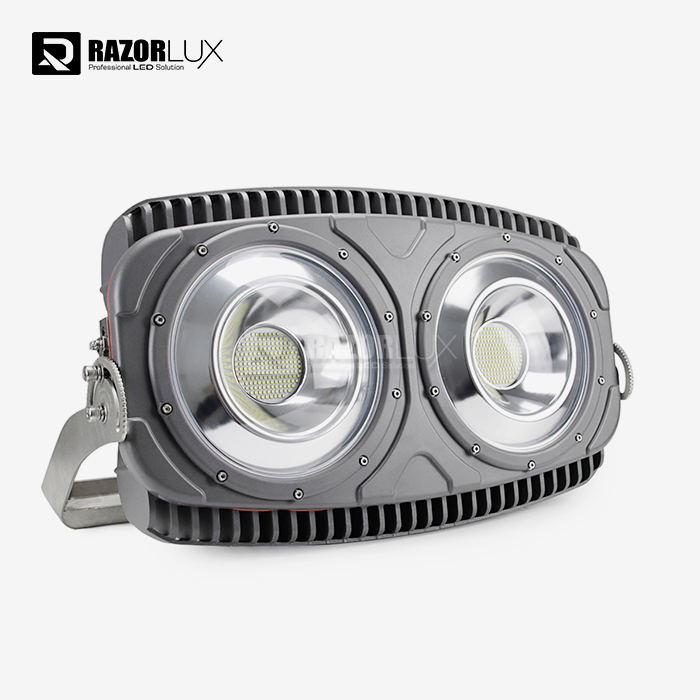

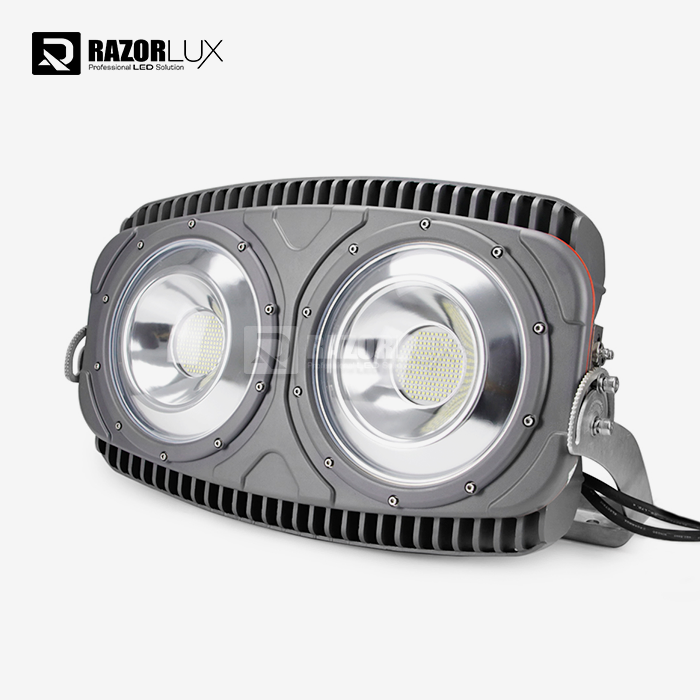

800W Led Athletic Field Lighting | Pro-Grade Athletic Field Lights Built for Performance
Here's what makes our led athletic field lighting different:
✓Instant-On Technology– No 15-minute warm-up. Flip the switch, game on.
✓130 Lumens Per Watt– Outperforms 2000W metal halide fixtures while using 60% less power
✓5-Year No-Hassle Warranty– LED failures? Driver issues? We replace at zero cost.
✓IP67 Waterproof– Survived Hurricane Ian in Florida
Led Athletic Field Lighting Specification
| Feature | Specification |
| Model Number | RGL-800P |
| Rated Power | 800W |
| Input Voltage | AC100-305, DC127-431 |
| Color Temperature | 2700K-6500K |
| Lamp Efficiency | 130LM/W |
| Lumen Output | 21600LM |
| Beam Angle | 15°, 20°, 30°, 40°, 60°, 120°, 140°x60° |
| Lens | Tempered Glass |
| Working Temperature | -40° - 60°/ 40F - 140F |
| CRI | Ra>75 |
| IP Grade | IP67 |
| IK Rating | IK10 |
| LED Chip | Samsung/Phillip |
| LED Driver | Meanwell |
| Housing | Aluminum Alloy |
| Bracket | Stainless Steel |
| Net Weight | 29KG |
| Warranty | 5 Years |
| Certificates | RMRS,CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001 |
| More Available Powers | 90W,120W, 150W, 180W, 210W, 270W, 200W, 300W, 400W, 500W, 600W, 800W, 1000W, 1200W |

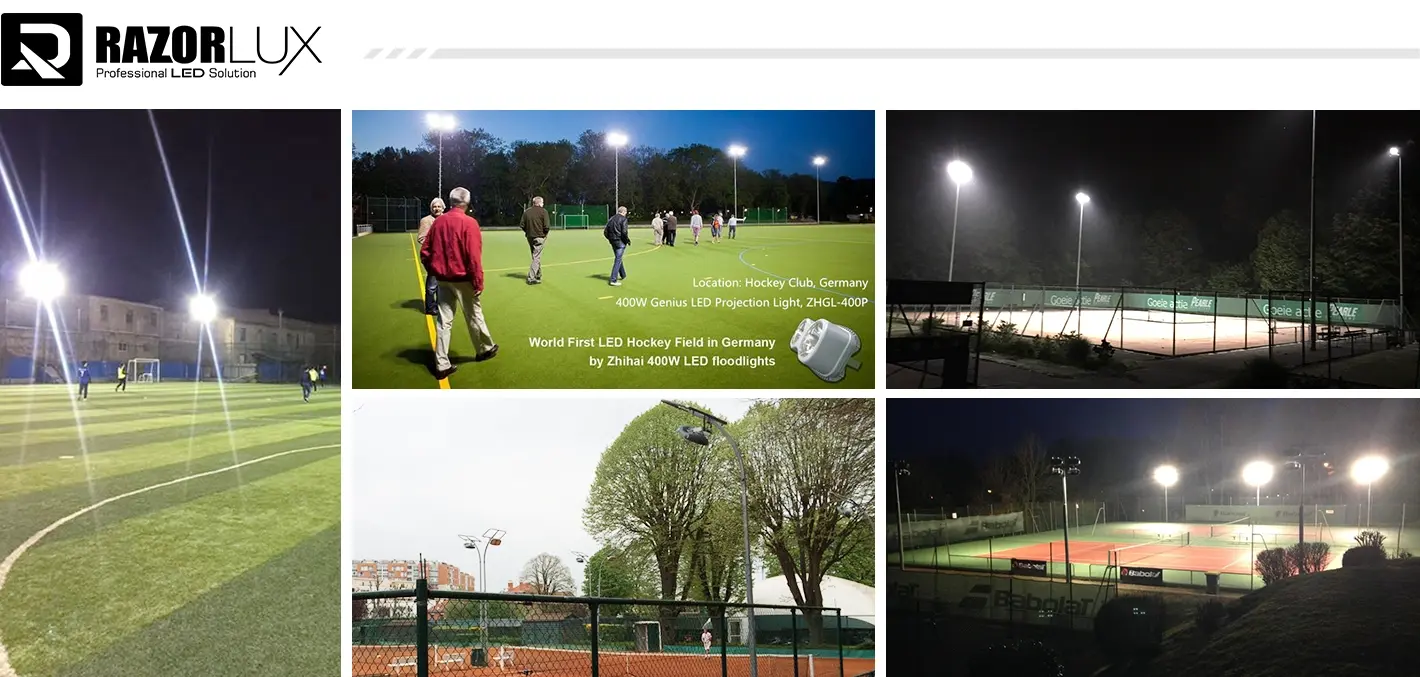

Built for Every Playing Surface
Football & Soccer Fields
Challenge:100-yard coverage with zero dark spots
Our Solution:30° beam angle fixtures at 25m mounting height achieve 50+ foot-candles across the entire field. The Riverside Spartans now host Friday night games with ESPN-quality lighting.
Baseball Diamonds
Challenge:Infield brightness without blinding outfielders
Our Solution:Asymmetric 140°x60° beams illuminate bases while reducing glare.
Tennis Courts
Challenge:Flicker-free lighting for high-speed ball tracking
Our Solution:120Hz flicker elimination tested with high-speed cameras at 1000fps. Your players will track serves with crystal clarity.
Multi-Sport Complexes
Challenge:Switching between youth leagues (lower light) and tournaments (broadcast-grade)
Our Solution:Dimmable drivers adjust from 30% to 100% output. One facility, infinite configurations.

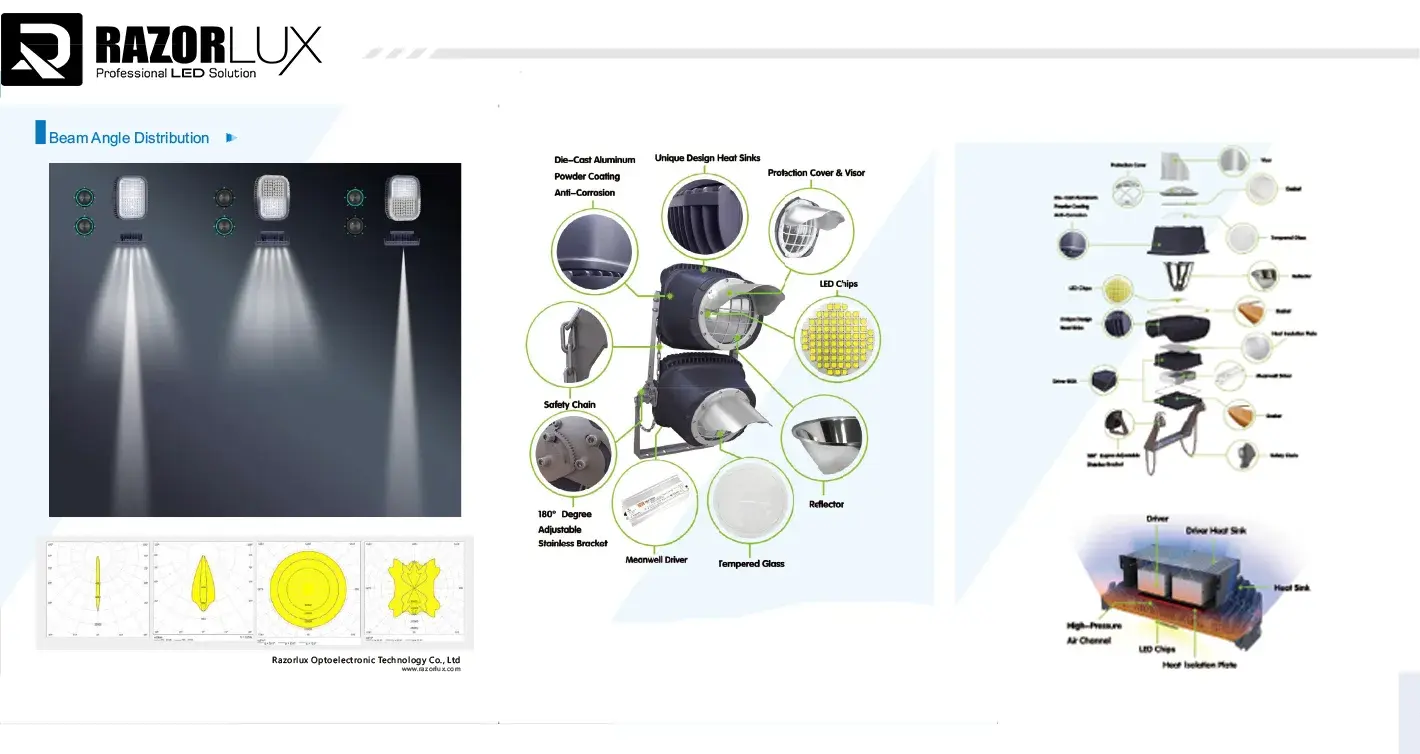

The Tech Behind the Performance (Without the Jargon)
Why Our Lights Don't Fade Like Others
The Problem with Cheap LEDs:
Most stadium lights lose 30% brightness in 3 years due to poor heat management. You're paying for 800W but getting 560W performance.
Our Solution:
We designed power supplies for military equipment from 1998-2006. That experience taught us thermal control. Our led athletic field lighting include:

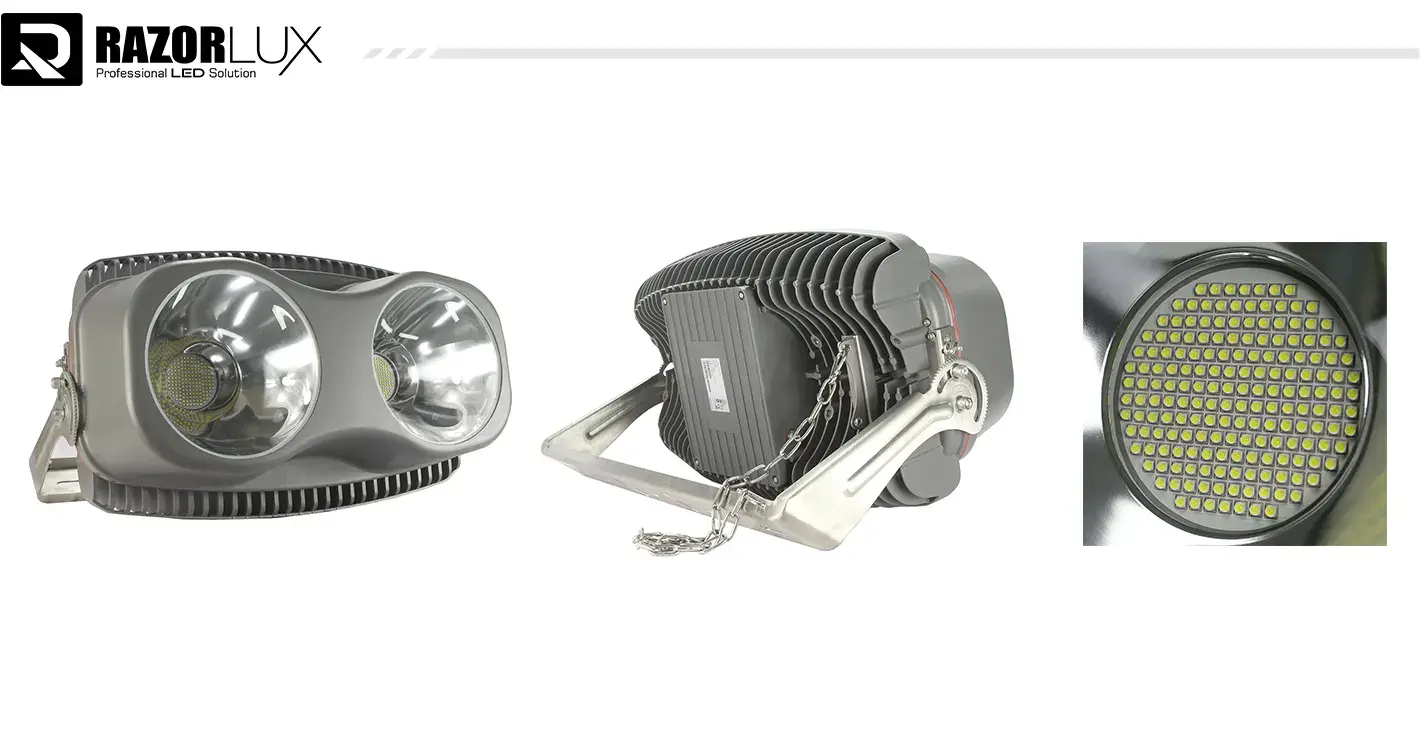

· Copper Heat Pipes(not aluminum) that dissipate 40% more heat
· Ventilated Housingwith IP67-rated breathable valves
· Temperature Monitoringthat auto-adjusts current during 100°F+ days
Result:After 50,000 hours, our LEDs still output 90%+ of original brightness.

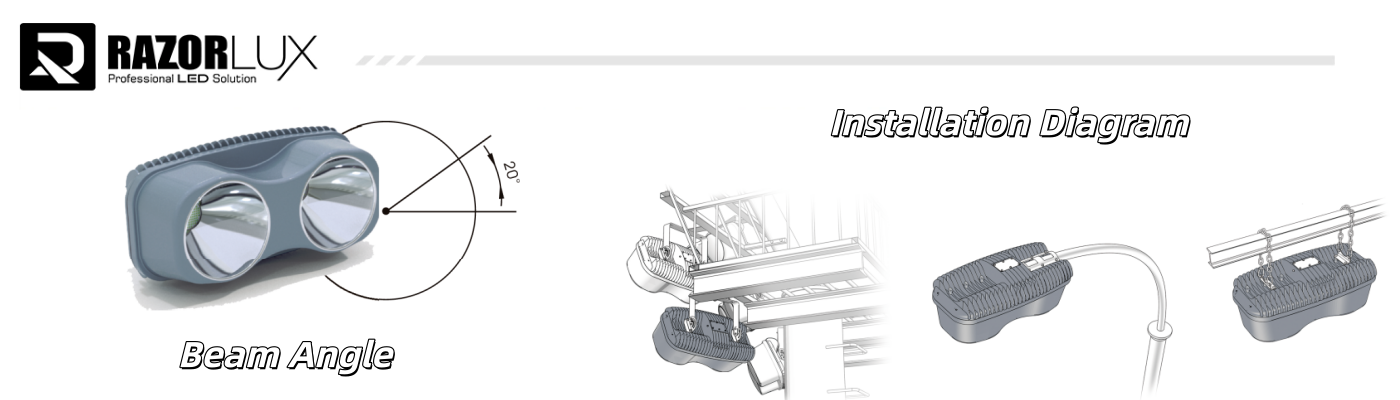

Beam Angles Explained (Finally, in Plain English)
Angle | Best For | Why |
15°-20° | High-mast poles (35m+) | Narrow beam throws light farther |
30°-40° | Standard poles (20-30m) | Sweet spot for most fields |
60° | Wide-area coverage | Tennis courts, parking lots |
140°x60° | Asymmetric needs | Baseball infields, stadium seating |
Next Steps: Get Your Custom Lighting Plan
Here's how we work together:
Email us your field layout(even a hand-drawn sketch works)
We send back a lighting simulationwithin 48 hours (shows fixture placement + lux levels)
Review and adjustuntil it meets your sport's requirements
Get a detailed quotewith shipping timeline
About Razorlux: 18 Years, 200+ Patents, Zero Shortcuts
We've been in the LED game since 2006—back when most companies were still pushing fluorescents. Our R&D team (backed by Xi'an LED Lighting Engineering Lab and certified by China's National Development Commission) holds200+ patentsin:
What that means for you:When we say "5-year warranty," it's because we've stress-tested every component to military-grade failure analysis standards (DFMEA protocols from automotive industry). We're not hoping our lights last—we've proven it in lab tests AND real-world installations.
Questions We Get Every Week
"What if they break after 5 years?"
LEDs don't "burn out" like old bulbs—they gradually dim. After 50,000 hours (equivalent to 12 years of normal use), ours still output 90%+ brightness. When you finally replace them, it's a planned upgrade, not an emergency repair at midnight before the championship game.
"Can I install these myself?"
If you're replacing existing pole-mounted fixtures, yes. Our bracket fits standard 2" - 3" mounting pipes. Each fixture weighs 33 lbs (15kg)—manageable with two people and a lift.
For new installations, we recommend a licensed electrician due to high-voltage wiring requirements.
"Do these work for broadcast/livestream?"
Absolutely. Our CRI >75 (Color Rendering Index) ensures accurate colors on camera. The local news filmed a game at Wilson Stadium with our lights—the broadcast engineer said"This is better than some Division I schools I've shot at."
Flicker-free at 120Hzmeans no banding on video, even with smartphone cameras.
