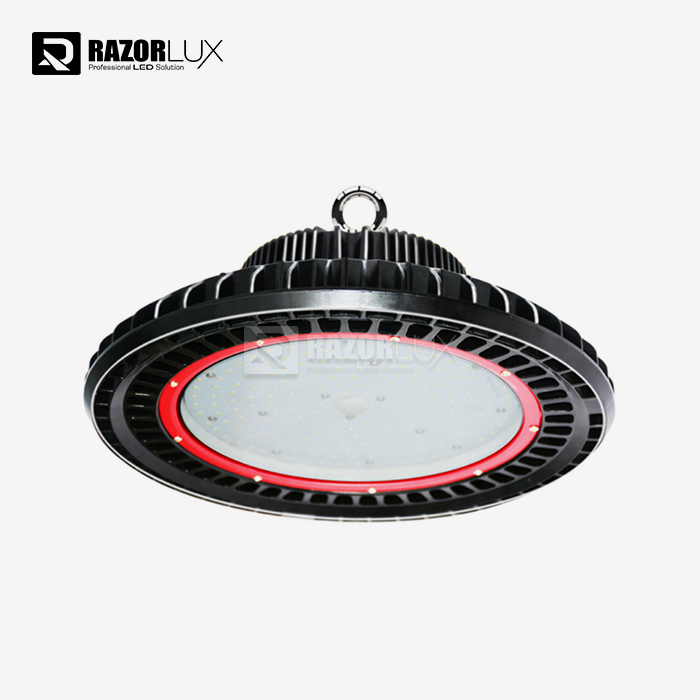

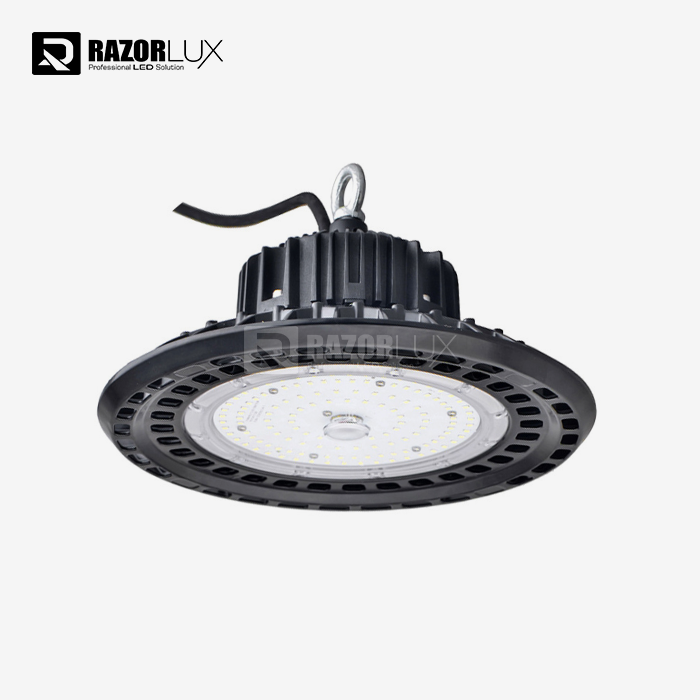

high bay lights for warehouse

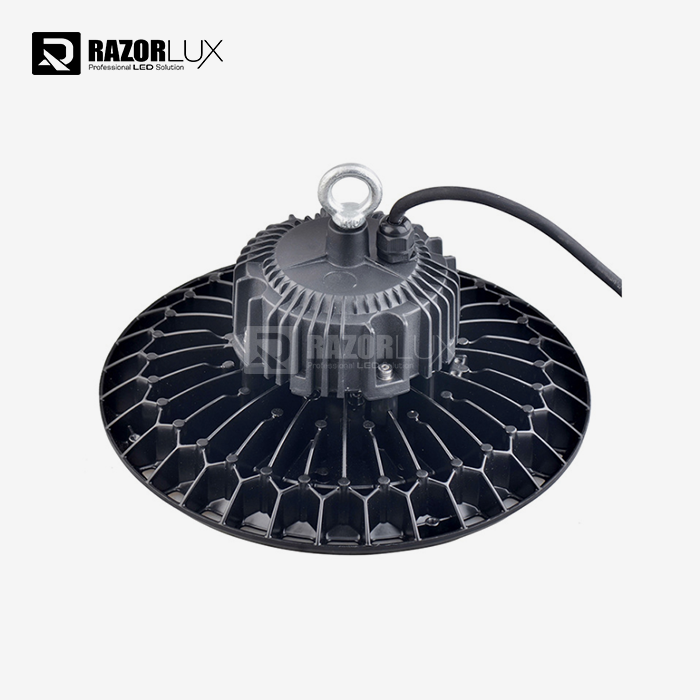

Feature: Exterior Meanwell driver for outstanding heat dissipation and easy maintenance. Lumileds and Samsung LEDs with more than 135lm/w system efficiency.
Model No.: RHB-UA-200
Rated Power: 100W, 150W, 200W,240W
Input Voltage: AC85-265V
Color Temperature: 3000-6500K Lamp Efficiency: 120lm/w Beam Angle: 60°, 120°
CRI: Ra>75
IP Grade: IP65
Dimension: Ø280*185 mm(100W), Ø340*187mm (150W), Ø400*196 mm(200W)
Net Weight: 3.8kg, 4.9kg, 6.8kg Certificate: CE, RoHS
Warranty: 5 Years

Send Inquiry Download

Product Description

Industrial LED High Bay Lights for Warehouses | 65% Energy Savings | Razorlux RHB-UA-200

Require brighter, more effective distribution center lighting? Our high bay lights for warehouse cut vitality costs by 65% whereas conveying predominant brightening for offices with 20-45 ft ceilings. Trusted by 500+ distribution centers over North America.

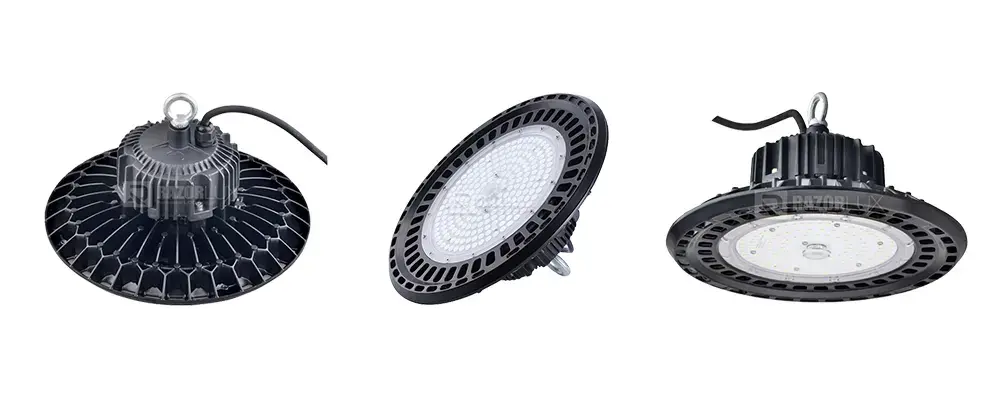

product-1-1

High Bay Lights for Warehouses Introduction

Parameter	Specification
Model No.	RHB-UA-200
Rated Power	100W, 150W, 200W, 240W
Input Voltage	AC85-265V
Color Temperature	3000-6500K
Lamp Efficiency	120lm/w
Beam Angle	60°, 120°
CRI	Ra>75
IP Grade	IP65
Dimension	Ø280185mm (100W), Ø340187mm (150W), Ø400*196mm (200W)
Net Weight	3.8kg, 4.9kg, 6.8kg
Certificate	CE, RoHS
Warranty	5 Years

Quick Product Overview

Replaces 400W metal halide with fair 150W LED

5-year guarantee + 50,000-hour life expectancy (that's 17+ years at 8 hrs/day)

Easy upkeep: Outside driver plan - no require to unmount fixture

All-weather intense: IP65 appraised, -40°C to +50°C working range

Fast ROI: Most clients break indeed in 18-24 months

product-1-1

Why Warehouse Managers Choose Our LED High Bays

1. Dramatically Lower Operating Costs

Real Illustration: A 100,000 sq ft dissemination center in Ohio supplanted 200 metal halide installations with our high bay lights for warehouse.

2. Better Light Quality = Fewer Picking Errors

Traditional Metal Halide	Razorlux LED High Bay
15-20 min warm-up time	Instant full brightness
Frequent flickering	Zero flicker
Uneven light distribution	Consistent edge-to-edge coverage
Poor color rendering (CRI 65)	Superior color accuracy (CRI >75)

Client criticism: "Our picking precision moved forward by 12% after the Led retrofit." - Mike T., Logistics Manager

3. Built for Tough Environments

Our installations handle the real-world challenges of mechanical spaces:

Cold capacity: Performs proficiently down to -40°C (unlike fluorescents that dim/fail)
Dusty regions: IP65 fixing keeps contaminants out
High-vibration zones: Die-cast aluminum lodging withstands forklift bumps and crane vibrations
Corrosive situations: Anti-corrosion coating for coastal/chemical offices

product-1-1

Application Scenarios (With Photos)

Distribution Centers & E-commerce Fulfillment

[Photo: Aisle with high-density racks]

Eliminate shadows between narrow aisles. Workers can read barcodes and labels from floor to 30-ft high shelves without strain.

Recommended setup: 120° beam angle, 5000K color temp, one fixture per 400-500 sq ft

Manufacturing & Assembly Plants

[Photo: Production line]

High CRI ensures accurate color matching for quality control. Flicker-free operation reduces eye fatigue during 10-hour shifts.

Recommended setup: 60° beam angle for focused task lighting, 4000K color temp

Cold Storage & Freezers

[Photo: Freezer warehouse]

LEDs actually work BETTER in cold - unlike metal halides that take forever to warm up. IP65 rating prevents condensation damage.

Recommended setup: 150W model, 5000K for maximum visibility, sealed cable entries

product-1-1

What's Included & Warranty Details

In the Box

· RHB-UA-200 LED fixture with pre-installed driver

· Mounting hardware (hook & safety cable)

· Quick installation guide

· 5-year warranty card

Our 5-Year "No-Hassle" Warranty Covers:

LED chip degradation below L70

Driver failure

Housing defects

Free replacement parts shipped within 48 hours

product-1-1

Customer Questions Answered

"How many fixtures do I need for my warehouse?"

It depends on your ceiling height and activity type:

Ceiling Height	General Storage	Active Picking	Precision Work
20-25 ft	1 per 500 sq ft	1 per 400 sq ft	1 per 300 sq ft
25-35 ft	1 per 400 sq ft	1 per 300 sq ft	1 per 250 sq ft
35-45 ft	1 per 300 sq ft	1 per 250 sq ft	contact us
