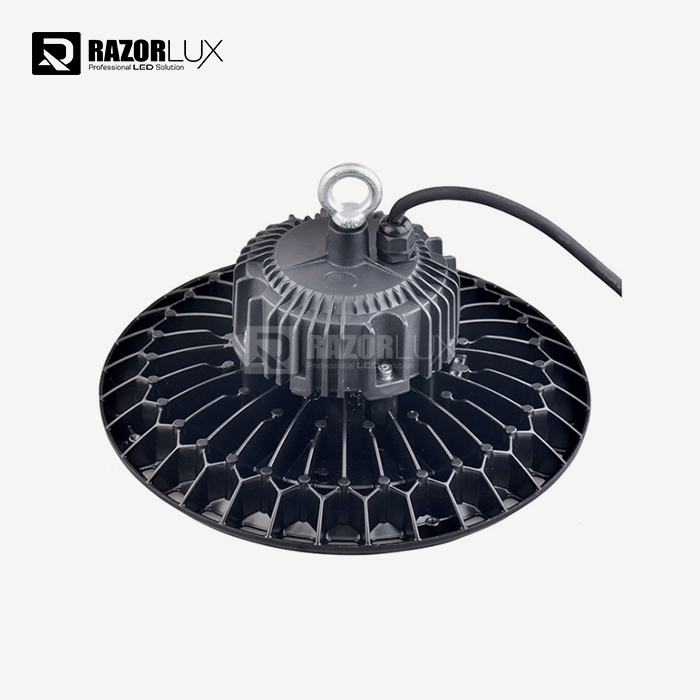

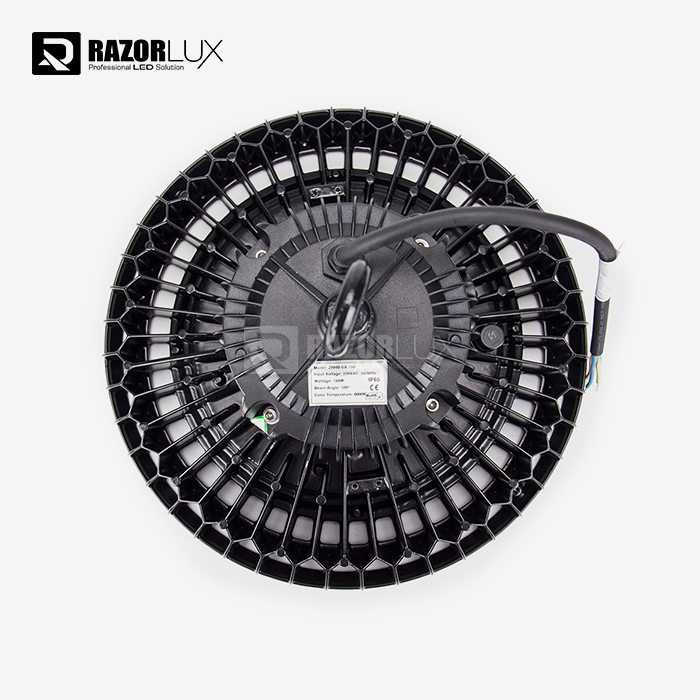

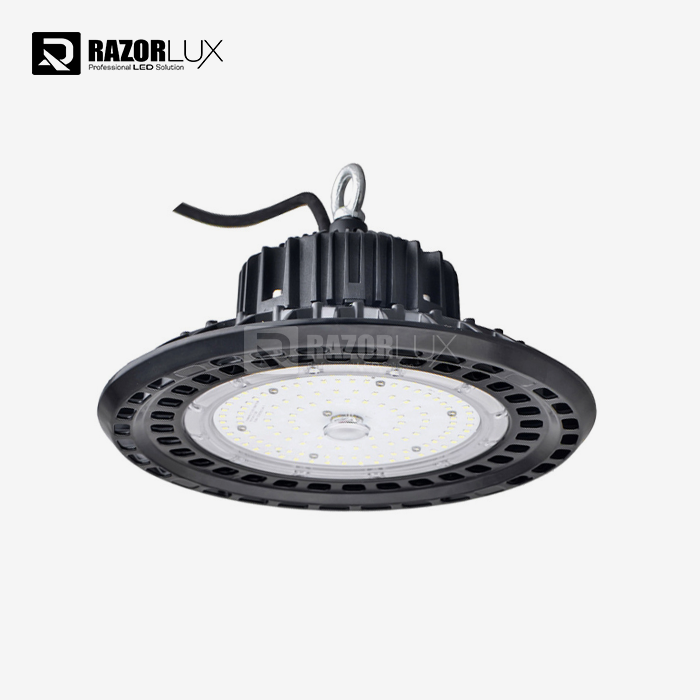

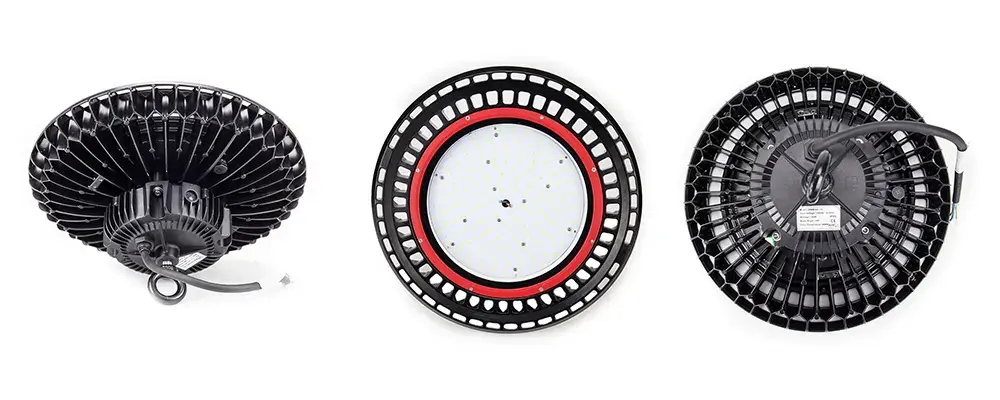

150W Industrial LED High Bay Lights | RHB-UA-150 | 5-Year WarrantyProfessional Work Shop Lights Built for 24/7 Operations

The work shop light is a 150-watt Led tall cove installation designed for fabricating plants, auto shops, and distribution centers where lighting disappointments cruel downtime and misplaced revenue.

Key differentiators:

• External Meanwell driver (field-replaceable in < 15 minutes)
• 120 lm/W productivity with Lumileds/Samsung LEDs
• IP65-rated for tidy and high-pressure washdown environments
• 50,000+ hour life expectancy (5.7 years at 24/7 operation)

Typical vitality reserve funds: 58% vs. 400W metal halide systems

Work Shop Lights Parameters

Design Features Explained

1. External Driver Architecture

What it is: The Meanwell power supply mounts outside the main housing.

Why it matters:

· Thermal separation: Driver operates 15-20°C cooler, extending lifespan by ~30%

· Serviceability: Replace failed drivers without disposal of LED module

Used in 70%+ of commercial high bays vs. <30% in budget fixtures.

2. Beam Angle Selection Guide

 3. IP65 vs. Lower Ratings

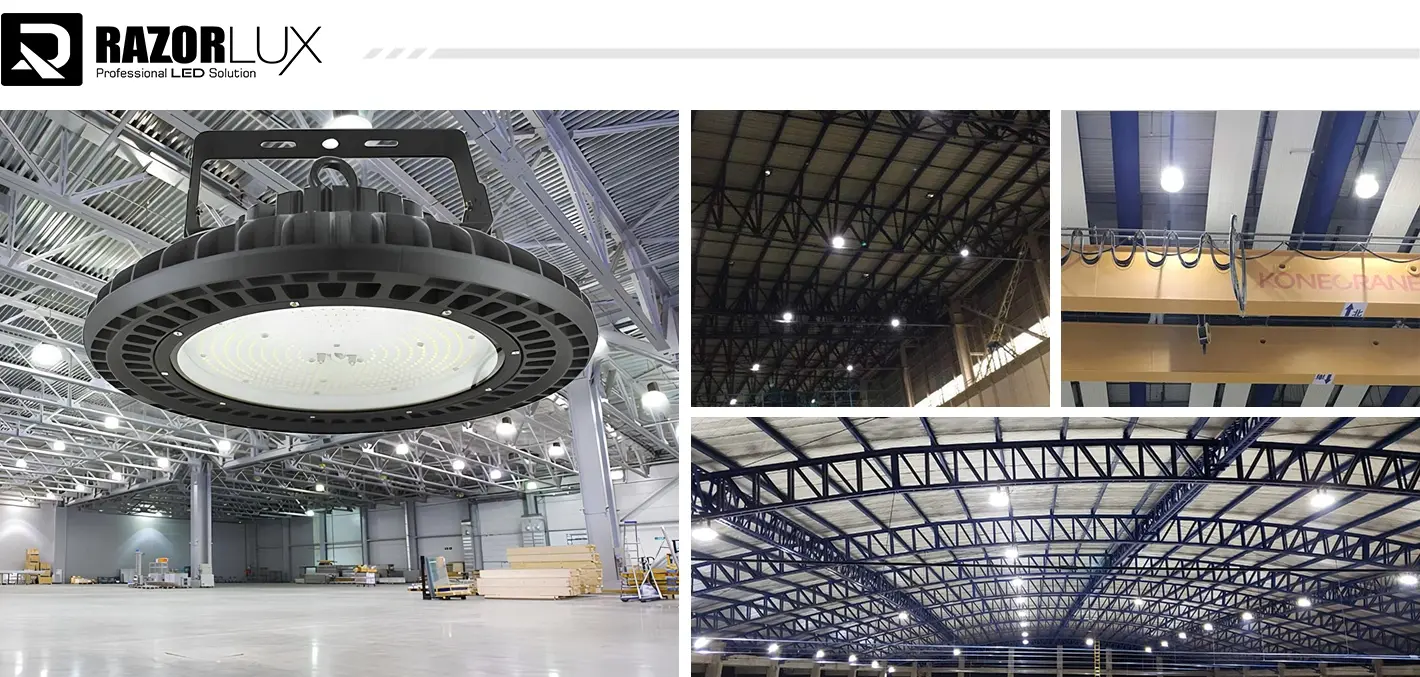

Application Examples

CNC Machine Shops

Challenge: Flashing fluorescents caused stroboscopic impacts on 3,600 RPM shafts, making security hazards.

Solution: Introduced 12× RHB-UA-150 work shop lights (60° bar) at 18-foot ceiling height.

Results:

• Eliminated seen movement obscure amid operation
• Average illuminance: 85 footcandles (vs. 45 fc previous)
• Energy utilize: 1,800W Led vs. 4,800W fluorescent (62.5% reduction)

Automotive Body Shops

Challenge: Destitute color rendering (CRI 62) beneath sodium vapor lights caused paint coordinating errors.

Configuration: 5000K color temp with CRI < 80 (custom order).

Outcome:

• Color precision progressed per ASTM D4086 testing
• Rework rate diminished 23% (client-reported, Q2 2024)

Warehouse Distribution Centers

Common setup:

• 120° bar point for path coverage
• 30-foot mounting height
• Layout: One installation per 500 sq ft (maintains 20-30 fc per IESNA recommendations)

Voltage solidness: Wide input run avoids darkening amid engine new businesses or voltage droops common in more seasoned offices.

Common Questions

"Will these work in -10°F freezers?"

The standard model operates down to -4°F. For cold storage below 0°F, we offer a cold-weather variant (Model RHB-UA-150-LT) with specialized drivers. contact us for specifications.

"What happens after the 5-year warranty?"

Warranty covers:

· LED lumen depreciation below L70 (70% of initial output)

· Driver failures under normal use

· Housing/lens defects

Typical lifespan: LEDs continue functioning 10-15 years with gradual dimming. Drivers (the wear component) remain available as spare parts for 10+ years post-purchase.

"Do you provide photometric layouts?"

Yes. Send us:

1. Facility dimensions and ceiling height

2. Current lighting type (if retrofitting)

3. Work plane height (typically 36" for workbenches)

We'll provide AGI32 or DIALux renderings showing footcandle levels and fixture placement within 2 business days.

About Razorlux

Company overview:

· Founded: 2006

· Structure: US headquarters (Razorlux Technology Inc.) + China manufacturing

· Specialization: Industrial/commercial LED systems

Engineering team:

· 30% of staff hold technical degrees (bachelor's+)

· 10+ PhD researchers in optics and thermal engineering

· Services: Custom driver development, thermal analysis, lighting design

What we don't claim: We're not the cheapest option. Our focus is total cost of ownership for facilities where downtime costs exceed initial savings.

Next Steps

Technical Consultation

Speak with our applications engineer about:

· Retrofit vs. new construction requirements

· Energy rebate eligibility (utility-dependent)

· Dimming/control integration
