led ballpark lights

Patented Multi-function design, suitable for all working environments.
Rated Power: 1000W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 32KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001

Send Inquiry Download

Product Description

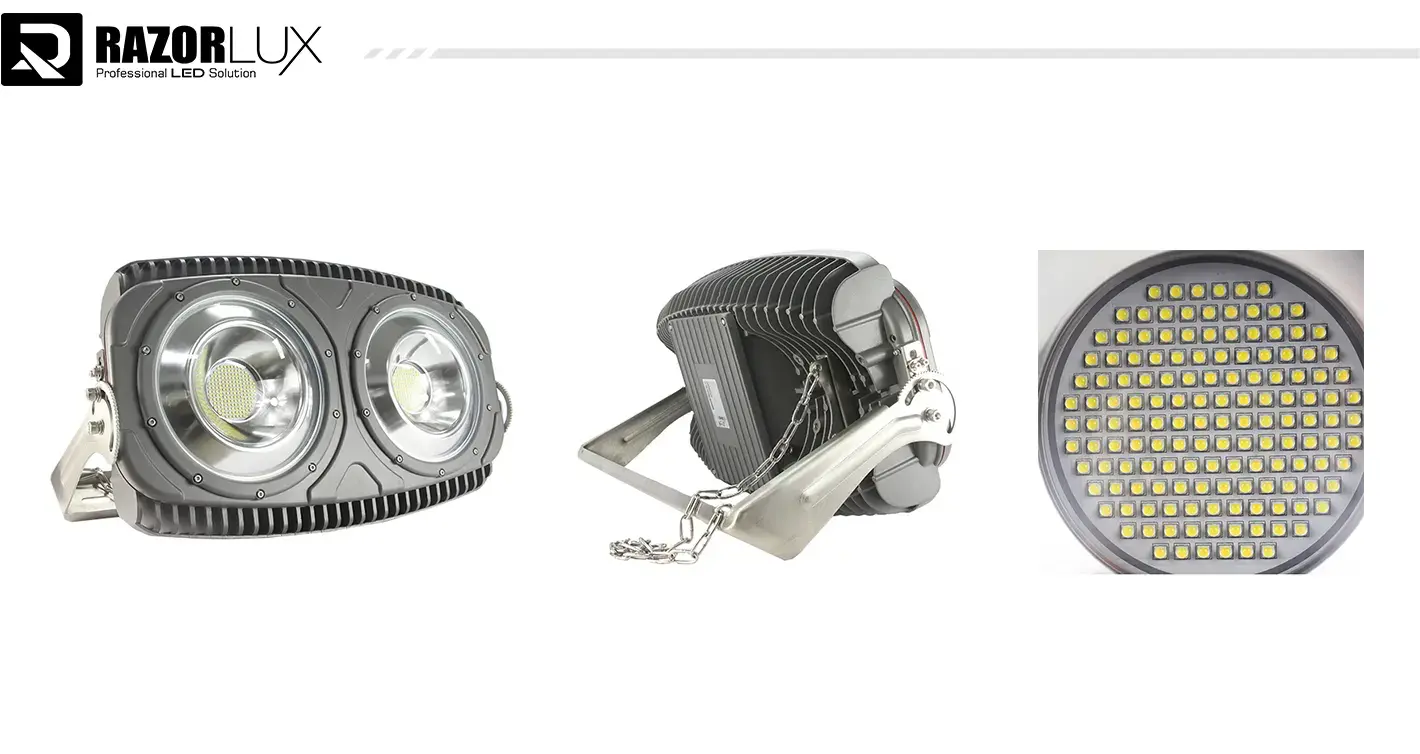

High-Performance LED Ballpark Lights for Sports Facilities

When you're looking for proficient lighting arrangements for your sports office, our led ballpark lights provide uncommon execution and unwavering quality. At Xi'an Razorlux Optoelectronic Innovation Co., Ltd., we've designed these lights to meet the requesting prerequisites of athletic settings, combining progressed innovation with demonstrated toughness. With over 25 a long time of encounter in the lighting industry, our protected multi-function plan guarantees your ballpark gets ideal brightening for both players and onlookers. These professional-grade installations give reliable, high-quality lighting that upgrades amusement perceivability whereas keeping up vitality efficiency.

product-1-1

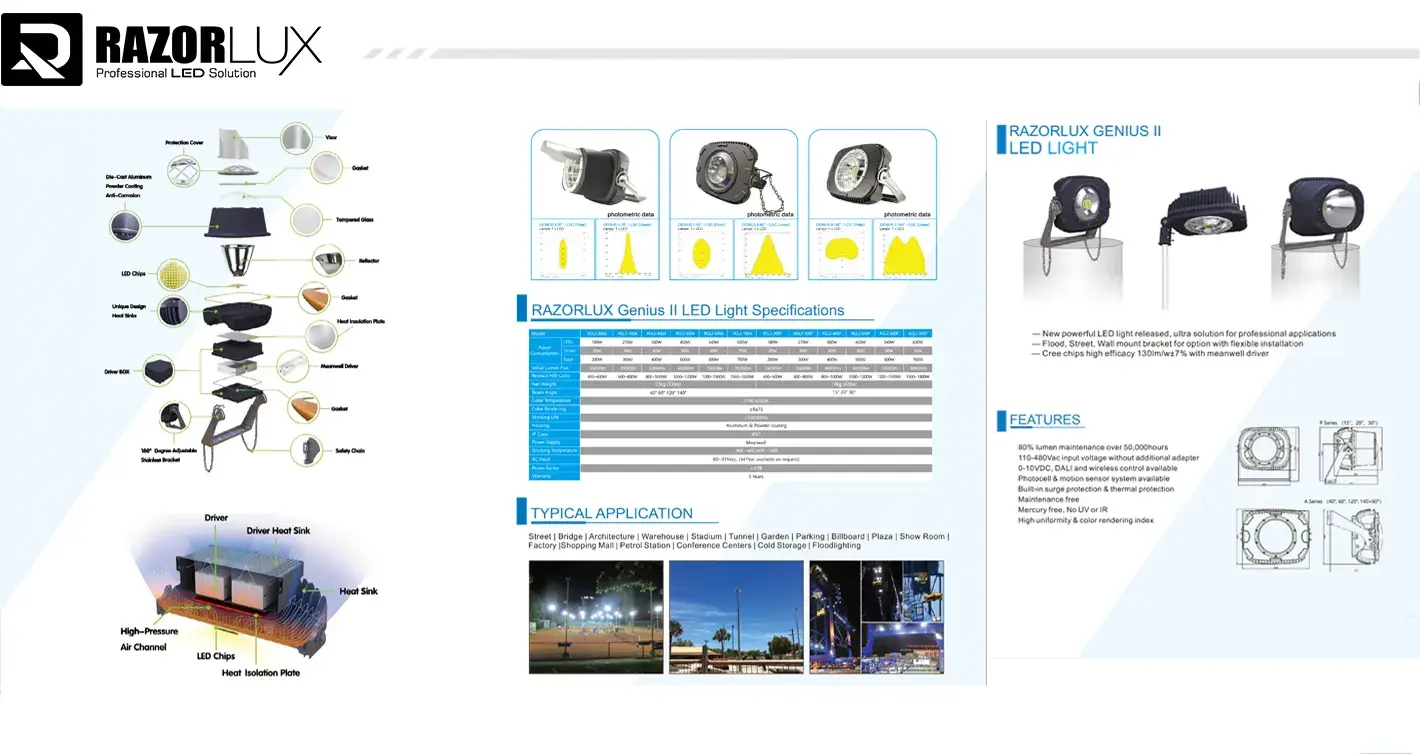

Product Specifications

Model		RGL-1000A
Beam Angle		40° 60° 120° 140°
Stable Flux (5700K after 1 hour)		130000lm
Dimension (mm)		671405379
Power Consumption	LEDs	900W
	Driver	100W
	Total	1000W
Replace HID Lamp		2000~3000W
Net Weight		29kg (66lbs)
Color Temperature		2700-6500K
Color Rendering		≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life		≥50000Hrs
Housing Material		Aluminum & Powder coating
Power Supply		Meanwell
IP Class		IP 65 (Upgradeable to IP 67)
IK Class		IK 10
Insulation Class		Class I
Working Temperature		-40C ~ 60C / -40F ~ 140F
Working Humidity		10% ~ 95%
AC Input		80~305Vac
DC Input		100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD		<10%
Power Factor		≥0.98
Warranty	LED Module	5 years
	Driver	5 years
	Housing	10 years

Why Choose Our LED Ballpark Lights?

Industry-Leading Involvement: Since 1998, we've been at the bleeding edge of lighting innovation. Our change into Driven lighting started in 2006, making us one of China's most punctual Driven pioneers.

Complete Innovation Control: Our 200+ licenses cover three basic ranges - Driven chip bundling, control supply control, and light structure plan. This comprehensive approach guarantees predominant item performance.

Global Acknowledgment: With double base camp in the US and China, additionally full brand enlistment over major markets, we convey really universal quality standards.

Military-Grade Quality: Our ISO9001 certification ranges 22 successive a long time, illustrating faithful commitment to excellence.

Expert Group: More than 10 teachers and specialists lead our R&D office, whereas 30% of our staff hold bachelor's degrees or higher.

product-1-1

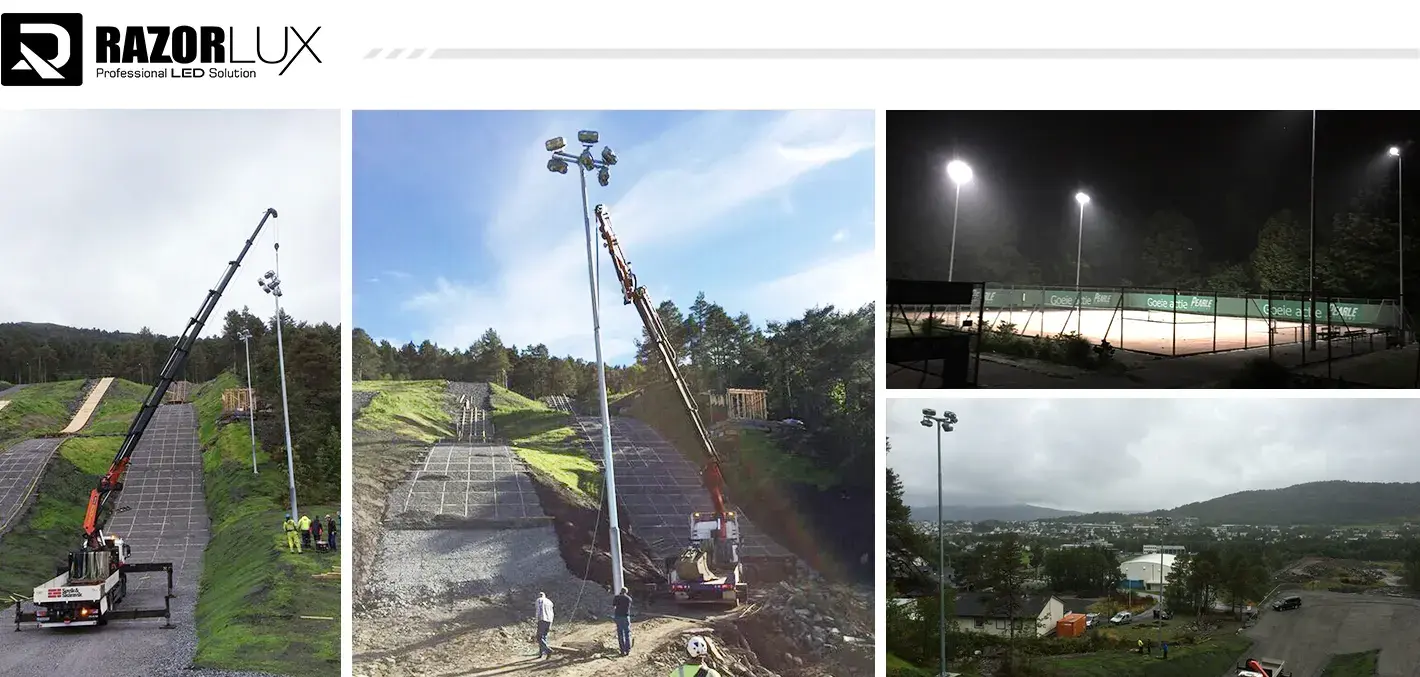

Applications

Our stadium lighting frameworks exceed expectations over different settings and environments:

Professional Baseball Stadiums: Major alliance and minor association offices requiring broadcast-quality illumination
Softball Complexes: Tournament-grade lighting for collegiate and recreational leagues
Multi-Purpose Sports Areas: Flexible lighting for football, soccer, and track events
Municipal Entertainment Centers: Community ballparks and open sports facilities
Educational Educate: Tall school and college athletic complexes
Private Sports Clubs: Select offices requesting premium lighting quality
Training Offices: Indoor and open air hone scenes for proficient teams
Youth Sports Associations: Secure, dependable lighting for small alliance and youth programs
Industrial Diversion Ranges: Corporate sports offices and worker diversion centers
International Competition Settings: Olympic-standard offices assembly worldwide lighting requirements

product-1-1

Each application benefits from our customizable pillar points and color temperature choices, guaranteeing ideal perceivability for players whereas minimizing glare for onlookers. The vigorous IP67 rating makes these lights culminate for open air establishments in all climate conditions.

Quality Control

Our comprehensive quality confirmation program guarantees each light meets the most noteworthy measures. We keep up ISO9001 certification and utilize DFMEA disappointment mode investigation frameworks borrowed from car manufacturing.

Each unit experiences thorough testing counting warm cycling, vibration resistance, and photometric confirmation. Our Xi'an Driven Lighting Building Research facility, certified by China's National Advancement and Change Commission, manages all quality protocols.

product-1-1

Shipment Samples

We give customized tests and models to guarantee our led ballpark lights arrangements meet your correct details. This permits you to assess execution, bar designs, and mounting compatibility some time recently committing to bigger orders.

Sample shipments incorporate total specialized documentation, establishment guides, and photometric information to bolster your extend planning.

Packaging and Transportation

Our defensive bundling framework shields your venture amid travel. Each installation ships in custom-molded froth embeds inside fortified cardboard containers.

We offer adaptable shipping choices counting discuss cargo for critical ventures, rail transport for cost-effective conveyance, and sea shipping for huge establishments. Our worldwide coordinations arrange guarantees opportune conveyance worldwide.

product-1-1

Transportation Time	Shipping Option Details	Recommend Weight
3-7 days	International Express(DHL, FedEx, UPS, TNT, etc.)	0.5KG-300KG(optimal for cost efficiency under our contarated express rates)
5-10 days	By Air (Airport-to-port or Airport-to-door)	300KG+(Significantly more economical than express shipping for heavy cargo)
18-22 days	By Rail(China-Europe Railway Express)	2CBM/500KG+(More economical than air freight for large shipment with flexible timelines)
15-50 days	By Sea(FLC/LCL)	2CBM/500KG+(Much more economical than rail,suit for non-urgent cargo, also the most cost-effective shipping method)

Transaction Feedback

We keep up straightforward communication all through your arrange prepare. Standard upgrades keep you educated approximately generation advance, quality testing comes about, and shipment tracking.

Our client entry gives 24/7 get to to arrange status, specialized documentation, and guarantee information.

After Sales Service

Your fulfillment amplifies distant past conveyance. Our comprehensive bolster incorporates establishment direction, investigating help, and guarantee claim processing.

We offer both 3-year and 5-year guarantee choices depending on your demonstrate determination. Our specialized back group gives responsive help to guarantee long-term execution of your driven ballpark lights.

Qualification Certification

Our broad certification portfolio illustrates compliance with worldwide security and execution standards:

RMRS certification for marine environments
UL listing for North American markets
CE marking for European compliance
SAA approval for Australian installations
DLC qualification for energy efficiency programs
ISO9001 quality management certification

product-1-1

FAQ

Q: What mounting options are available for these ballpark lights?

A: Our stainless steel brackets accommodate pole mounting, wall mounting, and custom configurations. We can provide specific mounting hardware recommendations based on your installation requirements.

Q: Can the beam angle be adjusted after installation?

A: The beam angle is fixed during manufacturing. However, we offer multiple options (15° to 140°x60°) to match your specific lighting design requirements.

Q: How do these lights perform in extreme weather conditions?

A: With IP67 rating and robust construction, our lights operate reliably in temperatures from -40°C to +60°C, including rain, snow, and high humidity conditions.

Q: What dimming options are available?

A: We support 0-10V and DALI dimming protocols, allowing integration with modern lighting control systems for energy savings and scheduling.

Q: How long is the typical lifespan of these fixtures?

A: Our LED technology provides 50,000+ hour lifespan with minimal light degradation, ensuring consistent performance throughout the warranty period.

Q: Do you provide lighting design services for ballpark projects?

A: Yes, we offer comprehensive lighting layout design and brightness calculation services to ensure optimal illumination for your specific venue requirements.
