led indoor sports lighting

Patented Multi-function design, suitable for all working environments.
Rated Power: 400W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 22KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001

Send Inquiry Download

Product Description

LED Indoor Sports Lighting - Professional Stadium & Gymnasium Lighting Solutions

Product Introduction

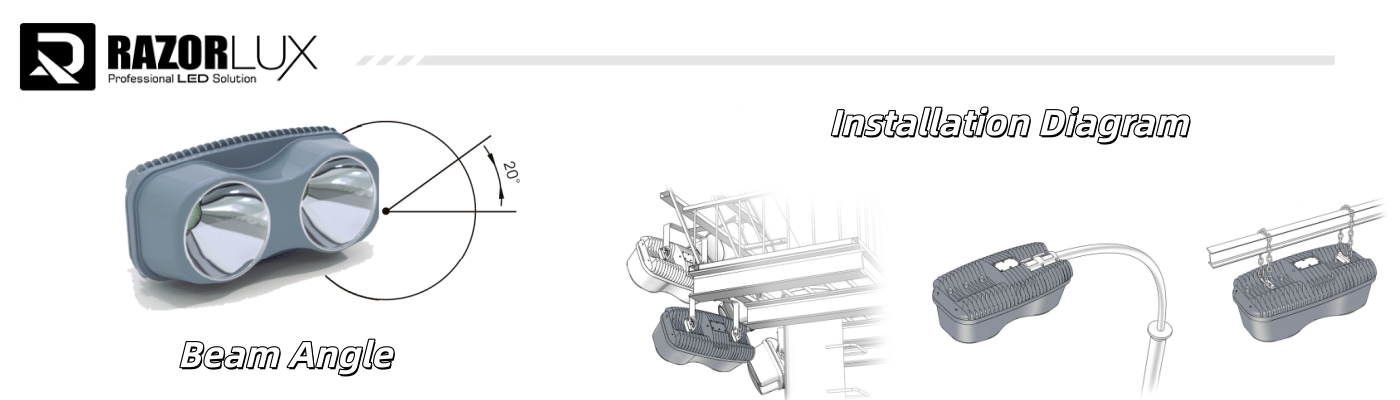

product-1-1

Change your sports office with our premium led indoor sports lighting frameworks outlined particularly for recreation centers, ball courts, volleyball courts, and multipurpose sports settings. Our progressed lighting innovation conveys uncommon execution with uniform light conveyance, negligible glare, and predominant vitality productivity. Whether you're overhauling an existing office or planning a modern sports complex, our driven indoor sports lighting gives the culminate combination of execution, strength, and cost-effectiveness.

product-1-1

Specification

Model		RGL2-400P
Beam Angle		15° 20° 30°
Stable Flux (5700K after 1 hour)		48000lm
Dimension (mm)		466388487
	LEDs	360W
Power	Driver	40W
Consumption	Total	400W
Replace HID Lamp		800~1000W
Net Weight		22kg with stainless steel floodlight bracket
Color Temperature		2700-6500K
Color Rendering		≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life		≥50000Hrs
Housing Material		Aluminum & Powder coating
Power Supply		Meanwell
IP Class		IP 67
IK Class		IK 10
Insulation Class		Class I
Working Temperature		-40C ~ 60C / -40F ~ 140F
Working Humidity		10% ~ 95%
AC Input		110-480Vac input voltage without additional adapter
DC Input		100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD		<10%
Power Factor		≥0.98
Warranty	LED Module	5 year
	Driver	5 year
	Housing	10 year

Why Choose Our LED Indoor Sports Lighting?

Our lighting stands out in the showcase due to our 25+ a long time of industry ability and imaginative innovation. We combine progressed warm administration with shrewdly control frameworks to convey lighting arrangements that surpass industry measures. Your office merits lighting that upgrades player execution whereas decreasing operational costs.

Our licensed multi-function plan guarantees ideal light dissemination over different sports surfaces. You get reliable brightening levels that meet worldwide sports lighting benchmarks. The prevalent CRI rating upgrades color acknowledgment, vital for fast-paced sports activities.

product-1-1

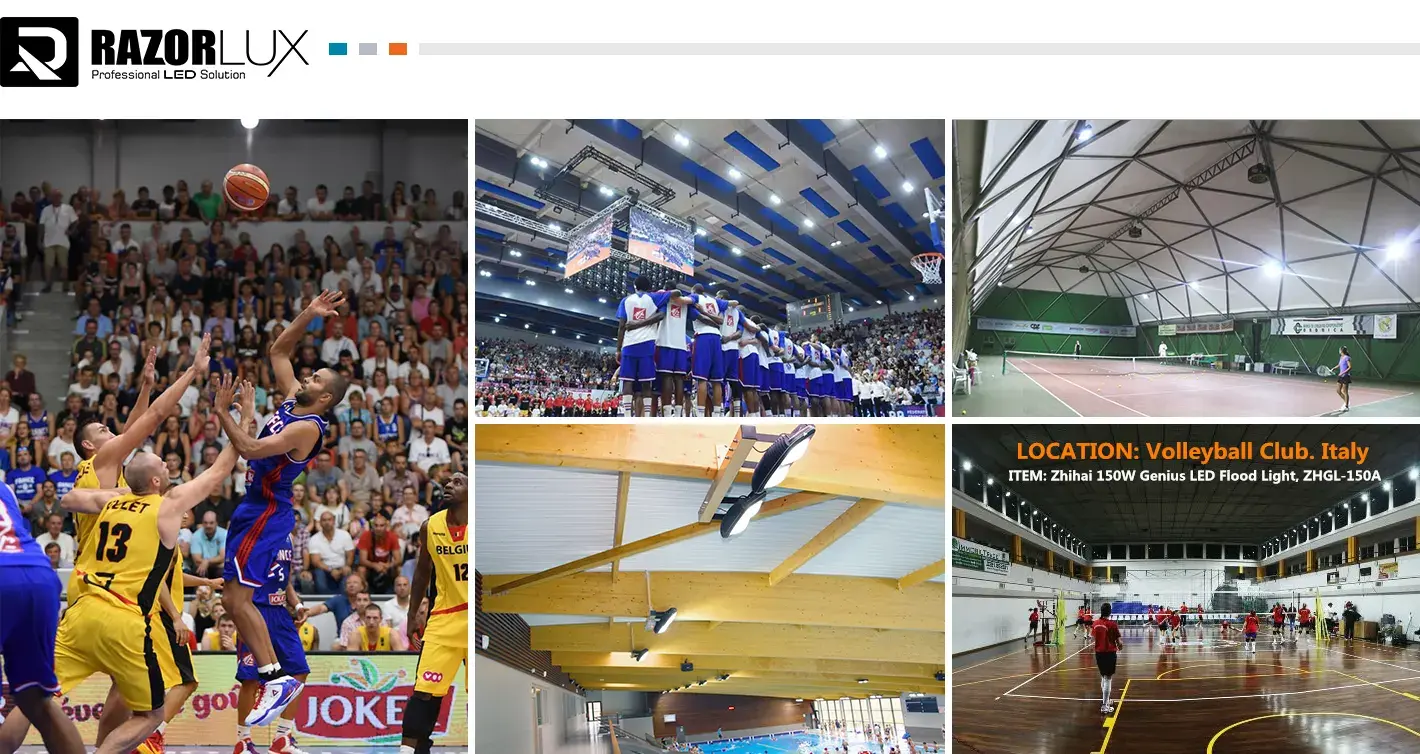

Applications

Our flexible driven indoor sports lighting serves different office types:

• Ball Courts - Conveys uniform light with negligible shadows and glare, assembly FIBA and NCAA lighting measures for proficient and recreational play

product-1-1

• Volleyball Courts - Gives ideal vertical illuminance levels for following ball development with exact pillar control and anti-glare design

• Exercise rooms - Multipurpose lighting arrangement appropriate for different sports exercises, gatherings, and community occasions with adaptable darkening capabilities

• Badminton Courts - High-frequency operation kills stroboscopic impacts, guaranteeing clear shuttlecock perceivability amid fast gameplay

• Tennis Courts (Indoor) - Meets ITF lighting prerequisites with amazing consistency proportions and color rendering for proficient tournaments

• Wrestling Scenes - Low-profile mounting alternatives with strong development to withstand vibrations and impacts from athletic activities

• Wellness Centers - Energy-efficient lighting that makes an welcoming climate whereas keeping up ideal perceivability for security and performance

• Sports Preparing Offices - Customizable color temperature and diminishing controls to make perfect preparing situations for diverse sports disciplines

product-1-1

Quality Control

We keep up military-grade quality benchmarks through our ISO9001 certification, which we've held for 22 successive a long time. Each installation experiences thorough testing counting warm cycling, vibration testing, and photometric confirmation some time recently shipment.

Our quality confirmation prepare incorporates DFEMA disappointment mode examination and comprehensive burn-in testing. You can believe that each unit meets the most elevated unwavering quality benchmarks for requesting sports environments.

product-1-1

Shipment Samples

We give customized tests and models to guarantee our items meet your correct determinations. Test orders ordinarily dispatch inside 3-5 commerce days, permitting you to assess execution and quality some time recently setting bulk orders.

Sample bundles incorporate point by point photometric reports and establishment rules. This makes a difference you make educated choices for your sports office lighting project.

Packaging and Transportation

Our vigorous bundling framework secures your venture amid travel. Each installation is exclusively wrapped and secured in custom froth embeds inside strengthened cardboard cartons.

We offer adaptable shipping choices counting discuss cargo, rail transport, and sea shipping to meet your timeline and budget prerequisites. All shipments incorporate comprehensive following and protections coverage.

product-1-1

Transportation Time	Shipping Option Details	Recommend Weight
3-7 days	International Express(DHL, FedEx, UPS, TNT, etc.)	0.5KG-300KG(optimal for cost efficiency under our contarated express rates)
5-10 days	By Air (Airport-to-port or Airport-to-door)	300KG+(Significantly more economical than express shipping for heavy cargo)
18-22 days	By Rail(China-Europe Railway Express)	2CBM/500KG+(More economical than air freight for large shipment with flexible timelines)
15-50 days	By Sea(FLC/LCL)	2CBM/500KG+(Much more economical than rail,suit for non-urgent cargo, also the most cost-effective shipping method)

Transaction Feedback

We esteem your encounter and effectively look for input to ceaselessly move forward our items and administrations. Our client fulfillment rate surpasses 98% based on post-delivery studies and rehash trade relationships.

Your input makes a difference us upgrade item execution and create modern arrangements that superior serve the sports lighting industry.

After Sales Service

Our commitment amplifies past conveyance with comprehensive guarantee scope and responsive specialized back. We offer 5-year guarantee security on all installations, guaranteeing long-term unwavering quality for your facility.

Our worldwide back arrange gives provoke help for establishment direction, investigating, and upkeep suggestions. You have get to to our specialized specialists at whatever point you require assistance.

Qualification Certification

Our led indoor sports lighting carry numerous universal certifications counting RMRS for marine applications, UL for North American markets, TÜV for European compliance, and SAA for Australian standards.

These certifications illustrate our commitment to security, quality, and execution over worldwide markets. Your office benefits from lighting arrangements that meet the most rigid worldwide guidelines.

product-1-1

FAQ

Q: What is the expected lifespan of your lighting fixtures?

A: Our fixtures are designed for 50,000+ hours of operation with minimal light degradation, typically lasting 15-20 years under normal usage conditions.

Q: Can these lights be dimmed for different activities?

A: Yes, our fixtures support 0-10V and DALI dimming protocols, allowing you to adjust lighting levels for various activities and energy savings.

Q: How do these lights perform in high-ceiling gymnasiums?

A: Our fixtures are specifically designed for high-mounting applications with powerful optics that maintain excellent uniformity even at mounting heights of 30+ feet.

Q: What maintenance is required for optimal performance?

A: Minimal maintenance is required. We recommend annual cleaning of lens surfaces and periodic inspection of mounting hardware for optimal performance.

Q: Do you provide lighting design services for sports facilities?

A: Yes, we offer comprehensive lighting layout design and photometric calculations to ensure optimal illumination levels and uniformity for your specific facility requirements.

Q: Are these fixtures suitable for broadcast-quality lighting?

A: Absolutely. Our high CRI rating and flicker-free operation make them excellent for televised events and high-speed camera applications.

Contact Us

Ready to upgrade your sports facility with professional led indoor sports lighting? Our lighting experts are here to help you design the perfect solution for your specific needs.

Email: sam@razorlux.com
