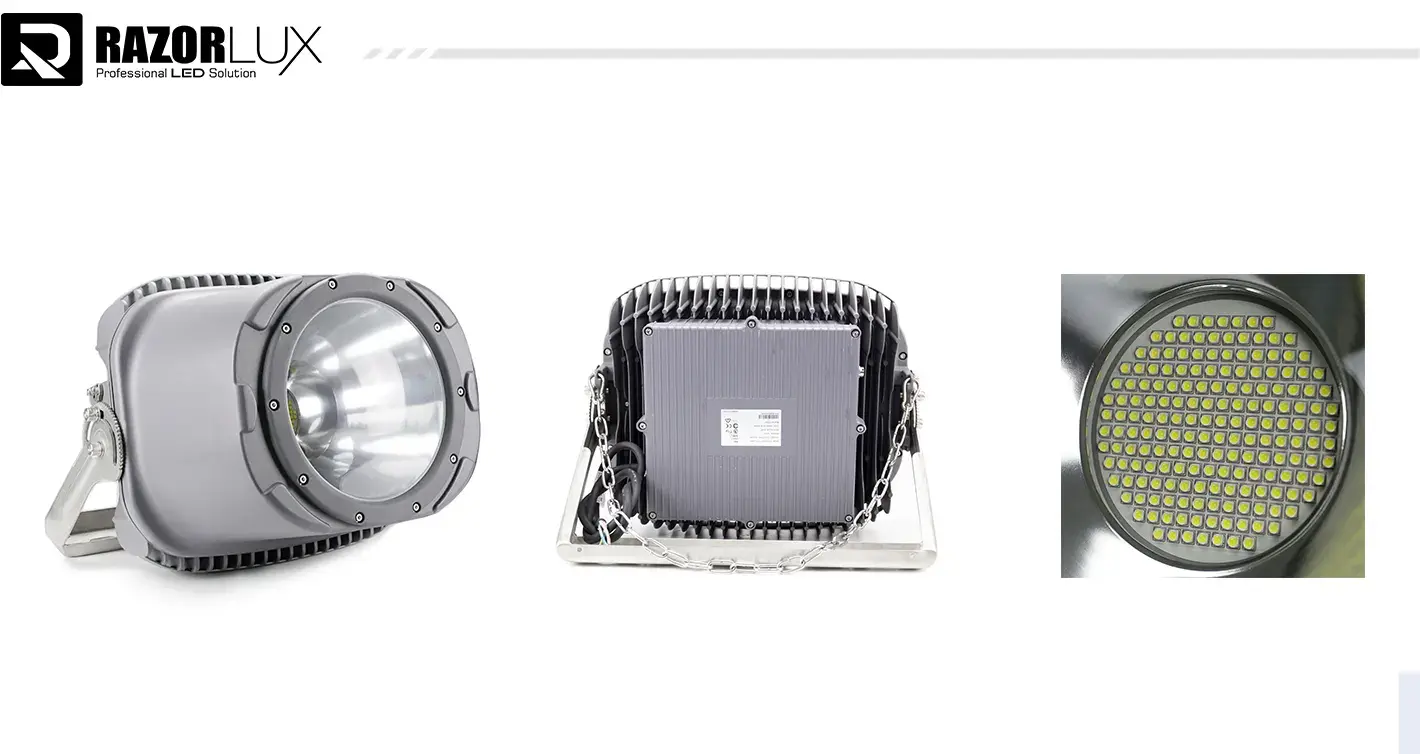

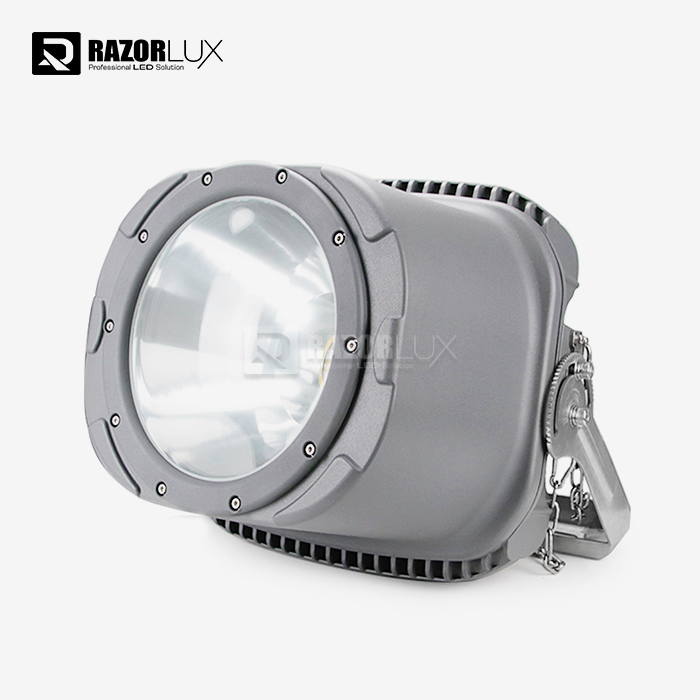

Outdoor Field Lighting: Razorlux BX-500 Series

Built for the harshest environments.When your operations can't stop for lighting failures, the outdoor field lighting delivers industrial-grade performance with 26 years of proven reliability behind it.

The Bottom Line

· 130 lumens per watt– Cut energy costs by up to 70% vs. traditional metal halide

· IP67 waterproof + C5M corrosion resistant– Survives coastal salt spray and chemical exposure

· 50,000+ hour lifespan– That's 11+ years at 12 hours daily operation

· 5-year full replacement warranty– Not pro-rated. Not conditional.

· AC 90-305V / DC 127-431V input– Works anywhere, no voltage stabilizer needed

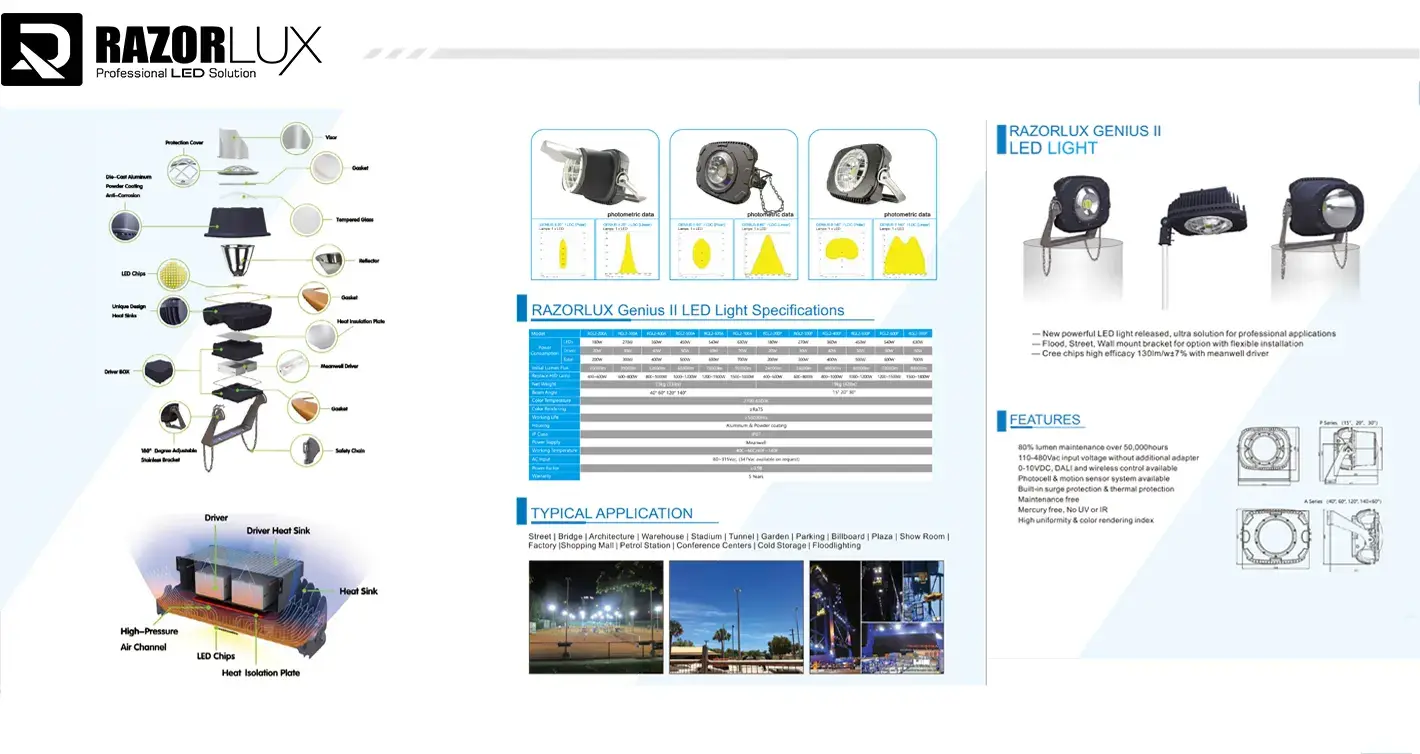

Outdoor Field Lighting Specifications

Who This Is Built For

Mining & Heavy Industry

Why outdoor field lighting works:IP67 sealing keeps coal dust out. Vibration-dampening mounts handle 24/7 excavator operation. C5M-rated housing resists chemical corrosion from underground gases.

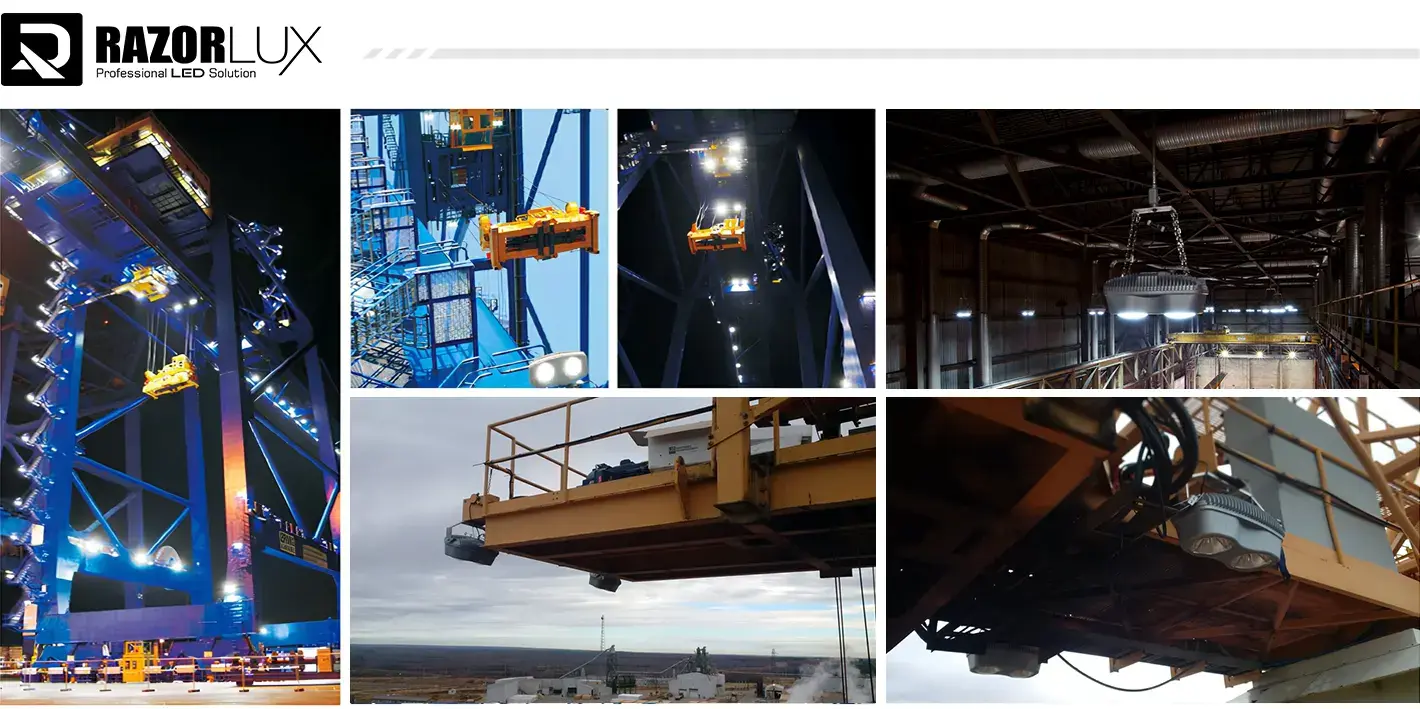

Ports & Logistics

Requirements? Uniform 200+ lux illumination, typhoon resistance, salt air protection.

The result:Passed three typhoon seasons with zero fixture damage. Beam uniformity of 0.7+ eliminates crane operator eye strain during night shifts.

Stadium & Sports Facilities

48 fixtures deliver broadcast-quality illumination at 500 lux vertical, 0.6 uniformity.

Key feature:Zero flicker at 10,000 fps filming speed. Color rendering index (CRI) 82 preserves true jersey colors for TV broadcast.

What Makes It Different

1. Dual-Voltage Design (Our Patent #ZL201820447729.3)

Works on any power system worldwide without transformers. We've installed units on:

· Australian 240V AC networks

· Chinese 380V three-phase systems

· Off-grid DC solar installations (127-431V DC range)

· Unstable grid areas with ±25% voltage swings

2. Thermal Management That Actually Works

Most high-power LEDs fail from heat, not LED burnout. Our solution:

· Phase-change cooling fins: Licensed tech from our power supply division (we made industrial UPS systems for 15 years before LED)

· Copper heat pipes: Direct junction-to-fin thermal path

· Real-world test: Junction temperature stays under 85°C at 45°C ambient

Translation:Your lights won't dim after two years like cheap alternatives.

3. Modular Power Supply

When a driver fails (rare, but it happens), you don't replace the whole fixture:

1. Remove 4 screws on the rear access panel

2. Unplug the driver (IP67 connector, no wire cutting)

3. Plug in replacement

4. Done in 10 minutes

Who We Are (And Why It Matters)

Razorlux Lightinghas manufactured industrial LEDs since 1998, when most companies were still selling incandescent bulbs. Our first product was a 50W explosion-proof LED for coal mines – we learned the hard way what "industrial-grade" really means.

Our Background:

· 1998-2006: Industrial power supplies and UPS systems

· 2006: Launched LED division using our thermal management expertise

· 2012: Opened Xi'an LED Engineering Lab (provincial-certified research facility)

· 2019: Earned C5M certification (highest marine corrosion standard)

Today:200+ employees, 83 patents granted, ISO9001 certified for 22 consecutive years.

FAQ (The Questions Everyone Actually Asks)

Q: Can I retrofit these into existing stadium light poles?

A: Yes. Our stainless steel mounting bracket fits standard Ø48-76mm slip fitters. Adjustable tilt angle ±90°. We provide IESNA photometric files (.IES format) so your electrician can verify beam coverage before ordering.

Q: What happens if it fails during the warranty?

A: We ship a replacement via DHL within 48 hours of your claim submission. You send the failed unit back afterward (we cover freight). No repair depots. No waiting weeks.

Q: Do you have dimming options?

A: Three configurations:

· 0-10V analog dimming(most common for commercial)

· DALI-2 protocol(for building management systems)

· PWM dimming(for specialized controls)

Specify when ordering – no price difference.

Q: How do I know what beam angle to choose?

A: Send us your site details:

· Pole height and spacing

· Target illumination level (lux or foot-candles)

· Whether it's area lighting or task lighting

We'll run an AGi32 simulation and send you the photometric layout within 2 business days. Free for projects over 20 fixtures.

Q: What about spare parts availability?

A: We guarantee parts stock for 10 years after your purchase date. LEDs, drivers, lenses, brackets – all available. Pricing locked at purchase-year rates +5% annually.
