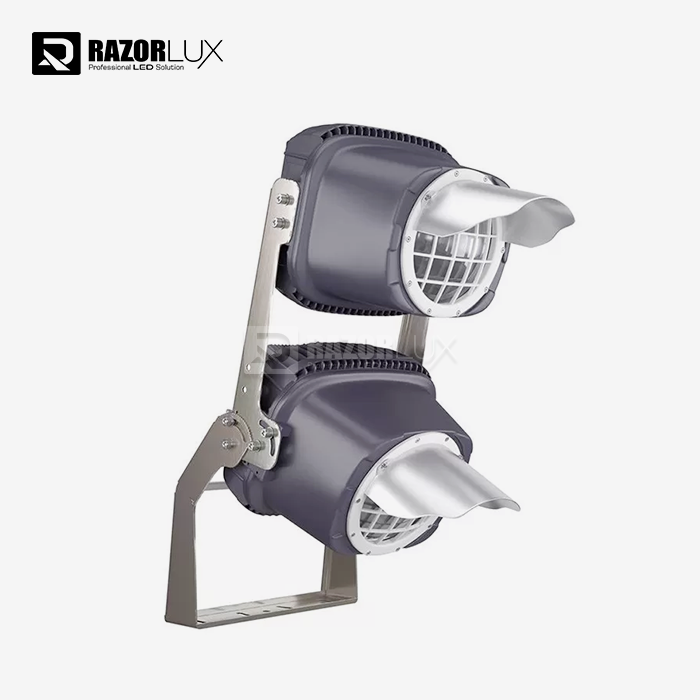

Portable 1000w Led Stadium Lights

Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, C-tick, EMC, LVD, RoHS, Saa, UL
Model Number: RGL2-1000P
Payment & Shipping Terms:
Price: $1,652.00/Pieces
Packaging Details: 1.EPS Foam+carton(ONE UNIT PER CARTON)
2.Carton Size(mm):550*450*560mm
3.One 20'' Container can accept 250 Units

Send Inquiry Download

Product Description

Detailed Product Description

Color Temperature(CCT):	6000K (Daylight Alert), Cool White	Lamp Luminous Efficiency(lm/w):	120, 120
Color Rendering Index(Ra):	80	Support Dimmer:	Yes
Lighting Solutions Service:	DIALux Evo Layout, Agi32 Layout, Auto CAD Layout	Lifespan (hours):	50000
Working Time (hours):	50000	Product Weight（kg）:	30
Input Voltage(V):	80~315Vac, (347Vac Available On Request)	CRI (Ra>):	75
Beam Angle(°):	15° 20° 30°	Working Lifetime(Hour):	50000
Lamp Body Material:	Aluminum Alloy	IP Rating:	IP67
Application:	Sports Stadiums	Light Source:	LED
Lamp Luminous Flux(lm):	120000, 120000lm	Working Temperature(℃):	-40 To 60, -40 - 60
Warranty(Year):	5-Year	Product Name:	Portable Field Lighting
Warranty:	5Years	Housiong Material:	Aluminum
Working Life:	50000	IP Class:	IP 65 (Upgradeable To IP 67)
LED Chip:	Samsung
Highlight:	Field 1000w led stadium lights, Portable 1000w led stadium lights, 6000K outdoor sport court lighting

2019 New Design 1000W Portable Field Lighting for Sports Arena

Main Features

1. 80% lumen maintenance over 50,000hours

2. Wide Power range: 1000W

3. 110-480Vac input voltage without additional adapter

4. Patent Built-in Serge Protection.

5. Top chips high efficacy 120lm/w with meanwell driver

6. IP67 waterproof, IK10 impact proof

7. Neutral Salt Spray Resistance

8. Anti-Corression power coating surface treatment

9. Stainless steel brackets material.(Upgradable to SS316)

10. 0-10VDC, DALI and wireless control available

11. UL cUL DLC, TUV CE RoHS, CB, SAA, LM79 listed

12. High uniformity & color rendering index

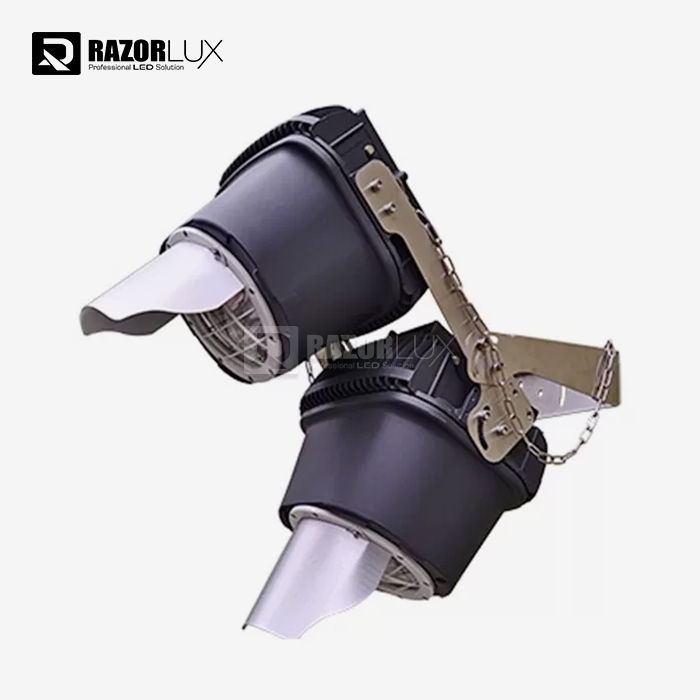

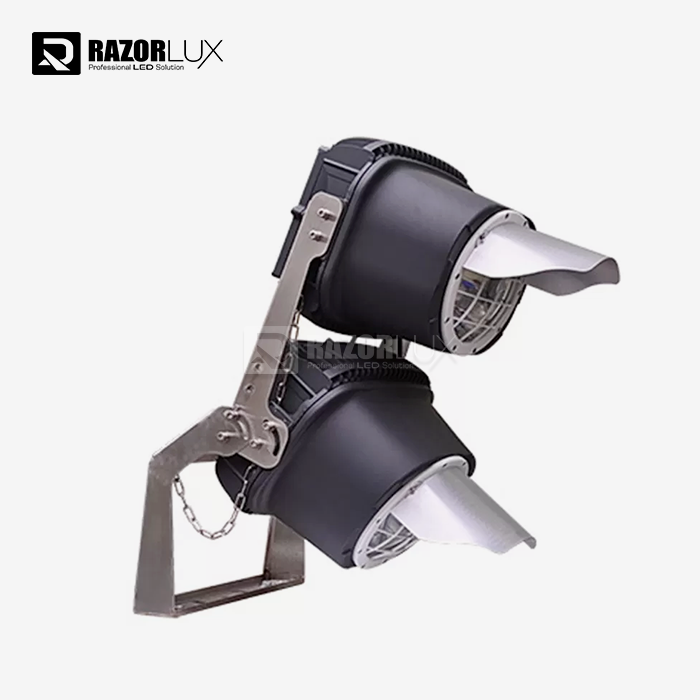

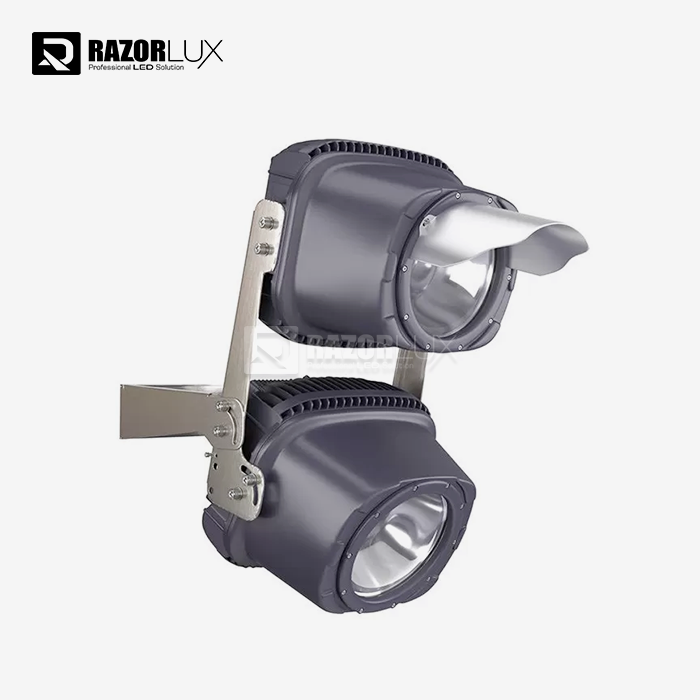

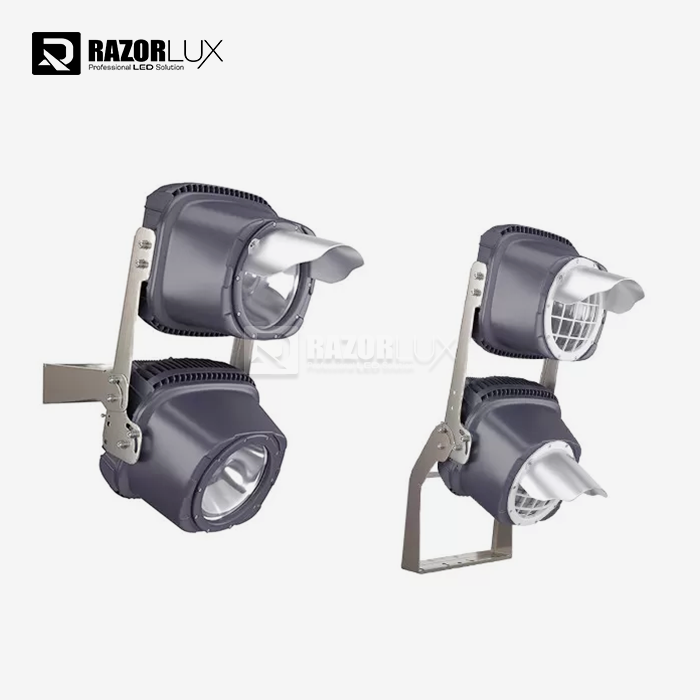

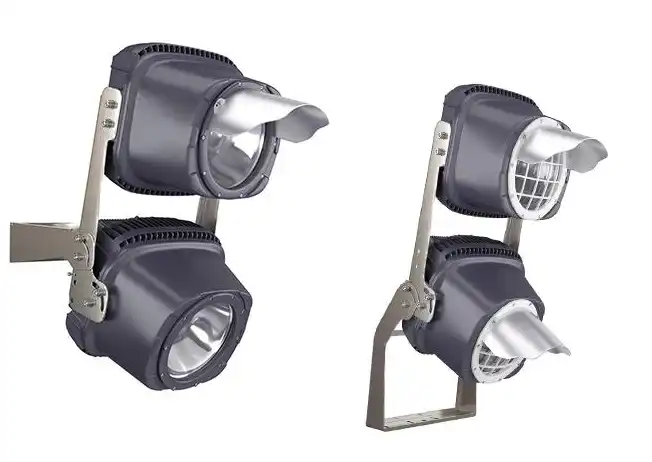

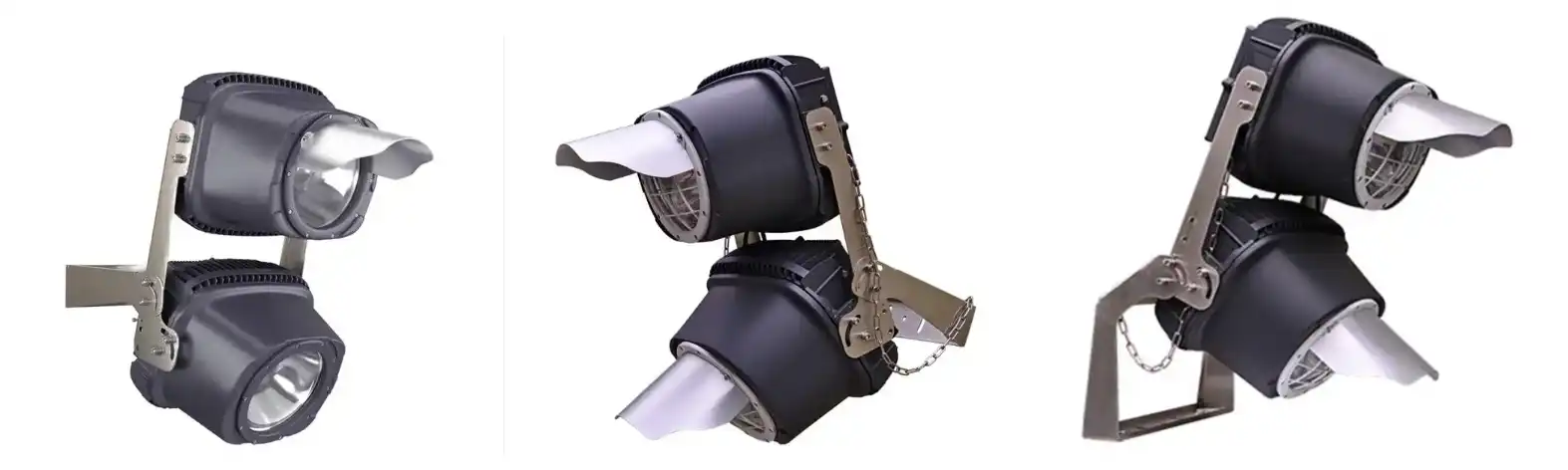

Photos of Portable Field Lighting:

product-652-462

product-999-484

product-1573-472

Parameter of Razorlux Portable Field Lighting:

Model		RGL2-1000P
Beam Angle		15° 20° 30°
Stable Flux (5700K after 1 hour)		120000lm
Dimension (mm)		474388982
	LEDs	900W
Power	Driver	100W
Consumption	Total	800W
Replace HID Lamp		2200~2500W
Net Weight		38kg with stainless steel floodlight bracket
Color Temperature		2700-6500K
Color Rendering		≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life		≥50000Hrs
Housing Material		Aluminum & Powder coating
Power Supply		Meanwell
IP Class		IP 65 (Upgradeable to IP 67)
IK Class		IK 10
Insulation Class		Class I
Working Temperature		-40C ~ 60C / -40F ~ 140F
Working Humidity		10% ~ 95%
AC Input		110-480Vac input voltage without additional adapter
DC Input		100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD		<10%
Power Factor		≥0.98
Warranty	LED Module	5 year
	Driver	5 year
	Housing	10 year

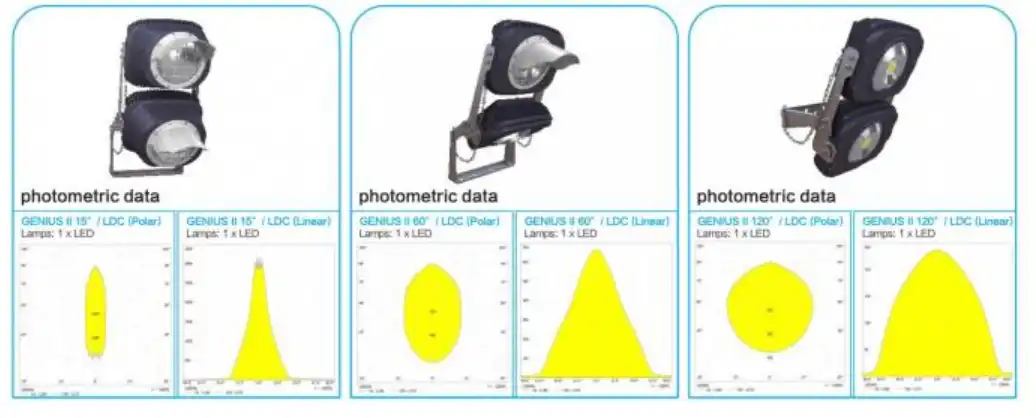

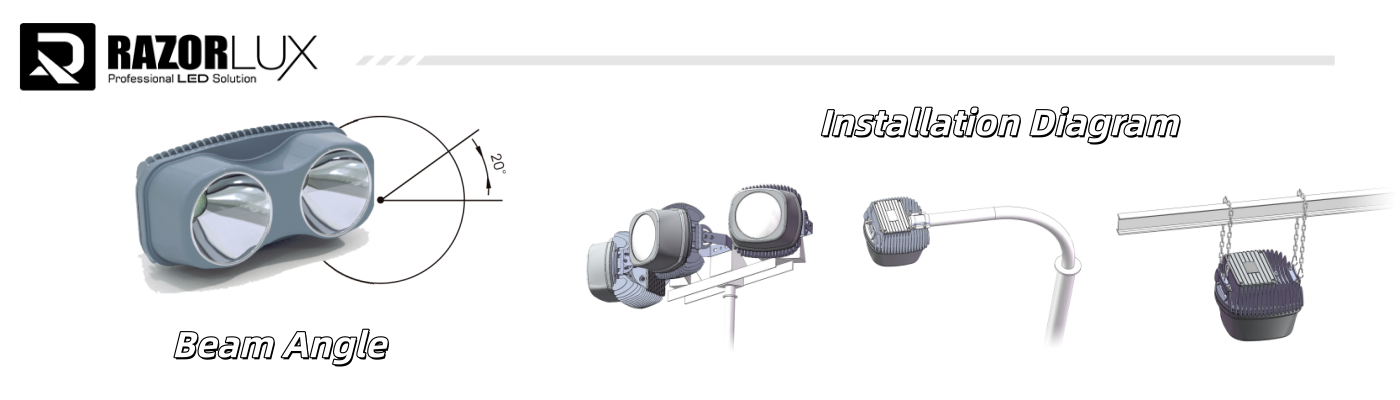

Lighting Distribution of Razorlux Portable Field Lighting:

For Different application requirement, Razorlux Genius Series have different types of beam angles options.

at the moment we have 15° 20° 40° 60° 120° 140° beam angle available.

product-1036-418

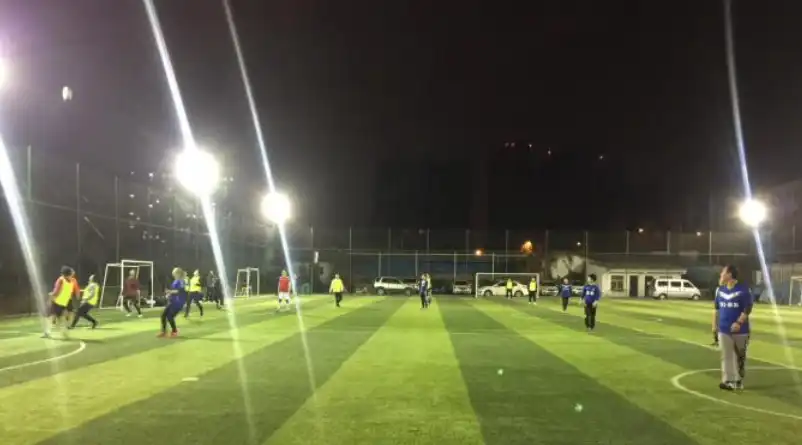

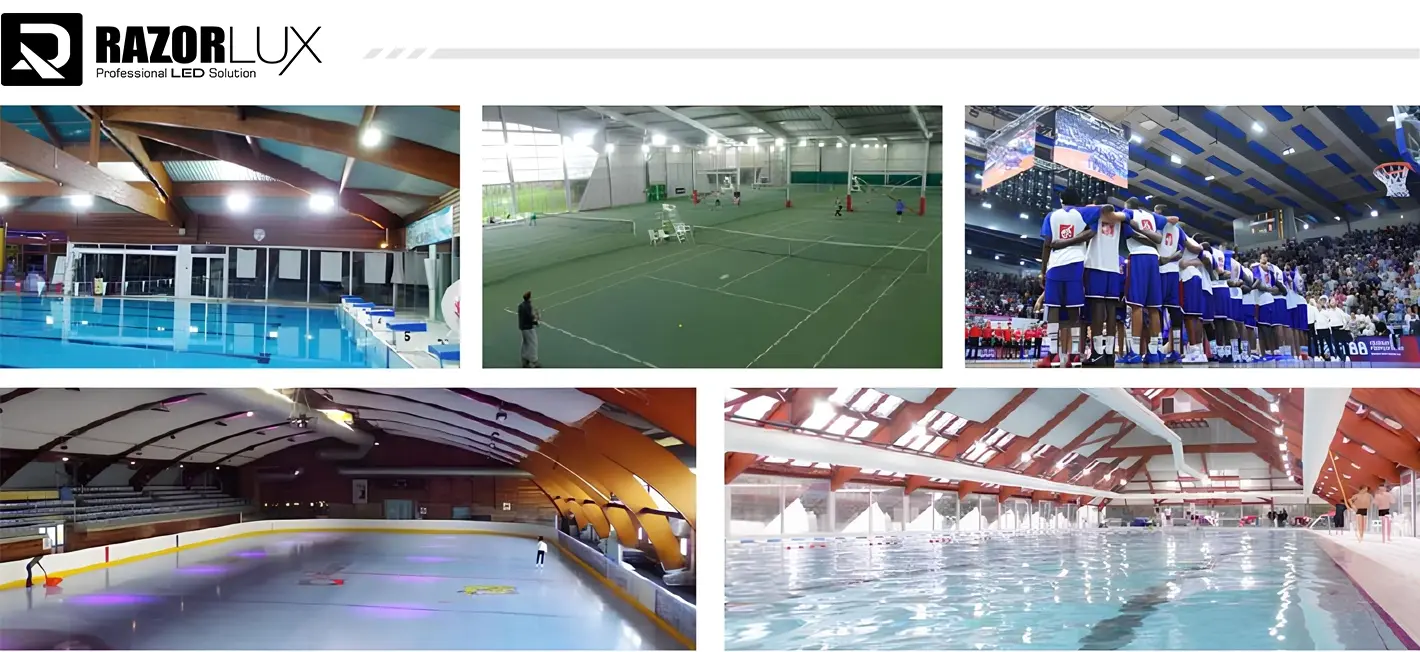

Application of Razorlux Portable Field Lighting:

product-802-445

Packaging & Shipping

Model	G.W
Genius II 1000W P Series	38KGS

Razorlux has very strict Quality Control System, from checking and evaluation of incoming materials to

the delivery of products, each item will be checked and tested for several times.

Quality Control - Testing Equipments:

For every piece of Razorlux 1000 Watt LED Flood Light are tested in different procedures.

No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under extreme temperature environment. (-40 to 140 degree)

No. 2: Anti-Corrosion and IP67 Waterproof Testing, to make sure the products are working well even undern corrosive and Wetting environment.

No. 3 & 4: Dark Room for testing IES files and other Photometric datas.

Quality Control - Aging Department:

For every piece of Razorlux Genius™ LED Lights, they will be aged for at least 72 hours before shipment

to make sure of their long term and stable performances within lifetime.

Razorlux Service:

1. Before and after sales in time service 7/24

2. Professional Lighting solution, DIALux simulation available

3. Payment terms: Paypal, TT, LC, DP etc

4. Shipment terms: FOB, CIF, CFR

5. Lead time: 5-7 working days

6. NO MOQ required, sample testing welcome

Razorlux at Lighting Fairs:

Hong Kong International Lighting Fair (Spring Edition) 2016/2017/2018
Hong Kong International Lighting Fair (Autumn Edition) 2016/2017/2018
2015 LED Expo in Den Bosch, Netherland
2016 Strategies in Light in Las Vegas, U.S.A
2016 IIDEX in Toronto, Canada

product-810-469
