High Mast Sports Arena Lighting 130lm/W 600 Watt Outdoor Stadium Lighting

Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: ce, C-tick, EMC, LVD, RoHS, Saa, UL
Model Number: RGL2-600A
Packaging Details:
1.EPS Foam+carton(ONE UNIT PER CARTON)
2.Carton Size(mm):550*450*415mm
3.One 20'' Container can accept 250 Units
Supply Ability: 5000 Piece/Pieces per Month

Send Inquiry Download

Product Description

High Mast Sports Arena Lighting 130lm/W 600 Watt Outdoor Stadium Lighting

Product Overview

The Razorlux RGL2-600A provides 78,000 lumens of broadcast-quality lighting for sporting stadiums with mounting heights of 15-40m. This 600W LED system replaces old 1500W-2000W metal halide systems, reducing energy expenditures by 60%, and ensuring flicker free performance (<1%) for HD transmission. Designed for operation from -40°C to +50°C with IP67 protection.

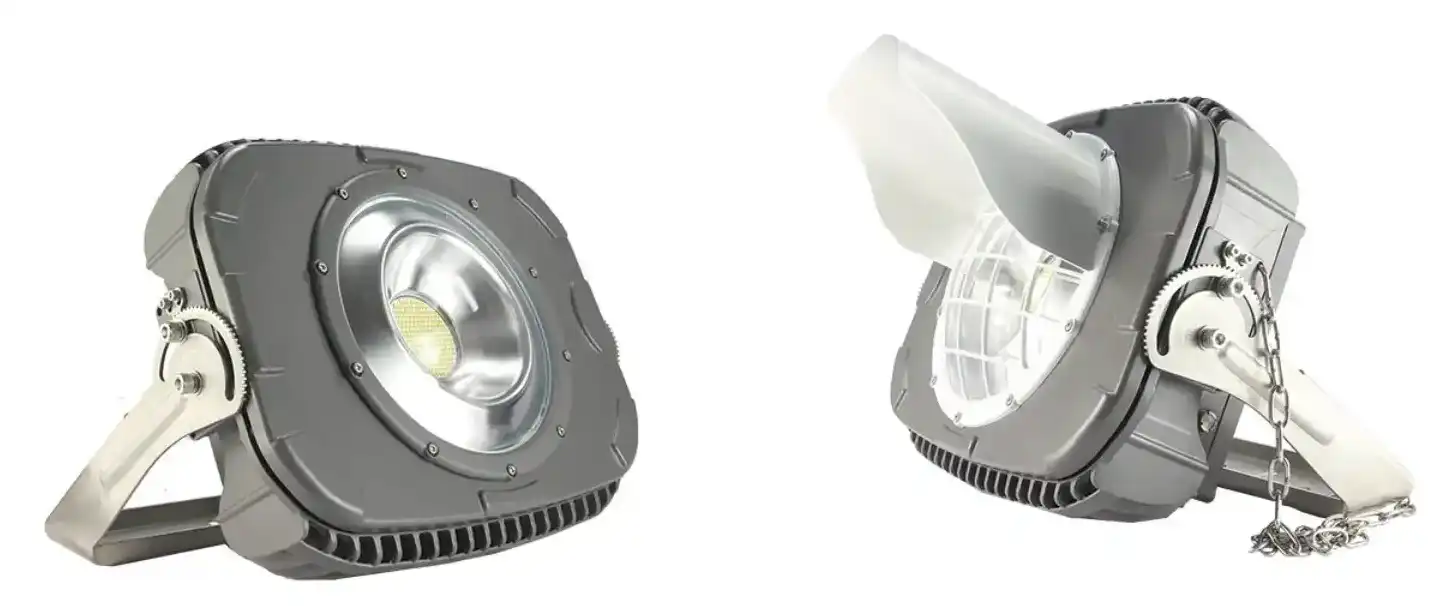

High Mast Sports Arena Lighting 130lm/W 600 Watt Outdoor Stadium Lighting

High Mast Sports Arena Lighting 130lm/W 600 Watt Outdoor Stadium Lighting Specifications

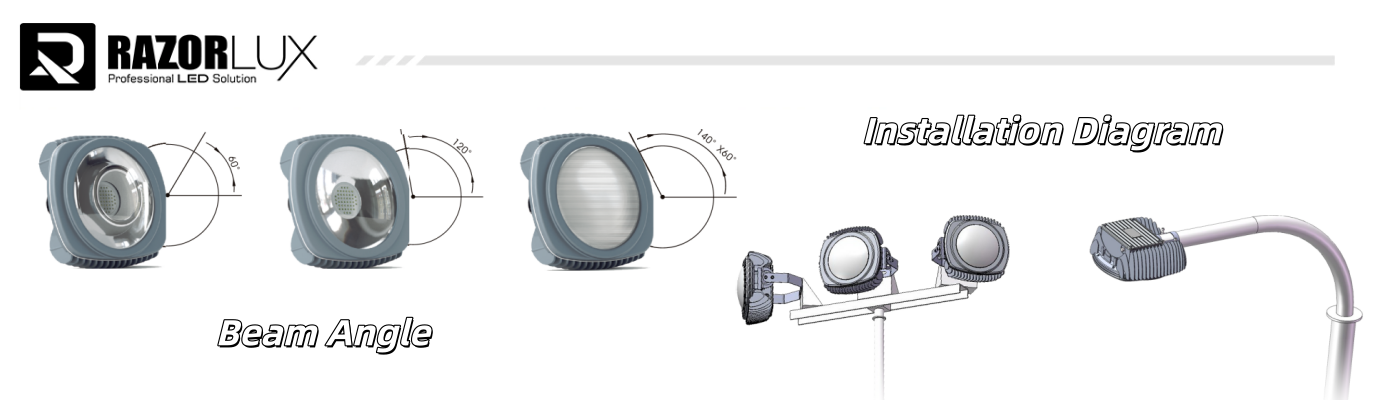

 Beam Angle & Installation Diagram

Model		RGL2-700A
Beam Angle		40° 60° 120° 140°
Stable Flux(5700K after 1 hour)		91000lm
Dimension (mm)		468388367
Power Consumption	LEDs	630W
	Driver	70W
	Total	700W
Replace HID Lamp		1500~1800W
Net Weight		15kg (33lbs)
Color Temperature		2700-6500K
Color Rendering		≥Ra75
Working Life		≥50000Hrs
Housing Material		Aluminum & Powder coating
Power Supply		Meanwell
IP Class		IP67
Working Temperature		-40C ~ 60C / -40F ~ 140F
Working Humidity		10% ~ 95%
AC Input		80~315Vac, (347Vac available on request)
Power Factor		≥0.98
Warranty		5 years

Application

Why Stadium Operators Choose RGL2-600A

Proven Energy Savings

Replace 1500W-2000W metal halide fixtures with this 600W LED system. Municipal sports complexes report 60-70% reductions in lighting electricity costs, with payback periods under 24 months in typical applications.

Broadcast-Grade Performance

High-frequency drivers maintain <1% flicker index—critical for slow-motion replays and HD television production. CRI>80 ensures accurate color rendering for both athletes and cameras.

Extreme Weather Reliability

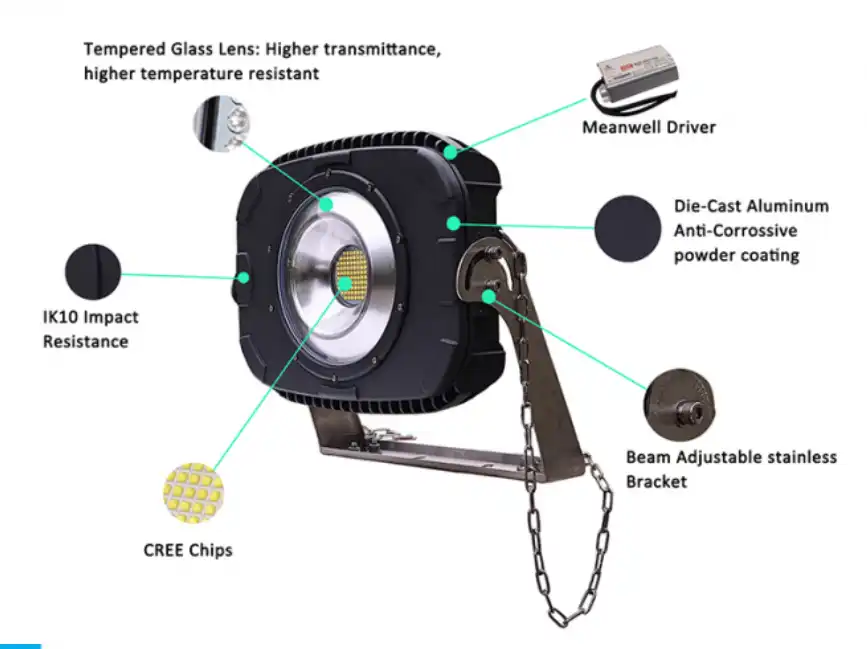

Die-cast aluminum ADC12 housing with multi-fin thermal management keeps junction temperatures below 75°C. Field-tested in environments from -40°C Arctic conditions to +50°C desert climates. Certified for 17-level typhoon wind resistance.

Maintenance Cost Reduction

50,000-hour lifespan eliminates frequent high-altitude lamp changes. Facility managers at 40m mounting heights report 80% reduction in maintenance interventions compared to HID systems.

Flexible Beam Control

Four beam angle options (15°/30°/60°/90°) plus 0-10V/DALI dimming enable precise light distribution. Minimizes light spill into residential areas while meeting IES sports lighting standards.

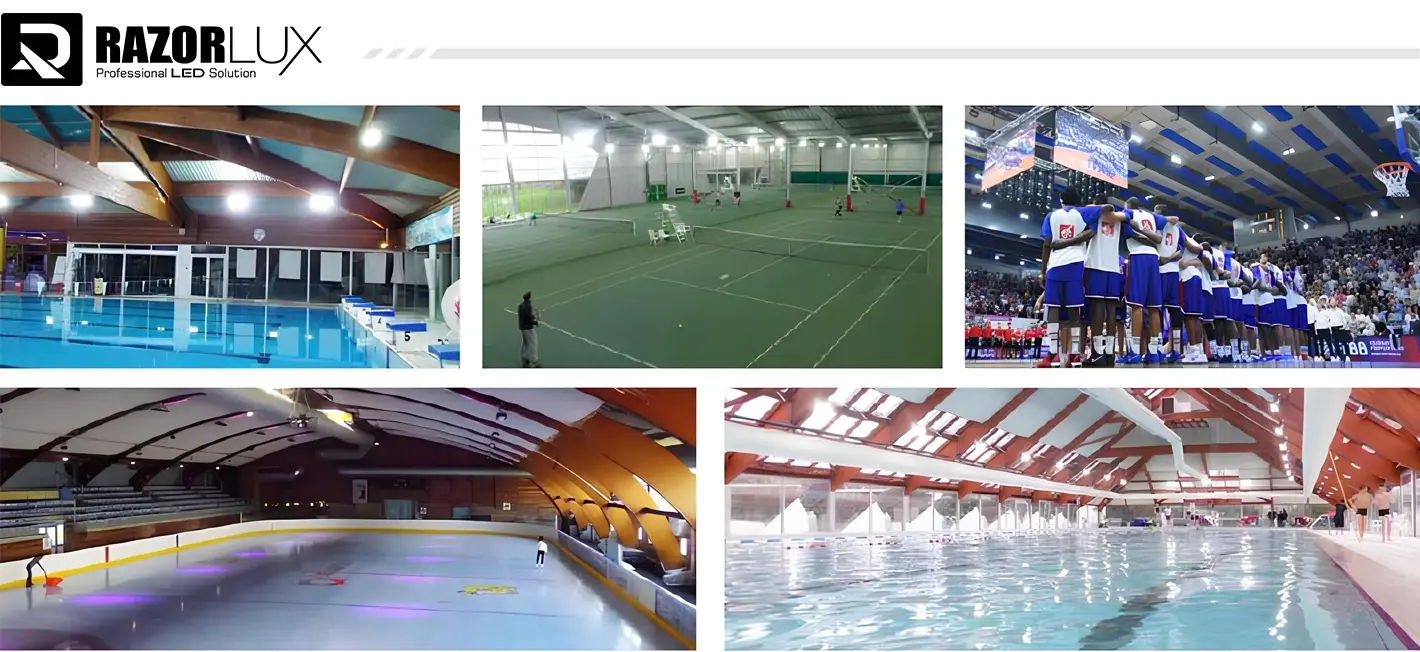

Application Scenarios

The following are applications for High Mast Sports Arena Lighting 130lm/W 600 Watt Outdoor Stadium Lighting:

Professional Sports Venues

Football stadiums, cricket grounds, athletics tracks requiring Class I/II illumination levels. Customizable photometric designs available.

Multi-Sport Complexes

Tennis courts, basketball facilities, community recreation centers. Meets IESNA RP-6 recommended practices.

University Training Facilities

Evening practice lighting for collegiate athletic programs. Daylight-equivalent CCT options support optimal visual performance.

Industrial High-Mast Applications

Container ports, logistics hubs, mining activities, building sites that need 20-40m pole installation.

Technical Deep Dive

Thermal Management System

The advanced multi-fin heat dissipation design with ADC12 die-cast aluminium ensures consistent performance in temperature extremes. Thermal models show junction temp <75C at ambient of 50C.

Surge Protection

10KV/20KV surge protection is for lightning strikes and grid voltage surges that are typical in outdoor installations.

Optical Precision

High purity aluminium reflectors with vacuum coated surfaces attain optical efficiency of 92%+. Computer-optimized lens designs provide even light across the target regions.

Driver Technology

High efficiency constant current drivers (PF>0.95) Isolated design. Compatible with worldwide voltage standards (options are 100-277VAC / 200-480VAC).

Frequently Asked Questions

Q: Do they work with current stadium control systems?

A: Standard units are 0-10V analogue dimming. Can be integrated with Zigbee, DMX or BMS systems, DALI protocol available. We provide support documents for integration of control.

Q: How does the 130lm/W compare to the newer 150lm/W products?

A: The 130lm/W model is a superior cost-performance choice if you’re price conscious. Efficiency difference gives ~15% greater operational expenses, but 25-30% cheaper initial investment.

Q: What is necessary for installation at heights of 35-40m?

A: Includes a U-bracket, universal. Existing pole requires structural engineer certification for wind loads. We give wind load estimations and installation instructions.

Q: Shipping logistics on overseas projects?

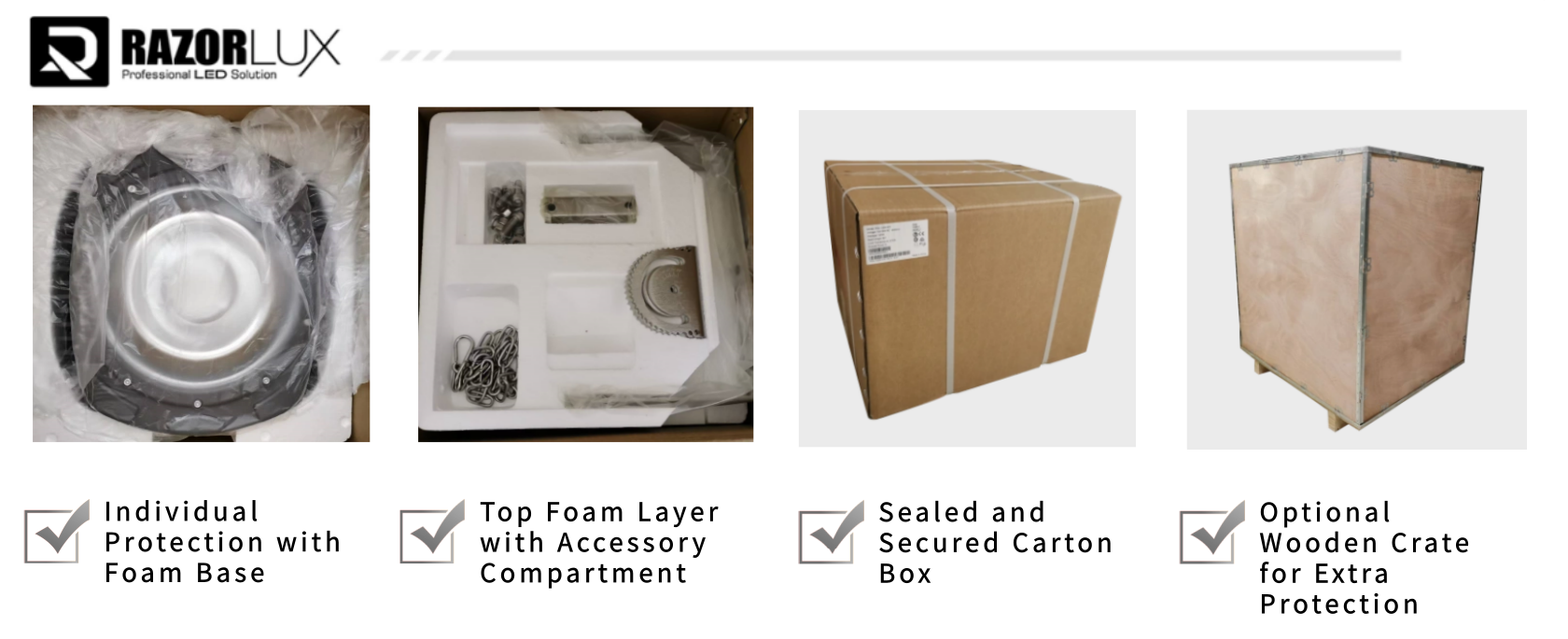

A: 250 pcs per 20' container. EPS foam packing individual (carton 550x450x415mm). FOB/CIF arrangements are available. Production capacity: 5,000 sets/month.

Q: Can you provide photometric simulations before purchase?

A: Yes. Submit venue dimensions, mounting heights, and required illumination levels. Our technical team delivers AGi32/DIALux simulation reports within 3-5 business days.
