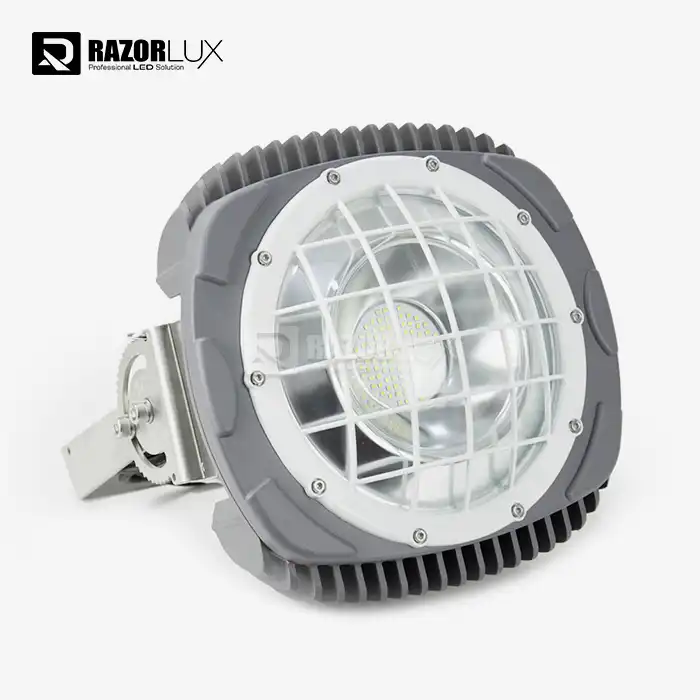

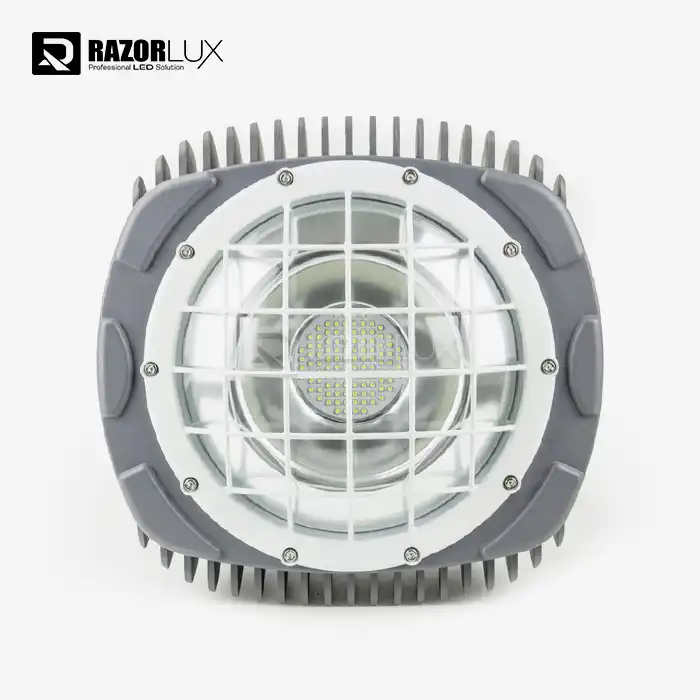

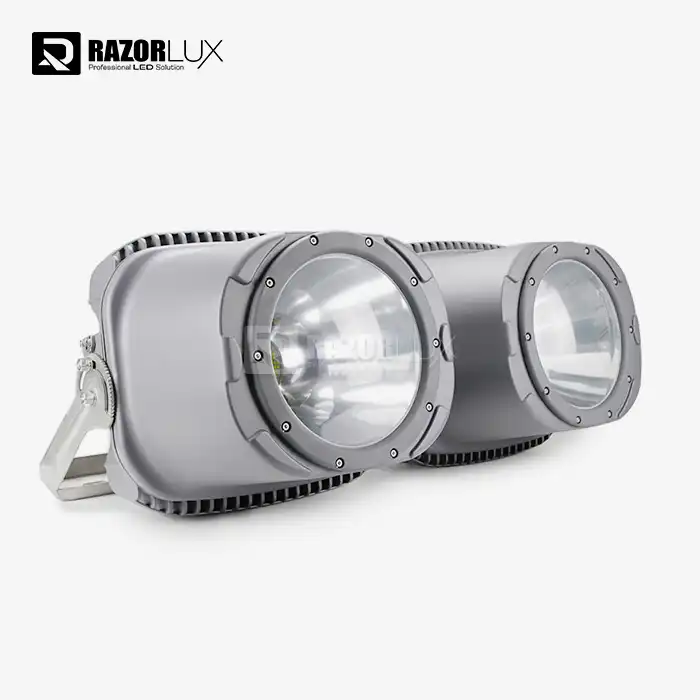

Marine Boat Led Flood Lights

Patented Multi-function design, suitable for all working environments.
Rated Power: 400W
Input Voltage: AC110-480Vac,100 ~ 400Vdc, 500Vdc ~ 800Vdc
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°.
CRI: Ra>75
IP Grade: IP65/IP67
Bracket: Stainless Steel
Net Weight: 19KG
Warranty: 5 Years
Certificate: RMRS, CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001

Send Inquiry Download

Product Description

Marine Boat LED Flood Lights - Engineered for Extreme Maritime Conditions

Professional 300W Lighting Solution Built to Withstand Harsh Ocean Environments

When your vessel operates in extreme conditions, standard lighting fails. Our Marine Boat LED Flood Lights deliver 39,000 lumens of dependable illumination through storms, salt spray, and constant vibration. Designed with maritime-grade components and backed by RMRS certification, these 300W fixtures solve the core challenges commercial operators face: premature corrosion failure, incompatible voltage systems, and inadequate light coverage during critical operations.

Key Performance Features:

· Proven Durability: IP67 waterproof rating withstands wave impact and deck washdowns

· Universal Compatibility: Wide voltage range (AC90-305V, DC127-431V) works with any vessel electrical system

· Customizable Coverage: Seven beam angle options (15°-140°x60°) for precise lighting zones

· 5-Year Warranty: Backed by ISO:9001 certified manufacturing and 200+ patented technologies

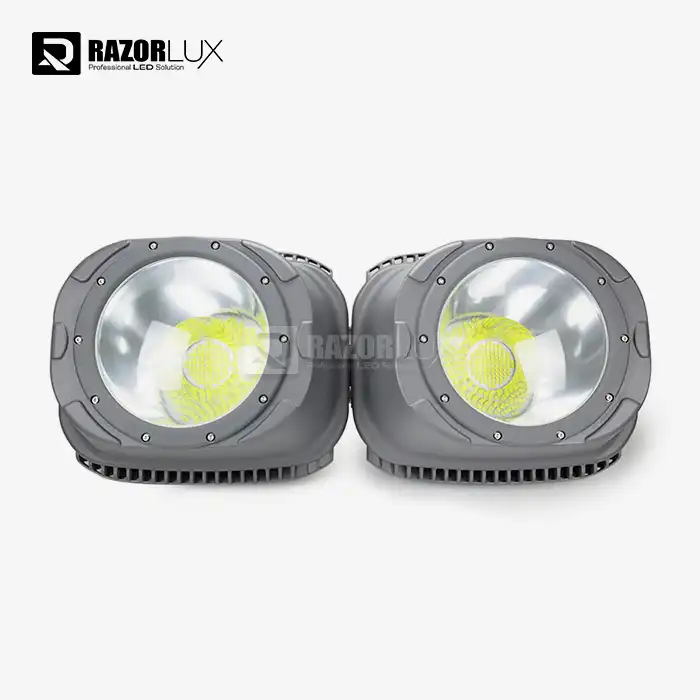

Marine Boat Led Flood Lights

Marine Boat LED Flood Lights Specifications

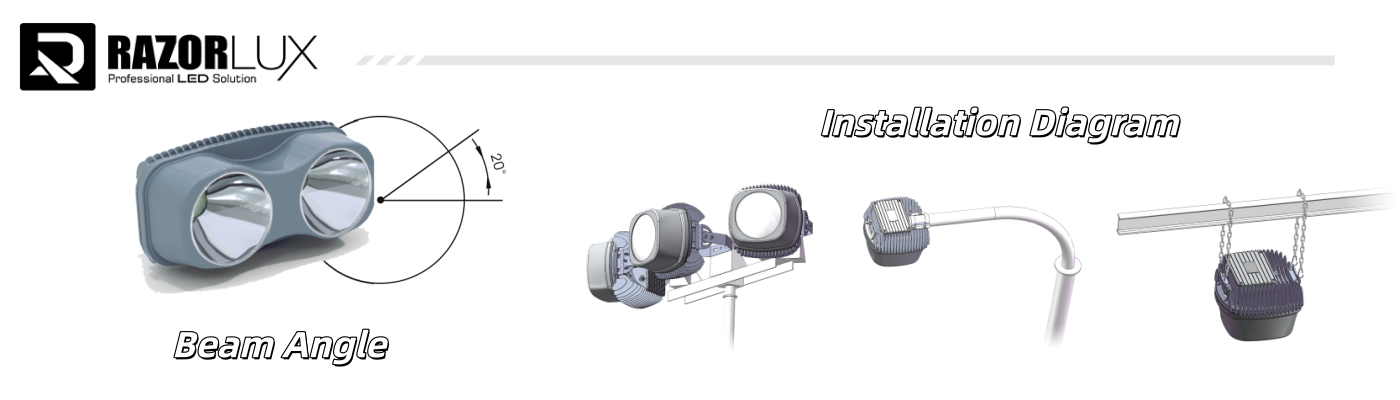

Beam Angle & Installation Diagram

Model		RGL2-400P
Beam Angle		15° 20° 30°
Stable Flux (5700K after 1 hour)		48000lm
Dimension (mm)		466388487

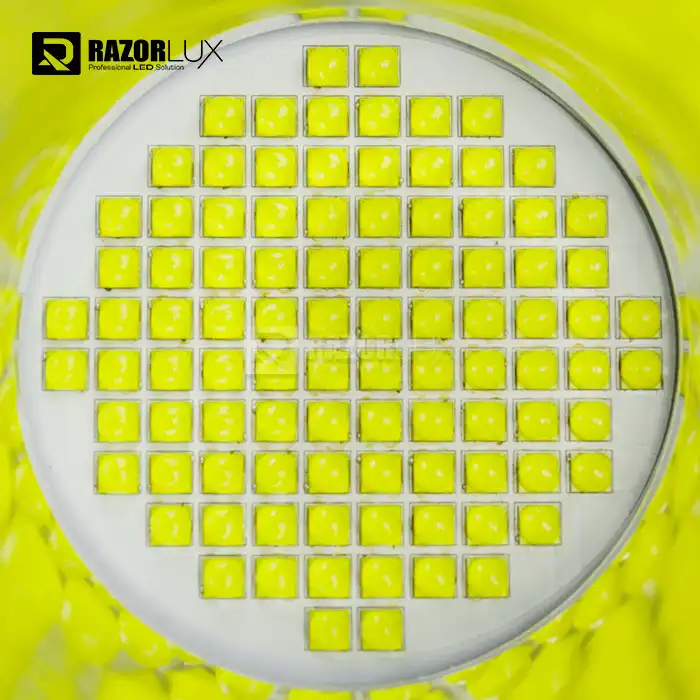

	LEDs	360W
Power	Driver	40W
Consumption	Total	400W
Replace HID Lamp		800~1000W
Net Weight		19kg with stainless steel floodlight bracket
Color Temperature		2700-6500K
Color Rendering		≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life		≥50000Hrs
Housing Material		Aluminum & Powder coating
Power Supply		Meanwell
IP Class		IP 67
IK Class		IK 10
Insulation Class		Class I
Working Temperature		-40C ~ 60C / -40F ~ 140F
Working Humidity		10% ~ 95%
AC Input		110-480Vac input voltage without additional adapter
DC Input		100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD		<10%
Power Factor		≥0.98
Warranty	LED Module	5 year

	Driver	5 year
	Housing	10 year

Applications

Why Maritime Operators Choose Razorlux

1. Extreme Corrosion Resistance

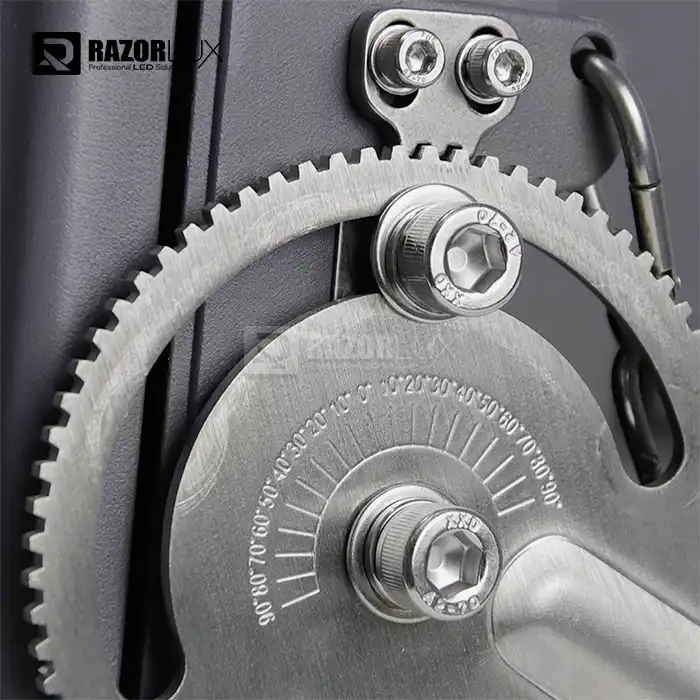

The die-cast aluminum housing undergoes specialized chromatized treatment and industrial powder coating to prevent galvanic corrosion. Stainless steel 316L brackets maintain structural integrity through years of salt spray exposure.

C5M certification validates performance exceeding 1000 hours in ASTM B117 salt spray testing—far surpassing standard outdoor fixtures.

2. Built for Vessel Power Systems

Wide voltage compatibility (AC90-305V, DC127-431V) eliminates the need for additional transformers. Built-in surge protection handles alternator spikes common in marine generators.

Save up to 70% energy compared to halogen systems while reducing load on battery banks during extended operations.

Marine Boat Led Flood Lights

3. Engineering Backed by Research

Developed in Xi'an LED Lighting Engineering Laboratory (authorized by China's National Development and Reform Commission), our designs integrate advanced thermal management with power supply expertise dating to 1998.

Over 200 patents covering LED chip Packaging, control systems, and housing design ensure you get proven innovation, not experimental technology.

Marine Boat Led Flood Lights

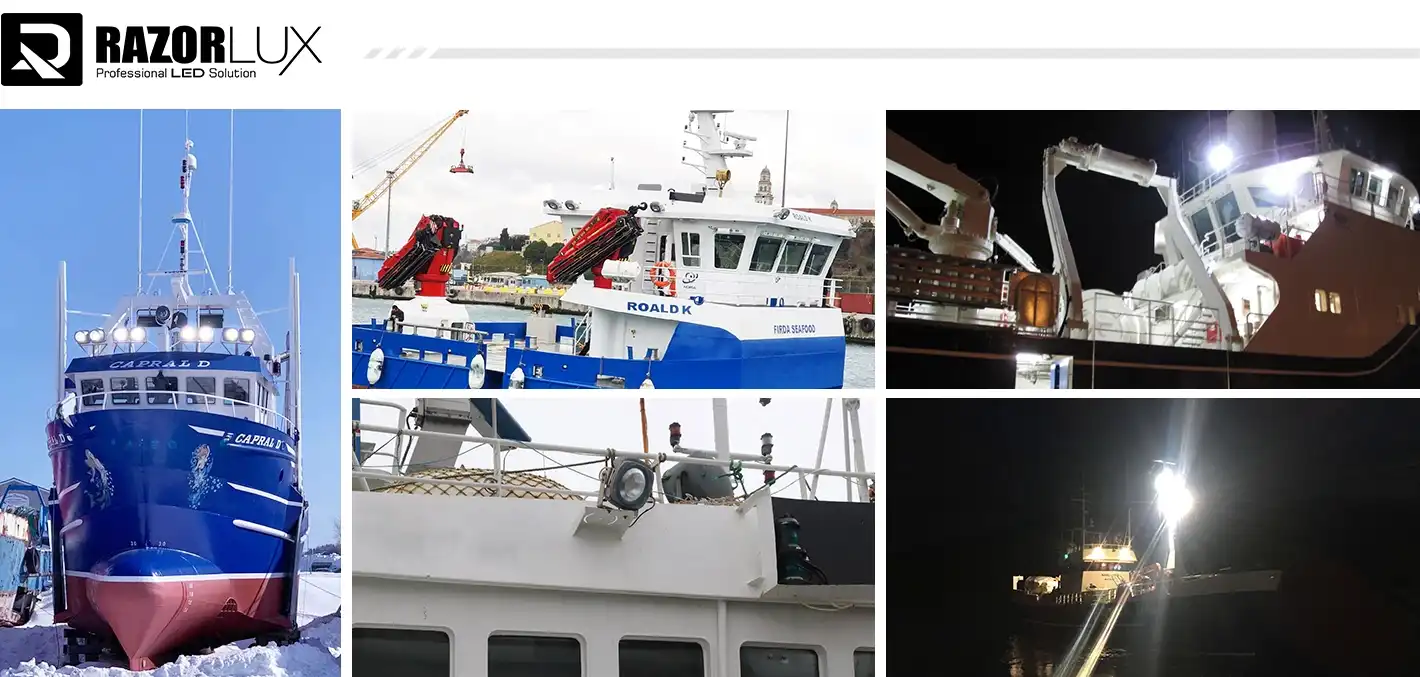

Application Scenarios

Commercial Fishing Operations

We recommend upgrading the lighting system to Marine Boat Led Flood Lights.

Challenge: Night sorting requires accurate color rendering to assess catch quality.

Solution: 120° beam angles provide shadow-free deck coverage, while CRI>75 helps crews distinguish species accurately. Robust 15KG construction withstands winch vibration.

Offshore Support Vessels

Challenge: 24/7 exterior illumination for towing operations and emergency response.

Solution: High-intensity output (39,000LM) and multiple beam configurations allow simultaneous lighting zones. RMRS certification ensures maritime safety compliance.

Harbor Infrastructure

Challenge: Permanent installations exposed to constant salt spray and variable shore power.

Solution: 5-year warranty and wide voltage range accommodate international port configurations. C5M rating ensures long-term reliability.

Search and Rescue

Challenge: Long-distance target illumination with zero warm-up delay.

Solution: Narrow beam options (15°-30°) for focused reach. Adjustable color temperature (2700K for fog penetration, 6500K for maximum visibility).

Qualification Certifications

Frequently Asked Questions

Q: Can these lights survive direct wave impact?

A: Yes. The IP67 rating means temporary submersion up to 1 meter is safe. Reinforced housing and sealed cable entries handle wave spray and deck washdowns in rough seas.

Q: Which beam angle works best for deck work areas?

A: Use 120° angles for general deck illumination and uniform coverage. For targeted zones like gangways, 60° beams provide concentrated light with minimal spill.

Q: Is color temperature adjustable after installation?

A: Color temperature is set during manufacturing (specify 2700K-6500K at order). For vessels needing multiple options, we recommend ordering different units or exploring our customizable solutions.

Q: Why does voltage range matter?

A: Compatibility with AC90-305V and DC127-431V means these lights work with any global vessel system—from 12V/24V DC small craft to 220V/440V AC commercial ships—without transformers.

Q: Can you customize mounting for my vessel?

A: Absolutely. Our OEM/ODM services include custom brackets, mounting angles, and cable lengths. contact us with your vessel specifications for tailored solutions.
