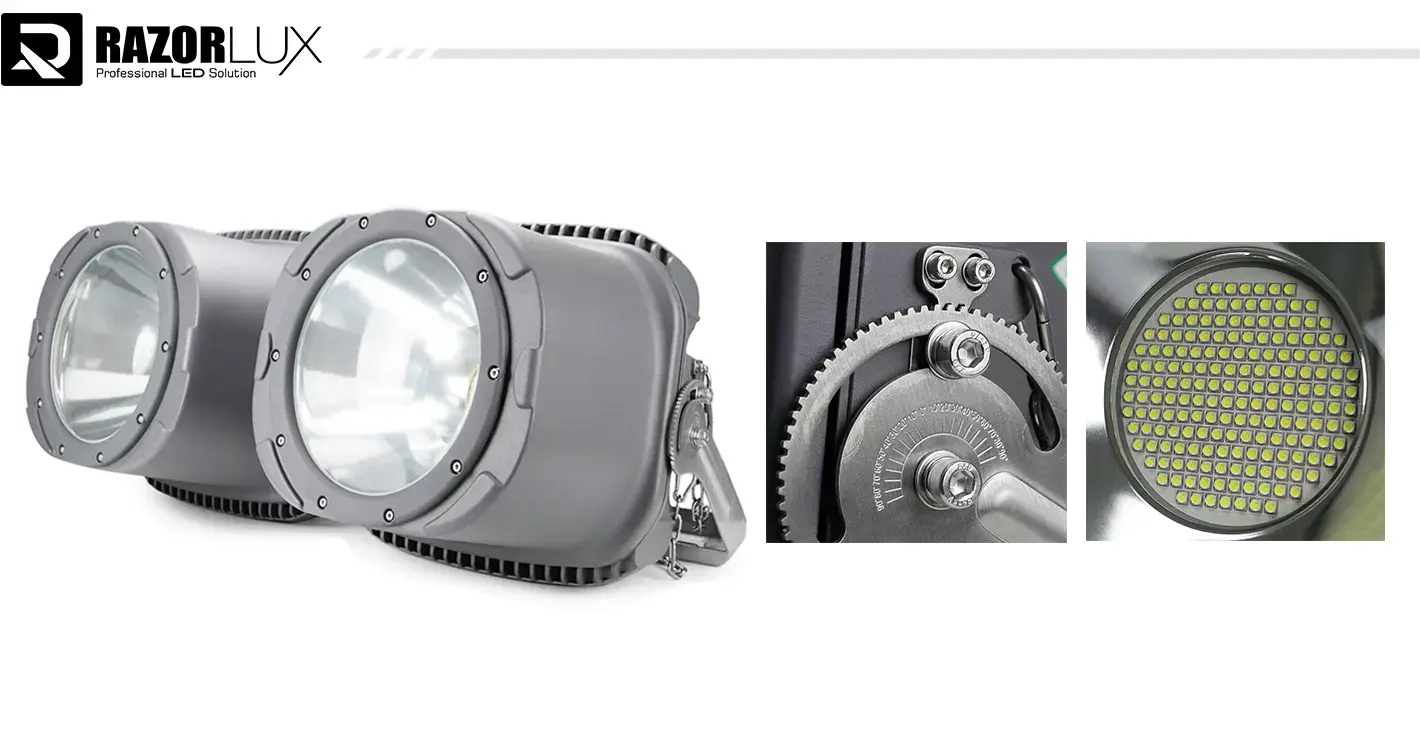

Boat Spot Flood Light

300W Boat Spot Flood Light – Professional Marine LED Solution

Our 300W boat spot flood light combines spot precision with flood coverage in one robust fixture. Delivering up to 39,000 lumens with 130LM/W efficiency, it's built to withstand extreme marine environments while providing consistent illumination for navigation, deck work, and safety operations.

Boat Spot Flood Light Specifications​​​​​​​​​​​​​​

What Makes This Marine Light Different?

Dual-Function Lighting Design

This boat spot flood light offers both narrow-beam spotlighting and wide-angle flood illumination in a single unit. Choose from 7 beam angles (15° to 140°) to match your specific needs:

· Spot beams (15°-40°): Long-range target identification, buoy spotting, navigation markers

· Flood beams (60°-140°): Deck operations, loading areas, perimeter security

Built for Marine Environments

Saltwater destroys ordinary lights. This fixture uses:

· Marine-grade aluminum housing with anti-corrosion coating (1000-hour salt spray tested)

· Stainless steel mounting brackets resistant to oxidation

· IP67 waterproof rating (submersible to 1m)

· Operating range: -40°C to +60°C

Weight: 15kg of solid construction that stays secure in rough seas.

Universal Power Compatibility

Works with virtually any vessel electrical system:

· AC input: 90-305V

· DC input: 127-431V

· Built-in surge protection and reverse polarity safeguards

No voltage fluctuation concerns—your lights stay stable regardless of engine load changes.

Key Performance Features

Zero Radio Interference

Marine electronics are critical for safety. Our shielded LED drivers eliminate electromagnetic interference with VHF radios, GPS, and radar systems. Meets CISPR 25 EMC standards.

Advanced Thermal Management

Efficient heat dissipation prevents LED degradation in enclosed spaces. Consistent brightness throughout the fixture's lifespan, even in high-temperature engine rooms or tropical climates.

Superior Light Penetration

5000K color temperature option cuts through fog and sea spray better than harsh 6500K lights. Reduces glare while improving visibility in poor weather.

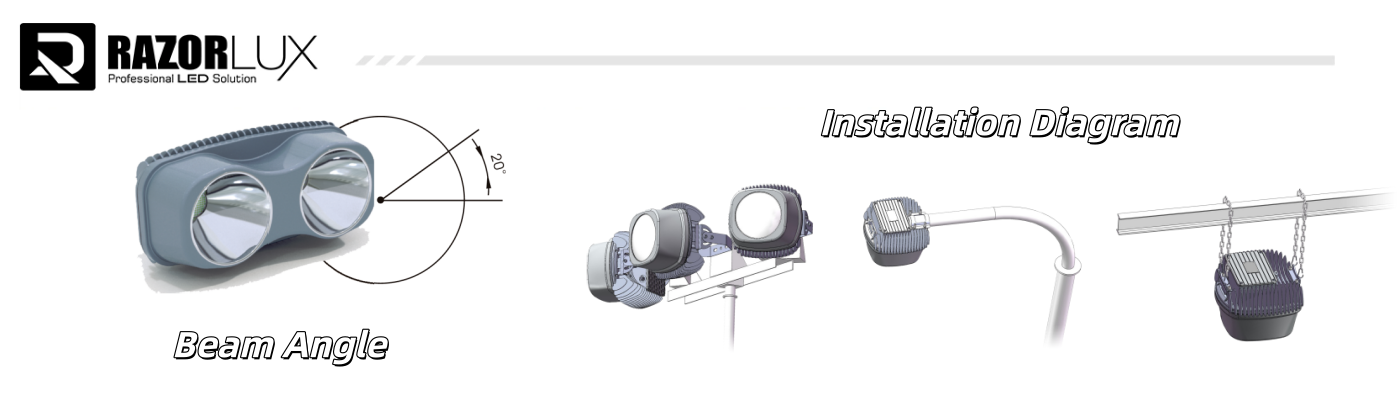

Flexible Installation

Adjustable stainless steel brackets fit various mounting surfaces—T-tops, masts, cabin roofs, or deck rails. Multiple beam angles eliminate the need for multiple fixtures.

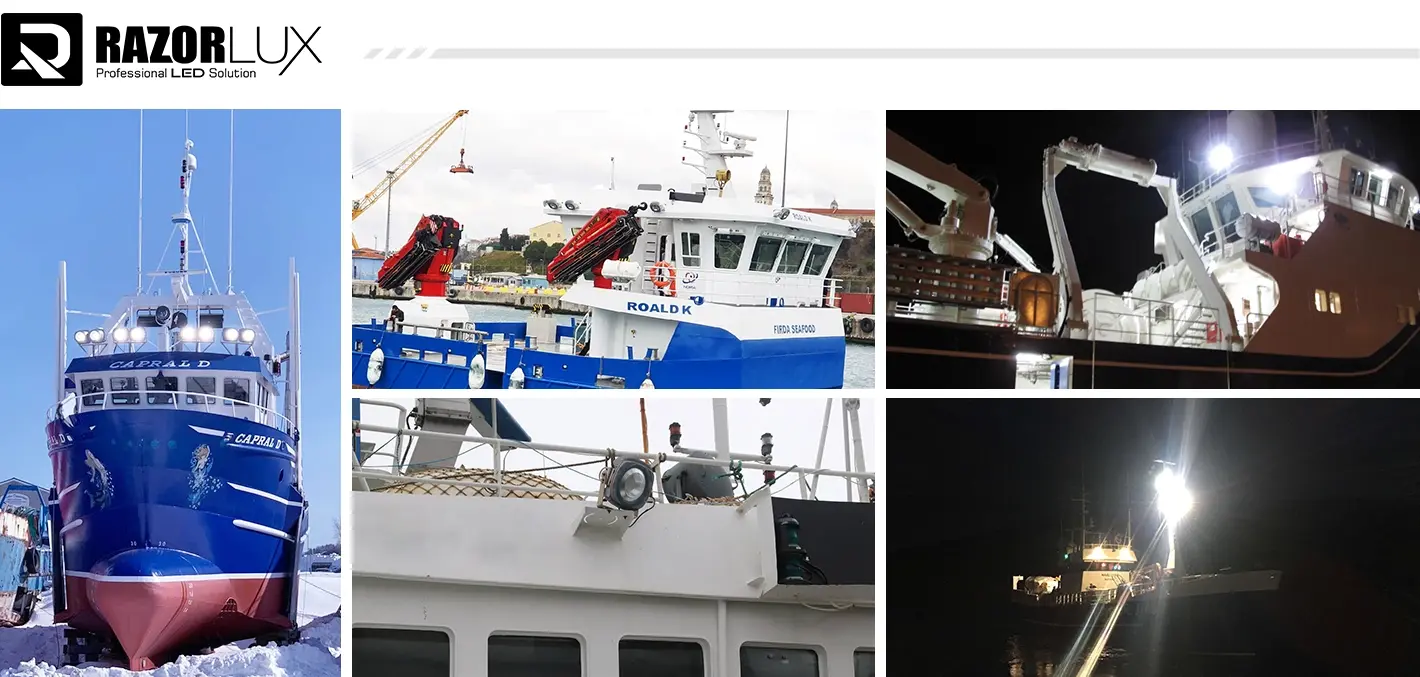

Where to Use This Light

Commercial Fishing Vessels

Illuminate catch processing with high-CRI lighting for accurate color rendering. Spot beams help locate fishing gear and markers at distance.

Cargo Ships

Wide flood coverage for nighttime loading operations. Withstands continuous vibration and heavy weather.

Offshore Support & Tugboats

Precision lighting for ROV operations and close-quarters maneuvering. Rugged build survives dynamic positioning stress.

Passenger Ferries

Ensure passenger safety with uniform deck illumination. Long warranty reduces maintenance costs across your fleet.

Common Questions

How do you prevent internal fogging?

We use hydrophobic breather valves that equalize pressure during temperature changes while blocking moisture. This prevents condensation on the lens.

Will this interfere with my radio equipment?

No. Our shielded drivers meet CISPR 25 standards, ensuring zero static or RF interference with marine electronics.

Which color temperature should I choose?

5000K offers better fog penetration and less glare than 6500K. For color-critical tasks like fish identification, consider 4000K or request custom CRI options.

Is IP67 enough for deck mounting?

IP67 (submersible to 1m for 30 minutes) suits most above-waterline installations. For areas exposed to high-pressure washdowns, ask about our IP68 variants.

How does voltage compatibility work?

The universal driver automatically detects and adapts to your vessel's electrical system (AC 90-305V or DC 127-431V). No configuration needed.

Can I get custom beam patterns?

Yes. Contact our engineering team to discuss custom configurations for specialized applications.

Why Customers Choose Razorlux

22 Years of Manufacturing Experience

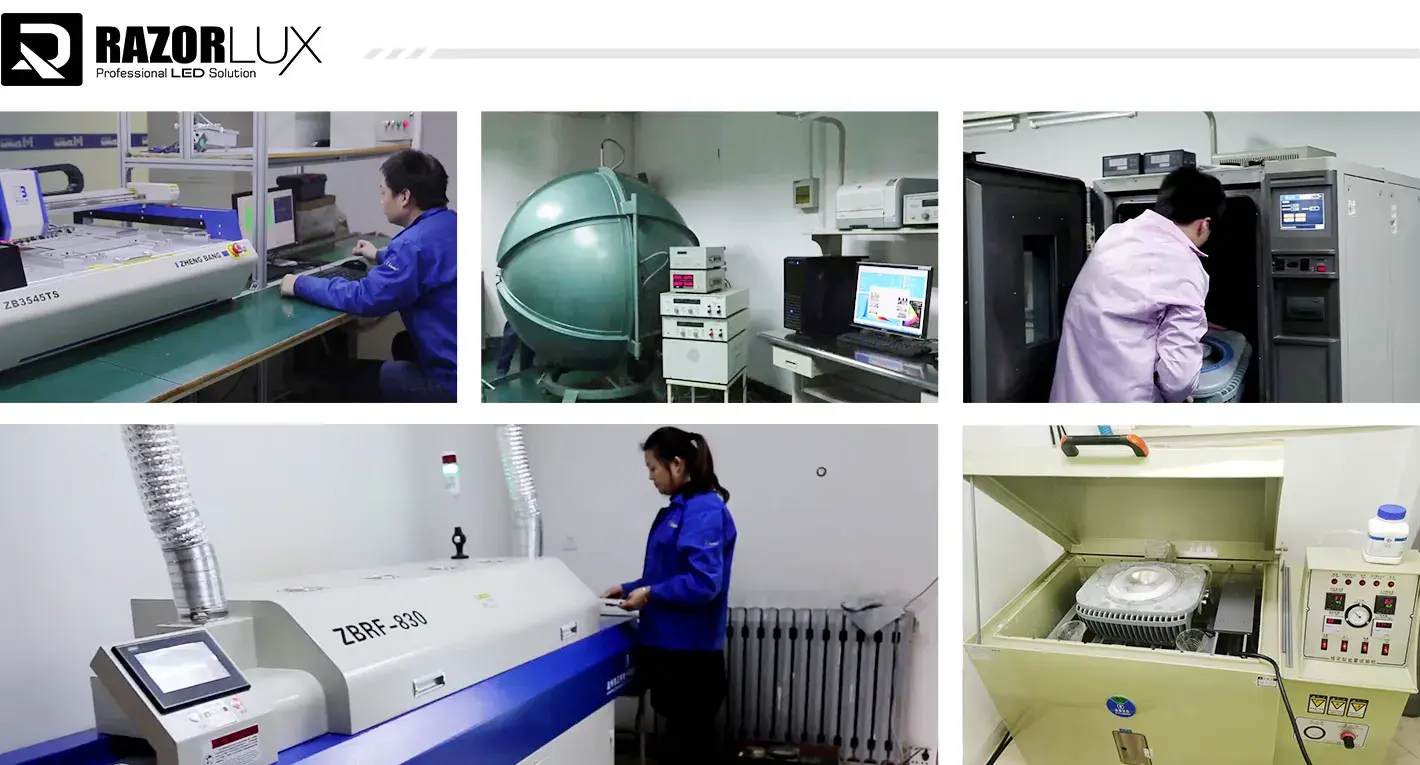

Since 1998, we've specialized in LED lighting solutions for demanding environments. Our integrated production facility controls quality from LED chips to final assembly.

200+ Patents

Our intellectual property portfolio covers LED chip Packaging, power supply control, and structural design innovations.

Engineering Support

Our technical team includes doctoral-level specialists who provide lighting layout design, brightness calculations, and installation planning.

Proven Track Record

We've supplied lighting solutions for major infrastructure projects across Asia. ISO:9001 certified since 2001.

Contact Us

Have questions about marine lighting for your vessel? Our engineering team can help with boat spot flood light selection and custom configurations.
