Sports Stadiums Application and LED Light Source Levels 500W Stadium Light.
Main Features
1. 80% lumen maintenance over 50,000hours
2. Wide Power range: 500W
3. 110-480Vac input voltage without additional adapter
4. Patent Built-in Serge Protection.
5. Top chips high efficacy 120lm/w with meanwell driver
6. IP67 waterproof, IK10 impact proof
7. Neutral Salt Spray Resistance
8. Anti-Corression power coating surface treatment
9. Stainless steel brackets material.(Upgradable to SS316)
10. 0-10VDC, DALI and wireless control available
11. DLC, TUV CE RoHS, CB, SAA, LM79 listed
12. High uniformity & color rendering index

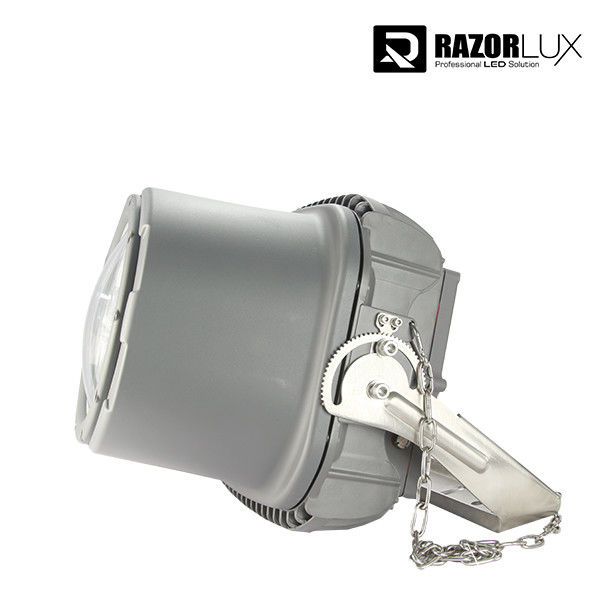

Photos of 500W Stadium Lights:
Parameter of Razorlux 500W Stadium Lights:
Model
RGL2-500P
Beam Angle
15° 20° 30°
Stable Flux
(5700K after 1 hour)
60000lm
Dimension (mm)
466*388*487
LEDs
450W
Power
Driver
50W
Consumption
Total
500W
Replace HID Lamp
1000~2000W
Net Weight
19kg with stainless steel floodlight bracket
Color Temperature
2700-6500K
Color Rendering
≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life
≥50000Hrs
Housing Material
Aluminum & Powder coating
Power Supply
Meanwell
IP Class
IP 65 (Upgradeable to IP 67)
IK Class
IK 10
Insulation Class
Class I
Working Temperature
-40C ~ 60C / -40F ~ 140F
Working Humidity
10% ~ 95%
AC Input
110-480Vac input voltage without additional adapter
DC Input
100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD
<10%
Power Factor
≥0.98
Warranty
LED Module
5 years
Driver
5 years
Housing
5 years
Lighting Distribution of 500W Stadium Lights:
For Different application requirement, Razorlux Genius Series have different types of beam angles options.
at the moment we have 15° 20° 40° 60° 120° 140° beam angle available.
FAQ:
1. Are you a factory or trading company:
We are a factory located in Xi'an China, established in 2006.
2. What is your product range?
Our wide product range includes floodlight, street light, pendant light, and power from 60W to 1200W.
3. How many days of production will the order take?
Normally 7-15 days, depending on the order quanity.
4. How do you ship goods abroad?
For sample, trial order, or small quantities we will suggest shipping by air, for large quantity and bulk order we recommend shipping by sea.
5. Does your product support smart control like sensor, dimming, DALI, etc.
They support all of these features, please tell our sales during your negotiation when you need such features.
6. How do you deal with failed lights?
During the warranty period, we will send customer free part or lamp after checking the evidence. After warranty, we only charge the component fees, no extra charge for our customer.
