Place of Origin: | Shaanxi, China |
Brand Name: | Razorlux |
Certification: | ce, FCC, LVD, RoHS, Saa, UL |
Model Number: | RGL2-600A |
Price: | $1,082.00/Pieces |
---|---|
Packaging Details: | 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*415mm<br>3.One 20'' Container can accept 250 Units |
Color Temperature(CCT): | 6000K (Daylight Alert) | Color Rendering Index(Ra): | 80 |
---|---|---|---|
Product Weight(kg): | 15 | Input Voltage(V): | 80~315Vac |
Product Name: | Led High Mast | LED Driver: | MEANWELL |
LED Chip: | SAMSUNG | Working Life: | 50000 |
Color Temperature: | 2700-6500K | ||
High Light: | 2700K high mast led street light,600w high mast led street light,LM79 portable stadium lights |

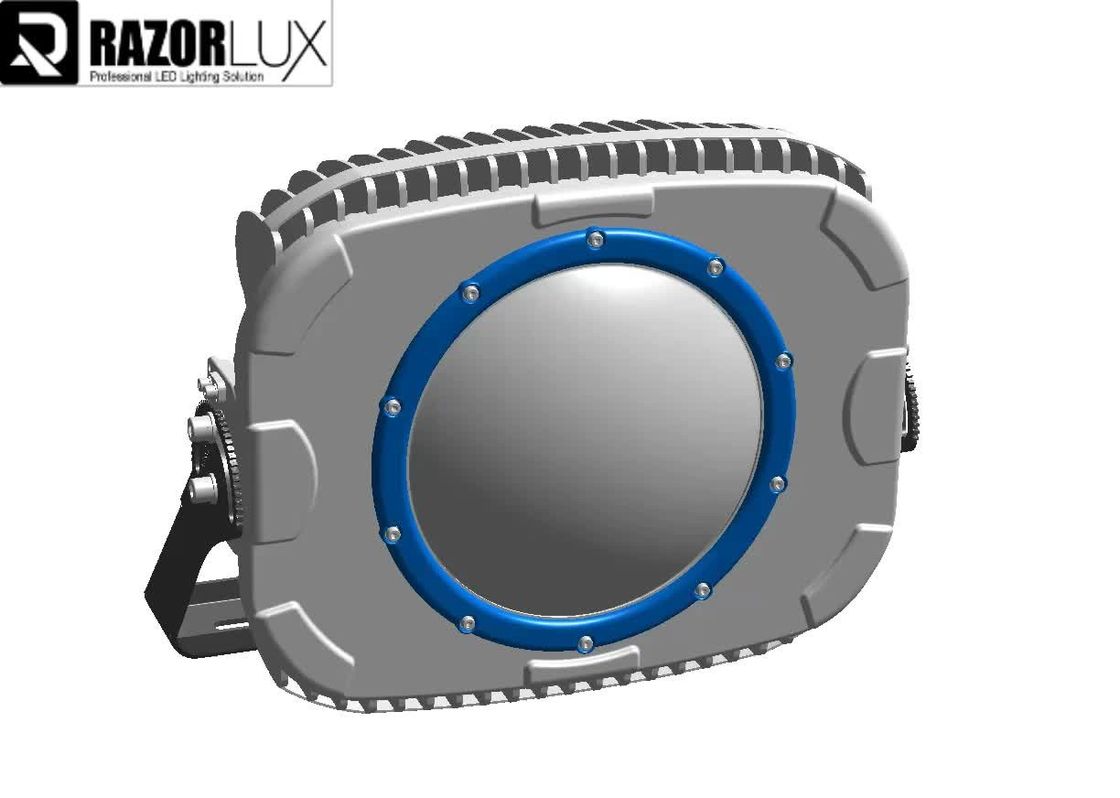

High quality 5 years warranty IP67 waterproof 600w led high mast for soccer field
1. 80% lumen maintenance over 50,000hours
2. Wide Power range: 500W
3. 110-480Vac input voltage without additional adapter
4. Patent Built-in Serge Protection.
5. Top chips high efficacy 120lm/w with meanwell driver
6. IP67 waterproof, IK10 impact proof
7. Neutral Salt Spray Resistance
8. Anti-Corression power coating surface treatment
9. Stainless steel brackets material.(Upgradable to SS316)
10. 0-10VDC, DALI and wireless control available
11. DLC, TUV CE RoHS, CB, SAA, LM79 listed
12. High uniformity & color rendering index
What are the next steps to improve my high mast lighting application?
The first step is to speak with an LED lighting solutions provider that is manufacturer-neutral.
Why this approach as opposed to the company you may have used for the past several years?
Unless that company has a focus on providing LED solutions,
it is unlikely that they will have the performance-focused mentality
that is required to obtain the desired results of an exterior LED lighting project for your municipal, campus, industrial and high mast lighting applications.
A crucial step in any LED project is understanding that LED lighting is NOT a commodity.
Prior decades consisted of building facility managers and building owners evaluating product options purely on cost,
assuming that all of the options in consideration were equal in quality. This is not the case with exterior LED lighting.
A solution-focused supplier should ask you about your project objectives.
Model | RGL2-600A | |
Beam Angle | 40° 60° 120° 140° | |
Stable Flux (5700K after 1 hour) |
78000lm | |
Dimension (mm) | 468*388*367 | |
LEDs | 540W | |
Power | Driver | 60W |
Consumption | Total | 600W |
Replace HID Lamp | 1200~1500W | |
Net Weight | 17.9kg with stainless steel floodlight bracket | |
Color Temperature | 2700-6500K | |
Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
Working Life | ≥50000Hrs | |
Housing Material | Aluminum & Powder coating | |
Power Supply | Meanwell | |
IP Class | IP 65 (Upgradeable to IP 67) | |
IK Class | IK 10 | |
Insulation Class | Class I | |
Working Temperature | -40C ~ 60C / -40F ~ 140F | |
Working Humidity | 10% ~ 95% | |
AC Input | 110-480Vac input voltage without additional adapter | |
DC Input | 100 ~ 400Vdc, 500Vdc ~ 800Vdc | |
THD | <10% | |
Power Factor | ≥0.98 | |
Warranty | LED Module | 5 years |
Driver | 5 years | |
Housing | 10 years |
Lighting Distribution:
For Different application requirement, Razorlux Genius Series have different types of beam angles options.
at the moment we have 15° 20° 40° 60° 120° 140° beam angle available.
Model |
G.W |
Genius II Compact 600W A Series |
19KGS |
Razorlux has very strict Quality Control System, from checking and evaluation of incoming materials to
the delivery of products, each item will be checked and tested for several times.
Quality Control - Testing Equipments:
For every piece of Razorlux 200 Watt LED Flood Light are tested in different procedures. |
No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under extreme temperature environment. (-40 to 60 degree) |
No. 2: Anti-Corrosion and IP67 Waterproof Testing, to make sure the products are working well even undern corrosive and Wetting environment. |
No. 3 & 4: Dark Room for testing IES files and other Photometric datas. |
Quality Control - Aging Department:
For every piece of Razorlux Genius™ LED Lights, they will be aged for at least 72 hours before shipment
to make sure of their long term and stable performances within lifetime.
Razorlux Service:
1. Before and after sales in time service 7/24
2. Professional Lighting solution, DIALux simulation available
3. Payment terms: Paypal, TT, LC, DP etc
4. Shipment terms: FOB, CIF, CFR
5. Lead time: 5-7 working days
6. NO MOQ required, sample testing welcome
Hong Kong International Lighting Fair (Spring Edition) 2016/2017/2018 |
Hong Kong International Lighting Fair (Autumn Edition) 2016/2017/2018 |
2015 LED Expo in Den Bosch, Netherland |
2016 Strategies in Light in Las Vegas, U.S.A |
2016 IIDEX in Toronto, Canada |
