150W Dimmable Exterior Flood Lights | Professional LED Solution

With 0–10V and DALI dimming protocols, our 150W dimmable exterior flood lights provide 130LM/W efficiency. These fixtures, which are designed for severe situations, provide seven beam angle variations to suit your particular application needs, IP67 waterproofing, and wide voltage compatibility (AC90-305V).

Dimmable Exterior Flood Lights Specifications

​​​​​​​

Key Features

Smooth Dimming Performance

Both 0-10V and DALI dimming systems are supported by these dimmable exterior flood lights, enabling flickering brightness adjustments from 100% to 10%. Throughout the dimming range, the high-frequency driver keeps the color temperature constant.

Energy savings: a reduction of about 45–48% when output is dimmed to 50%.

Built for Extreme Conditions

IP67-rated housing is resistant to dust and severe rain.

Corrosion protection: Marine-grade coating (C5M rated) passes a 1000-hour salt spray test.

Temperature range: It functions dependably between -40°C and +50°C.

Surge protection: Integrated circuitry guards against voltage surges of up to 20 kV.

Flexible Installation Options

For various situations, seven beam angle options offer accurate light distribution:

Long-range spot lighting using narrow beams (15°–30°)

Medium beams (40°–60°): Lighting for a general region

Wide beams (120°–140°): A lot of surface area

Mounting angles range from 0° to 180° thanks to the stainless steel bracket's flexible design.

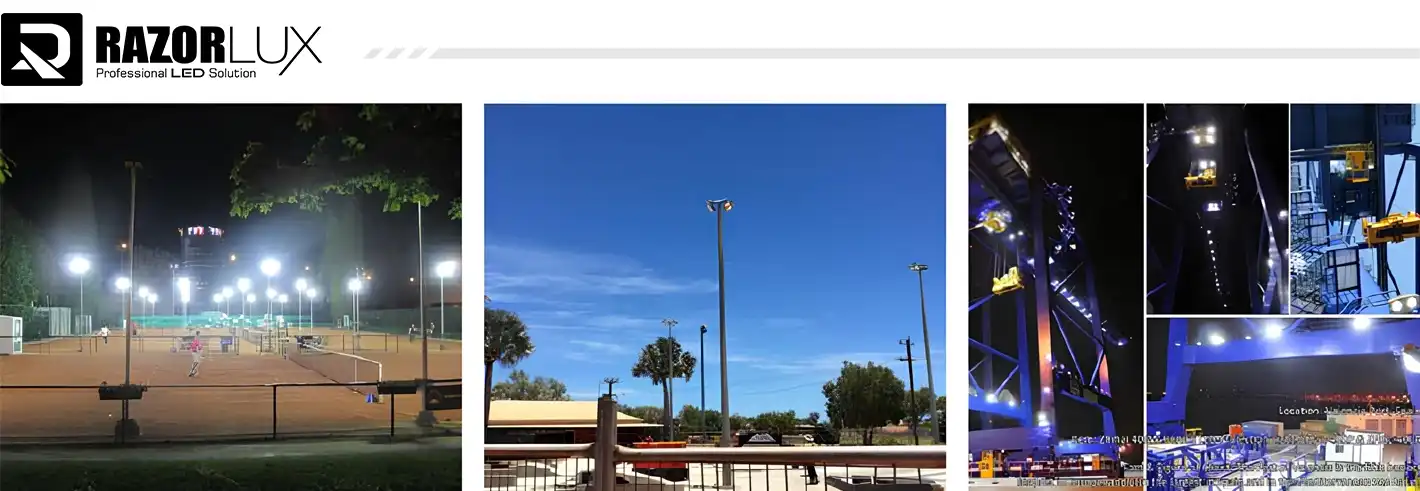

Common Applications

Industrial Facilities: Manufacturing facilities, loading docks, and warehouses that need to have their lighting changed during different shifts.

Parking lots, building facades, and architectural lighting are examples of outdoor infrastructure where dimming lowers energy expenditures during off-peak hours.

Ports and Terminals: dependable illumination with remote brightness control is necessary for 24/7 operations in corrosive marine conditions.

Mining Operations: Locations needing explosion-proof dependability and DC voltage compatibility (127-431V).

Transportation hubs include bus terminals, train stations, and airports that use occupancy sensor-based automated dimming.

Quality Testing Process

Every unit undergoes five inspection stages:

1. Dimming Performance: Verification of smooth adjustment without stepping or popcorn effects

2. Thermal Management: Infrared scanning confirms junction temperatures meet design limits

3. Waterproof Testing: Calibrated IP67 spray chamber certification

4. Impact Resistance: IK08/IK10 vandal-proof mechanical testing

5. Photometric Validation: Integrating sphere measurement ensures beam accuracy

Test reports available upon request for project compliance documentation.

Customization Services

We offer OEM/ODM modifications for volume orders:

· Custom wattage options (100W - 200W)

· Specialized mounting brackets

· Integration with building management systems

· Private labeling and Packaging

Our engineering team provides lighting design support including lux calculations and layout optimization.

About Razorlux

Xi'an Razorlux Optoelectronic Technology specializes in industrial LED solutions since 2006. With manufacturing facilities in Xi'an and Zhuhai, we serve infrastructure projects across Asia-Pacific markets.

Our R&D center holds authorization as "Xi'an LED Lighting Engineering Laboratory" by China's National Development and Reform Commission. The team has developed 200+ patents covering LED thermal design, power supply technology, and intelligent controls.

Frequently Asked Questions

Can I use a standard wall dimmer switch?

No. These 150W fixtures require dedicated 0-10V controllers or DALI systems. Residential Triac dimmers will damage the driver. We can recommend compatible control solutions for your project.

Does the light color change when dimmed?

Our drivers maintain stable color temperature from full brightness to 10%. There is no warm shift or color distortion during dimming.

How much energy does dimming actually save?

LED drivers provide nearly linear energy reduction. Dimming to 50% brightness typically saves 45-48% on electricity costs.

Will these lights flicker on camera?

No. We use high-frequency PWM drivers (>20kHz) compliant with IEEE 1789 standards, ensuring flicker-free operation for security cameras and video recording.

What's the lifespan of these flood lights?

Rated for L70 > 50,000 hours. In typical outdoor use (12 hours daily), expect 11+ years before brightness drops to 70% of original output.

Can the voltage range handle unstable power grids?

Yes. The wide input range (AC 90-305V) tolerates voltage fluctuations common in industrial areas and developing regions.

Get a Custom Quote

Need help selecting the right configuration for your project? Our dimmable exterior flood lights' specialists provide:

· Free lux calculation and layout design

· Sample testing programs for large projects

· Volume pricing for contractors and distributors

· Technical drawings and IES photometric files
