Dimmable Outdoor Led Flood Lights

Dimmable Outdoor LED Flood Lights

Industrial-Grade Dimmable LED Flood Lights for Demanding Environments

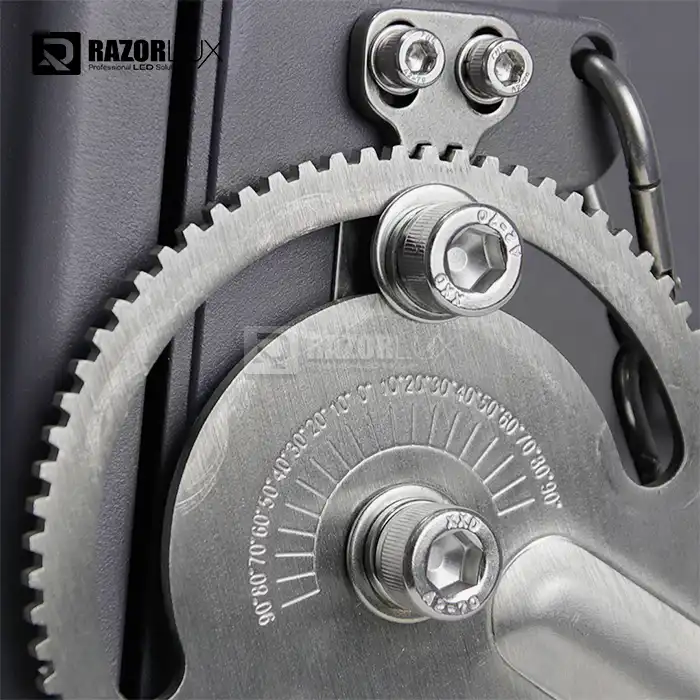

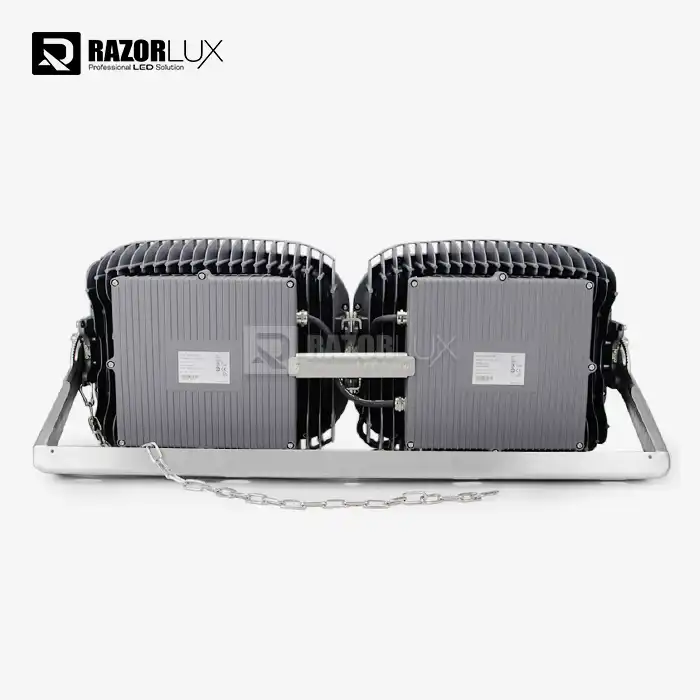

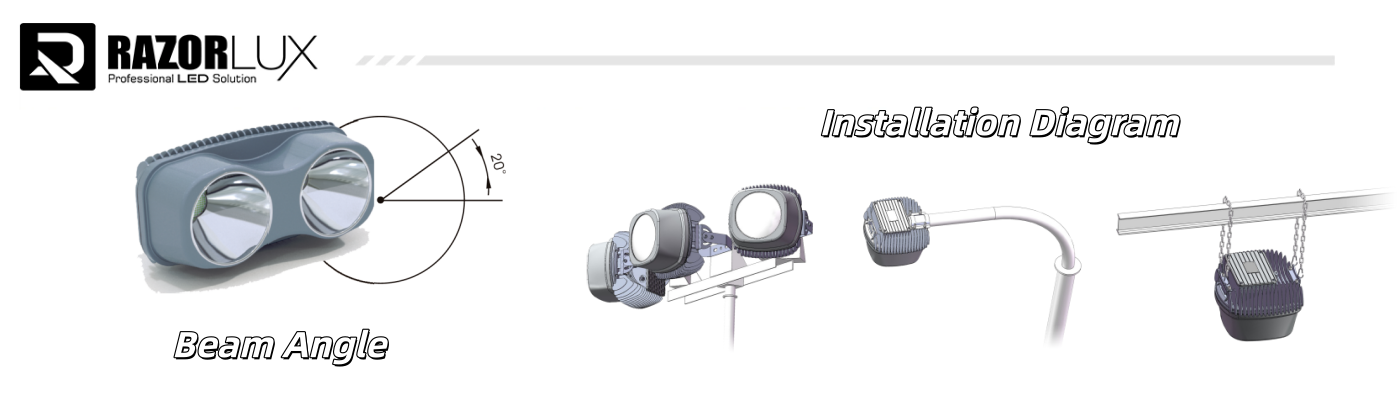

Our 150W dimmable outdoor led flood lights are the right answer when you need reliable outdoor illumination that can be customized to varied requirements for your business. Our lights are constructed to last and include the latest dimming technology. Xi’an Razorlux Optoelectronic Technology has been designing and manufacturing lighting products since 1999. The multi-voltage input architecture (AC 90-305V / DC 127-431V) ensures robust operation in unstable power systems. The adjustable beam angles (15° to 140°×60°) let you to focus light precisely where it is required, eliminating wasted illumination and energy costs.

Dimmable Outdoor LED Flood Lights Specifications

​​​​​​​

Key Features That Matter to Your Operations

Smooth Dimming Without Flicker

Brightness may be regulated gradually from 10% to 100% by means of three dimming protocols: 0-10V, DALI and PWM. The driver meets DLC Premium standards with a Power Factor of >0.95 and harmonic distortion of < 15%. This ensures no perceptible flicker during dimming transitions which is important for worker comfort during extended shifts and video surveillance areas.

Built for Harsh Conditions

The ADC12 die-cast aluminum enclosure conducts heat well in ambient temperatures from -40°C to +60°C. IK07-IK10 vandal resistant tempered glass lenses resistant to debris and tool attacks. Each unit is put through 1,000 hours of salt spray testing (ISO 9227), making these fixtures ideal for mining operations, chemical industries and coastal locations where corrosion is always a threat.

Proven Thermal Management

Our thermal control system stems from 25 years of manufacturing LED power supplies. This experience ensures stable driver performance during dimmed operation, where many competing products experience premature failures. The intelligent thermal protection extends LED lifespan beyond 50,000 hours—approximately 11 years of continuous operation at typical industrial usage patterns.

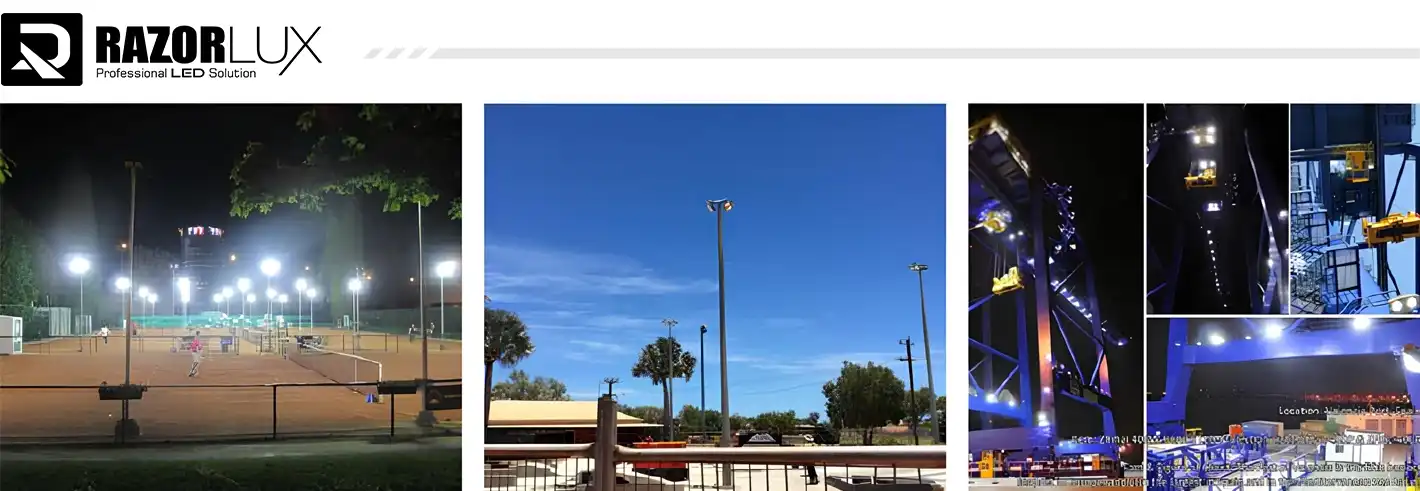

Application Scenarios

Commercial Building Facades

Vary the intensity of the light throughout the evening to make it visually interesting and to be considerate of surrounding residences. Run at 40% brightness during late hours to prevent light trespass and then ramp up to full power during high foot traffic times. Compared to non-dimmable lights, this flexibility may save energy usage by as much as 60%.

Sports and Recreation Facilities

100% output : Competitive events. 30-50% output : Training sessions or maintenance activities. This allows for immediate adjustment and eliminates the need for numerous fixture types. This reduces equipment inventory costs and simplifies installation.

​​​​​​​

Industrial Security Perimeters

Program fixtures to 20% “standby mode” during normal operations, then snap to maximum brightness when motion sensors detect movement. This method keeps deterrents visible and cuts power expenditures 65-75% per year for typical perimeter installations.

Mining and Heavy Manufacturing

Illumination levels in process areas, underground or loading docks must comply with the needs of certain tasks. The IP67 classification provides dependable operation in settings with dust, humidity and temperature extremes that disable traditional lights.We recommend upgrading the lighting system to dimmable outdoor led floodlights.

Frequently Asked Questions

Q1: Which dimming systems are compatible with these fixtures?

These lights work with 0-10V analog dimming, DALI digital systems, and PWM controllers. Specify your preferred protocol when ordering. The driver provides linear dimming response from 10% to 100% without dead zones or abrupt brightness changes.

Q2: Does dimming operation reduce LED lifespan?

Dimming actually extends lifespan by reducing thermal stress on LED junctions. At 50% brightness, junction temperature drops significantly, slowing lumen depreciation. Expect 20-30% longer operational life in dimmed applications versus constant full-power operation.

Q3: Are these fixtures suitable for marine environments?

The IP67 models pass 1,000-hour salt spray testing per ISO 9227. Stainless steel brackets and marine-grade powder coating resist corrosion in coastal installations. We have supplied similar fixtures to port facilities in Southeast Asia and offshore platforms in Australia.

Q5: Can you provide photometric data for lighting design?

We supply complete LM-79 test reports, IES files compatible with AGi32 and DIALux software, and beam angle diagrams. Our technical team can assist with lighting calculations and brightness simulations for your specific project layout.

Contact Us

For technical specifications, project quotations, or sample requests about dimmable outdoor led floodlights:
