6000K 270w Dimmable Outdoor Light 60 Degree Flood Light For Basketball Court

6000K 270w Dimmable Outdoor Light 60 Degree Flood Light For Basketball Court - 60° Beam AngleProfessional Sports Lighting for Outdoor Courts

Built for basketball courts, the Razorlux RGL-30A has precise 60-degree beam adjustment, and produces 37,800-43,200 lumens of light. This 6000K 270w Dimmable Outdoor Light 60 Degree Flood Light For Basketball Court replaces standard 1000W metal halide systems while reducing energy expenses by 70%. It has 0-10V dimming, is weather-proof to IP66 and impact resistant to IK08, ensuring it performs reliably in tough outdoor applications.

Parameter of 6000K 270w Dimmable Outdoor Light 60 Degree Flood Light For Basketball Court

Key Features

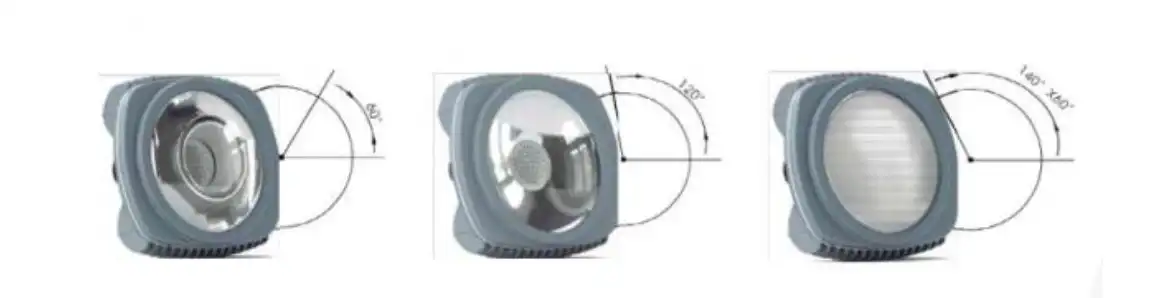

Precision 60° Beam Control

The engineered optic system concentrates light within court boundaries, minimizing light spill into residential areas. This focused beam pattern meets strict municipal regulations for light pollution control while maximizing on-court illumination efficiency.

6000K Daylight Spectrum

Cool white color temperature enhances visibility for fast-moving objects. Players experience improved ball tracking and reduced eye fatigue compared to traditional yellow-tinted HID lighting.

Flexible Dimming Capability

0-10V dimming allows output adjustment from 10% to 100%. Program lighting schedules to match usage patterns—full brightness for games, reduced levels for practice or security lighting. Compatible with standard building management systems.

Weatherproof Construction

IP66-rated housing protects against heavy rain and dust intrusion. IK08 impact rating withstands direct ball strikes. Die-cast aluminum body with marine-grade coating (C5M certified) ensures durability in coastal or high-humidity locations.

Energy Efficient Operation

6000K 270w Dimmable Outdoor Light 60 Degree Flood Light For Basketball Court replaces 1000W metal halide fixtures with equivalent or superior illumination. LED technology provides instant-on operation and eliminates 15-minute warm-up periods.

Application Guide

Municipal & Community Courts

Ideal for public facilities requiring compliance with light pollution ordinances. Narrow beam angle keeps illumination within property boundaries. Dimming capability allows reduced output during late hours while maintaining security lighting.

Typical Layout: 4-6 fixtures at 25-foot mounting height for recreational standards (200 lux average).

School & University Facilities

Supports extended practice schedules with reliable performance. 6000K spectrum promotes alertness during evening sessions. Instant-on LED eliminates warm-up delays between activities.

Typical Layout: 6-8 fixtures at 25-foot mounting height for competitive play (500 lux average).

Private Training Centers

Professional-grade illumination for high-performance environments. Dimming allows scene customization for different training modes. Durable construction maintains aesthetics over long-term outdoor exposure.

Commercial Sports Complexes

Instant availability meets rental schedule demands. Modular design simplifies maintenance planning. Weather-resistant performance ensures uninterrupted operation during bookings.

Quality Standards

Photometric Testing

Independent laboratory verification per IESNA LM-79 standards. IES files available for design validation.

Lumen Maintenance

LM-80 tested LED chips with TM-21 projections. Maintains >70% output after 50,000 hours (L70 rating).

Environmental Protection

IP66 ingress protection verified through water jet testing. Complete dust-tight seal for outdoor reliability.

Impact Resistance

IK08 rating confirmed through controlled impact testing. Polycarbonate lens and aluminum housing withstand mechanical stress.

Frequently Asked Questions

Will this replace 1000W metal halide lights?

Yes.  The 270W LED is the equivalent of a 1000W MH system, but with 73% energy saving. Another advantage of LED technology is the absence of warm-up time and less frequent relamping.

Which dimming controls are compatible?

The fixture is compatible with 0-10V analog signals or DALI digital protocol. Compatible with common dimmer switches, timers and building automation systems.

How many fixtures are needed for a standard basketball court?

Depends on mounting height and lighting standards:

· Recreational (200 lux): 4-6 fixtures at 25ft height

· Competitive (500 lux): 6-8 fixtures at 25ft height

contact us for project-specific photometric analysis.

What is the expected lifespan?

LM-80 testing shows L70 lifespan exceeding 50,000 hours. At 4 hours daily operation, this equals 34+ years of service. Backed by warranty options up to 5 years.

Is the fixture suitable for coastal environments?

Yes. C5M marine-grade certification and IP66 rating ensure performance in corrosive, high-humidity conditions. Internal components feature conformal coating for moisture protection.

Can multiple fixtures be controlled together?

Yes. Wire fixtures in parallel to a single 0-10V controller for synchronized operation. DALI protocol enables advanced zoning and scheduling through centralized software.

About Razorlux

Razorlux specializes in professional-grade LED lighting with over two decades of manufacturing experience. Our product development combines in-house engineering with research partnerships at Xi'an Jiaotong University.
