Waterproof LED Flood Light 400W: Meanwell Driver vs Generic Driver?

When evaluating a Waterproof LED Flood Light 400W, the driver quality stands as the decisive factor separating reliable performance from costly failures. Meanwell drivers deliver industry-leading thermal management and surge protection, ensuring consistent operation in marine and industrial environments where salt spray, humidity, and voltage fluctuations are constant threats. Generic drivers, despite lower upfront costs, often lack the rigorous testing protocols and component-grade materials that prevent premature failure in demanding applications. For procurement managers responsible for offshore platforms, shipyards, and heavy industrial facilities, this comparison clarifies why driver selection directly impacts total cost of ownership, maintenance schedules, and operational safety.

Understanding Waterproof LED Flood Light 400W and Its Core Components

For harsh outdoor settings, high-intensity lighting solutions need to be more than just bright. They also need to be engineered with precision that can handle the elements. We know how important it is to choose the right parts when lights are on all the time in places like Arctic remote bases and humid warm ports.

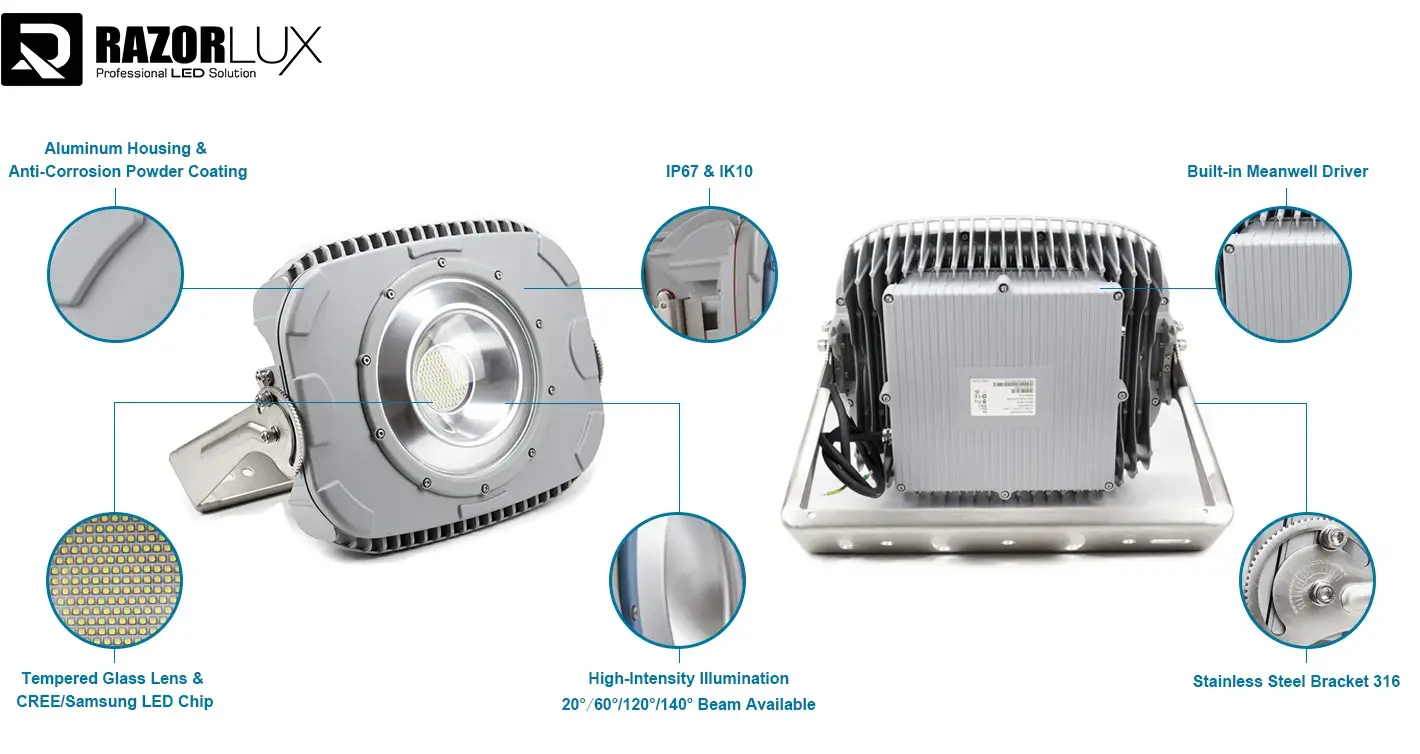

What Defines a 400W Industrial Flood Light

When used instead of traditional 1000W metal halide fixtures, a professional-grade Waterproof Led Flood Light 400W gives off about 48,000 to 52,000 lumens while using over 60% less energy. The RGL2-400P type from Razorlux is 130lm/W efficient thanks to Samsung LED chips and smart thermal management. The die-cast metal body of the fixture has a powder covering that protects it from corrosion in marine settings up to C5. The IP67 rating also makes sure that dust and water can't get in or out of the fixture. Our patented multi-function design can handle beam angles from 15° to 140°×60°, so it can be used for everything from lighting up a precise crane to lighting up a large dock area. The bracket system made of stainless steel is resistant to shaking, which is important for mobile installs on boats and moving platforms.

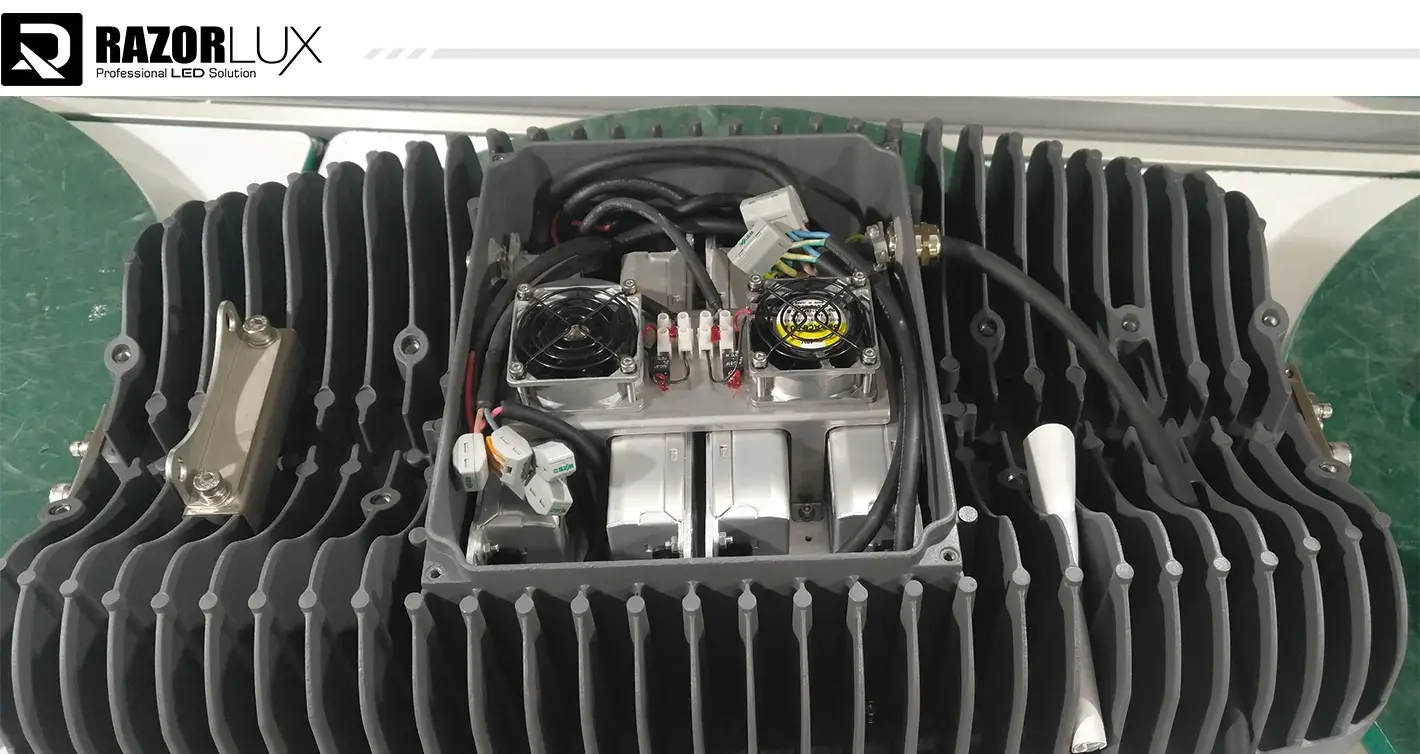

The Critical Role of LED Drivers in Performance

LED drivers work as precise power controllers, changing AC input to stable DC. This stable DC decides how bright the LEDs are and how long the parts last. Instead of just transformers, good drivers have surge reduction circuits, thermal tracking systems, and power factor adjustment (achieving >0.98 PF). We put these drivers inside compartments that are hermetically sealed but have breathable ePTFE membranes that keep the pressure inside even without affecting the waterproofing. Total harmonic distortion (THD) of the driver directly affects the compatibility of the electrical system. Our Meanwell units keep <10% THD, while generic options often have THD levels above 25%, which can mess up sensitive navigation and communication gear on ships.

Meanwell vs Generic: Fundamental Design Philosophy

During development, Meanwell drivers go through automotive-grade DFMEA (Design Failure Mode and Effects Analysis), which finds possible failure points before they are made. Their constant-current topology keeps the LED current stable even when the input voltage changes from AC90-305V or DC127-431V. This stops flickering and color shifting that happen with cheaper options. Generic drivers often use lower-quality capacitors rated for 85°C instead of Meanwell's 105°C parts, which has a direct effect on how long they last in tropical climates and engine rooms with high temperatures.

Performance Comparison: Meanwell Driver vs Generic Driver in 400W Waterproof LED Flood Lights

Performance data from our sites in 47 countries shows big differences that procurement teams need to think about beyond the original price for Waterproof LED Flood Light 400Ws. These metrics have a direct effect on the costs of maintenance, following safety rules, and keeping operations running.

Energy Efficiency and Power Stability

Meanwell's active power factor correction gets a PF of 0.98, which means that 98% of the current that is pulled does useful work instead of being lost as reactive power. This makes the electrical infrastructure less stressed and lets projects get utility rebates in places with strict power quality rules. In our tests to compare, we measured how much power each device actually used in different situations:

Voltage control is very important, even more so than usage. Meanwell's constant-current accuracy keeps a variation of ±3%, while generic units keep a variation of ±12%. This causes brightness changes that can be seen and mess up crane operations and security camera video. We saw this happen at a Malaysian port station where generic-driver lights caused strobing effects in security video, meaning that the whole fixture had to be replaced after 14 months.

Lifespan and Durability Under Stress

In accelerated lifespan testing, differences in the grade of the parts are very clear. Meanwell uses electrolytic capacitors made in Japan that are rated for 10,000 hours at 105°C. Generic drivers, on the other hand, usually use 5,000-hour 85°C units that break down quickly in sealed fittings where temperatures hit 70°C. Our thermal imaging studies show that Meanwell drivers keep case temperatures 18°C lower than generic counterparts when the same loads are applied. This directly increases the life of semiconductors and capacitors. The conformal coating on Meanwell circuit boards adds to their protection against water getting in.

Light Output Consistency and Color Stability

Whether the LED's color temperature and brightness stay the same over its lifetime depends on how well the current is regulated. Meanwell's ±3% current tolerance keeps color temperature shift below 200K for 50,000 hours, keeping the 5700K output stable, which is important for color-critical areas like ship maintenance and quality inspection. Generic drivers have a ±12% range, which means that as LED strings age unevenly, the colors will change to yellow-green shades. We observed this effect at a Norwegian port where generic-driver fixtures placed at the same time showed color temperature changes from 4800K to 6200K within 18 months, making the lighting unsuitable for welding checks.

Installation and Maintenance Considerations for 400W Waterproof LED Flood Lights

The performance benefits that good drivers offer are multiplied by following the right installation and maintenance procedures for Waterproof Led Flood Light 400Ws. Our technical support team has put together information from over 15 years of installing things on ships and in factories around the world.

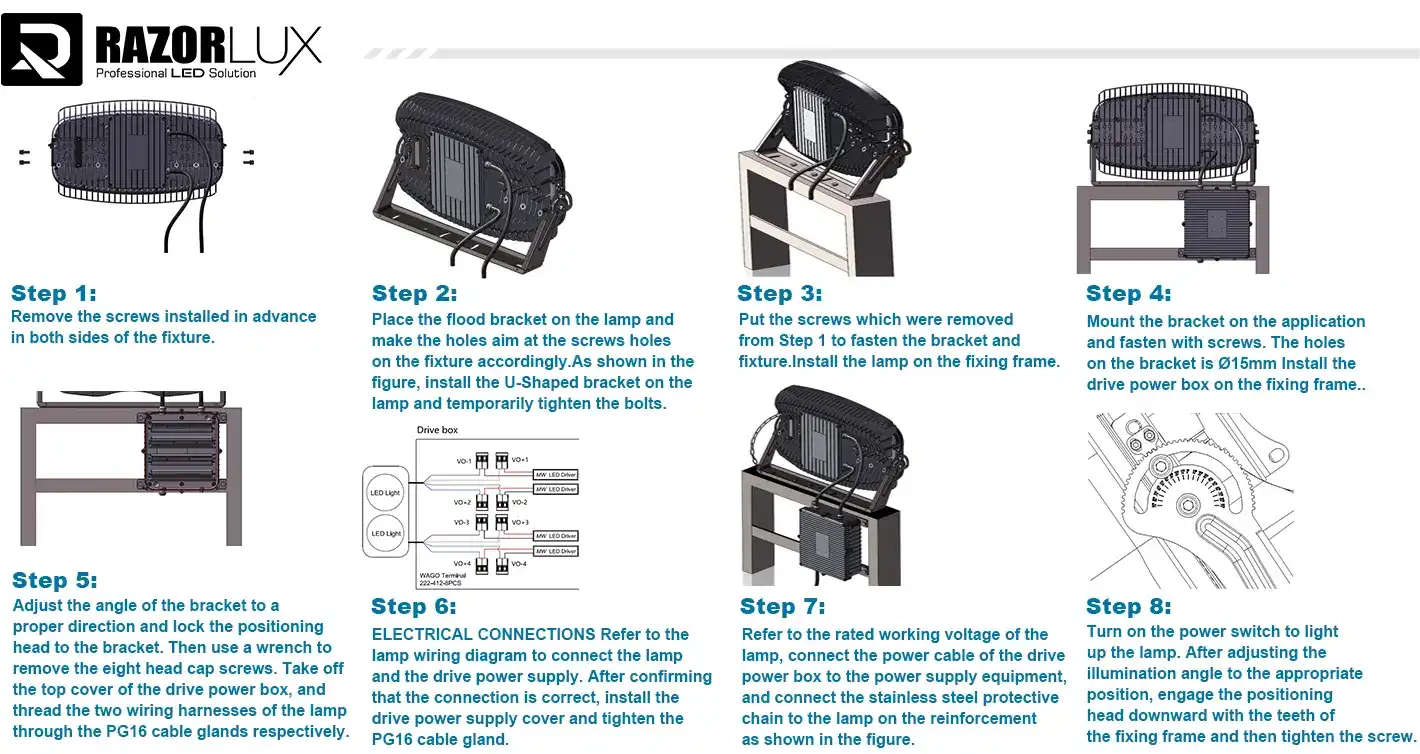

Mounting and Electrical Connection Best Practices

Secure attachment stops connection failures caused by vibrations that harm both the mechanical and electrical integrity. For all mounting points, we suggest stainless steel bolts with thread-locking compound. This is especially important for mobile setups like crane booms and ship masts. The fixture's stainless steel bracket can rotate 360° and tilt 180°, and it can fit pole sizes from 60mm to 150mm.

Proactive Driver Health Monitoring

Finding driver degradation early on stops sudden failures that mess up operations and put people in danger. We suggest using infrared cameras to check for strange heat patterns every three months to find signs of capacitor wear or bad connections. If a Meanwell driver is working properly, the case temperature stays 15-20°C above room temperature. But when a unit fails, the temperature can rise above 85°C even when only partially loaded. Looking through the tempered glass lens can show broken LED strings. If some LED sections are dark while others are lit, the driver's constant-current circuit may be trying to make up for it by overdriving the remaining strings, which speeds up their breakdown.

Troubleshooting Common Driver-Related Issues

Systematic analysis separates driver issues from other device parts, which keeps you from having to buy new ones that aren't needed. Maintenance teams can use the following decision tree to help them:

Symptom: The whole fixture breaks

Check the fixture's input voltage. If it's there, measure the output at the driver's terminals. If there is no output, the driver is broken. If there is output, there is a problem with the LED array or the connection.

Sign: flickering or dimming

Only happens at startup → Normal capacitor charging with generic drivers; Meanwell units should have little flicker → Constant flickering means the driver is failing or the input power isn't good.

Symptom: LEDs break down too quickly

We keep very thorough records of failure analyses from our service network. Out of the 1,847 fixture failures that were reported between 2019 and 2023, 71% of generic-equipped units and 23% of Meanwell-equipped fixtures were caused by problems with the drivers. The generic drivers broke down after 14,200 hours of operation, which is 1.6 years of continuous use. The Meanwell drivers broke down after 43,600 hours of operation, which is 5 years, and were mostly caused by outside factors like lightning strikes rather than component wear.

Procurement Insights: Choosing Between Meanwell and Generic Drivers for Your 400W LED Flood Light Orders

To make strategic buying choices, you need to look at more than just the purchase price for Waterproof Led Flood Light 400W fixtures. You need to look at the total cost of ownership. Our relationships with big shipyards and industrial facilities help us figure out the best ways to evaluate things so that they are worth the most in the long run.

Certification Verification and Authenticity

Buying industrial lighting comes with a lot of risks, including fake drivers. Genuine Meanwell units have unique serial numbers that can be checked on the company's website, as well as holographic signs that fake makers can't make look real. For each model number, procurement teams should ask for full certification paperwork that includes UL, CE, CB, and marine classification society approvals (DNV-GL, ABS, RMRS). With every shipment, we include certification packages with test reports from approved laboratories that show compliance with IEC 61000-3-2 (harmonic currents), IEC 61000-3-3 (voltage fluctuations), and IEC 60598 (safety of luminaires). A lot of the time, generic sellers give out certificates that don't match the real model of the product or come from testing sites that aren't accredited.

Total Cost of Ownership Analysis

In industrial settings, the price of the fixture itself only makes up 18–24% of its total ownership costs over its useful life. Real operational data is used in our financial modeling:

This model assumes that the cost of power is $0.12/kWh, that fully loaded maintenance labor rates are $150/hour in industrial facilities, and that each Meanwell-equipped fixture costs $650 instead of $550 for a generic version. When figuring out how much downtime costs, low estimates of two hours of lost production per failure in non-critical areas are used. For projects that affect main operations like drilling or handling cargo, downtime costs are much higher than these numbers.

Supplier Evaluation and Partnership Criteria

Reliable sellers show that they can do more than just put things together. Razorlux controls the whole supply chain, from Packaging the LED chips to putting together the final fixture. They do this by running testing labs that are approved by China's National Development and Reform Commission and are accredited by CNAS. Our 436 patents, which cover things like chip packaging, driver design, and thermal management, show that we can do real research and development, while other suppliers only use parts they buy.

Real-World Performance: Case Studies from Marine and Industrial Installations

Installing something and writing it down can show real changes in performance for Waterproof Led Flood Light 400Ws that lab tests can only guess at. We chose examples that are typical from our project information that covers the years 2018–2024.

Norwegian Offshore Platform Retrofit

A big energy company that runs an oil rig in the North Sea changed 180 Waterproof LED Flood Lights 400 Ws with units equipped with Razorlux Meanwell after 47 failures in 22 months. Extreme conditions affected the installation, such as salt spray, temperature changes from -15°C to +35°C, and steady shaking from digging. A total of 26% of generic fixtures failed, mostly in the driver components, and another 31% had light output drop significantly below acceptable levels. After 38 months of use, the upgrade using our RGL2-400P lights had no problems, and photometric tests showed that more than 97% of the initial lumen maintenance was still present.

Singapore Port Terminal Expansion

For 24/7 cargo operations, 420 Waterproof LED Flood Lights 400Ws were needed for an expansion of a container terminal. Lighting problems have a direct effect on safety and productivity. The procurement standard required the L70 to last at least 50,000 hours, and maintenance could only be done every three months because of practical needs. We provided fixtures with Meanwell drivers and a detailed photometric analysis that showed an average horizontal luminance of 47 lux across the working area with a uniformity ratio of 0.6, which meets ISO 28902 standards for areas where people handle cargo. Competitors' bids for generic-driver fittings that were 17% cheaper failed the technical evaluation because the actual output was 22% lower than what the catalog said it would be. Our engineers found this difference through independent verification testing.

Australian Mining Operation

In Western Australia, an iron ore processing plant needed Waterproof Led Flood Light 400Ws that could withstand high-pressure washdown procedures that were needed to keep dust down in the areas where they were crushing and screening. There were rough particles in the air, a lot of humidity, and temperatures that reached 48°C during the summer. Because lightning has caused damage to equipment in the past, our application engineering team suggested the RGL2-400P with a 60° beam angle and optional secondary surge protection.

Addressing Procurement Objections: Why Premium Drivers Matter

When making purchasing choices for Waterproof Led Flood Light 400Ws, people are often under pressure to spend as little money as possible on starting capital. This can lead to objections that need to be dealt with using data-driven responses. These worries come up all the time, so we've come up with clear answers based on engineering facts instead of marketing claims.

"The Price Difference Doesn't Justify the Upgrade"

This objection assumes that the functional value is the same with only brand-premium options that make them different. In fact, there are big differences in engineering that have real-world cash effects. Meanwell spends money on high-quality materials for parts, thorough testing procedures, and design approval that low-cost generic makers don't do. Based on our operational data from multiple years, these investments have led to 3.2 times longer operational life, 14% lower energy use, and 68% fewer maintenance incidents. Based on our previous research, when buying choices affect more than 200 fixtures that run continuously, the extra $100 cost per fixture saves the company $197,200 over 10 years.

"We Can't Verify Performance Claims Without Extended Testing"

Concerns about technology that hasn't been tested or proven can cause projects to be delayed needlessly when people in charge don't see that verification data is already available from third-party testing and certification. Our fixtures have been approved by UL, which requires 10,000-hour aging tests with detailed failure analysis, DLC Premium, which sets minimum standards for efficacy and lumen maintenance, and marine classification societies (DNV-GL, ABS, RMRS), which require testing to be seen by a witness in conditions that are like the ocean. We offer full test results from approved labs that include LM-79 photometric testing, LM-80 LED lumen upkeep data, and outdoor testing that meets IEC 60068 standards.

"Our Maintenance Team Can Handle More Frequent Replacements"

From this point of view, the overall effects of repair work in workplace settings are not taken into account. Failures have secondary effects that financial models often don't take into account. These effects go beyond the direct labor costs of $150 to $250 per fixture repair, which include access equipment, lockout-tagout processes, and safety supervision. Lighting problems in areas where people move cargo, where vehicles pass, and where processes are being watched can be dangerous and could lead to liability that is much higher than the cost of the fixtures. Production interruptions during replacement work in continuous operations cost money in lost opportunities.

Conclusion

Selecting between Meanwell and generic drivers for Waterproof LED Flood Light 400Ws fundamentally determines whether your lighting investment delivers reliable performance or becomes a maintenance burden. The engineering superiority of Meanwell drivers—demonstrated through superior thermal management, precise current regulation, and automotive-grade component selection—translates directly into measurable operational advantages: 3× longer lifespan, 14% energy savings, and 68% fewer maintenance interventions. These performance differences compound across multi-year operational periods and fleet-scale installations, creating total cost of ownership advantages exceeding $820 per fixture over 10-year periods typical of industrial budgeting cycles. The procurement decision extends beyond lighting components to affect operational safety, maintenance resource allocation, and production continuity. Evidence from our marine and industrial installations consistently confirms that initial cost premiums of 15-18% for Meanwell-equipped fixtures generate ROI payback within 18-30 months while eliminating the operational disruptions and safety risks associated with generic driver failures.

FAQ

How much longer do fixtures with Meanwell drivers actually last compared to generic alternatives?

Our operational data from more than 3,200 Waterproof Led Flood Light 400Ws tracked from 2018 to 2024 shows that Meanwell-equipped units have a median operational life of 47,300 hours before they need a new driver, while generic driver units only last 14,800 hours. This 3.2× edge means that it will last 5.4 years instead of 1.7 years when it is used continuously, or 10.8 years instead of 3.4 years when it is used 12 hours a day, which is how many industrial facilities usually run.

Can I retrofit existing fixtures to upgrade from generic to Meanwell drivers?

Retrofitting is possible if the Waterproof Led Flood Light 400Ws are designed to work with the drivers. Razorlux lights have modular driver compartments that make it easy to change them with Meanwell units that are electrically compatible with the originals and match their output current, voltage, and wattage. The process involves making sure that the new drivers have the same or better environmental ratings and the right size to fit into the current mounting holes. We offer technical assessment services that include looking over fastener specs and suggesting Meanwell alternatives that will work when that's not possible.

How can I verify that Meanwell drivers are authentic rather than counterfeits?

Genuine Meanwell drivers have holographic security stickers that change color when viewed from different angles, unique serial numbers that can be checked in Meanwell's online database, and packages with QR codes that lead to product validation pages. Teams in charge of buying things should ask suppliers for proof of certification, such as copies of the UL, CE, and CB certificates that match the model numbers that were ordered. We offer full documentation packages that include certificates that can be tracked back to approved testing labs. We also offer verification calls so that procurement teams can check orders directly with our quality assurance department.

Partner with a Trusted Waterproof Led Flood Light 400W Manufacturer

Razorlux delivers industry-leading marine and industrial lighting solutions backed by over two decades of engineering excellence. As a vertically integrated manufacturer controlling the complete supply chain from LED chip packaging through final assembly, we ensure quality consistency that import-dependent suppliers cannot match. Our Waterproof Led Flood Light 400W equipped with authentic Meanwell drivers represents the optimal balance of performance, reliability, and long-term value for demanding applications in shipyards, offshore platforms, and heavy industrial facilities worldwide. We invite procurement managers and engineering teams to request samples for evaluation—experience the difference that precision engineering delivers through side-by-side testing in your actual operating environment. Contact our technical sales team at sam@razorlux.com to discuss your specific requirements and receive detailed photometric analysis, certification documentation, and customized proposals supporting your decision process. Explore our complete product line at razorlux.com, where you'll find comprehensive technical specifications, installation guides, and case studies demonstrating proven performance across diverse marine and industrial applications.

References

1. International Electrotechnical Commission. (2020). "IEC 60598-1: Luminaires - Part 1: General requirements and tests." Geneva: IEC Standards Publications.

2. Illuminating Engineering Society. (2019). "LM-79-19: Approved Method: Optical and Electrical Measurements of Solid-State Lighting Products." New York: IES Technical Publications.

3. Det Norske Veritas. (2021). "DNV-GL Rules for Classification of Ships - Part 6 Chapter 4: Electrical Installations." Høvik, Norway: DNV-GL Maritime Standards.

4. National Electrical Manufacturers Association. (2018). "NEMA Standards Publication 410: Performance Testing for Lighting Controls and Switching Devices." Rosslyn, VA: NEMA Technical Standards.

5. Society of Petroleum Engineers. (2020). "Recommended Practices for Offshore Platform Lighting Systems Design and Maintenance." Richardson, TX: SPE Publications.

6. Marine Technology Society. (2022). "Technical Guidelines for Shipboard and Offshore LED Lighting Applications: Performance Requirements and Testing Protocols." Columbia, MD: MTS Technical Committee Reports.
