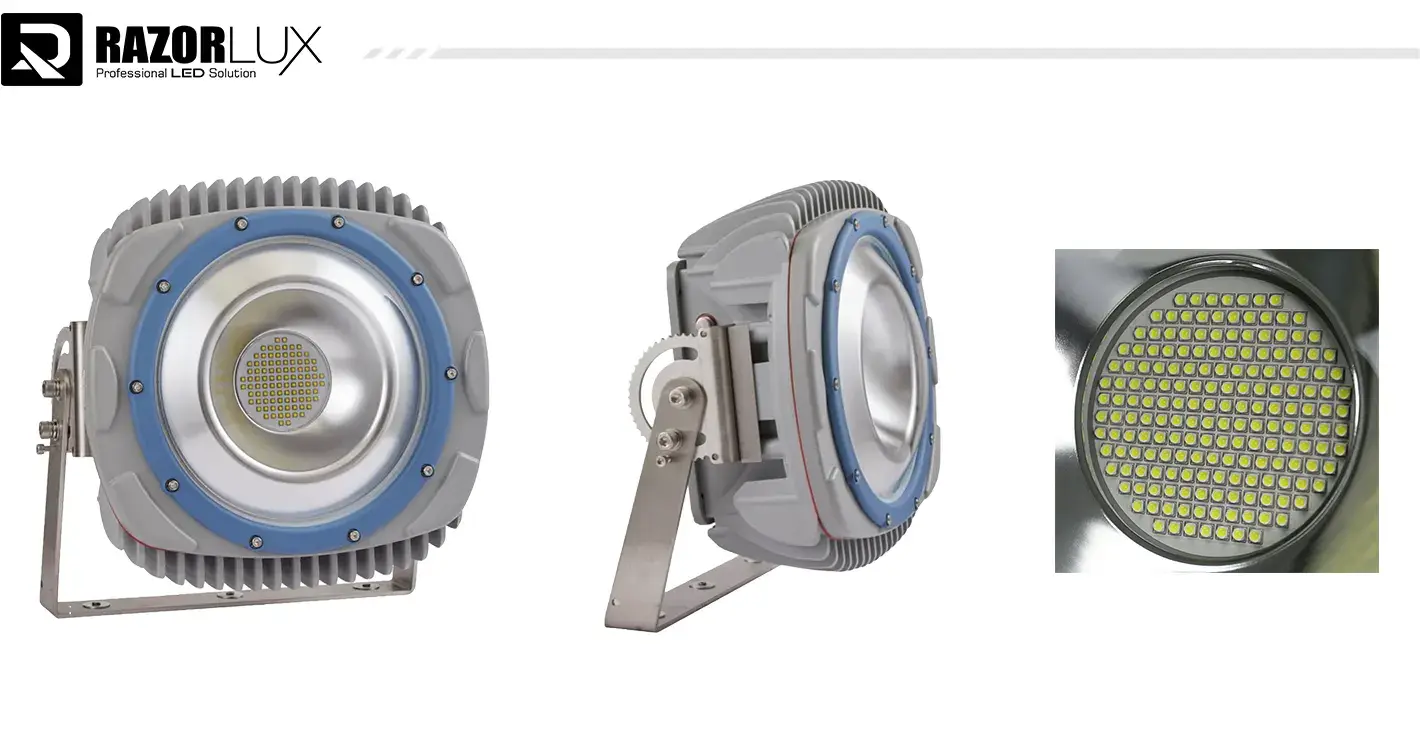

Heavy-Duty Deck Flood Lights for Marine & Industrial Use

90W | 11,700 Lumens | IP67 Rated | 5-Year Warranty

Stop replacing lights every season.Our 90W deck flood lights are built for the conditions that destroy ordinary fixtures—salt spray, -40°C cold, high-pressure washdowns, and constant vibration.

Installed on over 300 commercial vessels and offshore platforms since 2018, including Arctic fishing trawlers and container ships operating in Southeast Asian ports.

What makes these different:

· 7 beam angles(15° to 140°x60°) – One fixture type for multiple mounting positions

· Universal voltage(AC 90-305V / DC 127-431V) – Works on any vessel without converters

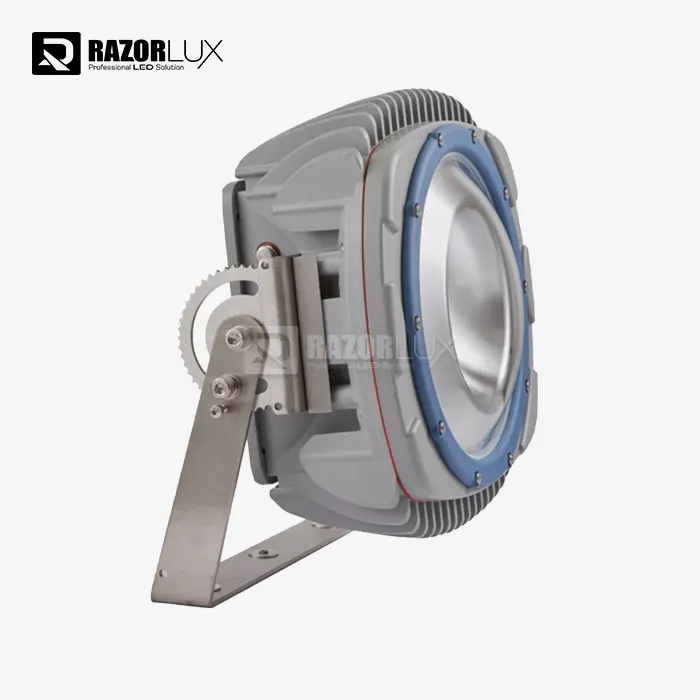

· 316 stainless hardware– No galvanic corrosion on steel decks

Deck Flood Lights Specification

Built for the Worst Conditions

The Problem with Standard Deck Lights

You've seen this before:

· Fixtures corroded after one season at sea

· Bulbs blown out from vibration

· Water inside "waterproof" housings

· Voltage spikes frying electronics

Traditional halogen and metal halide fixtures fail because they weren't designed for marine abuse.

How These Handle Real-World Stress

Saltwater & Corrosion

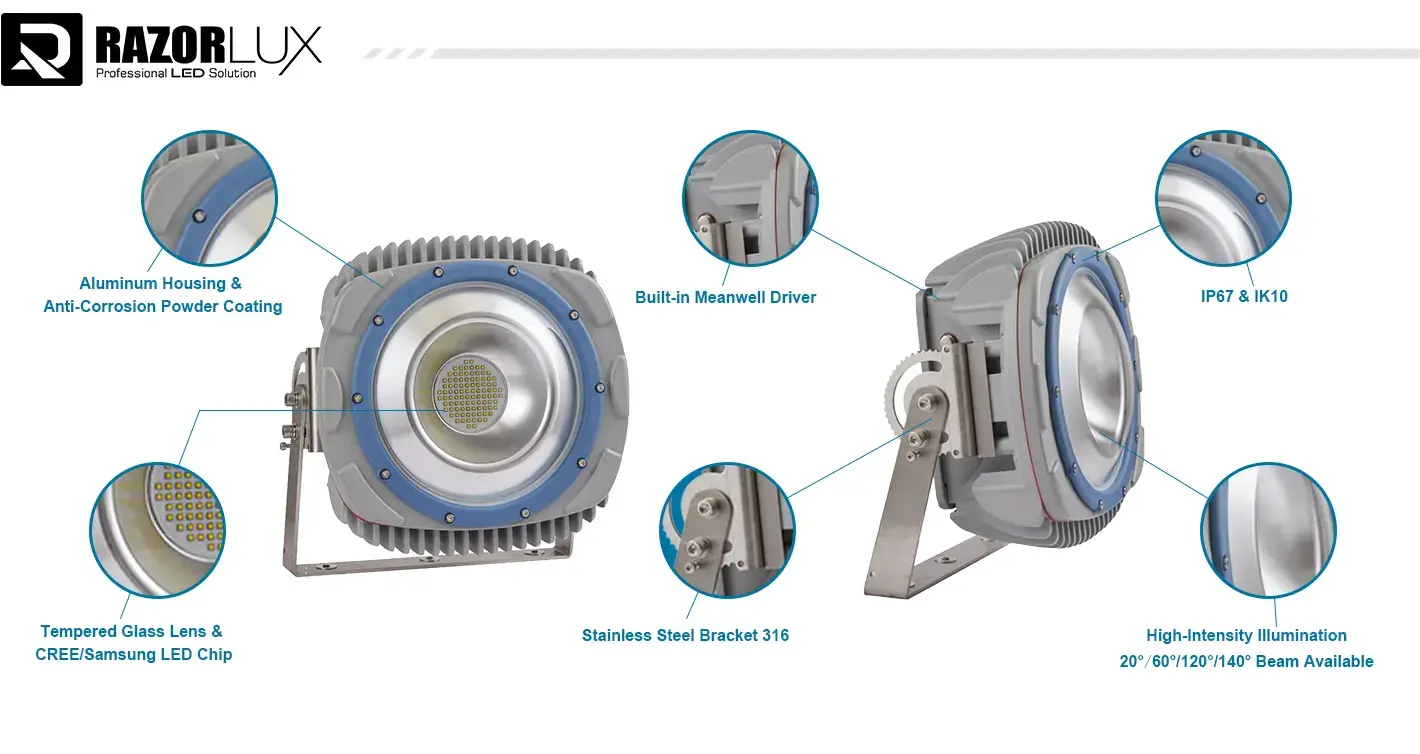

IP67-rated aluminum housing with conformal coating on all PCBs. 316 stainless steel bracket withstands C5M (most severe marine) corrosion classification. Tested in continuous salt fog chambers per ASTM B117.

Vibration & Impact

Tested to 3G vibration (MIL-STD-810G). No filaments or fragile components to break. Shock-mounted driver prevents damage from crane drops and deck impacts.

Temperature Extremes

Deck flood lights Operates -40°C to +55°C without derating. Thermal modeling keeps LED junction temperature below 85°C even in tropical engine room installations.

Choose the Right Beam for Your Application

Wrong beam angles create dark spots and glare. Here's what works:

Where These Get Installed

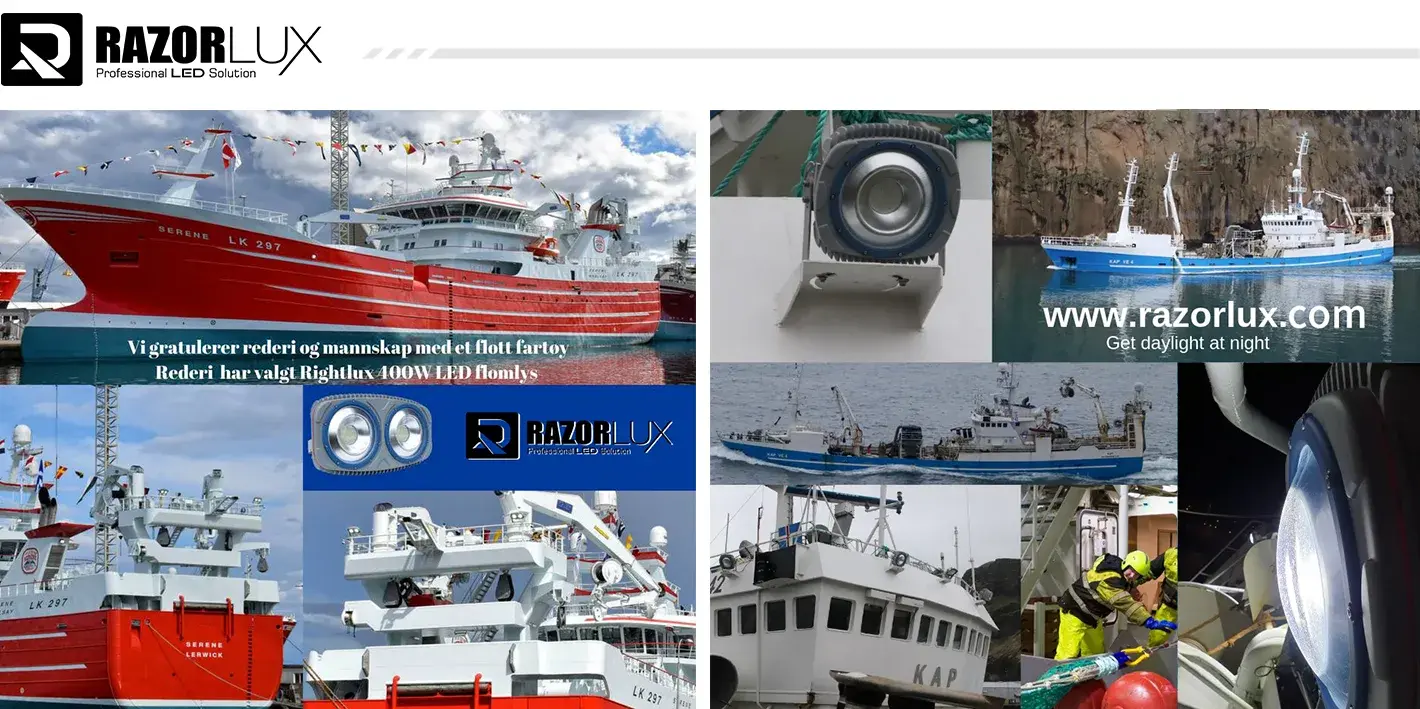

Commercial Fishing Vessels

Challenge:Crew needs to see net conditions and sort catch in rough seas at night.

Solution:60° beam fixtures on gantry provide uniform aft deck coverage. High CRI (>75) shows true fish colors for species identification.

Result:Captain of F/V Northern Eagle (Seattle-based longliner) reported 40% faster catch processing after replacing 500W halogens.

Offshore Oil Platforms

Challenge:24/7 operations in explosive Zone 2 areas with -20°C to +45°C swings.

Solution:C5M-rated fixtures handle constant salt fog. DC 127V input matches platform emergency power. 15° beams light crane booms without glare for helicopter approaches.

Container Ships

Challenge:Light cargo operations 25m below bridge without blinding pilots.

Solution:30° beams mounted on deck cranes. RMRS certification meets SOLAS requirements. AC 110-277V works across all international port voltages.

Fleet adoption:12-ship container line replaced entire deck lighting with 90W units (2022-2023 retrofit).

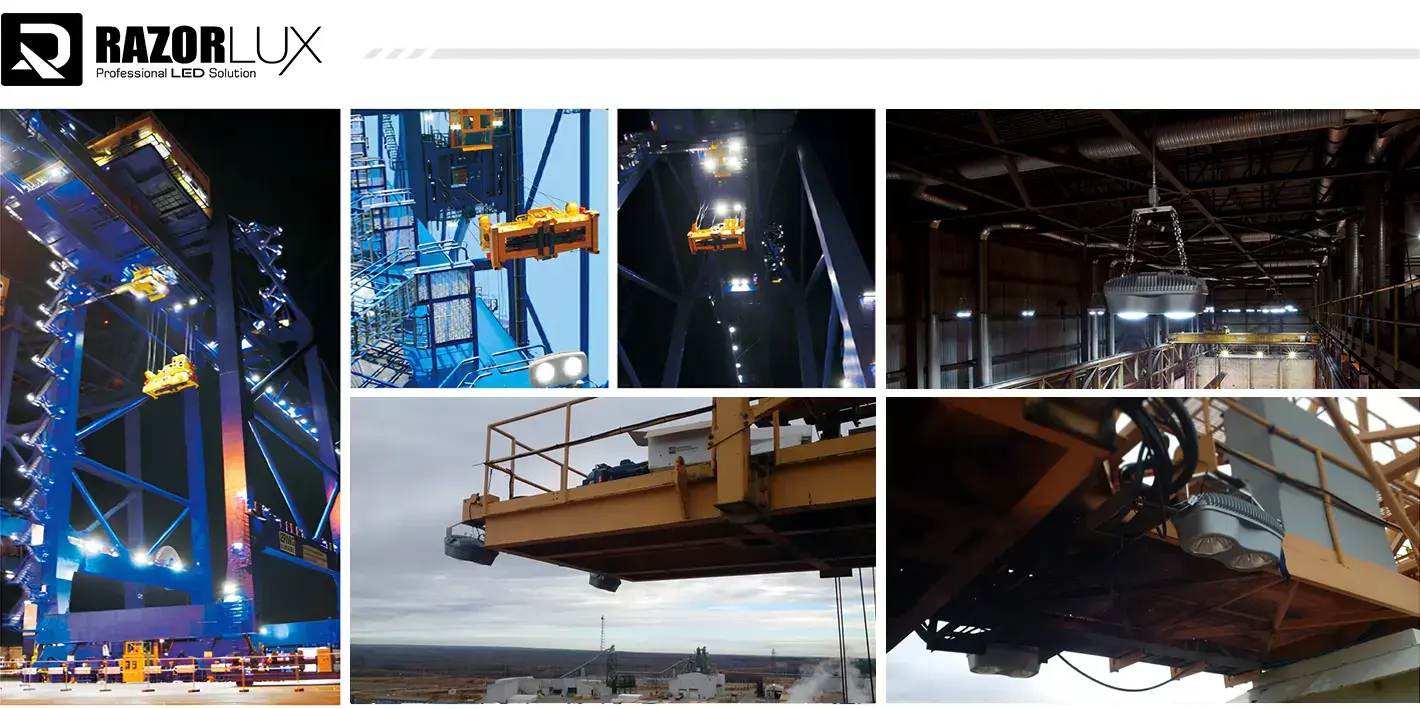

Industrial Yards & Warehouses

Challenge:Cover 100m² loading docks with minimal fixtures.

Solution:120° wide beam reduces fixture count by 60% vs. competitors. -40°C rating handles Canadian winters without heaters.

Energy savings:Logistics company cut lighting power 75% (replaced 400W metal halide).

Common Questions

Q: Will these interfere with navigation electronics?

No. All units include EMI/EMC filtering tested per marine standards (IEC 60945). Won't disrupt VHF, GPS, AIS, or radar.

RMRS certification specifically requires this testing for marine installations.

Q: How many lights do I need for my deck?

Quick estimate:50 lux minimum for safe work areas

· Formula:(Deck area in m² × 50 lux) ÷ 0.6 efficiency = lumens needed

· Example:80m² deck needs 6,667 lumens = 1× 90W fixture

Get it right:Send us your deck layout – we'll provide photometric diagrams showing exact light levels and fixture positions.

Q: How do I prevent corrosion where fixtures mount to steel?

Use isolation hardware between aluminum fixture and steel deck:

· Nylon or Teflon washers (included with marine mounting kit)

· Tef-Gel or Lanocote anti-seize on threads

· Inspect annually and reapply compound

Our 316 stainless brackets minimize galvanic corrosion risk. Request marine mounting hardware kit (no charge) when ordering for steel installations.

Q: Can these dim for night vision?

Yes – specify 0-10V or DALI dimming when ordering (add $45/unit).

Benefits:

· Reduce power draw during low-activity hours

· Preserve crew night vision on bridge approaches

· Extend LED lifespan

Q: What color temperature should I order?

4000K neutral white– Best for most applications (our default)

5000K-6500K daylight– For maintenance/inspection requiring color accuracy

2700K-3000K warm– Guest areas or living quarters

Get a Custom Lighting Plan

Contact our deck flood lights' team:sam@razorlux.com
