UFO LED High Bay Light 200W - Industrial Lighting Solution

Product Overview

UFO LED High Bay Light 200W delivers a stable performance for warehouses, industries & commercial business. The light is powered by an external Meanwell driver, and has Lumileds and Samsung LED chips, 120lm/w output efficiency. It replaces traditional 400-600W metal halide lights and reduces energy cost up to 65%.

Ufo Led High Bay Light 200W Specifications

Key Features

• Energy Efficient 200W power usage, 120lm/w lamp efficacy

• Rugged design: IP65 certified protection, -40 °C to +50 °C

· Flexible Installation: Different ceiling heights and available beam angles (60°/120°)

• Long Life: L70 >50,000 hours, 5 years guarantee

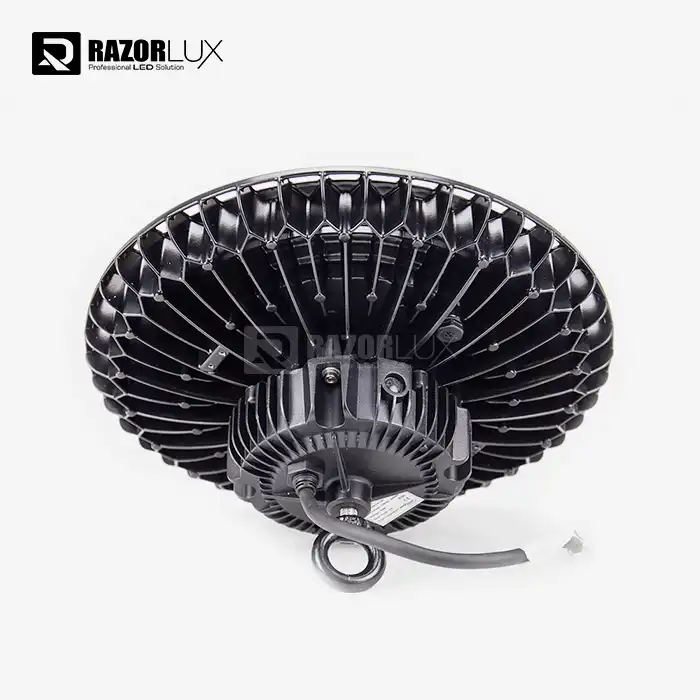

• Easy Maintenance: External driver design permits fast replacement

Applications

We recommend upgrading the lighting system to Ufo Led High Bay Light 200W.

Warehouses & Logistics Centers

Appropriate for 15-25 foot ceiling heights. 120° beam angle for uniform aisle lighting for scanning barcodes and moving materials. Replace 400W Metal Halide lights and save on energy expenses.

Manufacturing Facilities

High CRI (Ra>75) for precise colour rendering in quality control Solid state architecture is vibration proof for dependable operation around heavy machinery.

Sports Halls & Gymnasiums

Its flicker free performance is excellent for high speed activities and video recording. The aluminium casing is IP65 dust and moisture ingress rated and impact resistant.

Cold Storage & Harsh Environments

It works successfully in the temperature range from -40 °C to +50 °C. • IP65 certification protects against waterjets and dust infiltration in harsh environments.

Why Choose This Product?

Proven Components: Meanwell drivers and Lumileds/Samsung LEDs are industry standard and proven reliable.

Cost Savings: Average ROI in 2-3 years with lower energy use and low maintenance.

Installation Flexibility: 0-10V dimming for compatible with motion sensors and building automation systems.

Quality Assurance: Each unit is put through a 24 to 48 hour burn-in. ISO9001 certified production for consistent quality.

Installation Guidelines

Suggested Mounting Height: 15-25 ft. (4.5-7.5 m)

Beam Angle Selection:

· 60° for heights > 20 feet or spot lighting

· 120° for larger coverage or lower ceilings

Dimming Compatibility: Works with 0-10V dimming systems for automatic control.

Operating Temp Range: -40°C to +50°C

​​​​​​​

Frequently Asked Questions

What does it replace? An old light fixture?

The 200W type is typically used to replace 400W to 600W metal halide or HPS lamps at equivalent light levels.

How long do they live?

L70 rating > 50,000 hrs, which means about 6 years of continuous operation before output decreases to 70%.

Will this lamp operate with motion sensors?

Yes it features 0-10V dimming to work with PIR or microwave sensors.

How can you control heat?

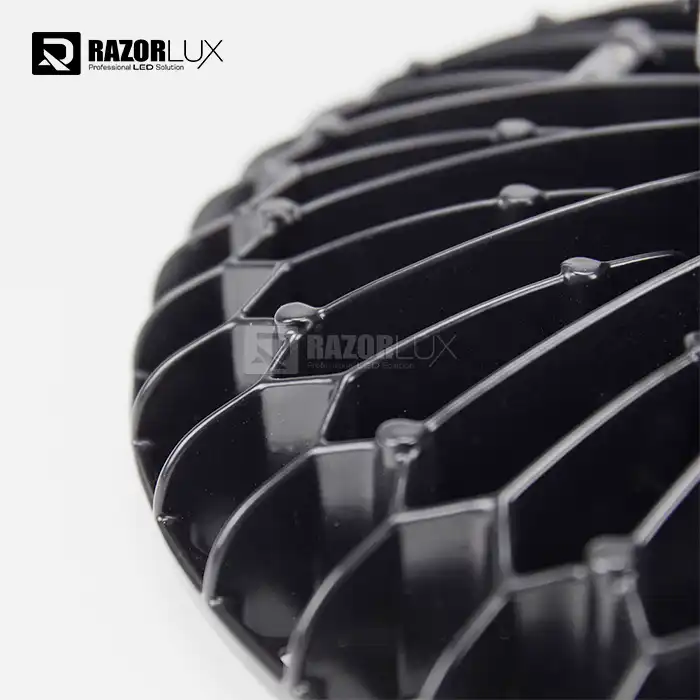

The exterior driver and finned aluminium enclosure are passively cooled to maintain LED junction temperatures below 85°C.

Is it rated for wet locations?

With an IP65 certification, it is protected against water jets and is ideal for most industrial situations. Verify with your local codes for food processing areas.
