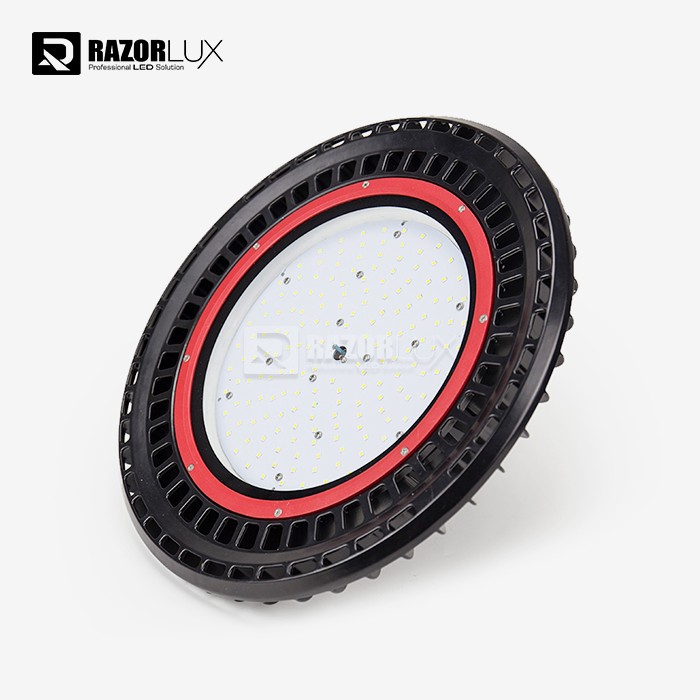

UFO Warehouse Lights – Industrial LED High Bay Lighting Solution

Razorlux UFO Warehouse Lights – built for 24/7 industrial performance, since 2001. Upgrade your facilities. Our newest series has outside mounted Meanwell drivers and Lumileds/Samsung LED chips, 135lm/w efficiency to minimise energy expenses by up to 70%. Rated for harsh situations like -30°C cold storage and high-heat factory floors, the fixtures are available in 100W-240W variants with IP65 protection.

Ufo Warehouse Lights Specifications

Core Engineering Advantages

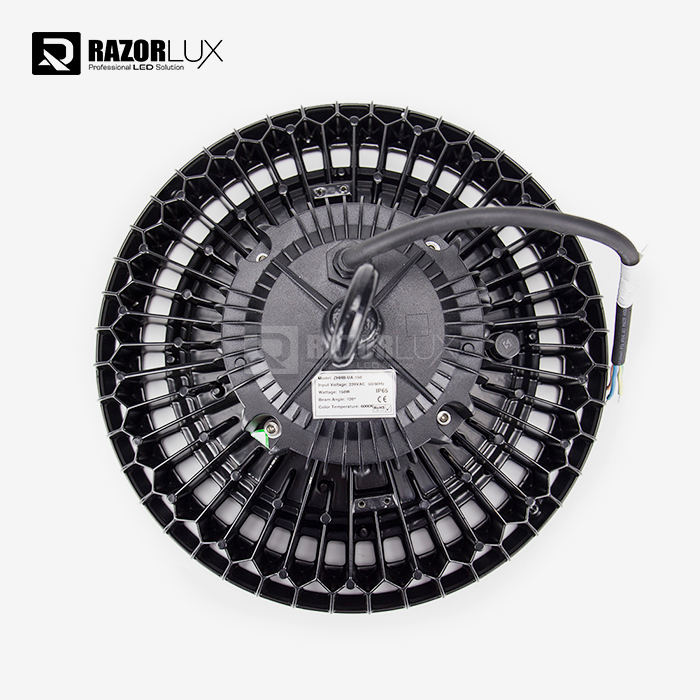

Modular Heat Management System

Our patented exterior driver design separates heat sources by 15cm from LED modules. This architectural approach:

· Extends driver lifespan to 60,000+ hours

· Enables 5-minute driver swaps without fixture removal

· Reduces maintenance downtime by 80% vs integrated designs

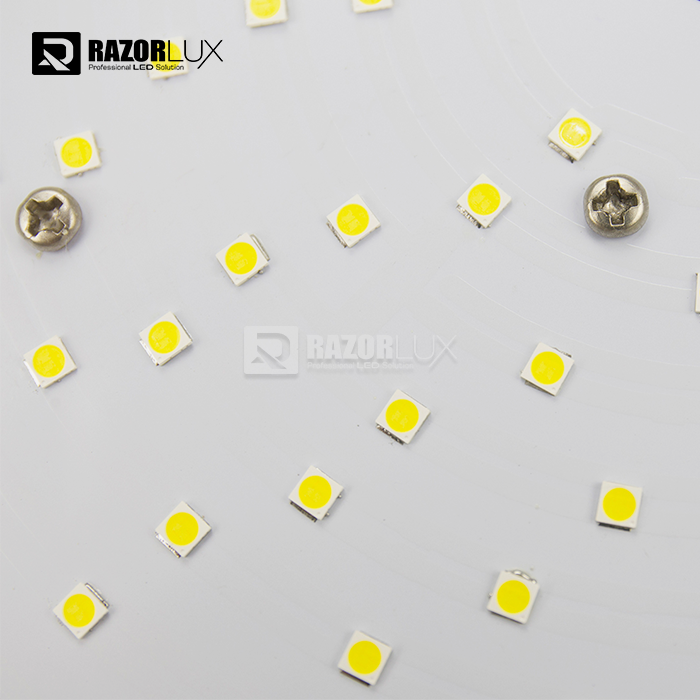

Premium Samsung/Lumileds LED Array

We exclusively use Tier-1 LED chips that maintain 90% lumen output after 50,000 hours (L90/B10 rating). The technical advantage:

· 135lm/w system efficiency (vs industry average 110lm/w)

· Consistent 3-step MacAdam ellipse color uniformity

· Built-in surge protection up to 6kV

Energy comparison: Replace 400W metal halide fixtures with our 150W model—achieve 20% more light while consuming 62% less power.

Application-Optimized Optics

Choose your beam configuration based on mounting height:

Industrial-Grade Durability

IP65-rated die-cast aluminum housing withstands:

· Temperature range: -30°C to +50°C

· Humidity: Up to 95% non-condensing

· Vibration: Certified for overhead crane environments

· Corrosion: C5M marine-grade coating (1000+ hour salt spray tested)

Zero reported failures in 2+ million installed units across mining, cold chain, and heavy manufacturing sectors.

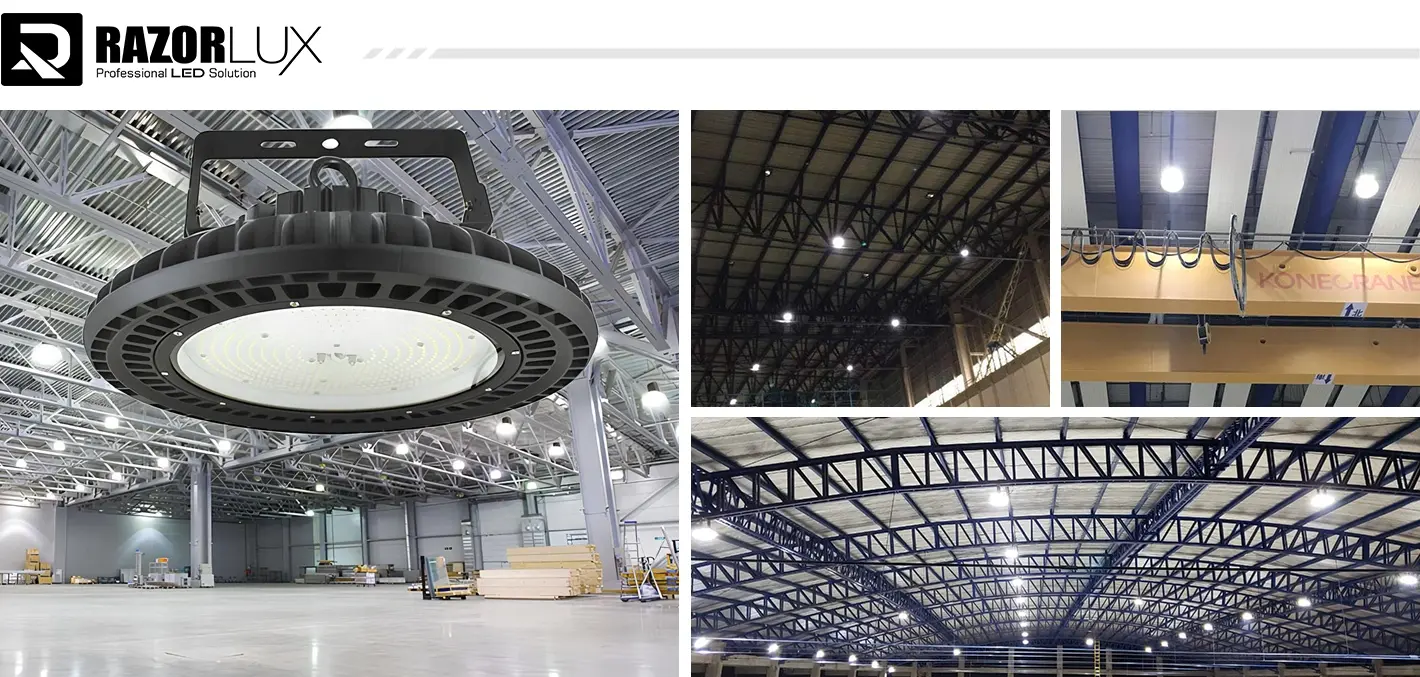

Industry-Specific Applications

We recommend upgrading the lighting system to Ufo Warehouse Lights.

Logistics & Distribution Centers

Challenge: Rack lighting has to be mounted vertically due to 30ft ceilings with narrow aisles.

Solution: The 200W versions with 60° optics provide 300 lux at floor level and 150 lux at the 20-foot rack height. Instant-on functionality cuts the 10-minute warm-up of metal halide systems – boosting first-shift productivity by 8 minutes each day.

Heavy Manufacturing Plants

Challenge: Power surges from welding equipment and CNC machines.

Solution : Wide 85-265V Input Range with 6KV Surge Suppression Solves Power Anomalies. Sealed to IP65 against metal dust and coolant mist. One car parts manufacturer experienced no lighting-related shutdowns for 3 years.

Cold Storage Facilities (-30°C)

Challenge: Typical LED lights dim or fail in frigid weather.

Solution: Our heat management technique enables us to achieve full brightness at -30°C Drivers are operational down to -40°C. A frozen food distributor replaced 250 fixtures and achieved 99.2 percent uptime over 18 months.

Exhibition Halls & Sports Facilities

Challenge: Even lighting throughout 10,000+ sq ft without glare.

Solution: 120° beam angle with optional micro-prismatic diffusers <19 UGR glare rating. Available with CRI >80 option for colour critical applications such as auto showrooms or art galleries.

Automotive Service Centers

The problem is that overhead cranes and vehicle lifts get in the way of normal linear fixtures.

Solution: Compact Ø400mm UFO shape (40% smaller than equivalent linear high bays) minimises crane interference 120° shadowless distribution for paint matching & detail work.

​​​​​​​

Frequently Asked Questions

Q: How do I calculate the number of fixtures needed?

A: How to calculate the number of fixtures needed? A. Required Fixtures = Area x Target Lux/ (Lumens per Fixture x Utilisation Factor) For example, for a 10,000 sq ft warehouse at 200 lux, you would require around 16 lamps (150W models – 18,000 lumens). Send us your floor layout and get a FREE photometric analysis.

Q: Can they be integrated into building automation systems?

A: Uh-huh. The 0-10V dimming interface is connected with:

· Occupancy sensors (microwave/PIR)

· Daylight harvesting photocells

· BACnet/Modbus controllers via third-party gateways

Typical energy savings: Additional 30-40% in areas with <50% occupancy.

Q: Do you offer emergency battery backup versions?

A: Yes—our RHB-UA-EM series includes 90-minute battery packs meeting NFPA 101 egress requirements. Lead time: 3-4 weeks for custom orders.

Smart Features & Compatibility

Plug-and-Play Installation: Standard hook/chain mount or surface bracket (included)

Universal Voltage: Single SKU works globally (85-265V AC)

Dimming Ready: 0-10V analog dimming (1-100% range)

Motion Sensor Compatible: Pair with microwave sensors for up to 75% energy savings

Daisy-Chain Power: Link up to 6 units on 20A circuits (consult electrician)

Rapid Restart: No cool-down period required (unlike HID lamps)

Contact Our Lighting Specialists

Email: sam@razorlux.com

Include your project details (ceiling height, area size, current lighting type) for fastest response. Quotes typically delivered within 24 hours.
