100 Watt Ufo Led Lights

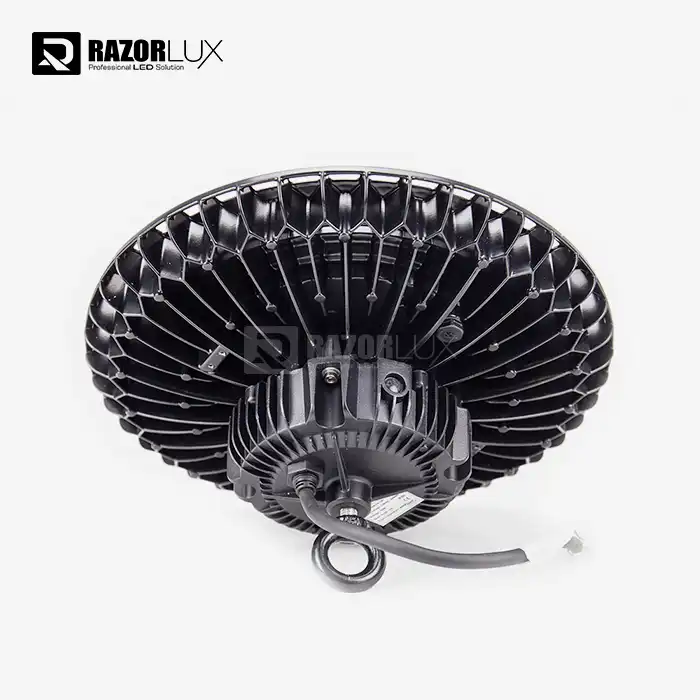

100 Watt Ufo Led Lights - Heavy-Duty Industrial LightingProduct Overview

Our 100W UFO LED High Bay series (Models: RHB-UA-100/150/200/240) cuts energy costs by up to 75% compared to traditional 400W metal halide lamps. Each 100 watt ufo led lights combines Lumileds/Samsung premium LED chips with external Meanwell drivers, delivering 19,000 lumens at 135lm/w system efficiency. IP65-rated for dusty warehouses and humid factories, with 50,000+ hour lifespan backed by a 5-year commercial warranty.

100 Watt Ufo Led Lights Specifications

Why Razorlux Beats Standard High Bays

1. External Driver = Half the Failures

Most UFO lights fail because the driver overheats from LED proximity.

Our external Meanwell driver design separates heat sources completely. When (not if) a driver needs replacement after 5-7 years, your maintenance team swaps it in 10 minutes without scissor lifts or LED module removal.

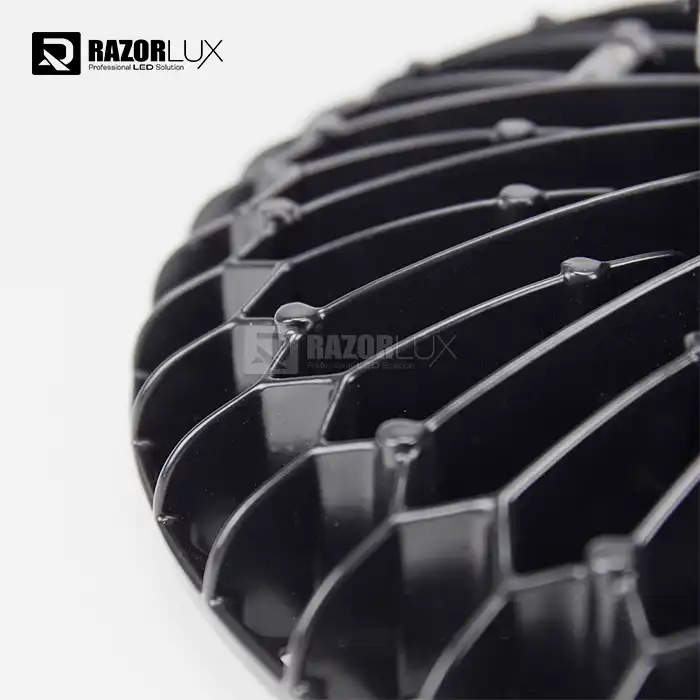

2. Die-Cast Aluminum Housing (Not Stamped Steel)

We use pressure die-casting for the entire heat sink body. This isn't cosmetic—the manufacturing process creates:

· 40% better thermal conductivity than stamped housings

· Integrated cooling fins that actually touch the LED board

· Zero air gaps where heat gets trapped

Temperature data: Our 100W model runs at 62°C junction temp under full load (ambient 25°C). Competitors often exceed 80°C, which kills LED lifespan.

3. Lumileds & Samsung Chips (Verified by Serial Numbers)

You'll find plenty of "100W high bays" online for half our price. Here's what they don't tell you:

· Chip binning matters. We use top-bin Lumileds 3030 and Samsung LM301B chips

· Each chip has traceable serial numbers for warranty claims

· Color consistency: ±3 SDCM across all fixtures (competitors often ship ±7 SDCM)

Translation: Your warehouse won't have "blue zones" and "yellow zones" after 2 years.

4. Flicker-Free Operation (<5% Modulation)

Cheap LED drivers cause invisible flicker that triggers headaches and reduces productivity. Our Meanwell HLG series drivers maintain:

· <5% light modulation at all dimming levels

· >0.95 power factor (your utility company will love this)

· Compliant with IEEE 1789 standards for workplace lighting

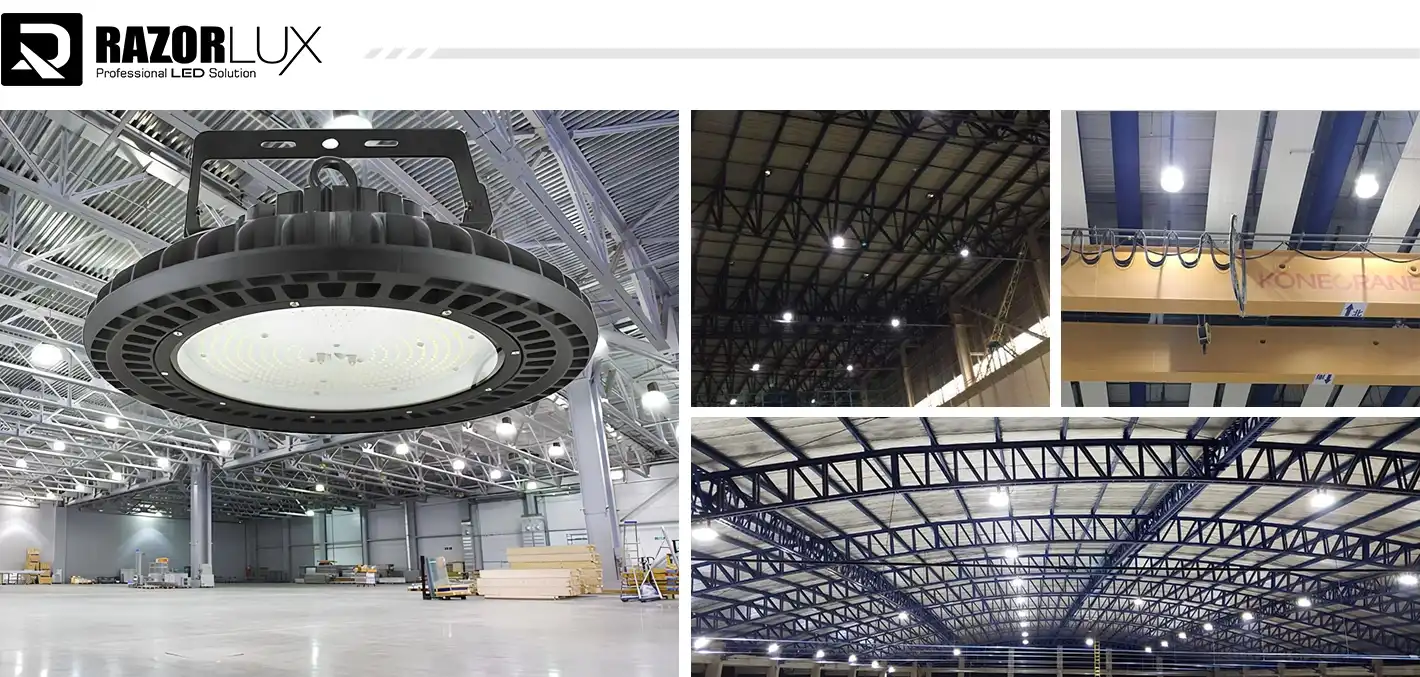

Application Scenarios

Warehouses & Distribution Centers (Most Popular)

Mounting height: 4-8 meters (12-26 feet)

Recommended model: 100W with 120° beam for general aisles / 150W with 60° for high racks

A 10,000 sq ft warehouse typically needs 18-24 fixtures for 300-500 lux floor illumination. Our 100 watt ufo led lights lighting calculator can give exact numbers for your layout.

Dust resistance: IP65 rating means zero LED degradation from cardboard dust or forklift exhaust particulates.

Manufacturing Workshops

CRI Ra>75 lets workers distinguish wire colors, paint defects, and assembly errors. Not as critical as Ra>90 for print shops, but sufficient for 90% of industrial QC work.

Vibration-proof: Suitable for facilities with overhead cranes, stamping presses, or compressor rooms. No filaments or fragile components to break.

Cold Storage & Food Processing

Operating range down to -20°C without brightness loss. The external driver can be mounted outside the cold zone if temperatures drop below -30°C.

Washdown-ready: IP65 handles occasional pressure washing (not continuous submersion). NSF listing available for direct food zone applications.

Gymnasiums & Indoor Sports

Instant-on: Full brightness in <0.5 seconds (unlike metal halide's 5-minute warmup).

Flicker-free: Safe for high-speed cameras recording at 120fps+. Players can track fast-moving balls without strobing effects.

Installation Flexibility

Three mounting options included:

1. Hook hanger: Fastest installation for chain/cable suspension (most common)

2. U-bracket: Angle adjustment ±90° for wall/truss mounting

3. Conduit mount: Direct 1/2" NPT thread for permanent ceiling installation

Universal voltage (AC 85-265V): Same fixture works globally. No need to stock separate SKUs for different countries.

Dimming: 0-10V protocol compatible with most building automation systems. Dims smoothly from 10-100% without flicker or dropout.

Common Questions

Q: What color temperature should I choose?

· 3000K (Warm White): Retail showrooms, hospitality - makes products/people look better

· 4000K (Neutral White): General warehouses, assembly - balanced and comfortable

· 5000K (Cool White): Precision work, inspection areas - maximum visibility

· 6500K (Daylight): Cold storage, outdoor covered areas - closest to natural sunlight

Most facilities order 4000K. It's the Goldilocks option.

Q: 60° or 120° beam angle?

120° beam (wide):

· Mounting heights under 6 meters

· General area lighting where fixtures are spaced close

· Maximizes coverage per fixture

60° beam (narrow):

· Mounting heights over 6 meters

· Targeted task lighting for workstations

· High-rack warehouses where you need vertical illumination

Rule of thumb: Spacing between fixtures should be ≤1.5× mounting height for 120° beams, ≤1.2× for 60° beams.

Q: How hard is it to replace the driver later?

Time required: 10 minutes with basic tools.

Process:

1. Turn off power (obviously)

2. Unscrew 4 bolts holding driver enclosure

3. Disconnect 2 wire connectors (input AC + output DC)

4. Reverse process with new driver

No need to: Remove fixture from ceiling, touch LED board, or recalibrate anything. The external design makes this stupid-simple compared to sealed units.

Q: Do you offer dimming?

Yes. 0-10V dimming comes standard on all models.

Requirements:

· Compatible 0-10V dimmer switch or controller

· Two additional low-voltage wires (purple/gray) run to driver

· Dims from 10% to 100% without flicker

DALI and wireless dimming available as custom options for orders over 100 units.

Get a Custom Lighting Plan

Not sure how many fixtures you need? Our lighting engineers will:

Calculate required lux levels for your space

Create a photometric layout with spacing recommendations

Provide energy savings projections vs. your current system

Suggest optimal color temperature and beam angles

We also offer sample testing programs—install 2-3 fixtures in your actual environment before committing to full orders. See the performance yourself instead of trusting datasheets.
