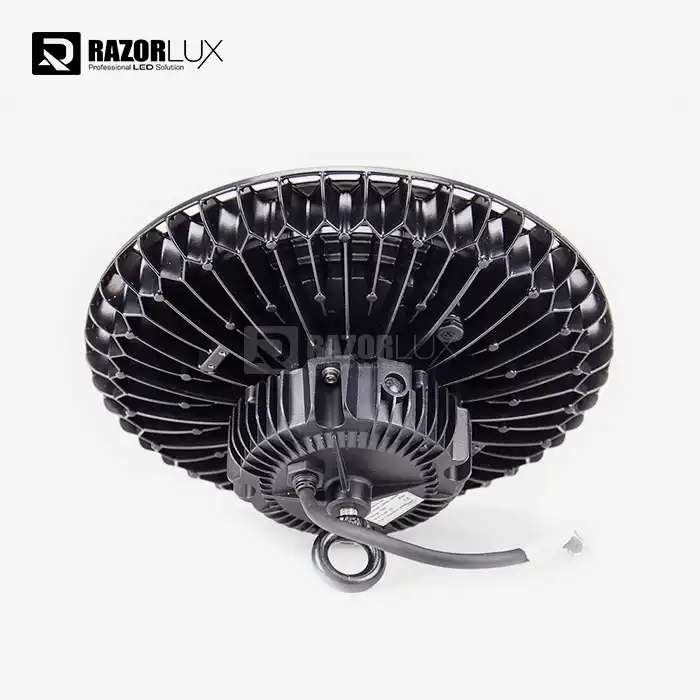

Led Ufo High Bay 200W
Model No.: RHB-UA-100, RHB-UA-150, RHB-UA-200, RHB-UA-240
Rated Power: 100W, 150W, 200W,240W
Input Voltage: AC85-265V
Color Temperature: 3000-6500K Lamp Efficiency: 120lm/w Beam Angle: 60°, 120°
CRI: Ra>75
IP Grade: IP65
Dimension: Ø280*185 mm(100W), Ø340*187mm (150W), Ø400*196 mm(200W)
Net Weight: 3.8kg, 4.9kg, 6.8kg Certificate: CE, RoHS
Warranty: 5 Years
- Product Description
Led Ufo High Bay 200W - Industrial-Grade Warehouse Lighting
Product Overview
When dependable and high-performing illumination is needed in warehouses, manufacturing plants, and distribution centers, the Led Ufo High Bay 200W is perfect. For better heat management, use an external Meanwell driver. Samsung LED chips with 24,000 lumens and 135 lm/W efficiency.
Key Specs at a Glance:
· Power: 200W | Output: 24,000 lumens
· Color Temperature: 3000K-6500K (adjustable)
· Beam Angles: 60° or 120°
· IP65 waterproof | 5-year warranty
· Universal voltage: AC 85-265V
Led Ufo High Bay 200W Specifications
| Feature | Specification |
|---|---|
| Model No. | RHB-UA-100, RHB-UA-150, RHB-UA-200, RHB-UA-240 |
| Rated Power | 100W, 150W, 200W, 240W |
| Input Voltage | AC85-265V |
| Color Temperature | 3000-6500K |
| Lamp Efficiency | 120lm/w |
| Beam Angle | 60°, 120° |
| CRI | Ra>75 |
| IP Grade | IP65 |
| Dimension | Ø280*185 mm(100W), Ø340*187mm (150W), Ø400*196 mm(200W) |
| Net Weight | 3.8kg, 4.9kg, 6.8kg |
| Certificate | CE, RoHS |
| Warranty | 5 Years |
Why This Light Outperforms Standard High Bays
External Driver = Longer Lifespan
Unlike less expensive lights, the light fixture does not come with an external Meanwell motor. The lifespan is increased by 30–40% when the heat is separated from the LEDs. When maintenance is needed, experts can swap out the driver in around five minutes without removing the whole fixture.

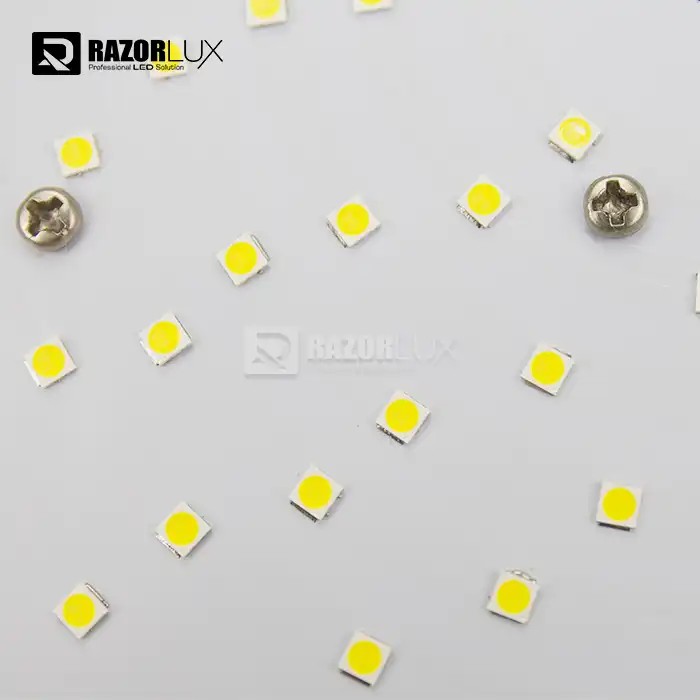

Premium LEDs That Don't Fade
We use Lumileds and Samsung processors, which are the same parts used in commercial airplane lighting. After 50,000 hours (11+ years at 12 hours each day), they are 70% bright. After two to three years, inexpensive substitutes lose their color consistency.
Two Beam Angles for Any Ceiling Height
· 60° beam: Best for 25-40 foot ceilings (focused light for high racks)
· 120° beam: Ideal for 15-25 foot ceilings (wide coverage for assembly areas)
No need to guess—we provide free photometric layouts before you order.
Handles Voltage Fluctuations
The AC 85-265V input range protects against brownouts common in industrial areas. Works across international voltage standards without additional equipment.
Where It Works Best
The 200W LED UFO high-bay light is suitable for a wide range of applications.
Warehouses & Logistics Centers
High-rack storage facilities need consistent lighting for barcode scanning and safety. Our 60° beam angle directs light down narrow aisles without spill. Pair with motion sensors to cut energy use by an additional 30-40% during low-activity periods.
Manufacturing Floors
The IP65-rated aluminum housing resists oil mist, dust, and temperature swings. High CRI options (Ra>80) reveal true colors for quality control. Replaces 400W metal halide lamps that create yellow light and hide safety sign colors.
Sports Facilities
IK10 impact rating withstands direct ball strikes. Flicker-free operation prevents eye strain during fast movement. Optional anti-glare diffusers reduce UGR below 25 for player comfort.
About Razorlux
Since 2006, we've specialized in industrial LED lighting, backed by power supply manufacturing experience since 1998. Our Xi'an facility is recognized as an official LED Engineering Laboratory by China's National Development and Reform Commission.
What sets us apart:
· Free lighting layout design and lux calculations
· Direct factory pricing (no middleman markups)
· Technical support from in-house engineers
· Real inventory (not dropshipped)
We've lit over 2,000 facilities across 40+ countries.
Common Questions
Q:Can 400W metal halide bulbs be replaced with this?
A: Indeed. The 200W LED reduces energy consumption by more than 50% while maintaining or exceeding light levels. The 15-minute warm-up period and frequent bulb changes will also be eliminated.
Q:What is the real lifespan?
A: At 50,000+ hours, rated L70. That is 5.7 years of continuous operation (24/7). It will take more than 11 years for production to fall to 70% for a typical 12-hour daily usage.
Q:Do you provide dimming?
A: Indeed. The Meanwell driver has 0–10V dimming that works with the majority of commercial control systems and occupancy sensors.
Q:How hot does it get?
A: The finned aluminum housing keeps LED junction temperature below 85°C through passive convection. No fans needed.
Q: What if I order the wrong beam angle?
A: We provide free photometric layouts before purchase to ensure correct configuration. Our team reviews your ceiling height, aisle width, and lighting requirements.
Get Your Custom Lighting Plan
We'll create a detailed layout showing fixture placement, expected lux levels, and ROI calculations for your specific facility—at no cost.
Contact our 200W LED UFO high-bay light's team:
Include your ceiling height, facility dimensions, and current lighting details for fastest response.
