Construction Site Flood Lights

600W Construction Site Flood Lights - Heavy-Duty Industrial Lighting

The most prevalent lighting issues on construction sites are resolved with Razorlux 600W construction site flood lights: erratic power supplies, inclement weather, and frequent equipment malfunctions. These lights, which are designed for contractors and industrial buildings, have a 5-year commercial guarantee, have 130LM/W efficiency, and run dependably on AC 90-305V or DC 127-431V power sources.

Construction Site Flood Lights Specifications

Key Features

Stable Performance on Temporary Power

Variations in generator power are a common problem on construction sites. Among these lights are:

Broad voltage tolerance (AC 90-305V) to manage erratic power systems

Integrated 4kV surge protection to prevent voltage spikes

Instantaneous startup without any warm-up time

Regardless of changes in input voltage, the brightness remains constant.

Because of this, they can be used for multinational projects with various electrical standards, emergency repairs, and distant sites.

Weather-Sealed Construction

The IP67-rated housing provides:

· Complete dust protection for desert or demolition environments

· Water jet resistance for heavy rain and pressure washing

· Operating temperature range: -40°C to +50°C

· Corrosion-resistant stainless steel mounting bracket (C5M marine-grade rating)

IK08+ impact rating protects against drops, vibrations from heavy machinery, and accidental strikes from construction materials.

Flexible Lighting Configuration

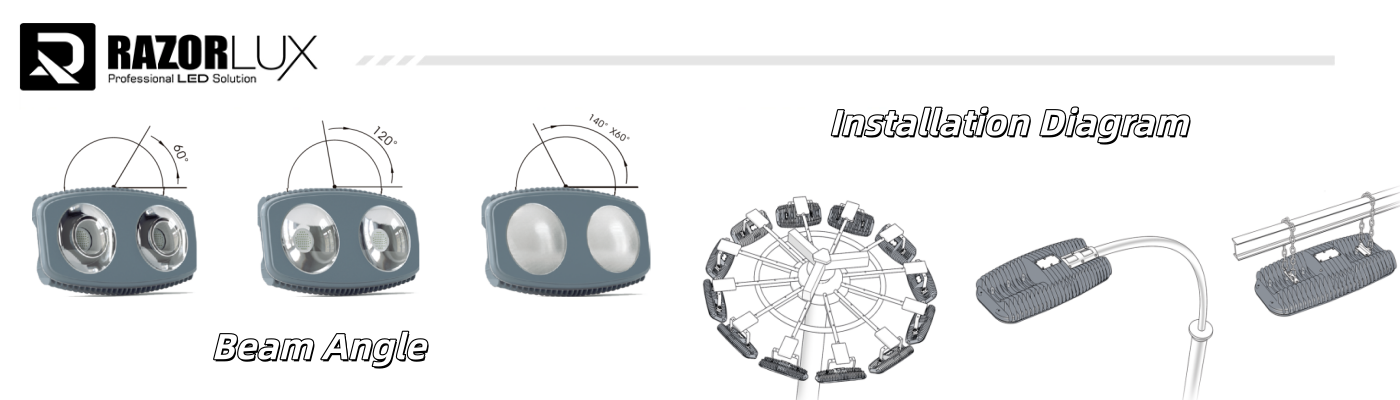

Choose from seven beam angle options to match your application:

· 120° wide beam: General area coverage for foundations and material yards (20-30m spread)

· 60° medium beam: Controlled illumination for highway work zones (reduces glare to passing traffic)

· 15°-20° narrow beam: Long-distance throw for tower cranes and high-rise applications

Color temperature options from 2700K (warm) to 6500K (daylight) allow matching existing site lighting.

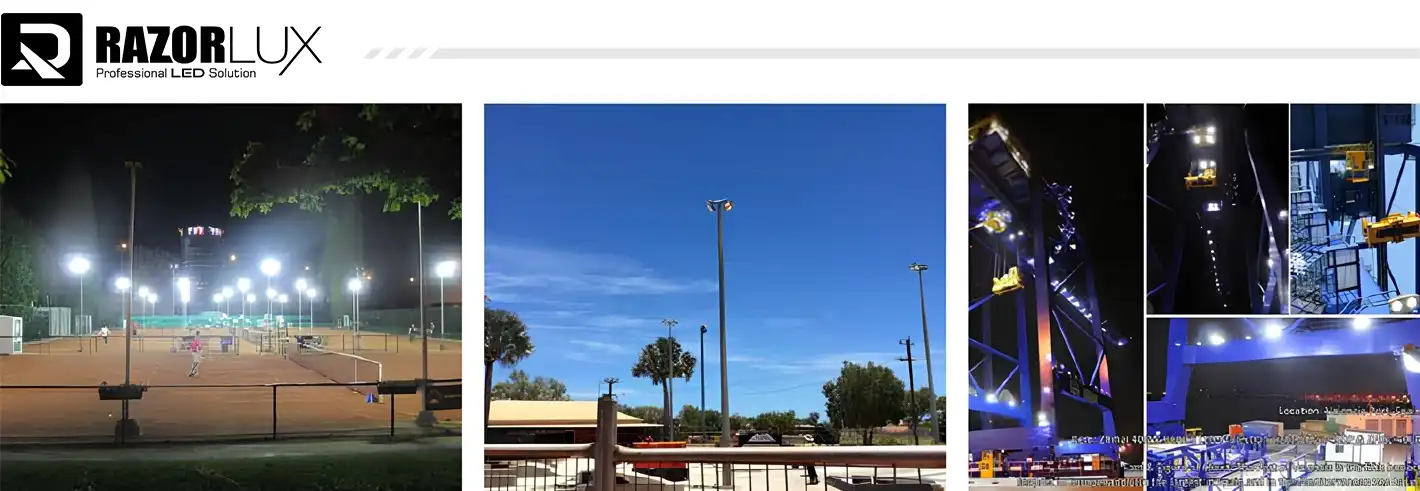

Common Applications

High-Rise Construction

Mount on tower cranes or scaffolding for structural work. The adjustable bracket allows precise aiming at specific work areas. High CRI (>75) helps workers identify surface defects during finishing tasks like drywall installation and painting.

Road and Bridge Projects

Asymmetric beam options direct light onto work zones while minimizing spill into traffic lanes. Vibration-resistant design maintains stable operation near compactors and pile drivers. IP67 rating ensures reliability in rain, snow, and wet conditions.

​​​​​​​

Tunnel and Underground Work

Construction site flood lights compact 15kg design offers portability in confined spaces. Daisy-chain connection reduces cable clutter. Vapor-tight construction prevents moisture damage in high-humidity environments. Low heat emission improves comfort in poorly ventilated areas.

Industrial Facility Expansion

Multiple certifications (CE, UL, DLC, SAA) meet international safety requirements. Five-year warranty covers multi-phase construction timelines. Color temperature flexibility allows matching existing facility lighting standards.

About Razorlux

Since 1998, Razorlux Optoelectronic Technology has manufactured industrial LED lighting for construction, mining, and heavy industry applications. Our engineering team focuses on solving real-world problems: unstable power, extreme weather, and harsh physical environments.

All products undergo testing at our certified research facilities before reaching customers. We maintain direct relationships with contractors and facility managers to continuously improve product performance based on field feedback.

Technical Support FAQs

Which beam angle works best for my site layout?

It depends on mounting height and coverage area. For general recommendations:

· Ground-level lighting (3-5m mounting): 120° wide beam

· Mid-height poles (6-10m): 60° medium beam

· Tower cranes and high-mast (12m+): 15-20° narrow beam

We can provide photometric calculations based on your site plans.

Will these work with my portable generator?

Yes, if your generator provides 90-305V AC output. The built-in surge protection handles power quality variations typical of portable units. For best results, use generators with automatic voltage regulation.

How do LED flood lights compare to metal halide?

Key differences:

· LEDs start instantly (metal halide needs 5-10 minute warm-up)

· 70% less energy consumption

· 5x longer lifespan

· Consistent color temperature (metal halide shifts as bulbs age)

· Much lower heat emission

Can these operate in freezing temperatures?

Yes. Operating range is -40°C to +50°C. Unlike HID or fluorescent lights, LED output remains stable in cold weather. The sealed IP67 housing prevents ice formation and condensation.

What mounting hardware is included?

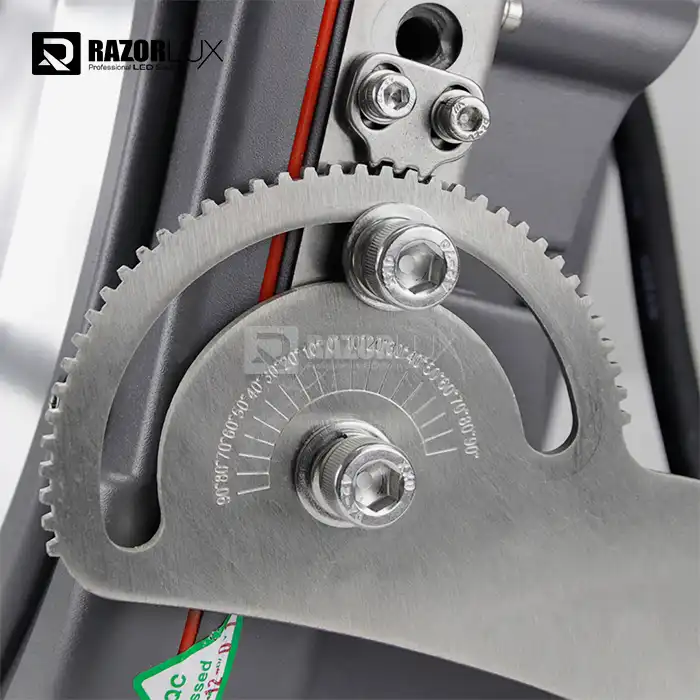

Each unit includes a stainless steel adjustable bracket compatible with:

· Standard tripod stands

· C-clamps (pipe diameter 25-60mm)

· Wall/pole mount brackets (sold separately)

· Magnetic bases (for steel structures)

Multiple units can connect via daisy-chain to reduce cable runs.
