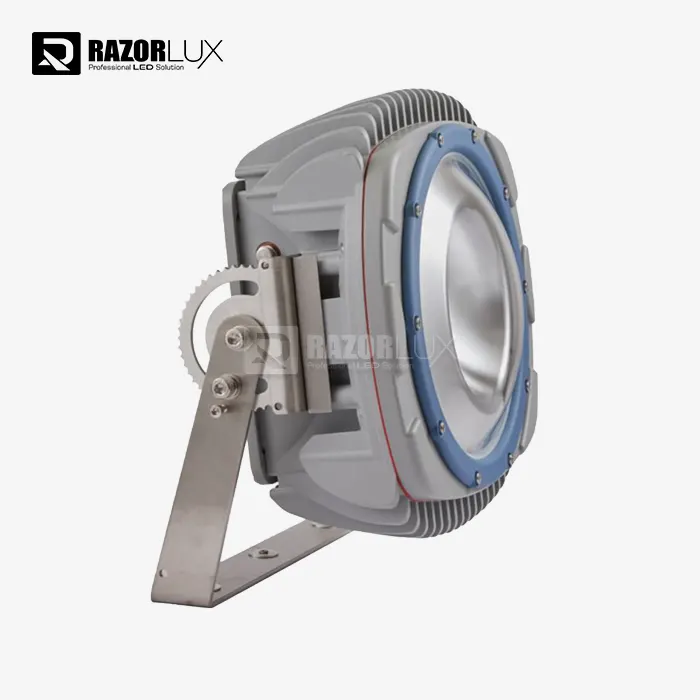

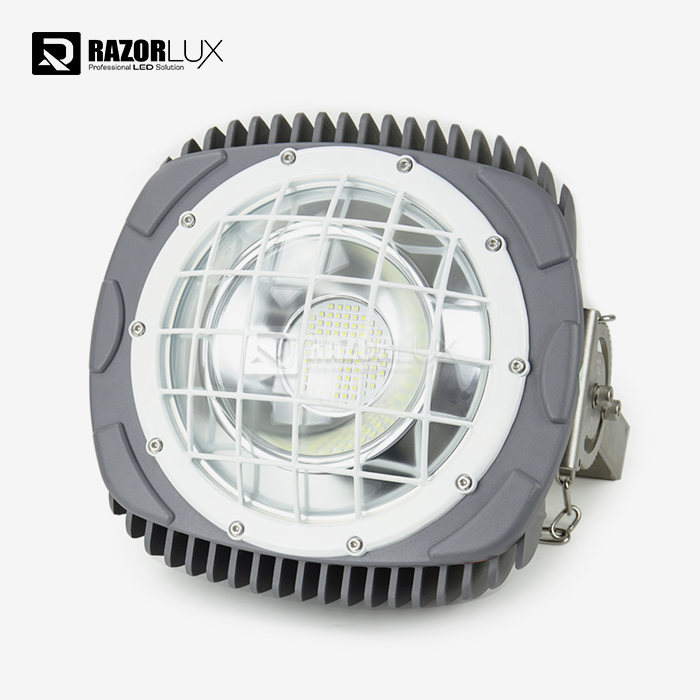

High Pole Garden Flood Lights 10800 Lm 90w Led Flood Light Ip67

Product Details:
Place of Origin: Shaanxi, China
Brand Name: Razorlux
Certification: RMRS, CE, C-tick, EMC, LVD, RoHS, SAA, UL
Model Number: RGL-90A
Packaging Details:
1.EPS Foam+carton(ONE UNIT PER CARTON)
2.Carton Size(mm):263*263*155
3.One 20'' Container can accept 250 Units
Supply Ability: 5000 Piece/Pieces per Month

Send Inquiry Download

Product Description

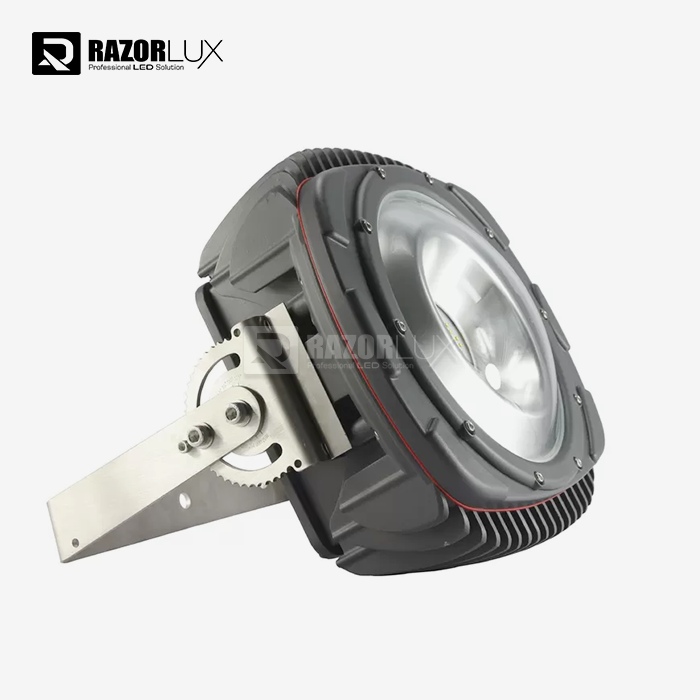

High Pole Garden Flood Lights 10800 Lm 90w Led Flood Light Ip67

For usage in gardens, parks, and commercial landscapes that need high-pole installation (6–12m), the RGL-90A offers 10,800 lumens at 90W power consumption. With a lifetime rating of over 50,000 hours and IP67 waterproof protection, the High Pole Garden Flood Lights 10800 Lm 90w Led Flood Light Ip67 reduces maintenance costs and provides steady light for large outdoor spaces.

High Pole Garden Flood Lights 10800 Lm 90w Led Flood Light Ip67

Parameters of High Pole Garden Flood Lights 10800 Lm 90w Led Flood Light Ip67

Model		RGL-90A
Beam Angle		60°/120°/140°x60°
Stable Flux (5700K after 1 hour)		14400 lm
Dimension (mm)		360x358x187mm
Power Consumption	LEDs	81W
	Driver	9W
	Total	90W
Replace HID Lamp		150-250W
Net Weight		8kg (17.6lbs)
Color Temperature		2000K - 6000K
Color Rendering		≥Ra80
Working Life		≥50000Hrs
Housing Material		Aluminum
Coating		Zinc Rich Paint
IP Class		IP 65 (Upgradeable to IP 67)
Insulation Class		Class I (Upgradeable to Class II)
Working Temperature		-40C ~ 60C / -40F ~ 140F
Working Humidity		10% ~ 95%
AC Input		80 ~ 315Vac, (347Vac available on request)
DC Input		80 ~ 400Vdc, (12Vdc, 24Vdc and other input available on request)
THD		<10%
Power Factor		≥0.98
Warranty	LED Module	5 years
	Driver	5 years
	Housing	10 years

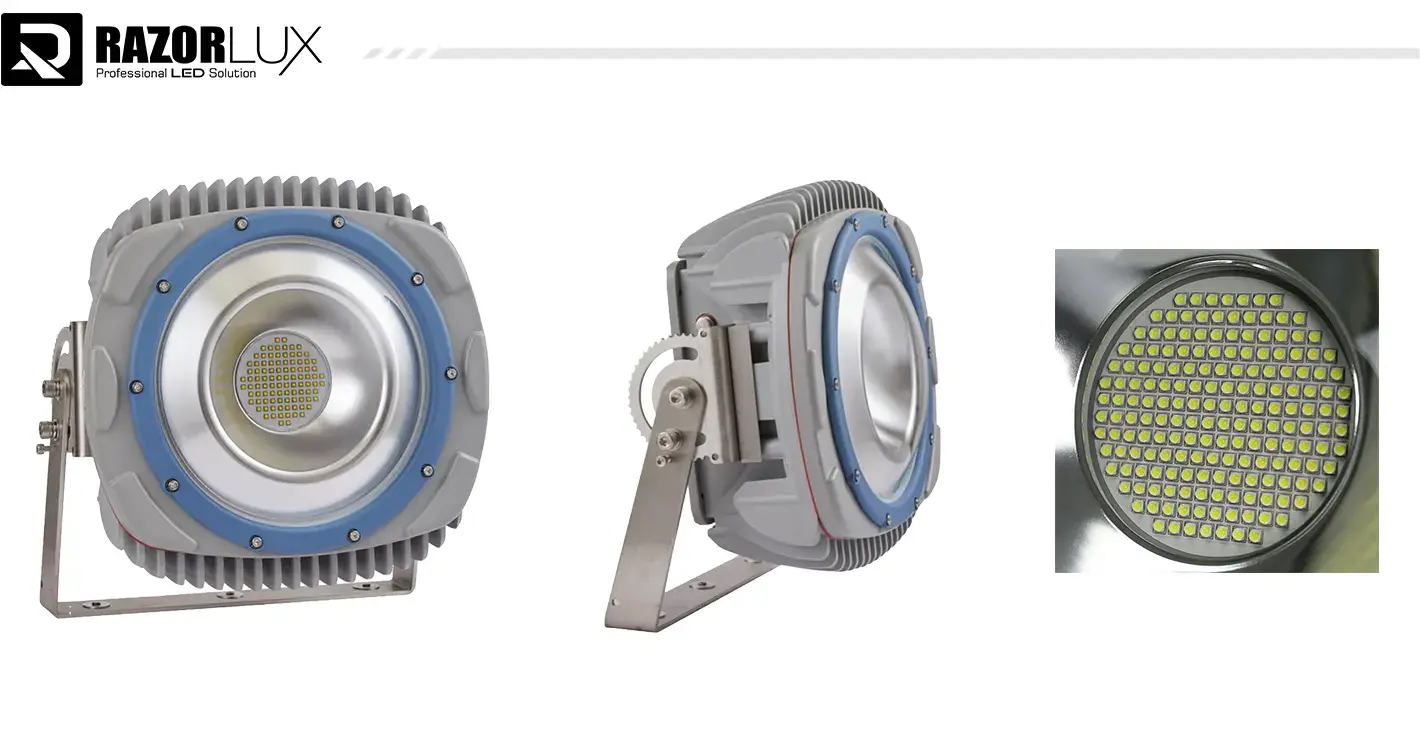

Qualification Certification

Why This Fixture Solves Common Outdoor Lighting Challenges

Engineered for Extreme Weather Durability

The enclosure is IP67 rated and is dust tight and immersion proof to 1 meter. Stainless steel 304 hardware and silicone gaskets for integrity in temperature fluctuations, heavy rain and highly humid environments.

Advanced Thermal Control

Optimised fin type heat sink limits the LED junction temperature below 85°C to avoid light deterioration. This heat management increases operating life to >50,000 hours, lowering replacement frequency 3-5x vs typical HID systems.

Precision Light Distribution

Available in 60°, 90° or 120° beam angles to suit your project requirements. Tempered glass lenses minimise light leakage and provide CRI >80Ra for true colour rendition of landscape and architectural elements.

Certification

Grid-Stable Performance

Isolated constant current driver with >0.95 power factor for steady output. Built-in 4kV-10kV surge protection against voltage spikes and lightning strikes, typical for outdoor installations.

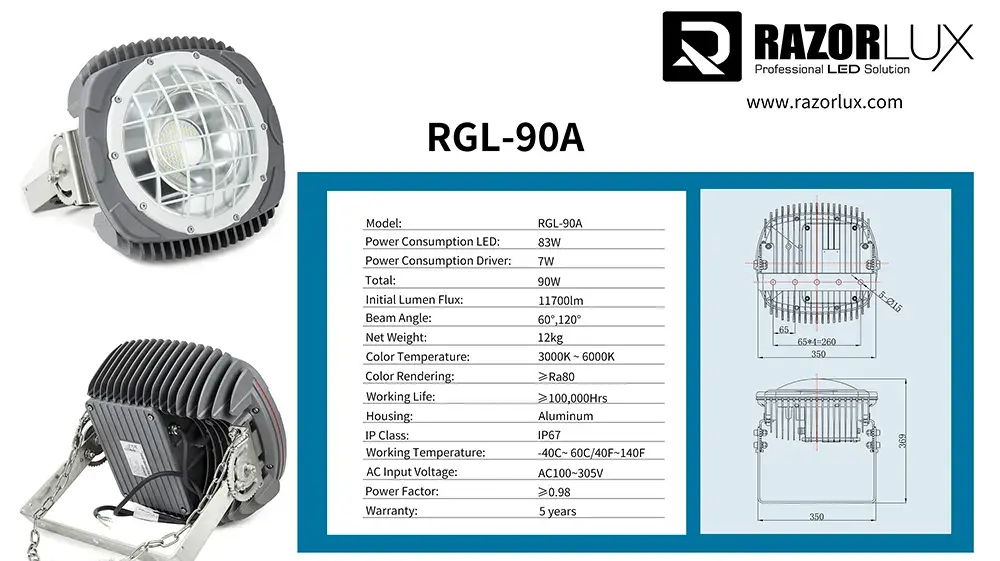

product-1-1

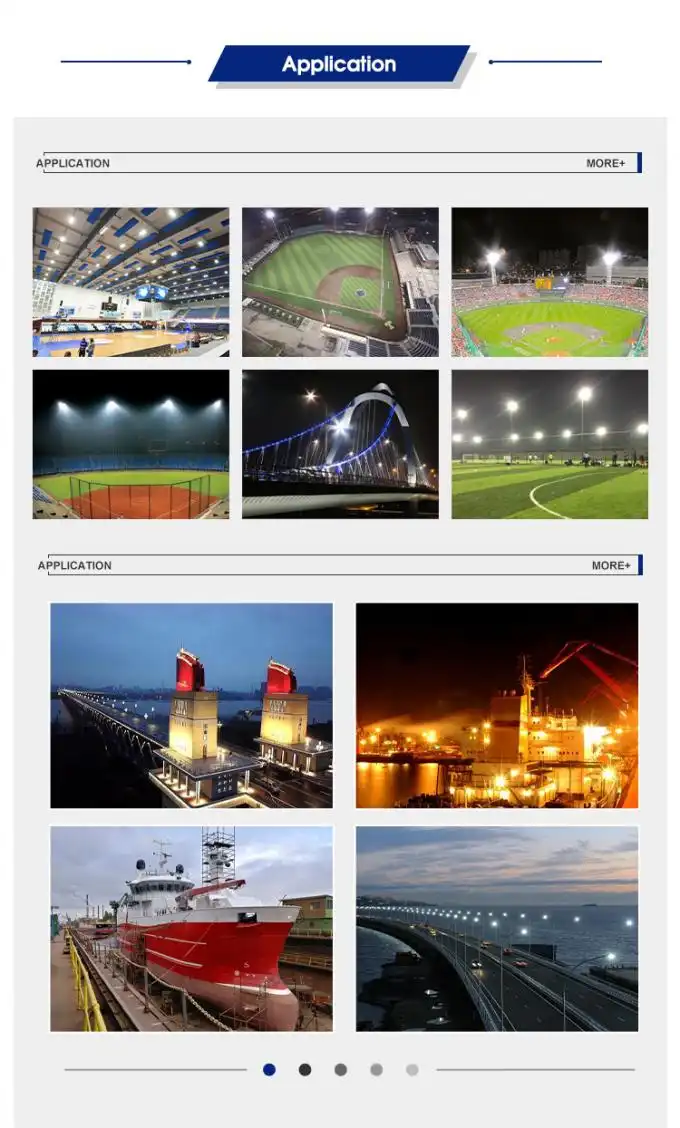

Ideal Applications

The following are applications for High Pole Garden Flood Lights 10800 Lm 90w Led Flood Light Ip67.

Municipal Parks & Plazas

EN13201 compliant pedestrian routes and recreational areas should be illuminated with fewer luminaires at 8-10m pole heights.

Business Environments

Hotels, resorts and corporate campuses discreetly attach high poles that accentuate architecture and mature trees without fixture clutter.

Outdoor Sports & Recreation

Glare control beam angles provide suitable nighttime lighting for tennis courts, basketball courts, and community activity areas.

Big Estate Gardens

Large private properties by choosing beam angles and mounting heights carefully minimise dark zones and reduce light trespass.

Frequently Asked Questions

What mounting height is recommended?

This fixture performs optimally at 6-12 meter pole heights. The 10,800-lumen output combined with selectable beam angles ensures proper ground illumination at these elevations.

How does it perform in harsh weather?

IP67 rated for total dust and submersion. The stainless steel fasteners and silicone gaskets preserve weatherproof integrity during freeze-thaw cycles and tropical humidity.

What is the real life span?

Rated for 50,000+ hours of operation (L70 grade) - roughly 11 years at 12 hours/day use. This is far longer than ordinary HID bulbs (8,000-15,000 hrs).

Can specs be tailored?

Yes. We accommodate custom wattage, color temperature, beam angles, mounting brackets, and control systems. Minimum order quantities apply for custom configurations.

How is heat managed?

Over the course of the fixture's life, the ADC12 die-cast aluminium housing with optimised fin design prevents thermal droop and maintains lumen output by keeping the LED junction temperature below 85°C.

What is container loading capacity?

250 units per 20' container. Each fixture ships in individual carton (263×263×155mm) with EPS foam protection for international transport.

Do you provide installation support?

We supply detailed installation manuals, wiring diagrams, and pole mounting specifications. Technical consultation available for complex projects.
