Heavy-Duty Mine Site Lighting: 800W LED Solutions Built for 24/7 Operations

Illuminate Your Mine Site Safely, Even in Extreme Conditions

Mining operations can't afford lighting failures. Razorlux's 800W mine site lighting are engineered specifically for harsh mining environments—from open-pit haul roads to underground tunnels. With proven performance in temperatures ranging from -40°C to +60°C and IP67 waterproof protection, our lights keep your crew safe through dust storms, equipment vibrations, and power fluctuations that would destroy ordinary fixtures.

Mine Site Lighting Specifications

Why Mining Operations Trust Razorlux

1. Built to Survive Your Toughest Conditions

The Problem: Standard industrial lights fail within months due to mining vibrations, corrosive chemicals, and extreme weather.

Our Solution: Marine-grade stainless steel construction with IP67 sealing. No fragile filaments to break—solid-state LEDs handle continuous vibration from drilling and heavy machinery. Our mine site lighting stay operational through high-pressure washdowns and chemical exposure that corrode ordinary fixtures.

Real-World Performance: 50,000+ hour lifespan means 5+ years of 24/7 operation with minimal maintenance.

2. Instant Light When Power Returns

Generator-powered sites experience frequent voltage drops. Unlike traditional HID lamps that need 15-20 minutes to restart, our LEDs restore full brightness instantly—critical for operator safety during power restoration.

The wide voltage range (AC 90-305V) keeps lights stable even when your generator struggles or you're running on backup solar trailers.

3. Precision Lighting That Reduces Accidents

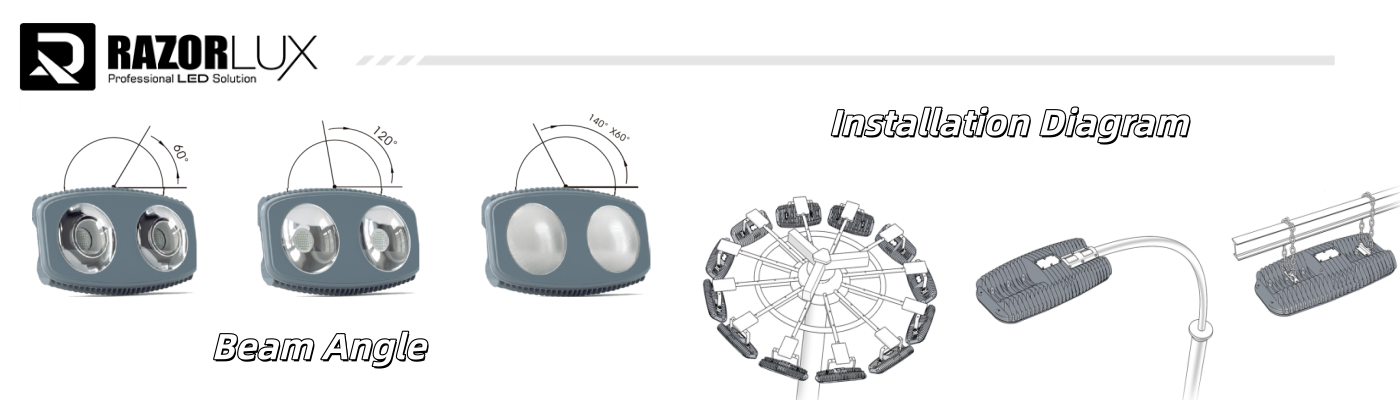

Choose from 7 beam angles to put light exactly where your crew needs it:

· Narrow beams (15°-30°): Focused task lighting for loading zones

· Medium beams (40°-60°): Haul road illumination from elevated masts

· Wide asymmetrical (140°x60°): Ground coverage that minimizes operator glare

Better visibility means fewer equipment collisions and faster hazard identification.

4. Lower Operating Costs

At 130 lumens per watt, you get more light while consuming less power than older HPS lamps. This translates to:

· Reduced generator fuel consumption

· Lower electricity bills for grid-connected sites

· Fewer lamp replacements (saving labor and inventory costs)

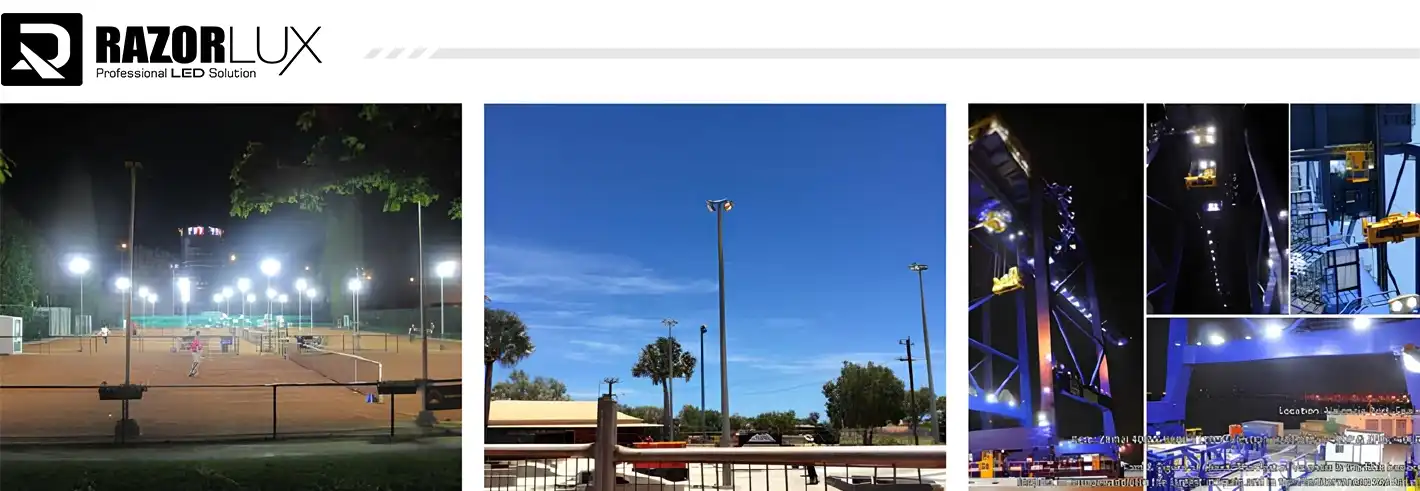

Where to Use These Lights

Open-Pit Mines

Mount on 30m masts to illuminate haul roads and excavation benches. The 40°/60° beam options provide even coverage for safe night-shift navigation and wall stability inspections.

Underground Operations

Low-profile design fits tunnels with limited headroom. IP67 rating protects against water drips and flooding during dewatering. Resists vibration from blasting that kills traditional lamps.

Processing Plants

Stainless steel brackets withstand caustic slurries and chemical cleaning. Choose cooler (5000K-6500K) color temperatures for quality control inspections where accurate color rendering matters.

Mobile Equipment

Dual AC/DC voltage works with generator-powered light towers. 15kg reinforced mounting stays secure on draglines, shovels, and haul trucks during movement.

Common Questions

Q: Will these lights survive extreme cold in northern mines?

A: Yes. Our thermal management system maintains performance from -40°C to +60°C. Copper heat pipes and aluminum extrusions prevent LED degradation in extreme temperatures.

Q: What if my generator power is unstable?

A: The AC 90-305V input range handles significant voltage swings. Built-in 10kV surge protection guards against damage during generator startups and load switching.

Q: Which beam angle should I choose?

A: For elevated mounting (20-30m): Use 40° or 60° beams. For focused task areas: Choose 20° or 30°. For ground lighting with minimal glare: Select the 140°x60° asymmetrical option. We provide photometric layouts to help you decide.

Q: Can I dim these lights?

A: Standard models support 0-10V dimming. We offer custom DALI and wireless control versions—contact us to discuss your automation needs.

Q: How do I prevent glare affecting operators?

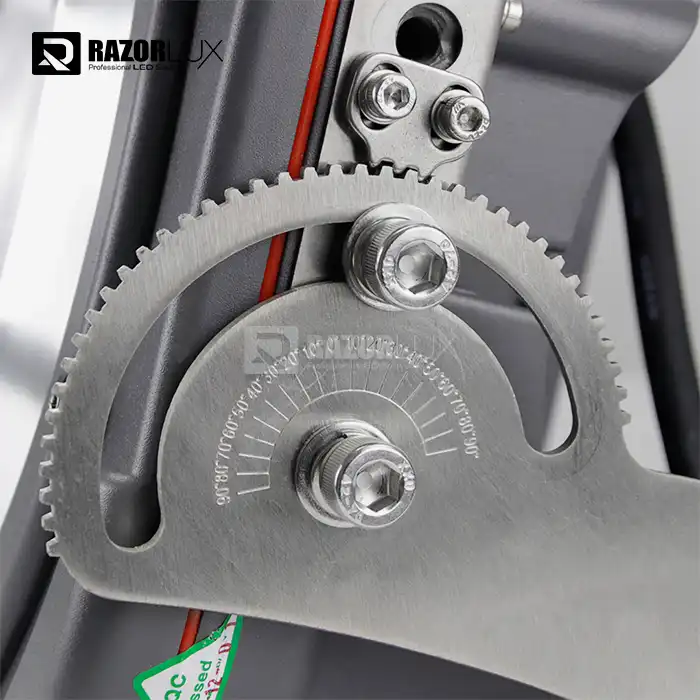

A: Proper aiming is key. The 140°x60° asymmetrical beam directs light downward. Our team provides aiming angle specifications to eliminate glare zones near operator sightlines.

Get Expert Lighting Design for Your Site

Every mine is different. Our technical team provides customized lighting layouts based on your specific:

· Site dimensions and topography

· Equipment traffic patterns

· Power infrastructure

· Budget and timeline
