2 Head Led Flood Light

2 Head LED Flood Light | 1200W Dual-Beam Industrial Lighting

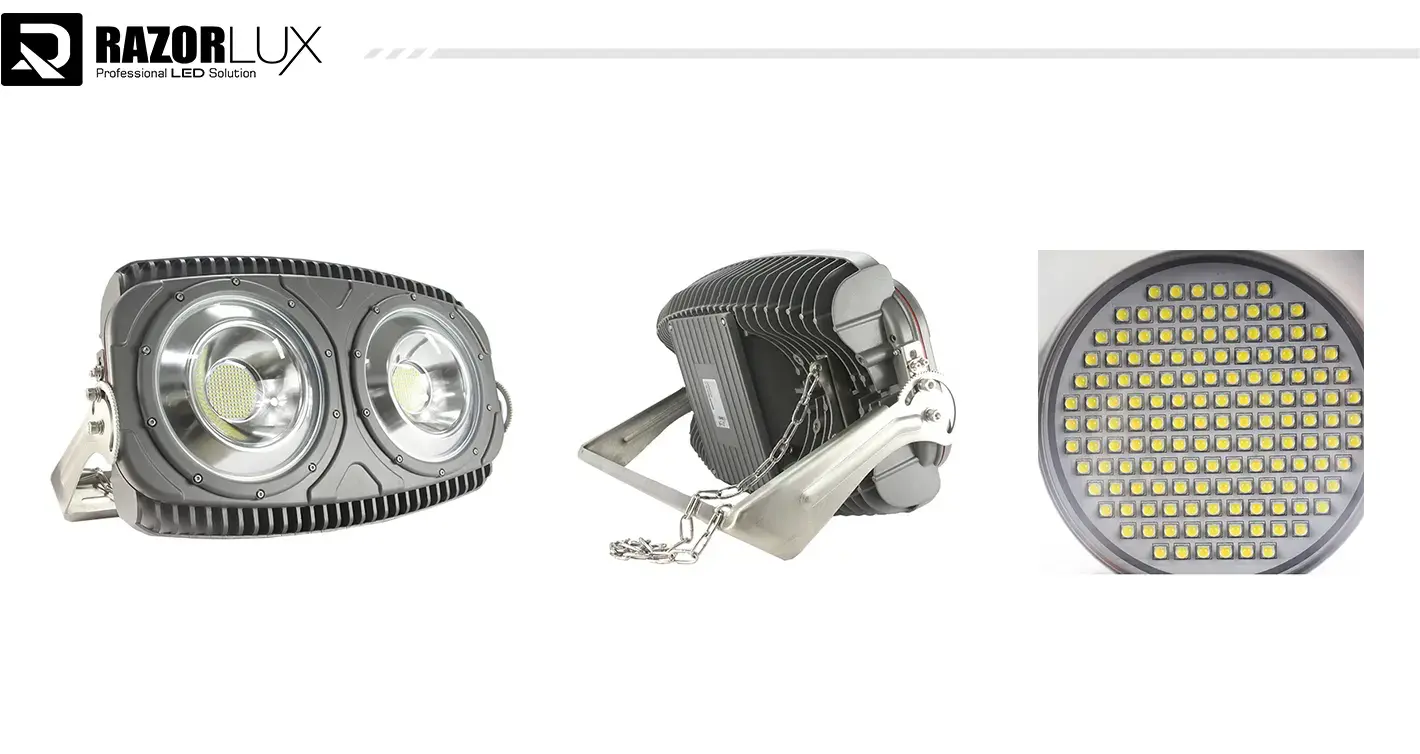

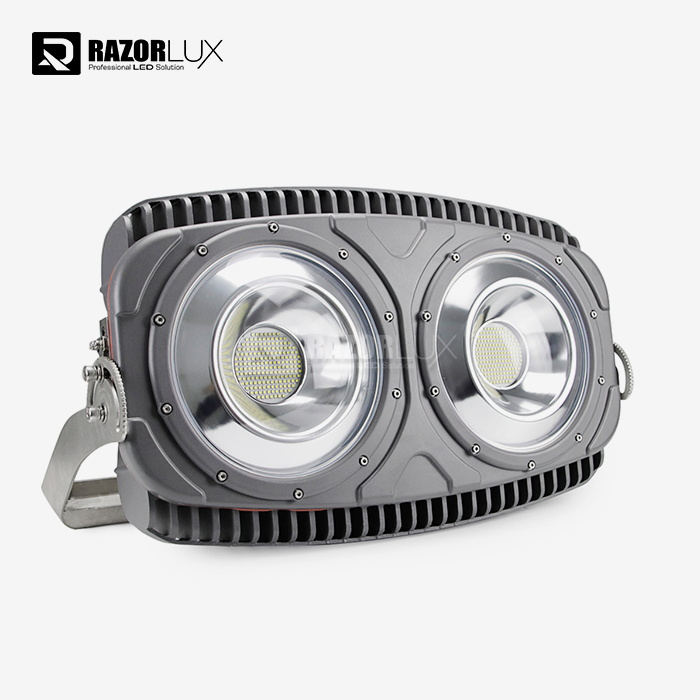

Product Overview

The Razorlux 2 Head LED Flood Light has two separately movable beams that give off 156,000 brightness. It was made for places like factories that need to move a lot of stuff. These 1200W systems can be used instead of 3000W metal halide lights, which helps the environment by 85%. The case is made of die-cast metal and is rated IP67. The frames are made of 316 stainless steel. It works effectively in temperatures from -40°C to +55°C and lasts for at least 50,000 hours.

2 Head Led Flood Light Specifications

Key Advantages

Flexible Coverage Design

With two heads that can turn independently, the height can be changed by 180° up or 350° down. With this set up, you don't need to add more lights to get rid of blind spots in L-shaped rooms or building corners.

Wide Voltage Compatibility

Built-in 4kV surge protection keeps it stable from 90V to 305V AC or 127V to 431V DC. Good for places where the power lines aren't always on and for construction sites that use generators.

Verified Durability

For 30 minutes, an IP67 grade was put under water to test it. 2 Head Led Flood Light has been certified by C5M as anti-corrosion, which means it will work for more than 25 years in chemical and marine environments. All units are put through a 48-hour burn-in test before they are sent out.

Precision Beam Control

Seven beam angle options (15° to 140×60°) with IES-verified light distribution. Anti-glare lens design reduces light trespass by 40% compared to standard flood lights.

Applications

Industrial Facilities

Loading docks, warehouses, and manufacturing plants benefit from corner-mounted dual-head configuration. Provides 30-50 footcandle illumination meeting OSHA workplace standards.

Commercial Properties

Parking structures and shopping centers use adjustable heads to simultaneously light pedestrian walkways and vehicle zones. Reduces total fixture count by approximately 30%.

Infrastructure Projects

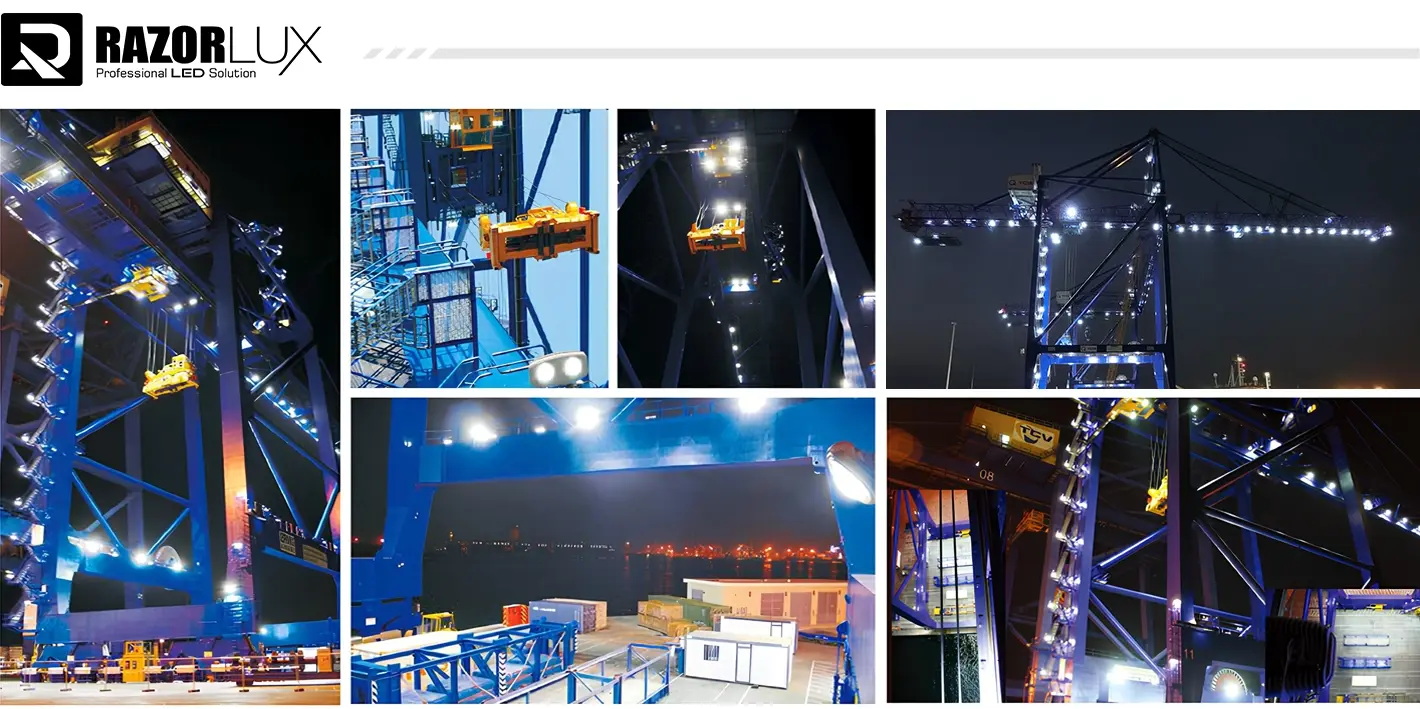

Highway interchanges, railway stations, and ports utilize the wide voltage range during construction phases. Specified in projects for China Mobile and Guodian Group infrastructure.

Hazardous Locations

Certified for Zone 2/Division 2 areas in refineries and chemical plants. Explosion-proof housing complies with ATEX and IECEx directives.

Sports Facilities

Training fields and outdoor courts benefit from adjustable 2700K-6500K color temperature. High CRI rendering supports accurate color perception requirements.

Quality Testing Process

Waterproof Validation

IPX7 immersion testing for 30 minutes at 1-meter depth. Gasket integrity specifically tested around swivel joints.

Burn-In Protocol

48-hour operation cycle with voltage fluctuation (85-305V) identifies early failures. Thermal imaging confirms heat sink performance under full load.

Photometric Measurement

Integrating sphere testing verifies luminous flux within ±5% tolerance. IES files provided from goniophotometric testing.

Impact Testing

IK08 rating confirmed with 5-joule impact (1.7kg mass from 295mm height). Knuckle joints torque-tested to maintain position under 120 km/h wind loads.

Surge Protection

Tested against 4kV differential mode and 6kV common mode surges per IEC 61000-4-5.

​​​​​​​

Frequently Asked Questions

Can this replace 1000W metal halide fixtures?

Yes. The 1200W LED provides equivalent illumination to 3000W metal halide systems with 85% energy savings. Eliminates 15-minute restrike delay and frequent bulb replacements.

How are the heads adjusted?

Loosen knuckle bolts with 13mm wrench, rotate to desired angle, retighten to 45 Nm torque. Adjustment mechanism maintains position through vibration and temperature changes.

Is dimming available?

0-10V analog and DALI digital dimming options available. Dimming range: 10-100% without flicker or color shift. Specify requirements when ordering.

Is this suitable for coastal environments?

Yes. C5M anti-corrosion rating certifies performance in high-salinity marine atmospheres per ISO 12944-2. 316 stainless steel bracket resists saltwater exposure. Quarterly cleaning recommended in extreme salt spray zones.

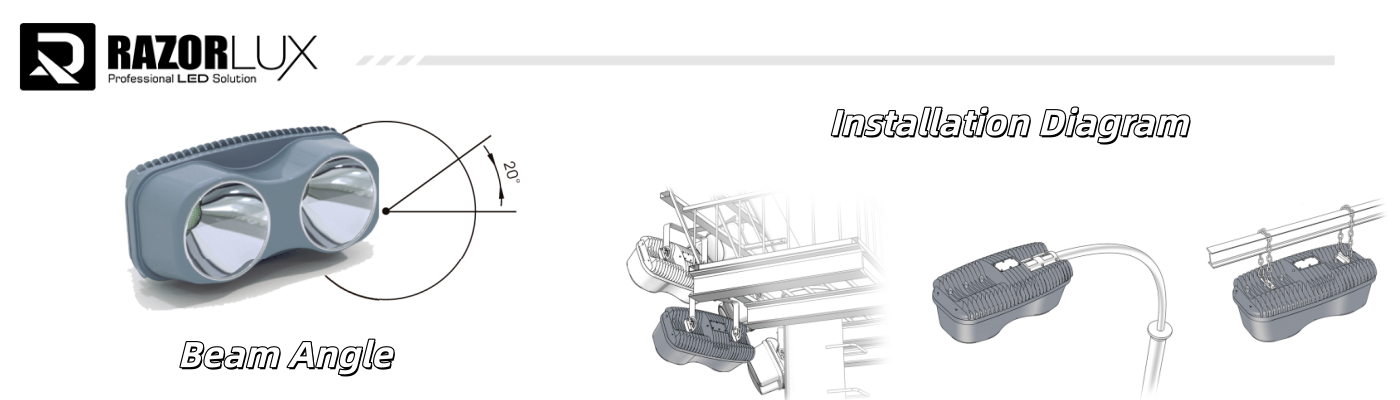

What mounting options are available?

76mm slip fitter for pole mounting with two M10 bolts. Wall mounting uses four anchor points with M12 chemical anchors rated for substrate type.
