Black Exterior Flood Lights

Black Exterior Flood Lights - Industrial & Marine Grade Solutions

Professional Illumination for Demanding Environments

The Black Exterior Flood Lights from Xi'an Razorlux have a patented multi-function design, 500W of power, and 130LM/W of economy. These parts were made to work in harsh environments, like ports, mines, and factories. They are protected by IP67 and can handle a wide range of voltages (AC90–305V, DC127–431V). Our 5-year guarantee backs up the steady performance of the architectural-grade black finish, which fits in perfectly with modern buildings.

Black Exterior Flood Lights Specifications

Core Engineering Advantages

1. Thermal Management for Dark Finishes

Silver lights don't soak up as much sun energy as black ones do. Our answer: a better heat sink shape made of ADC12 die-cast aluminium with the right amount of space between the fins.

In the real world, thermal imaging tests done in 45°C air show that LED junction temperatures stay below 85°C, which is well within the safe operating range. Lower-quality finishes often chalk and change colour, but UV-stabilized powder coating doesn't do that.

2. Stealth Architectural Integration

More and more, modern building design calls for infrastructure that can't be seen. Architects use the term "design silence" to describe a finish that is matte black and makes lighting effects stand out while fixtures are less noticeable.

When compared to regular shields, special internal filters cut glare by 40%. Building surfaces keep their clean lines and get the right amount of light.

3. Marine-Grade Construction

The fact that these fittings are C5M certified means that they can withstand the most acidic conditions:

·Tests with salt spray: 3000 hours or more (10 times the industry standard)

·316 stainless steel brackets are better for coastal uses than 304 grade

·Silicone gasket sealing: keeps IP67 grade after 500+ heat cycles

A big port company in Australia said that after 3 years of constant ocean exposure, none of the more than 200 units had any rust problems.

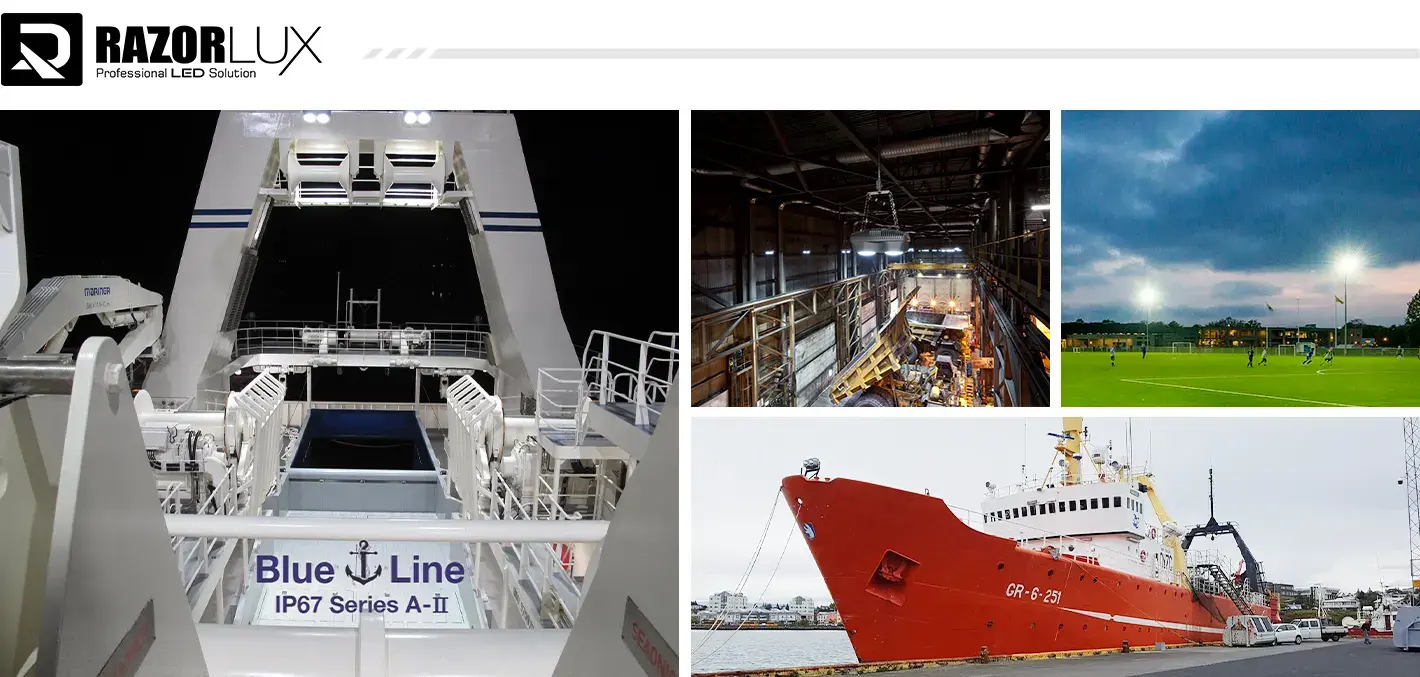

Application Guide

We recommend upgrading the lighting system to Black Exterior Flood Lights.

Port & Harbor Operations

Challenge: Fluctuating generator power, saltwater corrosion, 24/7 operation demands.

Solution: Wide voltage tolerance handles ±30% power swings without dimming. Beam angle options (60° for general yards, 20° for crane paths) optimize coverage with fewer fixtures. IP67 rating withstands high-pressure washdowns.

Heavy Industry & Manufacturing

Challenge: Vibration, airborne contaminants, expansive coverage areas.

Solution: Robust 15KG construction dampens vibration transmission. 500W output covers 400-600m² per fixture depending on mounting height. Sealed optics prevent dust accumulation that degrades light output.

Energy consideration: 130LM/W efficiency qualifies for utility rebates in most regions—offsetting 20-30% of initial cost.

Mining & Remote Sites

Challenge: Off-grid power, extreme dust, physical impacts.

Solution: DC voltage compatibility (127-431V) works with solar arrays and battery banks. IP67 protection tested with talc powder ingress testing. Stainless brackets survive accidental equipment contact.

Maintenance advantage: 50,000-hour L70 lifespan (>5 years at 24/7 operation) minimizes lamp replacement in difficult-access locations.

Commercial & Institutional Buildings

Challenge: Aesthetic requirements, color consistency, smart controls.

Solution: Color temperature options (2700K-6500K) match architectural lighting schemes. High CRI (Ra>75) ensures accurate rendering of building materials. Optional DALI/0-10V dimming integrates with building management systems.

Design benefit: Black finish complements contemporary materials like Cor-Ten steel, charcoal concrete, and dark metal cladding.

Manufacturing Standards

ISO:9001 certified since 2002—representing 22 consecutive years of audited quality management. Our production facility implements:

· Incoming component inspection (AQL 1.5 sampling)

· 100% pre-shipment photometric testing

· Extended burn-in testing (72 hours at elevated temperature)

Marine Environment Validation

C5M rating (ISO 12944 classification) confirms suitability for:

· Offshore platforms

· Coastal infrastructure within 300m of surf zone

· Desalination plants

· Chemical processing facilities

Third-party salt spray testing available upon request.

Selection & Customization

Choosing the Right Beam Angle

Available Customizations

· Dimming protocols: 0-10V, DALI, DMX512

· Motion sensors: Integrated occupancy detection

· Emergency backup: Battery pack options for egress lighting

· Color temperature: Fixed or tunable white systems

Technical specification sheets available for engineering review.

Frequently Asked Questions

Q: How does black housing affect long-term performance versus standard finishes?

A: Our enhanced thermal design compensates for increased solar absorption. Comparative thermal testing shows less than 5°C difference in LED junction temperature versus silver housings under identical conditions. This negligible variance doesn't impact the 50,000-hour rated lifespan.

Q: Will these fixtures work with my generator power supply?

A: The AC90-305V input range accommodates virtually all generator outputs, including voltage sag during motor starts. For DC systems (solar/battery), the 127-431V range covers standard 120V, 240V, and 380V nominal battery bank voltages.

Q: What's the actual coverage area per fixture?

A: Variables include mounting height, beam angle, and required lux levels. As a reference: one 500W unit with 60° beam at 10m height covers approximately 400m² to 50 lux (typical parking lot standard). contact us for photometric layouts specific to your project.

Q: How do these compare to LED High Bay Lights for warehouse use?

A: High bays typically use narrower reflectors optimized for overhead mounting. Our flood lights offer wider beam distributions better suited for perimeter coverage and exterior applications. For interior spaces over 8m ceiling height, high bays generally provide more efficient distribution.

Q: Can I get a sample before bulk ordering?

A: Sample units available for evaluation. Contact our team to discuss your project requirements and testing criteria.
