External Led Flood Lights

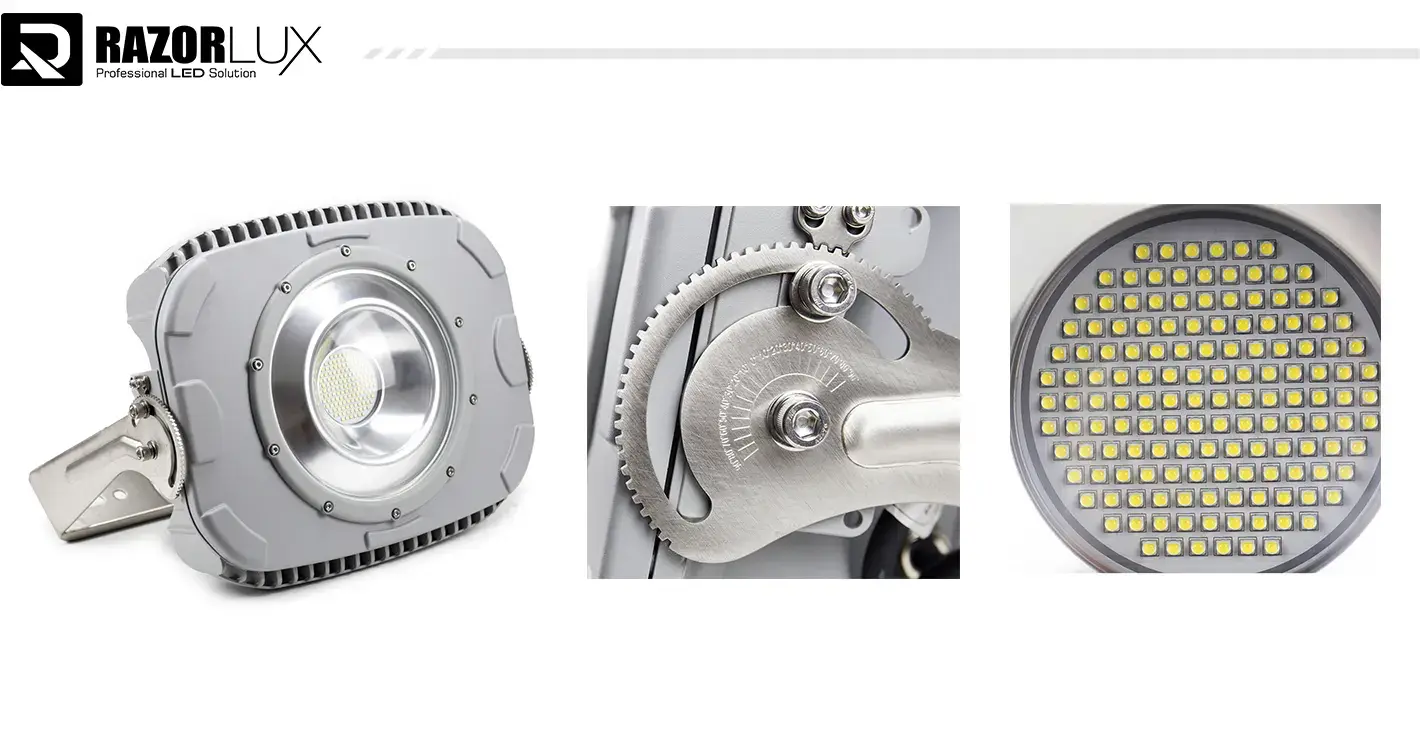

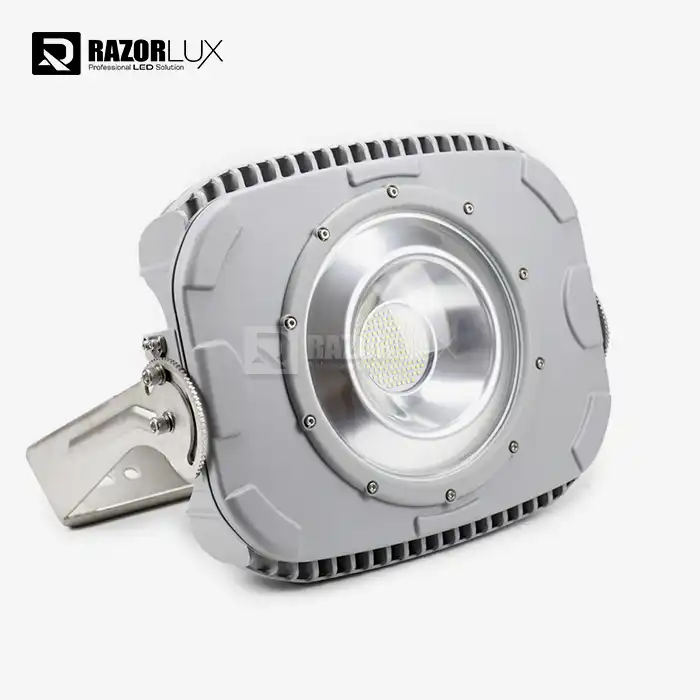

External LED Flood Lights - Industrial-Grade High-Power Lighting

Patented Multi-Function Design for Extreme Environments

Razorlux's External LED Flood Lights are the result of more than 20 years of experience in power engineering and cutting edge technology for managing heat. Our 400W lights work with AC90-305V and DC127-431V voltages and are 130LM/W efficient. This makes it possible for commercial settings to use stable power. With an IP67 rating for protection, C5M marine-grade rust resistance, and adjustable beam angles (15° to 140°), these lights work well in factories, ports, and building projects all over the world.

External Led Flood Lights Specifications

Where These Lights Excel

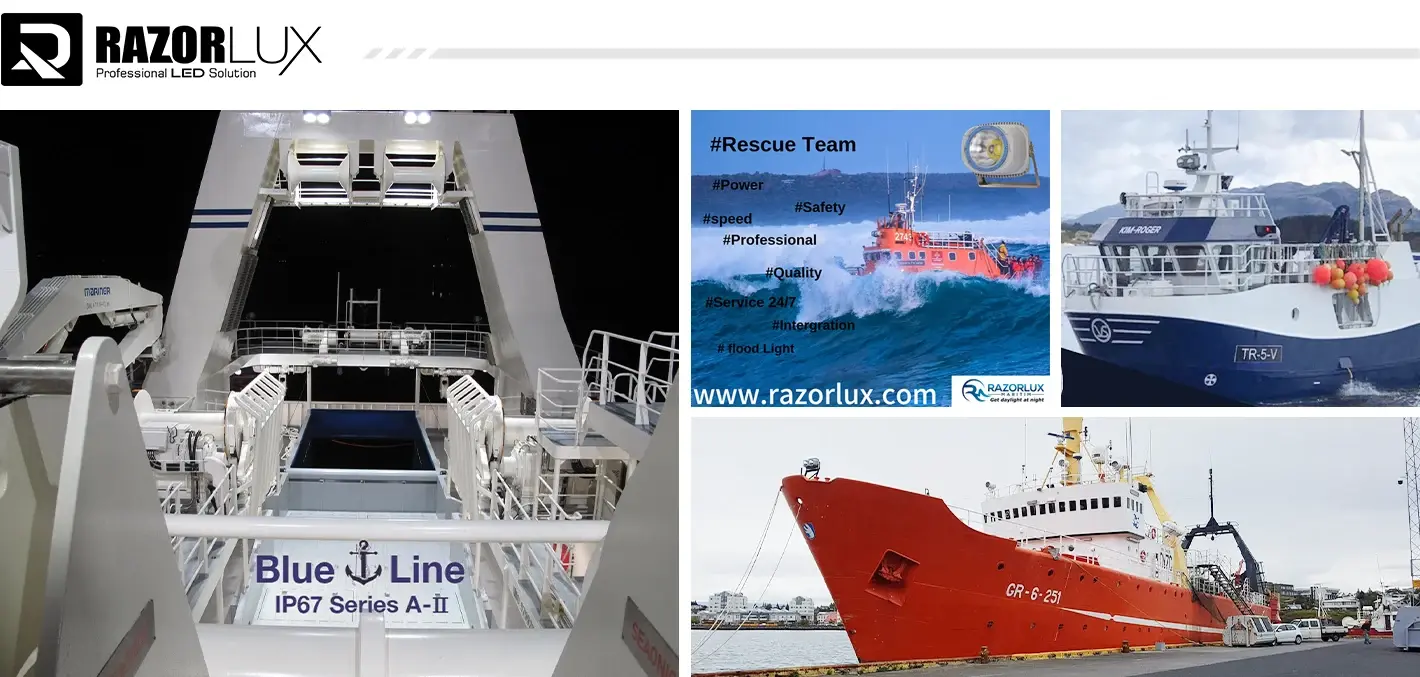

Ports and Cargo Terminals

Working 24 hours a day, seven days a week in salty air requires lighting that won't rust. The C5M-rated finish and stainless steel frames can handle the rough conditions at the coast, and the wide voltage range can handle the changes in the power grid that are common in port systems. It can be used for projects 15 to 40 meters high.

Heavy Manufacturing Plants

Heavy machinery can cause damage to regular fixtures through vibration. The strong 15KG build can handle shocks in steel mills and manufacturing lines. When workers are on 12-hour shifts, flicker-free output makes their eyes less tired.

Outdoor Storage Yards

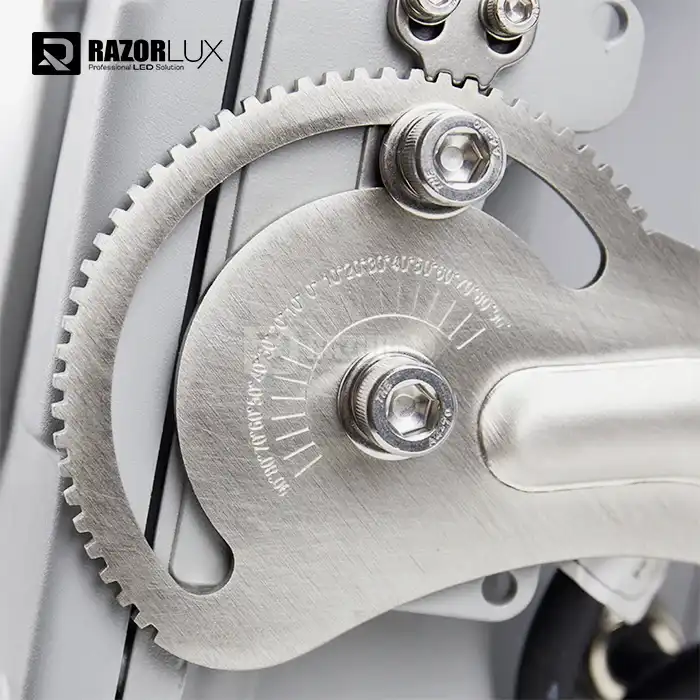

Beam angles range from narrow 15° spots to wide 120° flood coverage, so you can change how the light is spread to suit your needs. High CRI>75 makes surveillance cameras better at keeping an eye on large open areas for security.

Transportation Infrastructure

As a safety measure, airports and train yards need quick lighting. These units work steadily from -40°C to +50°C and go from dim to full light right away.

Key Performance Features

Wide Voltage Compatibility

In grids that aren't stable, the AC90-305V and DC127-431V range gets rid of the need for voltage controllers. Facilities that use generators or have power that changes often can keep their lights on without having to buy extra equipment.

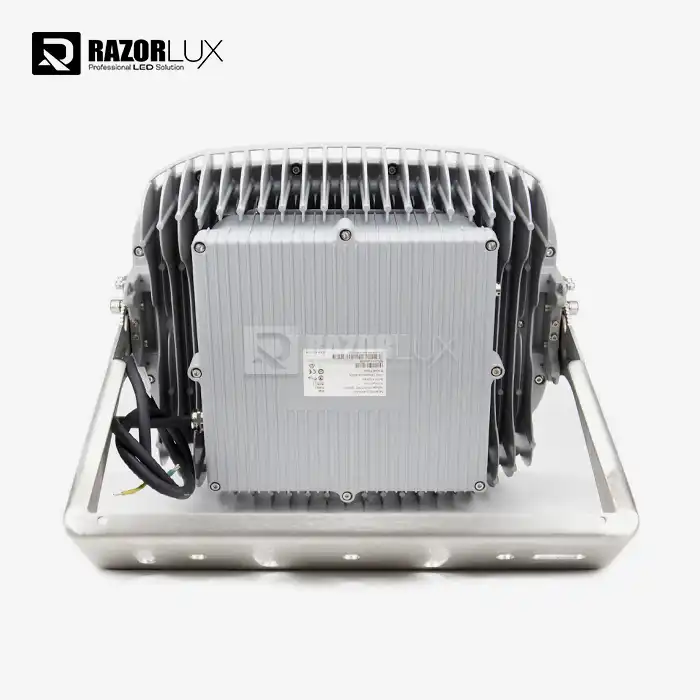

Advanced Thermal Management

LED junction temperatures stay below critical levels thanks to precision-engineered heat sinks. This stops light loss and early failure, so fittings can last their rated 50,000 hours or more, even in 50°C temperatures.

Complete Environmental Protection

IP67-rated housing provides dust-tight sealing and submersion protection to 1 meter depth. Integrated 10kV surge protection defends against lightning strikes and motor-switching transients in industrial power networks.

Manufacturing Quality Standards

Razorlux operates an LED Lighting Engineering Laboratory authorized by China's National Development and Reform Commission. Our testing protocols include:

· 48-hour full-load burn-in tests

· Hi-pot electrical insulation verification

· ASTM B117 salt spray exposure testing

· Vibration resistance validation per IEC 60068

Every External Led Flood Light is backed by ISO9001 quality systems maintained since 2001.

Common Questions

At what height should the mount be for each beam angle?

For 8–12 m poles, use bars that are 60° to 120° wide to cover a large area. Lights above 20 meters high need narrow beams ranging from 15° to 30° to reach far away and cause as little light pollution as possible.

How does a wide voltage range lower the cost of installation?

Voltage regulators are not needed because it works with AC90-305V. Facilities don't have to buy new equipment and don't have to deal with power outages, which is especially helpful in rural areas or areas where the grid isn't stable.

Can these stand up to being near the coast?

The highest anti-corrosion rating that can be given is the C5M certification. The marine-grade powder finish and stainless steel construction keep them from rusting from salt spray, so they can be used in ports, offshore platforms, and seaside sites.

What surge protection is included?

Integrated SPD devices rated at 10kV (Line-Earth) protect against lightning strikes and industrial power transients from heavy motor switching. This is critical in storm-prone areas or facilities with large inductive loads.

How long until I receive custom samples?

Our prototyping service delivers samples with your specified wattage, color temperature, and mounting configuration within 2-3 weeks. This allows performance validation before committing to volume orders.

Contact Us

For technical specifications, project consultation, or custom quotations:

Contact our External Led Flood Lights' team:sam@razorlux.com
