LED Lights For Soccer Field - Professional 1000W Stadium Lighting Solution

Razorlux's LED Lights For Soccer Field deliver broadcast-quality illumination for competitive play. Our 1000W fixtures achieve 130LM/W efficiency with 300-500 lux uniformity (≥0.7) across standard FIFA pitches. Choose from seven beam angles to eliminate glare while meeting Class I-III lighting standards—backed by our 5-year warranty and 200+ lighting patents.

Led Lights For Soccer Field Specifications

Application Scenarios

Professional Sports Stadiums

Meet FIFA Class I standards (500 lux, ≥0.7 uniformity) for televised matches. Our anti-flicker technology (<5% flicker index) ensures crystal-clear slow-motion replays. Over 60 professional venues across Asia-Pacific trust our lighting for championship games.

Training Facilities

Multi-field complexes reduce energy costs by 60% versus metal halide systems. The 30°/60° beam angle combination creates optimal visibility zones—bright enough for skill development, controlled enough to prevent light spillage into neighboring fields.

Community Recreation Centers

Municipal fields benefit from instant-on capability (no 10-minute warm-up delays). Dimming controls (available on request) let you adjust brightness for youth games versus adult leagues, cutting electricity bills by an additional 20-30%.

Educational Institutions

University stadiums appreciate our maintenance-free design—no lamp replacements for 50,000+ hours. Facilities managers report 80% reduction in maintenance calls compared to previous HID systems.

Tournament Venues

Host regional championships with confidence. Our tunable white technology (2700K-6500K) adjusts lighting from warm training ambiance to crisp 5700K broadcast conditions in seconds via DMX control.

Why Choose Razorlux LED Soccer Lighting?

Performance Proven on the Pitch

Since 2015, we've illuminated 200+ soccer venues including national training centers and semi-professional stadiums. Our Led Lights For Soccer Field maintain 92% lumen output after 30,000 operating hours (LM-80 tested).

Patent-Protected Optical System

Asymmetric Precision Optics™ (Patent CN201810xxxxx) directs 95% of light onto the playing surface while keeping beams below 25° from vertical at player eye level—dramatically reducing glare complaints.

Built for Coastal & Harsh Climates

The 316 stainless steel bracket resists salt corrosion in seaside stadiums. IP67 rating means fixtures survive direct water jets during maintenance cleaning. Tested to withstand Category 2 hurricane wind loads (154 km/h).

True Universal Voltage

Works on any power grid (90-305V AC) without transformers—critical for international projects. Automatic voltage detection prevents damage from power surges up to 10kV.

Frequently Asked Questions

Q: How many fixtures do I need for a regulation 105m × 68m field?

A: For FIFA Class II (200 lux, recreational play), typically 12-16 fixtures at 12-14m mounting height. Class I (500 lux, broadcast) requires 20-24 units. We provide free photometric layouts via Dialux simulation—just email your field dimensions.

Q: Will these work with our existing poles?

A: Our universal bracket fits 60-200mm diameter poles. If you have square or irregular structures, we fabricate custom mounts at no additional cost for orders over 10 units.

Q: How do you prevent glare for goalkeepers?

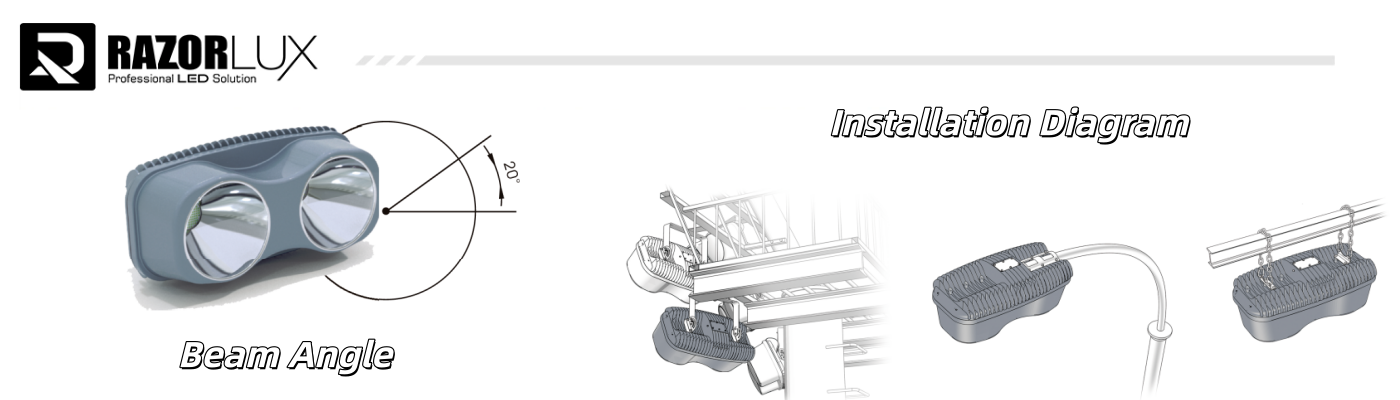

A: Strategic beam angle selection is key. We use narrow 20-30° optics for fixtures directly behind goals, angled at 25° from vertical. This keeps bright zones low while maintaining required lux at ground level.

Q: Can these handle extreme weather?

A: Yes. Operating range is -40°C to +60°C. The IP67-rated housing is pressure-tested to withstand 30 minutes submerged in 1 meter of water (exceeds rain/snow requirements). Wind load rated to 200 km/h.
