Sports Field LED Flood Lights - Professional-Grade Stadium Lighting Solutions

Engineered for High-Performance Sports Venues

Every little thing matters when athletes compete under lights. The Razorlux Sports Field LED Flood Lights are the result of 26 years of experience in LED engineering and design that is focused on performance. Our 1200W system has a 130 LM/W efficiency and a beam angle range of 15° to 140°. It meets international standards for professional sports broadcasts and competition. It is protected by an IP67 rating and comes with a 5-year guarantee.

Quick Look at the Most Important Benefits:

Free of flickering for 4K streaming support

Over 50,000 hours of use with maintenance of over 70% lumen

Ground-level flexible driver design that can be fixed

Voltage input ranges from 90V to 305V AC or 127V to 431V DC.

​​​​​​​

Sports Field Led Flood Lights Specifications

Product Advantages

1. Thermal Management for Extended Lifespan

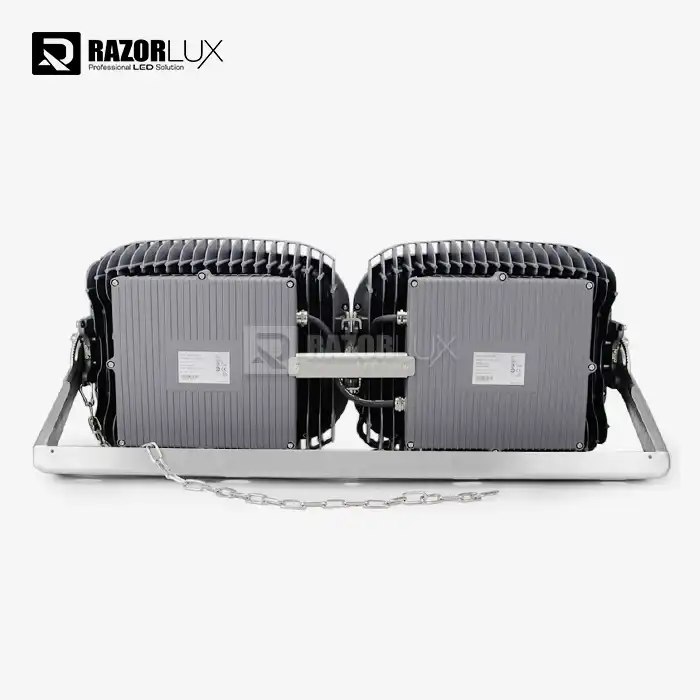

Cold-forged aluminum heat sink keeps LED junction temperature below 85°C at full output. Multi-fin architecture maximizes natural convection cooling, extending operational life beyond 50,000 hours with consistent brightness throughout.

Performance validation: LM-80 and TM-21 test reports confirm >70% lumen retention after 50,000 operating hours.

2. Broadcast-Quality Lighting

Flicker-free drivers with <1% ripple current eliminate stroboscopic effects during high-speed recording. Designed for professional broadcasts with frame rates exceeding 1000 fps and TLCI color consistency standards.

Camera operators and broadcast technicians report smooth slow-motion playback without banding artifacts.

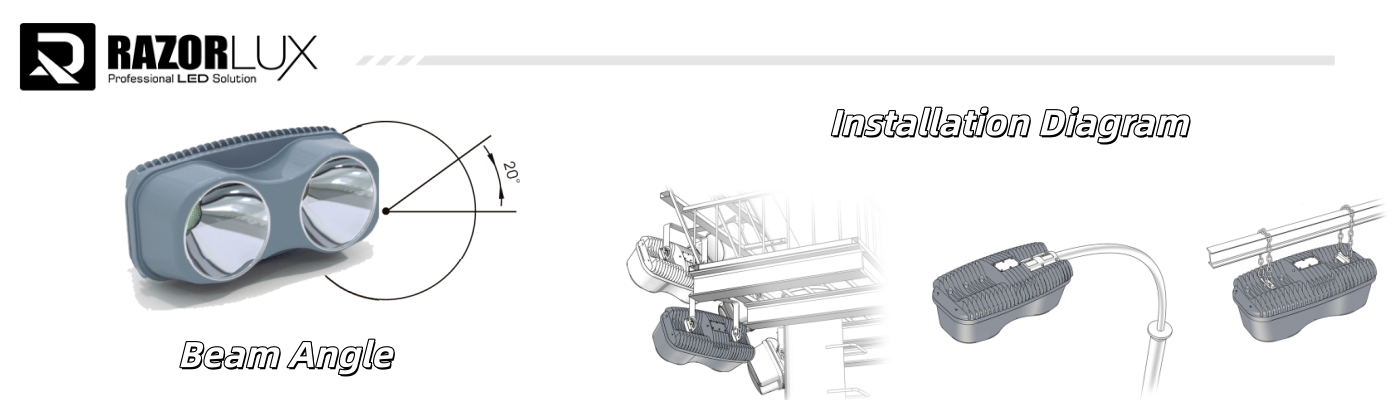

3. Precision Beam Distribution

Seven beam configurations match mounting heights from 8m to 40m. Asymmetrical lens technology directs light onto playing surfaces while minimizing spill into residential areas.

Application examples:

· 15°-30° narrow beams: High-mast installations (25m+)

· 60°-120° wide beams: Low-pole configurations (12-18m)

· 140°×60° asymmetric: Perimeter track and field lighting

4. All-Weather Durability

IP67 enclosure passes 1000-hour salt spray testing for coastal installations. Stainless steel brackets resist corrosion in humid climates. Integrated 10kV surge protection guards electronics during electrical storms.

Operating temperature range: -40°C to +50°C.

5. Simplified Maintenance

Remote driver box mounts separately from optical head. Maintenance teams replace failed drivers from ground level without boom lifts or fixture removal—reducing service time by 70% compared to integrated designs.

Average driver replacement time: 15 minutes.

​​​​​​​

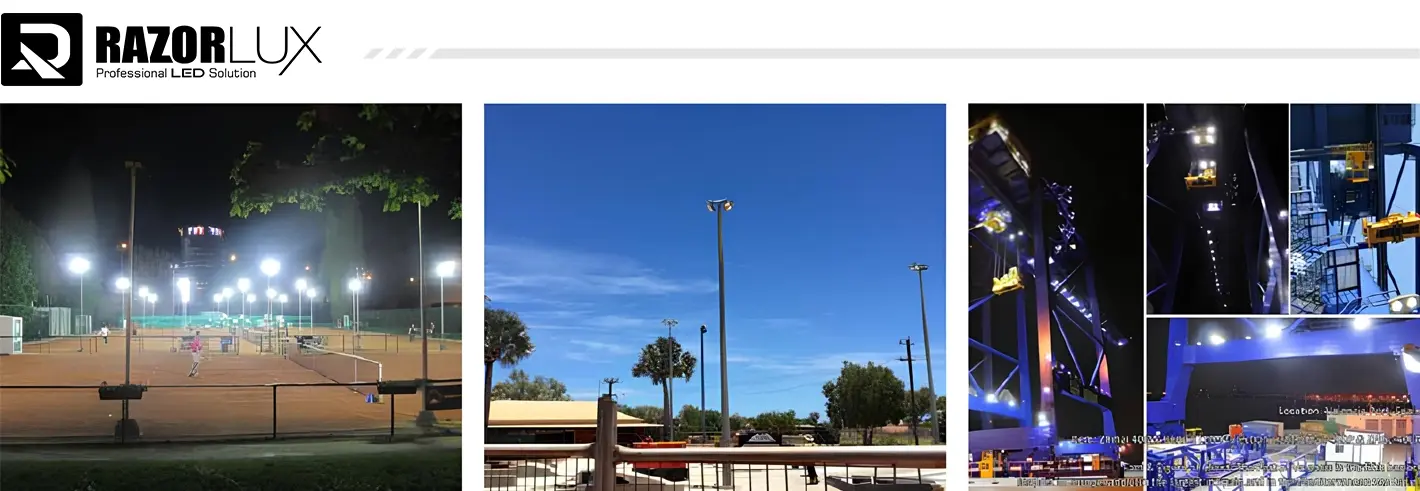

Sports Applications

Professional Soccer & Football Stadiums

Meet FIFA and national league standards for Class I televised matches. Adjustable mounting brackets create uniform horizontal and vertical illuminance across entire playing surfaces. Typical pole configurations support 8-16 fixtures per field.

Baseball & Softball Diamonds

Sports Field Led Flood Lights specialized aiming balances infield brightness (300-500 lux) with outfield visibility (200-300 lux). High CRI (Ra>75) aids ball tracking against sky backgrounds during twilight games. Reduces eye fatigue during extended practices.

Multi-Sport Complexes

Single installation adapts to football, rugby, lacrosse, and field hockey by adjusting fixture aim. Schools and community centers benefit from versatile coverage without equipment changes between sports seasons.

Track & Field Facilities

Wide beam options (120°, 140°×60°) provide even coverage across oval tracks and throwing areas. Instant-on capability eliminates HID warm-up delays—athletes start training immediately.

Training Academies

130 LM/W efficiency reduces energy costs up to 60% versus metal halide systems. Dimming compatibility (0-10V / DALI protocols) adjusts intensity for various drill types and skill levels.

Frequently Asked Questions

Q: Can these lights retrofit onto existing pole infrastructure?

A: The mounting system adapts to standard wooden, steel, and concrete poles. However, structural analysis is recommended to verify wind load capacity (EPA rating) matches your specific configuration, especially for high-mast installations.

Q: How is player glare controlled?

A: Asymmetrical optics combined with physical visors shield light sources from player sight lines. Precise aiming during installation directs beams downward onto playing surfaces. Consult our aiming guidelines for pole height and fixture placement recommendations.

Q: What happens when a driver fails?

A: The modular design allows ground-level driver replacement in approximately 15 minutes. Technicians access the remote-mounted driver box without removing fixtures or using aerial equipment. Replacement drivers ship within 48 hours during warranty period.

Q: Are these suitable for slow-motion replay broadcasting?

A: Yes. Drivers maintain <1% ripple current for flicker-free operation at frame rates exceeding 1000 fps. Color rendering and temperature consistency meet television broadcast standards. Suitable for 4K and 8K production.

Request a Lighting Design Consultation

Get a customized photometric analysis for your sports facility. Our team provides complimentary DIALux simulations showing illuminance levels, uniformity ratios, and pole placement recommendations.
