led outdoor sport light
Rated Power: 1200W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 15KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001
- Product Description

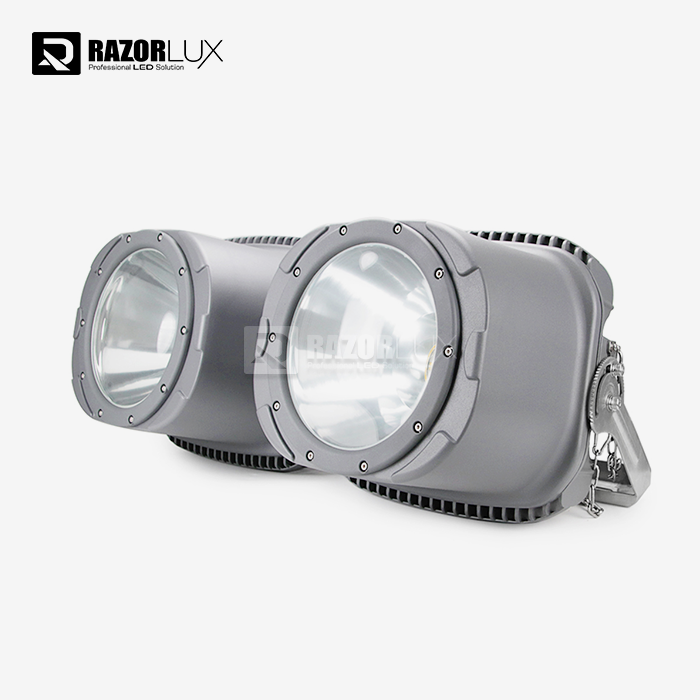

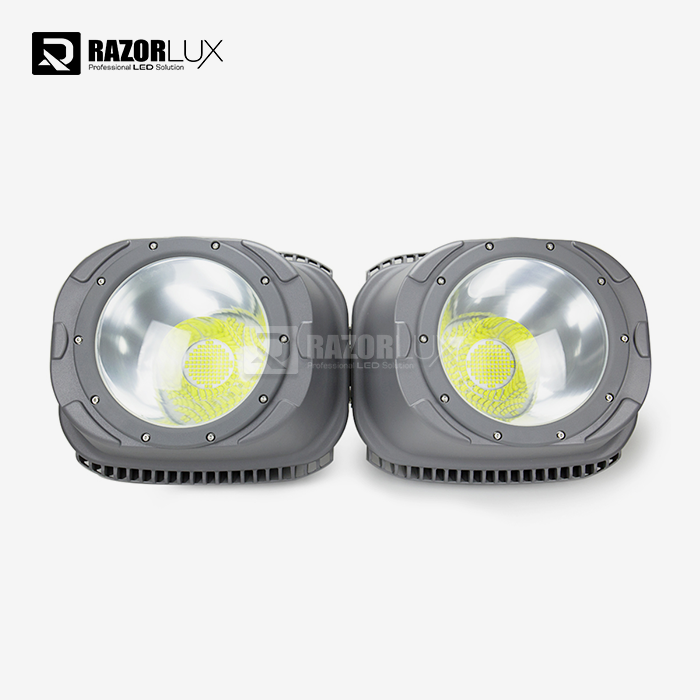

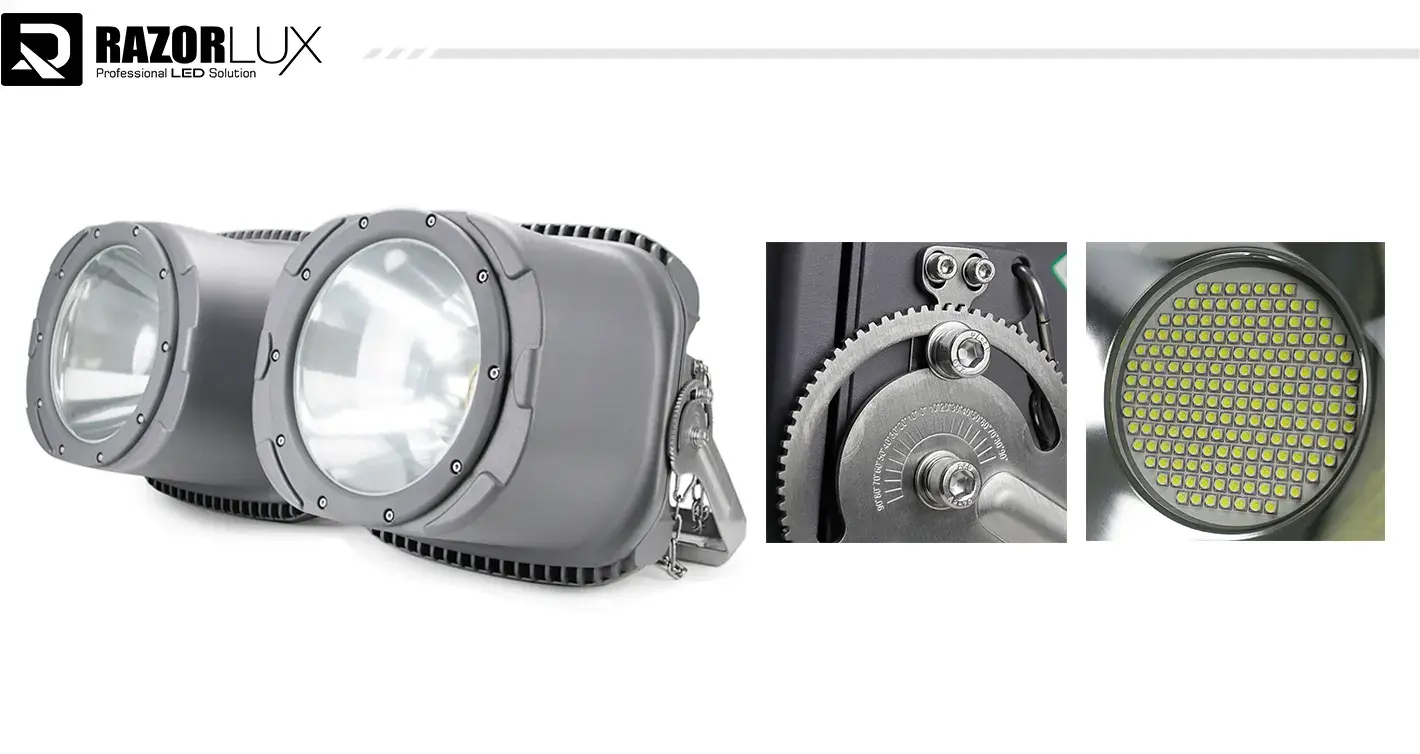

1200W Industrial Led Outdoor Sport Light System
Professional-Grade Illumination for Outdoor Athletic Facilities
Is This Fixture Right for Your led outdoor sport light?
Best Suited For:
· Professional stadiumsrequiring broadcast-quality lighting (500+ lux)
· Municipal sports parkswith 6-10 hour daily operation
· Coastal facilitieswithin 500m of saltwater (C5M corrosion rating)
· Remote locationswith unstable grid voltage (±30% fluctuation tolerance)
· Retrofit projectsreplacing 1500W metal halide systems
Consider Alternatives If:
· Your facility requires <300W per fixture (see our600W model)
· Indoor-only application (our indoor series offers better ROI)
Led Outdoor Sport Light Specification
Model | RGL2-1200P | |
Beam Angle | 15° 20° 30° | |
Stable Flux (5700K after 1 hour) | 144000lm | |
| LEDs | 1080W |
Power | Driver | 120W |
Consumption | Total | 1200W |
Replace HID Lamp | 2500~3000W | |
Net Weight | 38kg with stainless steel floodlight bracket | |
Color Temperature | 2700-6500K | |
Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
Working Life | ≥50000Hrs | |
Housing Material | Aluminum & Powder coating | |
Power Supply | Meanwell | |
IP Class | IP 67 | |
IK Class | IK 10 | |
Insulation Class | Class I | |
Working Temperature | -40C ~ 60C / -40F ~ 140F | |
Working Humidity | 10% ~ 95% | |
AC Input | 80-315Vac input voltage without additional adapter | |
Power Factor | ≥0.98 | |
Warranty | LED Module | 5 year |
|
|
|
| Driver | 5 year |
| Housing | 10 year |
Application-Specific Guidance
1. Stadium Perimeter Lighting
Suggested Configuration:
· Mounting stature: 20-30 meters
· Bar point: 15° or 25° (narrow throw)
· Format: 6-8 installations per standard football pitch
· Target illuminance: 500 lux (preparing) / 750 lux (competition)
Photometric Simulation:Upload Your Location Planfor free analysis
2. Tennis Court Lighting
Recommended Configuration:
· Mounting stature: 8-12 meters
· Pillar point: 40° or 60° (medium spread)
· Format: 4 installations per court (2 per side)
· Target illuminance: 300 lux (recreational) / 500 lux (competition)
3. Multi-Purpose Athletic Fields
Recommended Configuration:
· Color temperature: 4000K (neutral white for mixed sports)
· Dimming: 0-10V or DALI for multi-mode operation
· Spill light control: 140°x60° asymmetric optics for adjacent area protection
Dimming Profiles:Download Pre-Configured Settings
Product Features (Ranked by Customer Priority)
Rated: Wide Voltage Tolerance
What This Means for You:
If your facility experiences voltage sags during high-demand periods (common in industrial areas or developing regions), this led outdoor sport light maintains consistent brightness between 90V-305V AC. Internal power factor correction ensures stable operation.
Technical Detail:Active PFC with THD <15% tested per IEEE 519

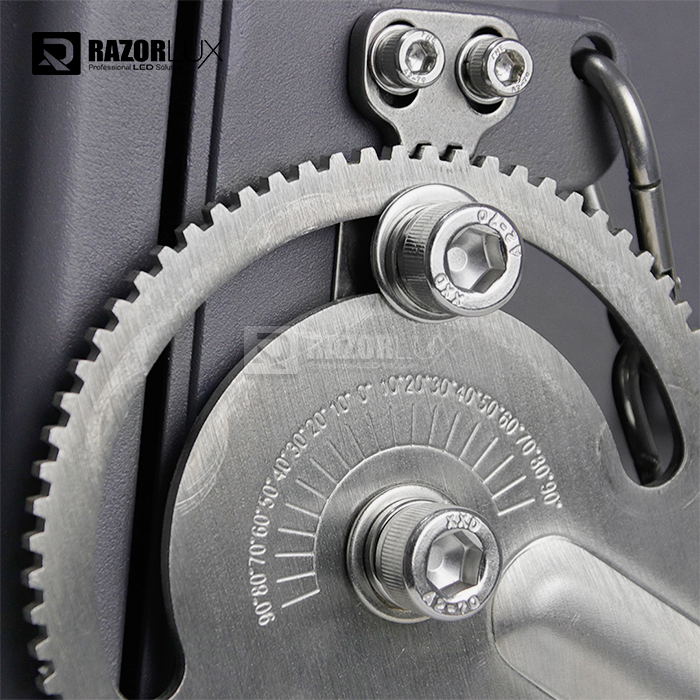

Rated: Tool-Free Beam Adjustment
What This Means for You:
After installation, you can adjust the aiming angle ±15° without loosening mounting bolts. This eliminates cherry picker rental costs when fine-tuning illumination patterns.
Rated: Modular Driver Design
What This Means for You:
If the driver fails (rare but possible after 7-10 years), any electrician can replace it in 15 minutes without dismounting the fixture.Parts Guarantee:Replacement drivers available through 2040 (documented commitment)
Frequently Asked Questions
Installation & Compatibility
Q: Can I introduce this myself, or do I require a authorized electrician?
A:Always utilize a authorized electrician.This is a high-voltage (up to 305V) lasting establishment requiring compliance with nearby electrical codes (NEC Article 410 in USA, BS 7671 in UK). DIY establishment voids guarantee and makes security hazards.
Q: Will this work with my existing photocell or clock system?
A: Yes, if your control framework gives clean AC control exchanging. For progressed highlights (dimming, scheduling), indicate our DALI driver alternative at checkout.
Performance & Specifications
Q: How shinning is 156,000 lumens in commonsense terms?
A: At 20 meters mounting tallness with 25° bar point, you'll accomplish around 450-500 lux at ground level (sufficient for training/recreational sports). For reference:
- 200 lux = Least for casual play
- 500 lux = Suggested for training
- 750+ lux = Broadcast/professional competition
Q: What's the genuine life expectancy in hours?
A:54,000 hours to L80(maintains 80% of introductory brightness), based on IES LM-80 testing at 55°C surrounding temperature. In normal 6-hour/day operation:
- L80: 24.6 years
- L70 (70% brightness): ~70,000 hours = 31.9 years
Caveat:Lifespan decreases in extraordinary warm. At 50°C surrounding, anticipate L80 around 42,000 hours.
