softball stadium lights
Rated Power: 400W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 15KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001
- Product Description

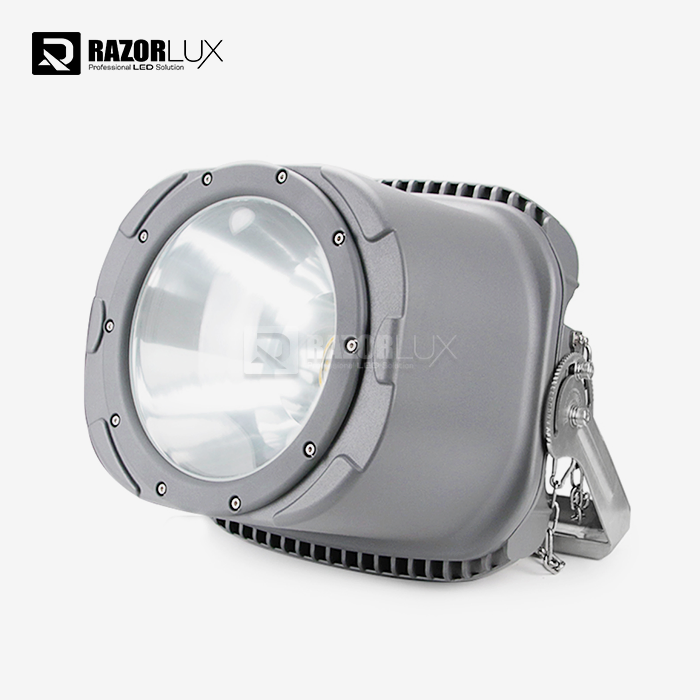

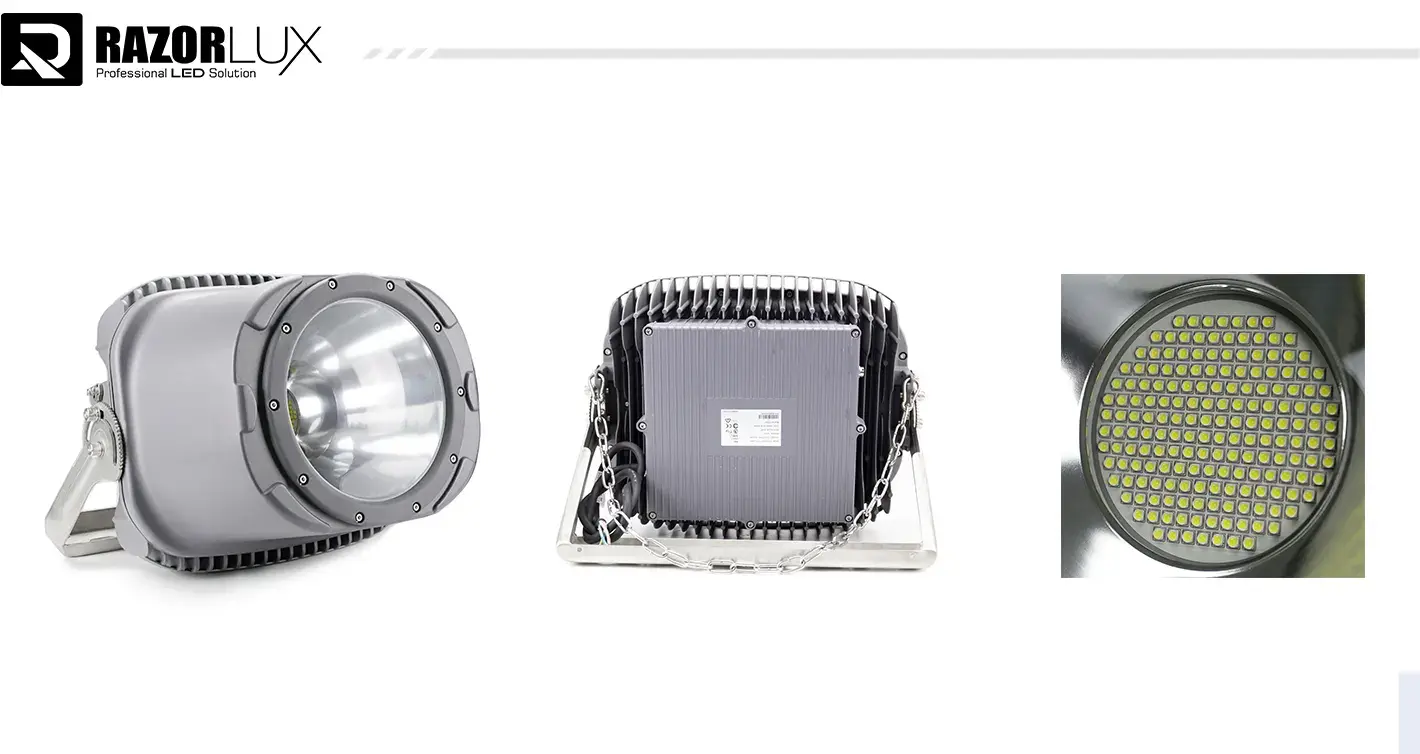

400W LED Softball Stadium Lights – Professional-Grade Illumination
Trusted by 200+ sports facilities across North America
Traditional metal halide lights cost you more than electricity bills. They dim over time, delay game starts with 15-minute warm-ups, and fail when you need them most.
Our softball stadium lights solve these problems:
· Instant-on– No warm-up delays
· 70% lower energy costs– Pays for itself in 2-3 years
· 5-year worry-free warranty– We handle defects, you focus on games
· IP67 weatherproof– Tested from -40°C to +60°C
Softball Stadium Lights Specification
Model | RGL2-400P | |
Beam Angle | 15° 20° 30° | |
Stable Flux (5700K after 1 hour) | 48000lm | |
Dimension (mm) | 466*388*487 | |
| LEDs | 360W |
Power | Driver | 40W |
Consumption | Total | 400W |
Replace HID Lamp | 800~1000W | |
Net Weight | 19kg with stainless steel floodlight bracket | |
Color Temperature | 2700-6500K | |
Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
Working Life | ≥50000Hrs | |
Housing Material | Aluminum & Powder coating | |
Power Supply | Meanwell | |
IP Class | IP 67 | |
IK Class | IK 10 | |
Insulation Class | Class I | |
Working Temperature | -40C ~ 60C / -40F ~ 140F | |
Working Humidity | 10% ~ 95% | |
AC Input | 110-480Vac input voltage without additional adapter | |
DC Input | 100 ~ 400Vdc, 500Vdc ~ 800Vdc | |
THD | <10% | |
Power Factor | ≥0.98 | |
Warranty | LED Module | 5 year |
| Driver | 5 year |
| Housing | 10 year |
How Many Lights Does Your Field Need?
Use our quick calculator:
Recreational/Practice Fields:
6-8 fixtures (30-50 foot-candles)
Competitive/League Play:
12-16 fixtures (50-75 foot-candles)
Tournament/Broadcast:
16-20 fixtures (75-100 foot-candles)
Built to Last (Even in Harsh Conditions)
Weatherproof Engineering
· IP67 rating– Submersion-tested, not just splash-proof
· Stainless steel brackets– Resists corrosion in coastal areas
· Impact-resistant lens– Survives flying softballs
Smart Thermal Management
Our patented heat-sink design keeps LED chips cool, preventing the gradual dimming that plagues cheaper lights. Result? Consistent brightness for 10+ years.
About Razorlux Optoelectronic
Since 1997, we've specialized in high-performance sports lighting. Our softball stadium lights illuminate:
· 200+ softball/baseball complexes
· 50+ municipal stadium projects
· 15+ NCAA Division I facilities
Quality Promise:
Every fixture is individually tested before shipping. Our ISO9001-certified factory in Xi'an maintains military-grade quality control standards.
Common Questions
What if a light fails?
Our 5-year warranty covers:
· Manufacturing defects
· Component failures
· Premature dimming
We ship replacement units within 48 hours and provide installation support. In 26 years, our warranty claim rate is below 0.8%.
Can I dim the lights for practice?
Yes – we offer:
· 0-10V dimming(works with most controls)
· DALI dimming(for smart stadium systems)
· Manual switching(3-level: 25%/50%/100%)
Dimming to 50% during practice can cut costs another 30%.
Do these work with existing poles?

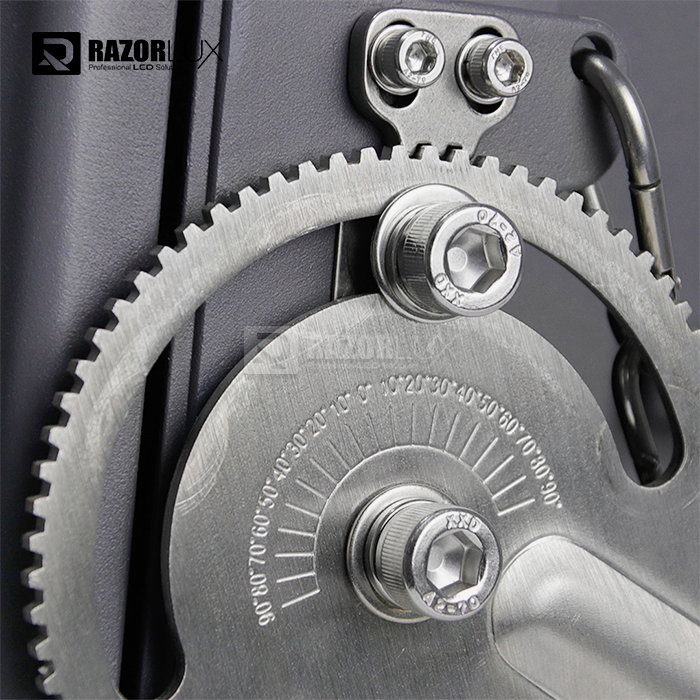

Probably. Our adjustable stainless steel brackets fit:
· Round poles: 2.5" to 8" diameter
· Square poles: Up to 6" × 6"
· Mounting options: Slip fitter, trunnion, yoke
Contact us
Contact our softball stadium lights' team:sam@razorlux.com
