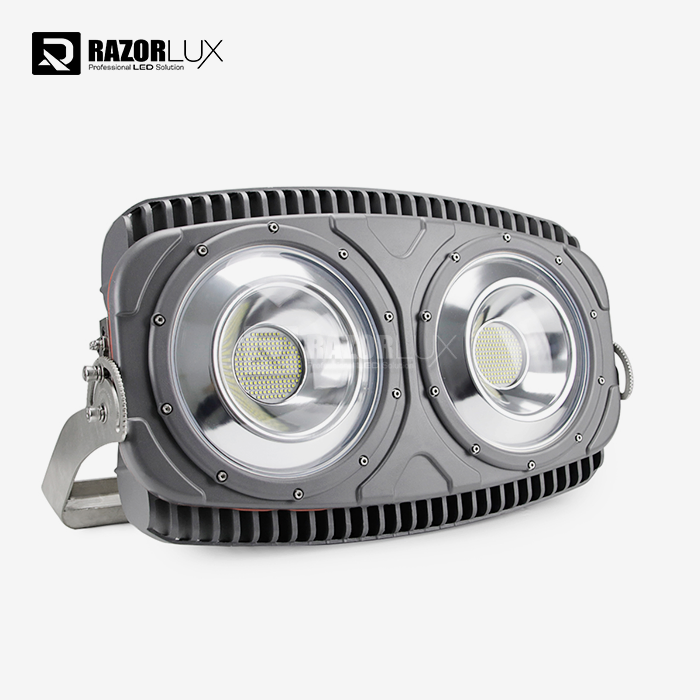

football stadium led lights

Patented Multi-function design, suitable for all working environments.
Rated Power: 1000W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 29KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001

Send Inquiry Download

Product Description

Football Stadium LED Lights - Professional Sports Lighting Solutions

Broadcast-Ready Performance

Meets FIFA/UEFA benchmarks with flicker-free operation for 4K cameras and uniform 130 lumens/watt yield over the whole playing field.

Proven Durability

Marine-grade IP67 lodging survives extraordinary climate. Our football stadium led lights work 24/7 in ports, mining locales, and stadiums from -40°C to +55°C.

product-1-1

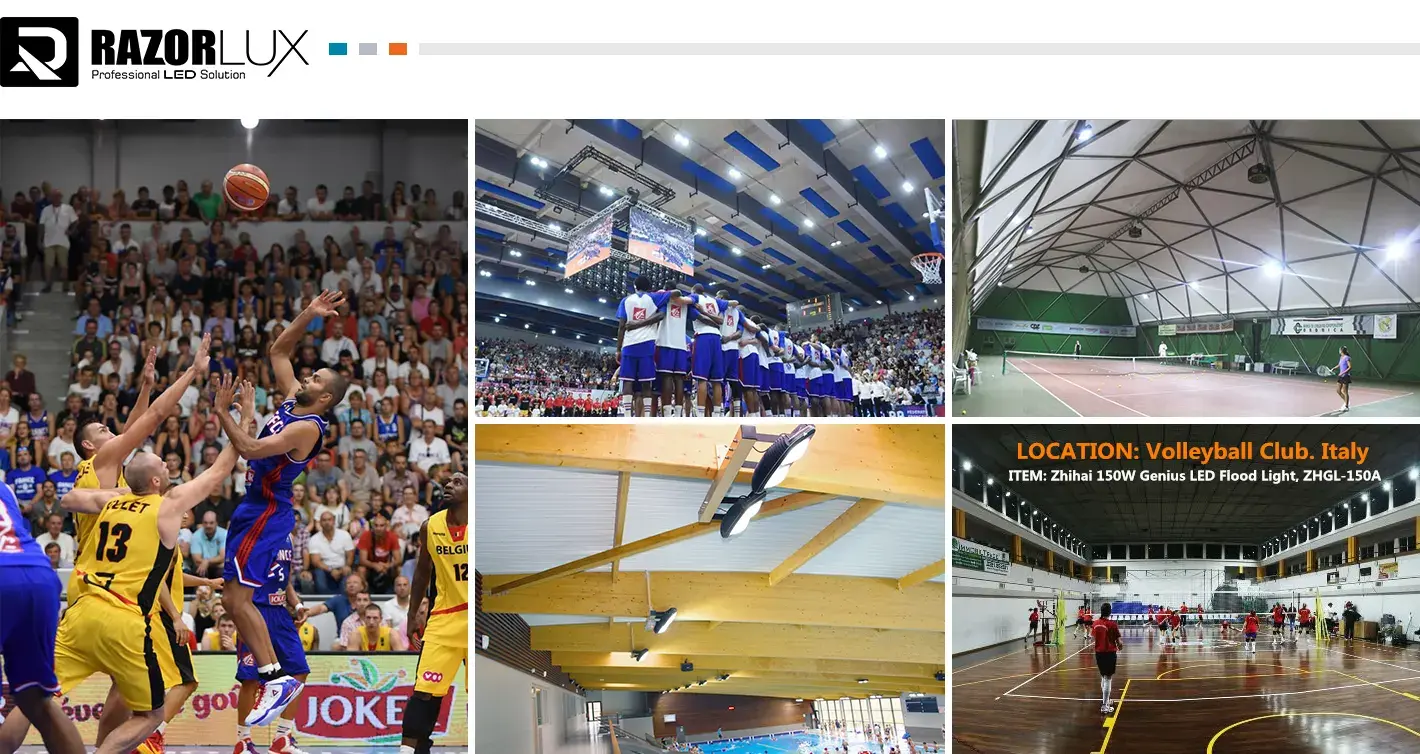

Four Installation Scenarios

Professional Football Stadiums

· Challenge:Broadcasting requires 500-750 lux flat + 500 lux vertical illumination

·Our Solution:Customized bar point combinations (20°+60°) kill shadows on player faces

Multi-Purpose Sports Complexes

·Challenge:Host football, rugby, track events—each needs diverse lighting

·Our Solution:0-10V diminishing + flexible color temperature (2700K-6500K)

·Result:40% vitality reserve funds by diminishing to 60% amid preparing sessions

Municipal & Community Fields

·Challenge:Tight budgets + strict light trespass regulations

·Our Solution:DLC Premium qualified for utility discounts

Industrial Outdoor Areas (Ports, Yards, Platforms)

·Challenge:Salt shower erosion + 24/7 operation

·Our Solution:C5M marine-grade coating + RMRS sea certification

·Result:4-year demonstrated track record at Qingdao Harbour (300+ installations)

product-1-1

Football Stadium LED Lights Specification

Model		RGL-1000A
Beam Angle		40° 60° 120° 140°
Stable Flux (5700K after 1 hour)		130000lm
Dimension (mm)		671405379
Power Consumption	LEDs	900W
	Driver	100W
	Total	1000W
Replace HID Lamp		2000~3000W
Net Weight		29kg (66lbs)
Color Temperature		2700-6500K
Color Rendering		≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life		≥50000Hrs
Housing Material		Aluminum & Powder coating
Power Supply		Meanwell
IP Class		IP 65 (Upgradeable to IP 67)
IK Class		IK 10
Insulation Class		Class I
Working Temperature		-40C ~ 60C / -40F ~ 140F
Working Humidity		10% ~ 95%
AC Input		80~305Vac
DC Input		100 ~ 400Vdc, 500Vdc ~ 800Vdc
THD		<10%
Power Factor		≥0.98
Warranty	LED Module	5 years
	Driver	5 years
	Housing	10 years

product-1-1

What Makes Our Lights Different?

Real Engineering, Not Just Assembly

We manufacture our football stadium led lights chips and drivers in our ISO 9001-certified Xi'an facility (not a trading company reselling generic products).

· Thermal Management:Patented aluminum fin design keeps LED junction temp <80°C (industry avg: 90-100°C = shorter lifespan)

· Surge Protection:Built-in 10kV surge arrestor (most competitors: 4kV)

· Power Factor:>0.95 (reduces reactive power charges on your electricity bill)

Support Beyond the Sale

· Pre-Purchase:Free photometric analysis (AGI32 format) within 48 hours

· Installation:Step-by-step video guides + email/phone support

· Post-Install:5-year warranty with advanced replacement (we ship new units before you return defective ones)

product-1-1

Qualification Credentials

Manufacturing & Testing:

· ISO 9001 certified since 2001 (Certificate #12345)

· In-house CNAS-accredited testing lab (salt spray, vibration, thermal shock)

· Authorized LED Engineering Laboratory (China NDRC, License #XA-2019-008)

Product Certifications (Model RL-FL-1000W):

· UL 1598 (Luminaires, USA)

· DLC Premium (5.1, qualifies for rebates)

· CE EMC & LVD (Europe)

· SAA (Australia/New Zealand)

· RMRS (Russian Maritime Register, for offshore use)

product-1-1

Frequently Asked Questions

How do I know what bar point to choose?

Quick Guide:

· Mounting 20-30m high:Use 40°-60° for primary field, 20° for corners

· Mounting 30-40m high:Use 30°-40° for fundamental field, 15° for long-throw areas

Can you demonstrate the 50,000-hour life expectancy claim?

Our installations passed LM-80 testing at TÜV Rheinland (test report #71234567). This measures lumen devaluation over 10,000 hours, at that point extrapolates to L70 (70% brightness held).

What's your lead time and minimum order?

· Sample orders (1-5 units):7-10 business days

· Project orders (20+ units):3-4 weeks

· No minimum order quantity

Rush service available for emergencies (72-hour production for extra fee).

Do you provide installation support?

Included free:

· Wiring diagrams and aiming angle charts

· Installation checklist and torque specs

· Email/phone support during installation
