outdoor court lighting

Patented Multi-function design, suitable for all working environments.
Rated Power: 180W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W
Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 15KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001

Send Inquiry Download

Product Description

180W Professional Outdoor Court Lighting | Razorlux

Cut Energy Costs by 65%

Replace outdated 400-600W metal halide fixtures. Our 180W outdoor court lighting system delivers23,400 lumenswhile slashing your electricity bills.

Play Under Broadcast-Quality Light

· Zero flickertechnology prevents eye strain during fast play

· CRI >75shows true colors of balls, lines, and uniforms

· 7 beam anglesensure even coverage with no dark spots

Built for Extreme Conditions

· IP67 waterproof- withstands heavy rain and dust storms

· -40°C to +55°Coperating range for any climate

· C5M corrosion rating- proven in coastal and industrial sites

Installed & Forgotten

· 5-year warrantycovering all components

· 50,000+ hour lifespan(15+ years at typical usage)

· 0.3% annual failure rate- industry-leading reliability

outdoor-court-lighting

Choose Your Lighting Configuration

Which Beam Angle Do You Need?

Not sure?Our outdoor court lighting's team providesfree photometric analysisfor your exact court layout.

Court Type	Pole Height	Recommended Beam
Tennis (Recreational)	20-25 ft	60° or 120°
Tennis (Competitive)	30-40 ft	30° or 40°
Basketball (Outdoor)	25-35 ft	60°
Multi-Sport Complex	30-50 ft	40° or Custom

product-1-1

Outdoor Court Lighting Specification

Model		RGL-180A
Beam Angle		60° 120° 140°*60°
Stable Flux (5700K after 1 hour)		21600 lm
Dimension (mm)		360358306mm
	LEDs	162W
Power	Driver	18W
Consumption	Total	180W
Replace HID Lamp		400 ~ 500W
Net Weight		10kg
Color Temperature		2000-6000K
Color Rendering		≥Ra75 (≥Ra80, ≥Ra90 available on request)
Working Life		≥50000Hrs
Housing Material		Aluminum & Powder coating
Power Supply		Meanwell
IP Class		IP 67
IK Class		IK 10
Insulation Class		Class I
Working Temperature		-40C ~ 60C / -40F ~ 140F
Working Humidity		10% ~ 95%
AC Input		80-315Vac input voltage without additional adapter
DC Input		80 ~ 400Vdc
THD		<10%
Power Factor		≥0.98
Warranty	LED Module	5 year
	Driver	5 year
	Housing	10 year

product-1-1

quality-control

Common Questions Answered

How many fixtures do I need for my court?

It depends on court size, pole height, and lighting standards you need to meet:

· Recreational tennis (200 lux):4-6 fixtures

· Competitive tennis (500 lux):8-12 fixtures

· Basketball (300 lux):6-8 fixtures

Will these work with my existing poles?

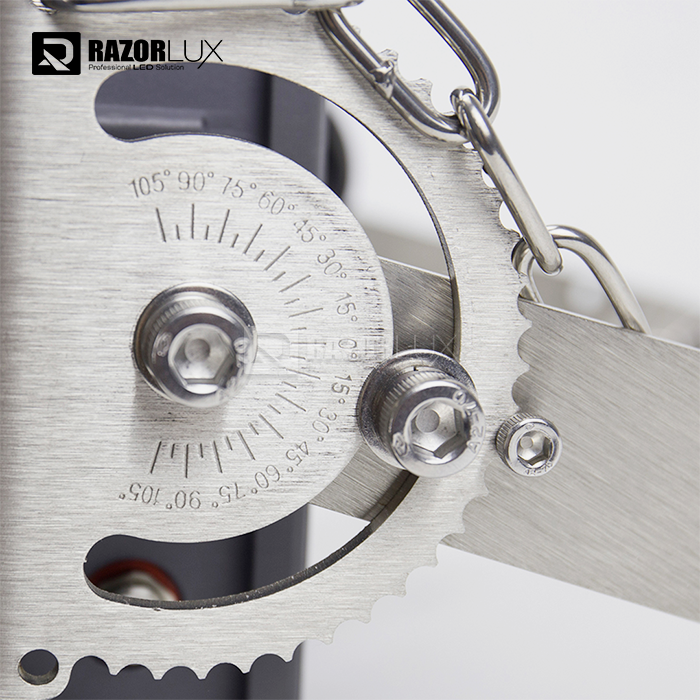

Yes. Our universal stainless steel bracket fits standard 2-4" pole diameters. The wide voltage input (90-305V AC) works with most electrical systems worldwide.

What about light pollution and glare?

Our precision beam control directs light exactly where needed:

· Asymmetric 140°×60° optionminimizes spill into residential areas

· Optional shieldsavailable for strict dark-sky compliance

· 0-10V dimmingreduces intensity after peak hours

We help facilities meet local ordinances—just share your requirements.

Can I dim these lights?

Yes. Standard models support:

· 0-10V analog dimming(most common)

· DALI protocol(available on request)

· Photocell sensorsfor automatic dusk-to-dawn operation

Dimming extends lifespan and reduces energy use during practice sessions.
