sports ground lights

Patented Multi-function design, suitable for all working environments.
Rated Power: 400W
Input Voltage: AC90-305, DC127-431
Color Temperature: 2700K-6500K
Lamp Efficiency: 130LM/W

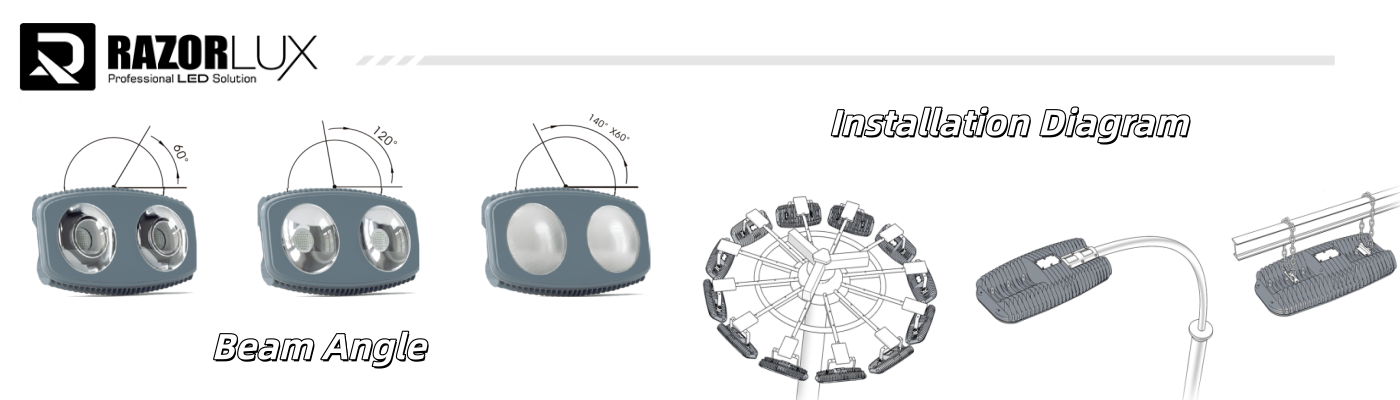

Beam Angle: 15°, 20°, 30°, 40°, 60°, 120°, 140°x60°.
CRI: Ra>75
IP Grade: IP67
Bracket: Stainless Steel
Net Weight: 23KG
Warranty: 5 Years
Certificate:RMRS CE, RoHS, SAA, C-Tick, UL, DLC, CB, ISO:9001
Send Inquiry Download
  • Product Description

Professional Sports Ground Lights - High-Performance LED Solutions

When it comes to enlightening your playing field, choosing the right sports ground lights makes all the distinction. Our progressed Driven lighting frameworks are particularly designed to convey uncommon execution for football stadiums, soccer areas, cricket grounds, and multi-sport offices. With our licensed multi-function plan, you get solid brightening that works impeccably in all situations, guaranteeing your recreations never have to halt when the sun goes down.

product-1-1

Product Introduction

Our proficient lights include cutting-edge Driven innovation with protected multi-function plan, making them appropriate for all working situations and donning applications.

product-1-1

Specification

Model

RGL2-400A

Beam Angle

40° 60° 120° 140°

Stable Flux

(5700K after 1 hour)

52000lm



LEDs

360W

Power

Driver

40W

Consumption

Total

400W

Replace HID Lamp

800~1000W

Net Weight

15kg with stainless steel floodlight bracket

Color Temperature

2700-6500K

Color Rendering

≥Ra75 (≥Ra80, ≥Ra90 available on request)

Working Life

≥50000Hrs

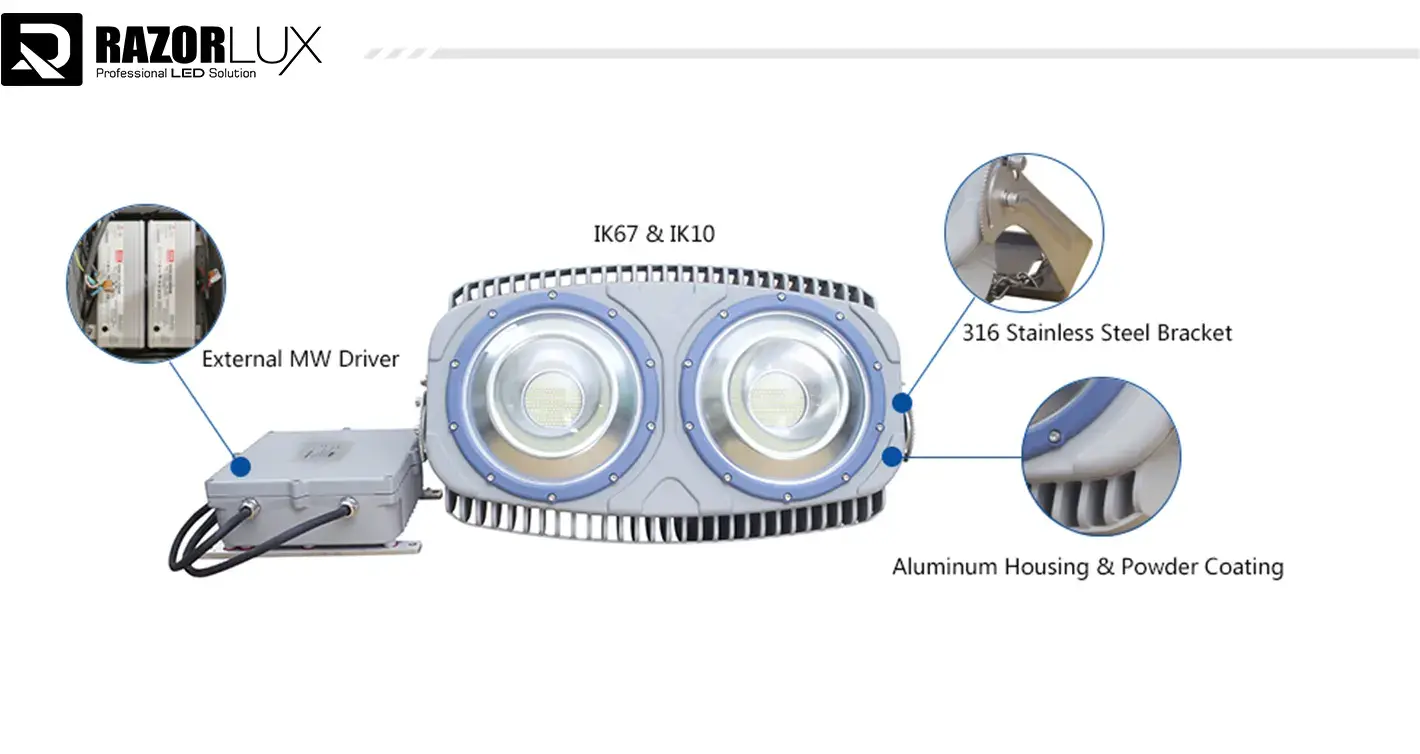

Housing Material

Aluminum & Powder coating

Power Supply

Meanwell

IP Class

 IP 67

IK Class

IK 10

Insulation Class

Class I

Working Temperature

-40C ~ 60C / -40F ~ 140F

Working Humidity

10% ~ 95%

AC Input

110-480Vac input voltage without additional adapter

DC Input

100 ~ 400Vdc, 500Vdc ~ 800Vdc

THD

<10%

Power Factor

≥0.98

Warranty

LED Module

5 years



Driver

5 years



Housing

10 years

product-1-1

Why Choose Our Sports Ground Lights?

Energy Efficiency That Saves You Money

Our Driven frameworks devour up to 75% less vitality than conventional metal halide installations. You'll see sensational decreases in your power bills whereas keeping up prevalent light quality.

Instant-On Performance

Unlike conventional lights that require warm-up time, our frameworks give quick full brightness. This include is particularly important for broadcast occasions and crisis situations.

Superior Light Quality

With fabulous color rendering (CRI >75) and customizable color temperatures, our lights give light that closely imitates characteristic daylight, guaranteeing genuine color perceivability for players and spectators.

Built to Last

Our high-quality frameworks work for 50,000+ hours, drastically decreasing support costs and substitution recurrence. The vigorous development and IP67 rating guarantee solid execution in all climate conditions.

Professional-Grade Coverage

Multiple pillar point choices permit for exact light dispersion, minimizing shadows and glare whereas giving uniform light over your whole playing surface.

product-1-1

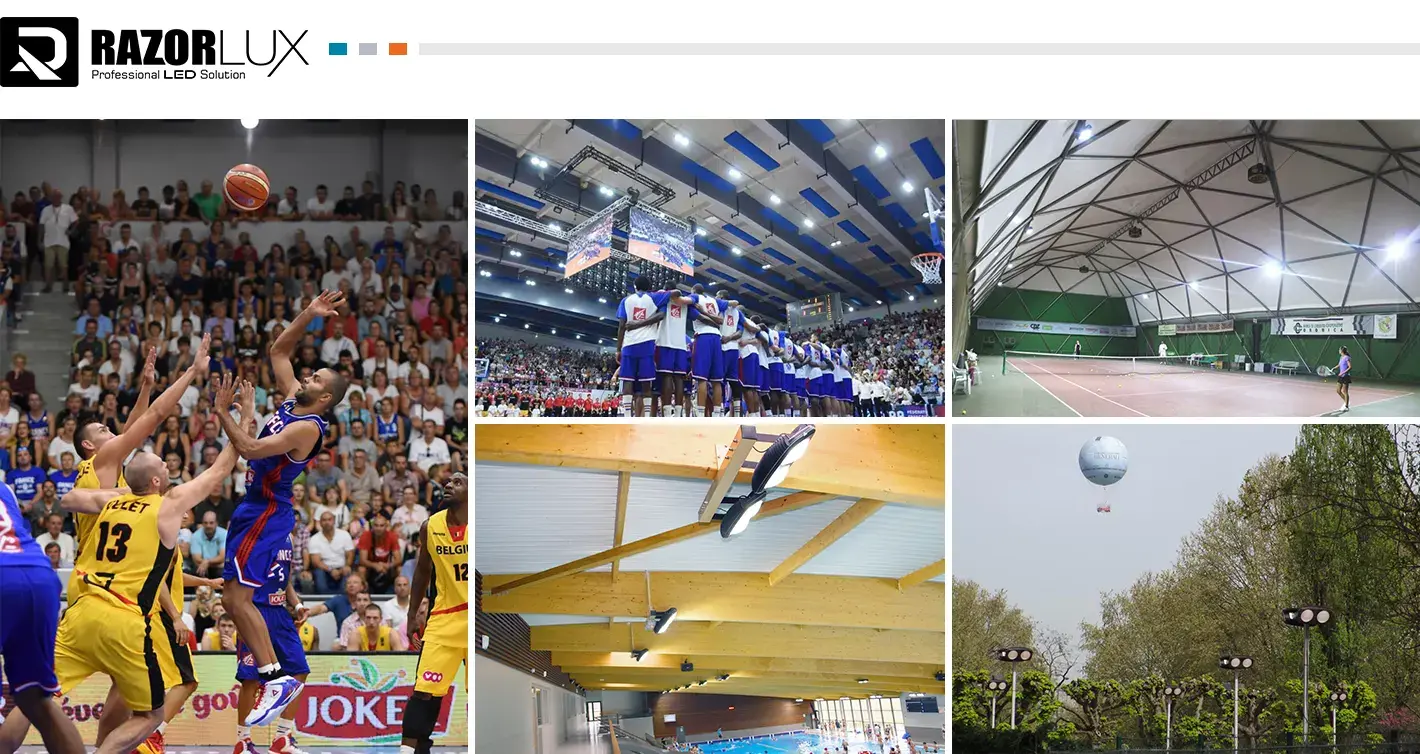

Applications

  • Football Stadiums: Culminate for proficient and beginner football areas requiring high-intensity brightening for player security and broadcast quality
  • Soccer Areas: Perfect for FIFA-standard soccer pitches with uniform light dissemination and negligible glare for ideal playing conditions
  • Cricket Grounds: Fabulous color rendering guarantees clear ball perceivability and meets broadcasting necessities for proficient cricket matches
  • Baseball Jewels: Gives comprehensive scope for infields and outfields with customizable bar points for distinctive field sections

product-1-1

  • Multi-Sport Complexes: Flexible plan adjusts to different sports counting tennis courts, ball courts, and athletic tracks
  • Training Offices: Cost-effective arrangement for hone areas and preparing grounds requiring dependable, high-quality illumination
  • Community Sports Centers: Energy-efficient lighting for nearby clubs and recreational offices with expanded working hours
  • School Athletic Areas: Secure, shinning lighting for tall school and college sports programs with long-term durability
  • Tournament Scenes: Professional-grade lighting appropriate for competitive occasions and championships requiring broadcast-quality illumination

product-1-1

Quality Control

We keep up ISO9001 certification for 22 continuous a long time since 2001. Each item experiences thorough testing to guarantee compliance with worldwide measures. Our quality control framework incorporates comprehensive reviews at each fabricating arrange, guaranteeing you get solid lighting arrangements that perform consistently.

product-1-1

Shipment Samples

We give customized tests and models some time recently bulk orders. This permits you to assess quality and execution, guaranteeing our sports ground lights meet your correct venture prerequisites. contact us to talk about your testing needs.

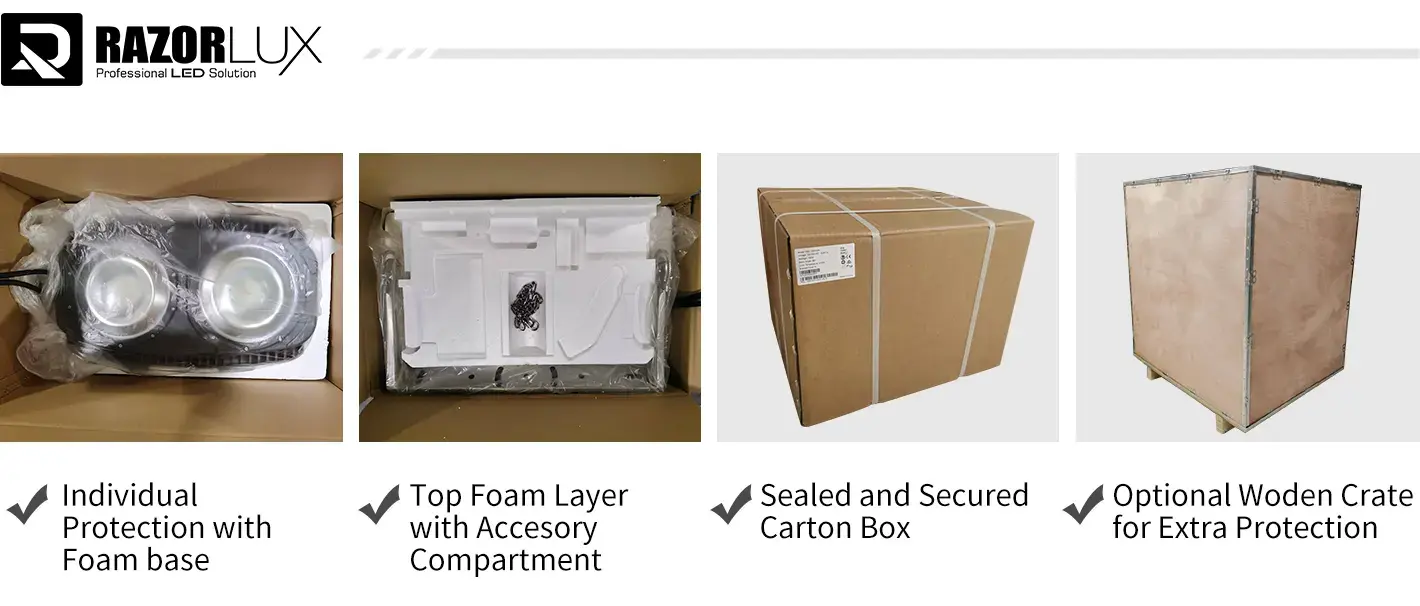

Packaging and Transportation

Our items are carefully bundled utilizing industrial-grade materials to anticipate harm amid travel. We offer adaptable shipping choices counting discuss cargo, rail transport, and ocean cargo to meet your conveyance timeline prerequisites. Each installation is independently ensured and clearly labeled for simple installation.

product-1-1

Transportation TimeShipping Option DetailsRecommend Weight
3-7 daysInternational Express(DHL, FedEx, UPS, TNT, etc.)0.5KG-300KG(optimal for cost efficiency under our contarated express rates)
5-10 daysBy Air (Airport-to-port or Airport-to-door)300KG+(Significantly more economical than express shipping for heavy cargo)
18-22 daysBy Rail(China-Europe Railway Express)2CBM/500KG+(More economical than air freight for large shipment with flexible timelines)
15-50 daysBy Sea(FLC/LCL)2CBM/500KG+(Much more economical than rail,suit for non-urgent cargo, also the most cost-effective shipping method)

Transaction Feedback

Customer fulfillment is our need. We keep up straightforward communication all through the whole exchange prepare, giving standard upgrades on fabricating advance and shipping status. Our responsive client benefit group guarantees all your questions are tended to promptly.

After Sales Service

We stand behind our items with comprehensive guarantee scope and responsive specialized bolster. Our after-sales benefit incorporates establishment direction, investigating help, and substitution portion accessibility to guarantee long-term fulfillment with your lighting investment.

Qualification Certification

Our lights hold numerous universal certifications counting RMRS for marine applications, UL for North American markets, CE for European compliance, and SAA for Australian guidelines. These certifications illustrate our commitment to security and quality over worldwide markets.

product-1-1

FAQ

Q: What is the lifespan of your lights?

A: Our LED systems operate for 50,000+ hours with a 5-year warranty, significantly longer than traditional lighting technologies.

Q: Can the lights be dimmed for different events?

A: Yes, our lights support various control options including 0-10V and DALI dimming systems for flexible brightness management.

Q: What color temperature is best for sports applications?

A: We recommend 5000K-6500K for optimal visibility and color rendering. Our lights offer adjustable color temperatures from 2700K-6500K.

Q: How do these lights perform in harsh weather conditions?

A: With IP67 rating and robust stainless steel brackets, our lights withstand extreme weather including heavy rain, snow, and high winds.

Q: What beam angles are available for different field sizes?

A: We offer multiple beam angles (15°, 20°, 30°, 40°, 60°, 120°, 140°x60°) to accommodate various field dimensions and mounting heights.

Q: Do you provide lighting design services?

A: Yes, we offer professional lighting layout design and brightness calculation services to optimize your field illumination.

Contact Us

Ready to upgrade your sports facility with professional LED lighting? Get in touch with our sports ground lights experts today for personalized consultation and competitive pricing.

Email: sam@razorlux.com

Transform your sports ground with our reliable, energy-efficient lighting solutions that deliver exceptional performance for players, spectators, and broadcast requirements alike.
