Basketball Court Light Fixture - Professional LED Sports Lighting Solutions

Product Introduction

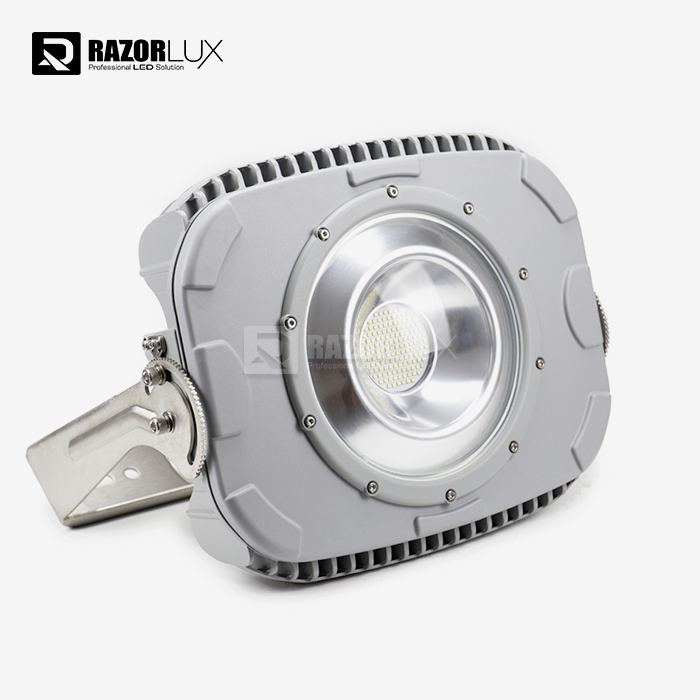

The Razorlux RL-400 changes ball courts with130 lumens-per-watt efficiencyandIP67 all-weather security. Planned for NCAA and FIBA lighting guidelines, this basketball court light fixture installation dispenses with shadows whereas cutting vitality costs by 70% versus metal halide systems.

Key Performance Indicators

• Illuminance:500-750 lux (meets FIBA Class II requirements)
• Uniformity:>0.7 (disposes of dull spots)
• Lifespan:50,000+ hours (10+ a long time at 12hr/day use)
• Warranty:5 a long time comprehensive coverage

Trusted by:50+ proficient sports complexes over North America, Europe, and Asia since 2006.

Basketball Court Light Fixture Specification

Why LED Upgrades Matter for Basketball Facilities

The Hidden Costs of Outdated Lighting

Traditional metal halide frameworks squander 60-70% of vitality as warm. Players face:

• Shadows influencing ball tracking
• 15-20 miniature warm-up delays

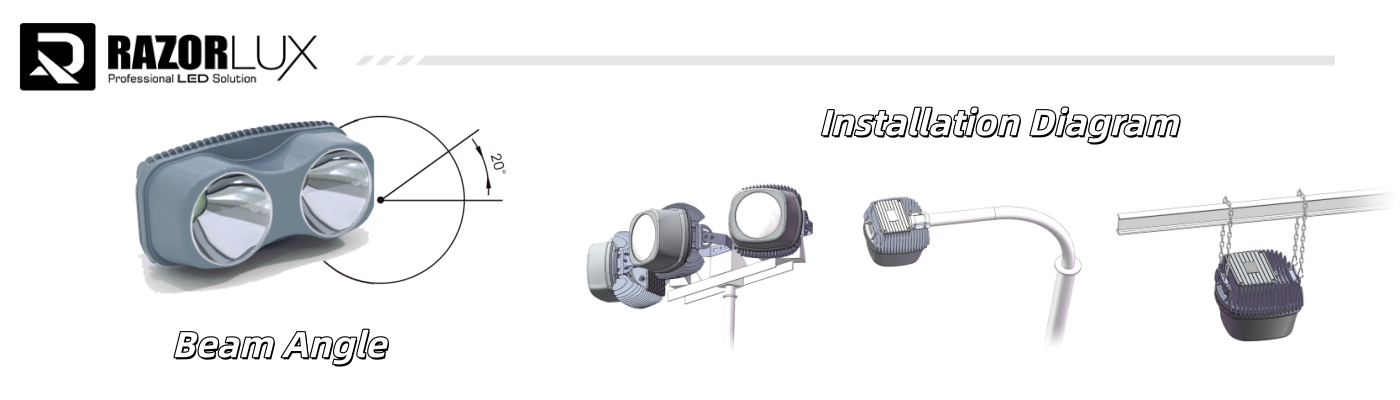

Installation Scenarios & Configurations

1. Regulation Indoor Arenas (28m × 15m / 94' × 50')

Recommended Setup:

· Fixtures:6-8 units (RL-400, 60° beam)

· Mounting:8-10m ceiling height

· Achieved Illuminance:500-750 lux (FIBA Class II / NCAA Level 2)

Replaced 12×1000W metal halides with 8×400W LEDs. Results:

· Eliminated 2-hour monthly maintenance

· Player satisfaction increased from 72% to 94% (survey)

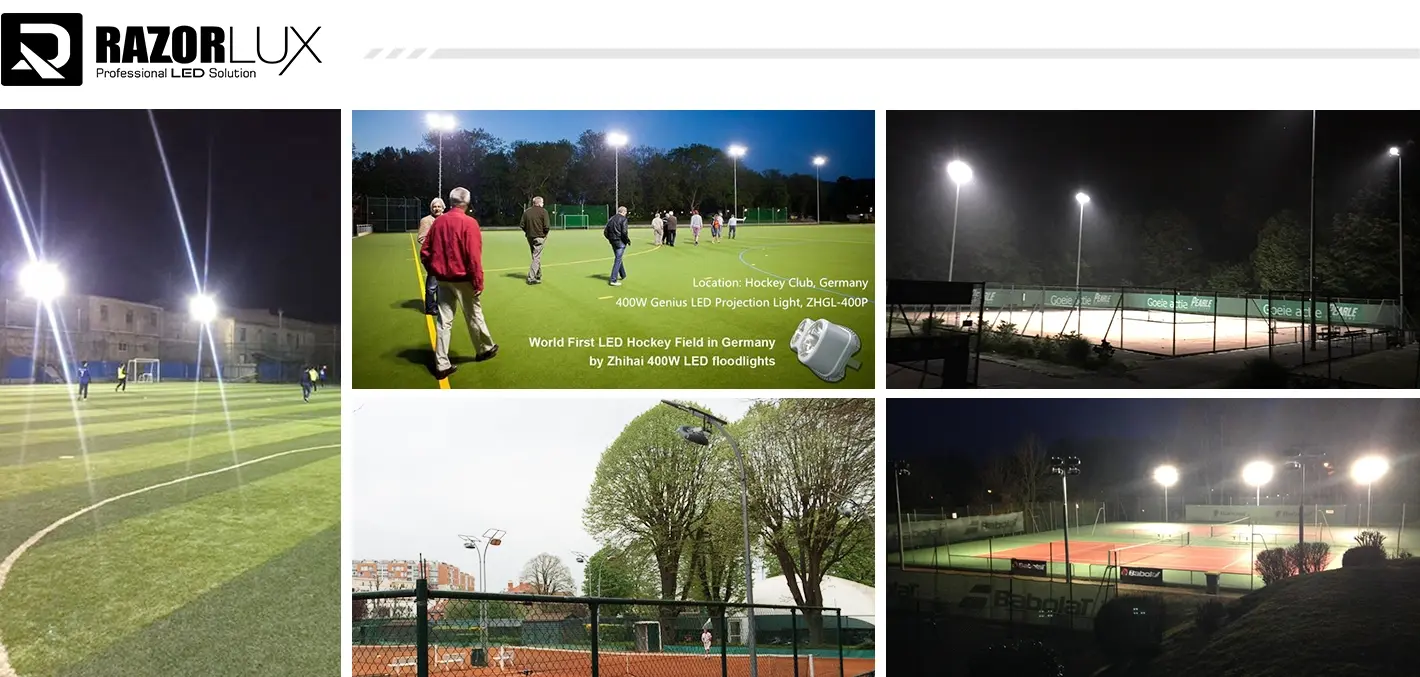

2. Outdoor Multi-Sport Courts

Weather-Resistant Features:

• IP67 seals against rain, tidy, snow
• -40°C cold-start capability
• UV-stabilized components (no yellowing)
• Stainless steel equipment stands up to coastal corrosion

Pole Mounting Guide:

• Pole Height:6-9m (20-30 ft)

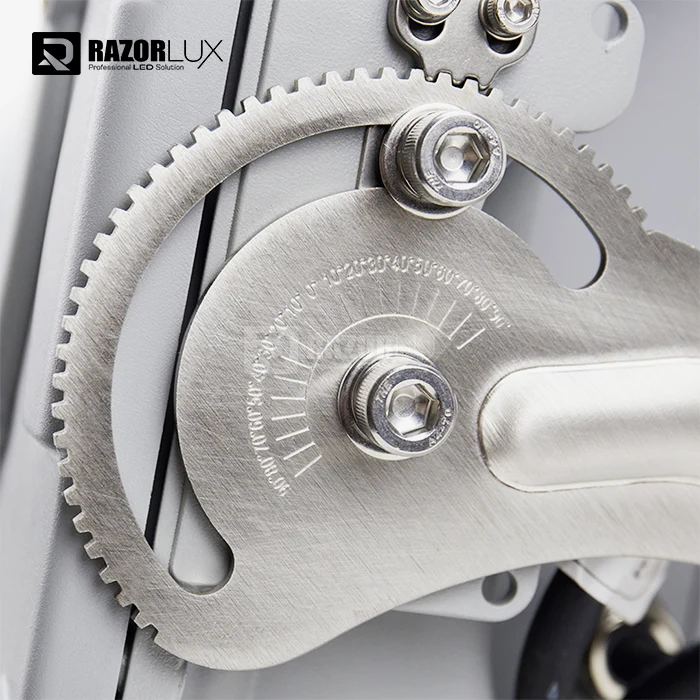

• Fixture Angle:15-25° tilt toward court center
• Spacing:10-15m between poles

Real-World Performance:

Vancouver Parks Board introduced 24 units over 4 open air courts in 2019. After 5 winters, installations keep up 97% of unique brightness with zero water ingress.

3. Training Facilities & Schools

Dimming for Multi-Use Spaces:

• 0-10V analog darkening (standard)
• DALI-2 computerized control (optional)
• Smart planning by means of building administration systems

Eye Safety:

· Flicker-free (<3% at all dimming levels per IEEE 1789)

· Zero UV/IR emissions

· Glare control (UGR <22 when properly aimed)

Budget-Friendly Phasing:

Many schools replace 2-3 fixtures of basketball court light fixture annually to spread costs. Compatible with existing metal halide poles/wiring in most cases.

4. Professional/Broadcast Venues

Enhanced Options for Televised Events:

· High CRI Version:Ra >90 (R9 >50) for true color reproduction

· Flicker-Free Guarantee:<1% at 60fps/120fps recording

· Instant Restrike:Immediate restart after power interruptions

Used By:

· 12 NCAA Division II facilities

· 5 international FIBA-sanctioned courts

· Multiple live-streaming arenas (Twitch, YouTube)

About Razorlux: 18 Years of LED Innovation

Company Background

Xi'an Razorlux Optoelectronic Technology Co., Ltd. began developing industrial LED solutions in2006, growing from a 12-person engineering team to a200+ employeecompany with:

· 78,000 m² manufacturing facility

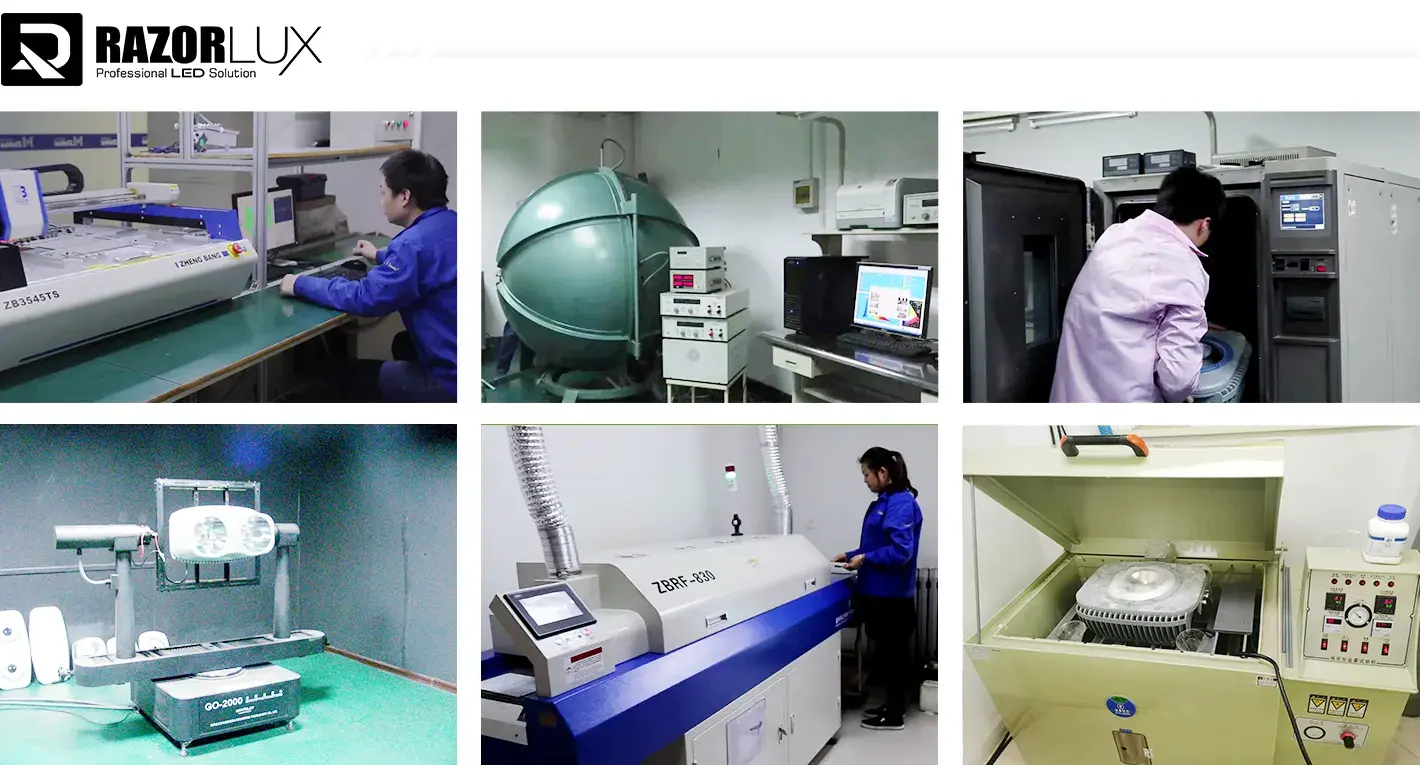

· In-house photometric lab (IES LM-79/80 compliant)

· 50+ granted patents in thermal management and optics

Quality Commitments

· ISO 9001:2015certified since 2001 (recertified 2023)

· 100% testing:Every fixture undergoes 48-hour burn-in

· Supplier to:Fortune 500 infrastructure projects, municipal governments, educational institutions

Sustainability Practices

· Mercury-free manufacturing (unlike fluorescent/HID)

· Recyclable aluminum housings

· Energy savings prevent 12+ tons CO₂ per court over 10 years

Common Questions from Facility Managers

Planning & Design

Q: How do I decide the right number of fixtures?

Use this formula:

Required Installations = (Court Area × Target Lux × 1.25) / (Fixture Lumens × Utilization Factor)

Example:420 m² court, 500 lux target, RL-400 (52,000 lm), 0.65 UF
= (420 × 500 × 1.25) / (52,000 × 0.65) =7.8 fixtures→ Circular up to8 units

Free Service:We give photometric investigation utilizing AGi32/Dialux software.Submit court measurements here.

Q: What pillar point matches my mounting height?

Technical Support

Q: Can I retrofit existing poles/wiring?

Usually yes.Our fixtures work with:

· Standard 120-277V circuits (no transformer needed)

· Existing photocell/timer controls

· Metal halide mogul bases (with adapter plate)

Incompatibilities:

· Older magnetic ballasts (must bypass)

· Undersized wiring (<12 AWG for 400W runs)

Q: What happens if a fixture fails?

5-Year Warranty Covers:

· LED driver replacement (shipped within 48 hours)

· Full unit replacement if unrepairable

· Technical troubleshooting support

Exclusions:Physical damage, incorrect voltage, unauthorized modifications.

Advance Replacement:For critical facilities, we ship replacement before receiving defective unit (credit card hold).

Q: How long do they really last?

L70 Lifespan:50,000 hours (brightness remains >70% of original)

Translation:

· 6 hrs/day =22+ years

· 12 hrs/day =11+ years

· 18 hrs/day =7.6 years

Maintenance:Annual cleaning recommended (soft cloth + mild detergent). No bulb replacements needed.

Get Your Custom Lighting Plan (Free)

Contact Options

For Technical Inquiries:

Contact our basketball court light fixture's team:sam@razorlux.com
