factory overhead lighting
Model No.: RHB-UA-200
Rated Power: 100W, 150W, 200W,240W
Input Voltage: AC85-265V
Color Temperature: 3000-6500K Lamp Efficiency: 120lm/w Beam Angle: 60°, 120°
CRI: Ra>75
IP Grade: IP65
Dimension: Ø280*185 mm(100W), Ø340*187mm (150W), Ø400*196 mm(200W)
Net Weight: 3.8kg, 4.9kg, 6.8kg Certificate: CE, RoHS
Warranty: 5 Years
- Product Description
Professional Factory Overhead Lighting Solutions - Superior LED Technology for Industrial Excellence
Change your mechanical workspace with our factory overhead lighting frameworks. As Xi'an Razorlux Optoelectronic Innovation Co., Ltd., we bring over 25 a long time of lighting skill to provide high-performance Driven arrangements. Our mechanical lighting items include Lumileds and Samsung LEDs with remarkable 135lm/w framework productivity. You get predominant brightening that decreases vitality costs whereas moving forward working environment security and efficiency over all fabricating environments.
Product Introduction
Model RHB-UA-200 Series Specifications:
| Parameter | Specifications |
|---|---|
| Model Number | RHB-UA-200 |
| Rated Power | 100W, 150W, 200W, 240W |
| Input Voltage | AC85-265V |
| Color Temperature | 3000-6500K |
| Lamp Efficiency | 120lm/w |
| Beam Angle | 60°, 120° |
| CRI | Ra>75 |
| IP Grade | IP65 |
| Dimensions | Ø280185mm (100W), Ø340187mm (150W), Ø400*196mm (200W) |
| Net Weight | 3.8kg, 4.9kg, 6.8kg |
| Certifications | CE, RoHS |
| Warranty | 5 Years |
Why Choose Our Factory Overhead Lighting?

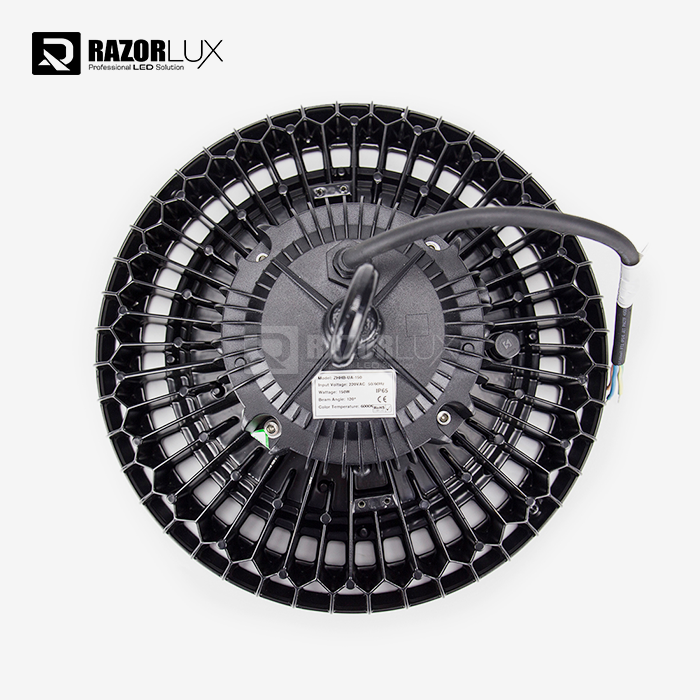

Exterior Meanwell Driver Plan - Our outside driver setup conveys exceptional warm dissemination and streamlined support get to. You can supplant components effectively without disturbing generation schedules.

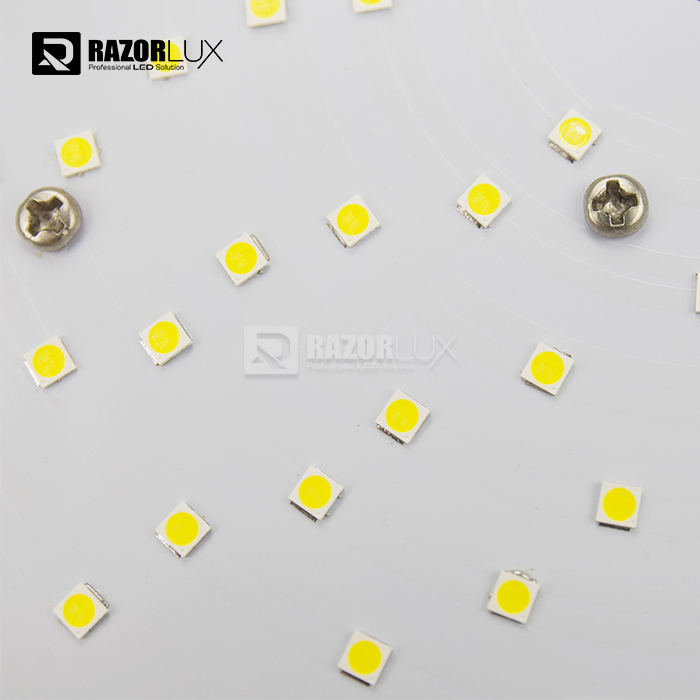

Premium Driven Innovation - We coordinated Lumileds and Samsung LEDs for reliable execution and uncommon life span. These industry-leading chips guarantee dependable operation in requesting mechanical environments.
Superior Vitality Proficiency - With 120lm/w effectiveness, our frameworks essentially decrease power utilization compared to conventional lighting solutions.
Flexible Establishment Alternatives - Numerous pillar points (60°, 120°) suit different ceiling statures and scope prerequisites for ideal light distribution.
Robust Assurance Rating - IP65 rating ensures against tidy and water entrance, making our installations appropriate for challenging mechanical conditions.

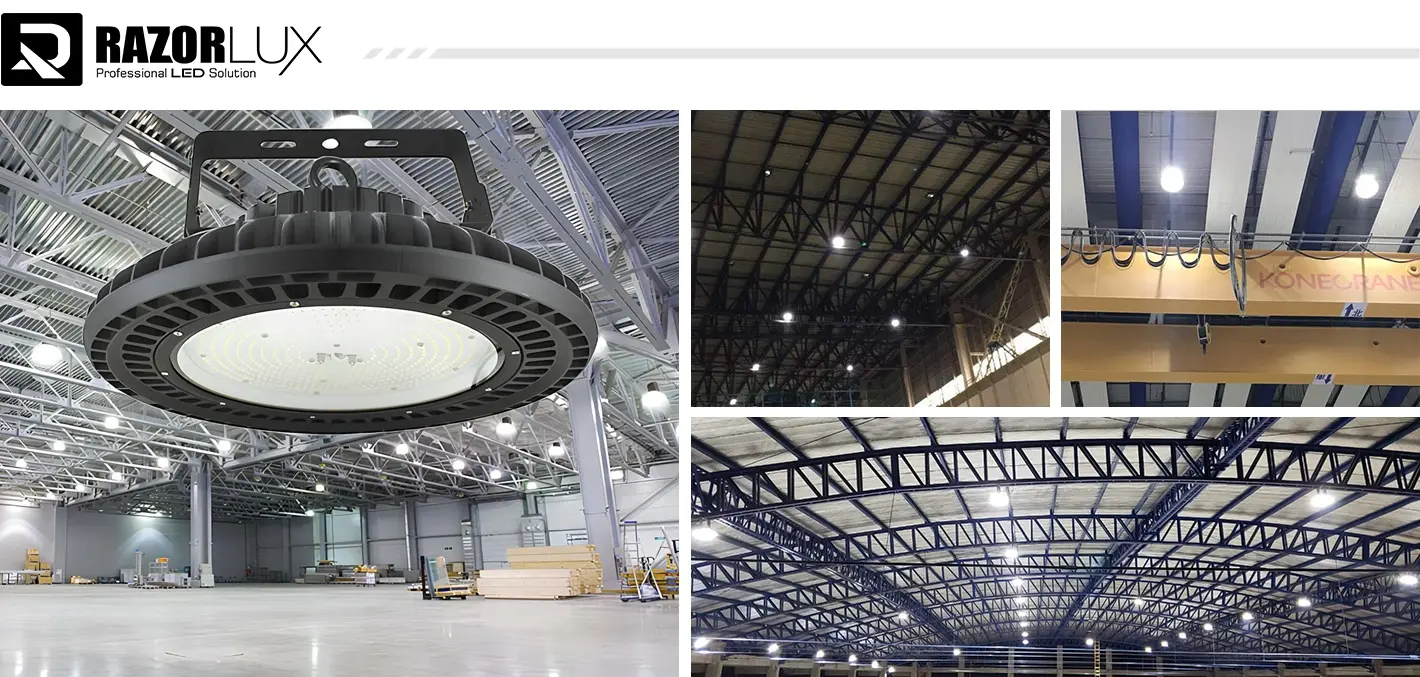

Applications
Our mechanical lighting arrangements serve differing fabricating and commercial environments:
- Manufacturing Offices: Get together lines, generation floors, quality control ranges requiring exact visual errands and reliable light levels
- Warehouses and Conveyance Centers: High-bay establishments for stock administration, picking operations, and fabric dealing with zones
- Automotive Generation: Paint booths, welding stations, review regions requesting tall color rendering and uniform light distribution
- Food Preparing Plants: Clean room situations, bundling lines, review stations assembly cleanliness guidelines and administrative compliance
- Chemical and Pharmaceutical Businesses: Dangerous area lighting for preparing zones, capacity offices, and research facility spaces
- Mining Operations: Underground burrows, handling offices, gear upkeep regions requiring strong, vibration-resistant fixtures
- Sports and Diversion Offices: Indoor courts, exercise rooms, preparing offices requiring glare-free, uniform light for ideal visibility
- Commercial Buildings: Shopping centers, office complexes, stopping structures requiring energy-efficient, long-lasting lighting solutions
Quality Control
Our military-grade quality administration guarantees reliable fabulousness. We keep up ISO9001 certification for 22 sequential a long time since 2001. Each installation experiences comprehensive testing counting warm cycling, vibration resistance, and photometric confirmation. Our quality group executes DFEMA disappointment mode investigation borrowed from car industry standards.
Shipment Samples
We give customized tests for assessment some time recently bulk orders. Test lead time is 7-10 commerce days. You get total specialized documentation counting photometric reports, establishment guides, and compatibility charts. This permits intensive execution evaluation in your particular application environment.
Packaging and Transportation
Each installation ships in defensive froth bundling inside fortified cartons. We offer adaptable shipping alternatives counting discuss cargo, rail transport, and sea shipping. Our streamlined coordinations guarantee secure conveyance around the world with full following capabilities and protections scope for your peace of mind.
| Transportation Time | Shipping Option Details | Recommend Weight |
| 3-7 days | International Express(DHL, FedEx, UPS, TNT, etc.) | 0.5KG-300KG(optimal for cost efficiency under our contarated express rates) |
| 5-10 days | By Air (Airport-to-port or Airport-to-door) | 300KG+(Significantly more economical than express shipping for heavy cargo) |
| 18-22 days | By Rail(China-Europe Railway Express) | 2CBM/500KG+(More economical than air freight for large shipment with flexible timelines) |
| 15-50 days | By Sea(FLC/LCL) | 2CBM/500KG+(Much more economical than rail,suit for non-urgent cargo, also the most cost-effective shipping method) |
Transaction Feedback
Customer fulfillment drives our nonstop enhancement prepare. We esteem your input all through each exchange stage. Our group effectively takes after up to guarantee item execution meets desires and addresses any concerns expeditiously for long-term association success.
After Sales Service
We stand behind our items with comprehensive bolster. Your 5-year guarantee covers fabricating abandons and component disappointments. Our specialized group gives inaccessible diagnostics, investigating direction, and substitution portion coordination. We keep up broad save parts stock for quick reaction to benefit requests.
Qualification Certification
Our factory overhead lighting meet universal measures with CE and RoHS certifications. Extra certifications incorporate UL (North America), TÜV (Europe), and SAA (Australia). We too hold RMRS certification for marine applications, illustrating our commitment to specialized industry necessities.
FAQ
Q: What's the expected lifespan of these lighting fixtures?
A: Our LED systems provide 50,000+ hours of operation under normal conditions. With typical 12-hour daily usage, you can expect 10+ years of reliable service.
Q: Can I dim these industrial lights?
A: Yes, we offer dimming options including 0-10V and DALI systems. Please specify dimming requirements when ordering for proper driver configuration.
Q: How do I determine the right wattage for my facility?
A: We provide lighting design services including lux calculations and layout recommendations. Share your facility dimensions and requirements for customized recommendations.
Q: What maintenance is required for these fixtures?
A: Minimal maintenance needed. Periodic cleaning of lens surfaces and visual inspection of mounting hardware. The external driver design allows easy component access if service is required.
Q: Do you offer custom mounting solutions?
A: Absolutely. We provide various mounting brackets, chains, and pendant options. Our engineering team can design custom mounting solutions for unique installation requirements.
Contact Us
Ready to upgrade your industrial lighting? Connect with our lighting specialists for personalized recommendations and technical support.
Email: sam@razorlux.com
Let us help you create an efficient, well-lit workspace that enhances productivity and safety while reducing operational costs through advanced factory overhead lighting technology.
